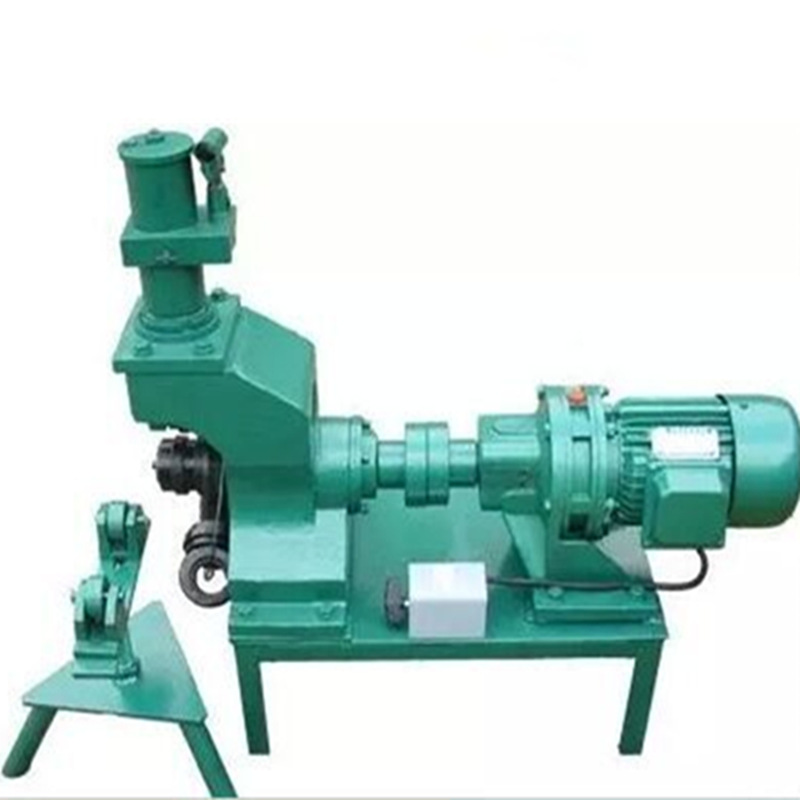

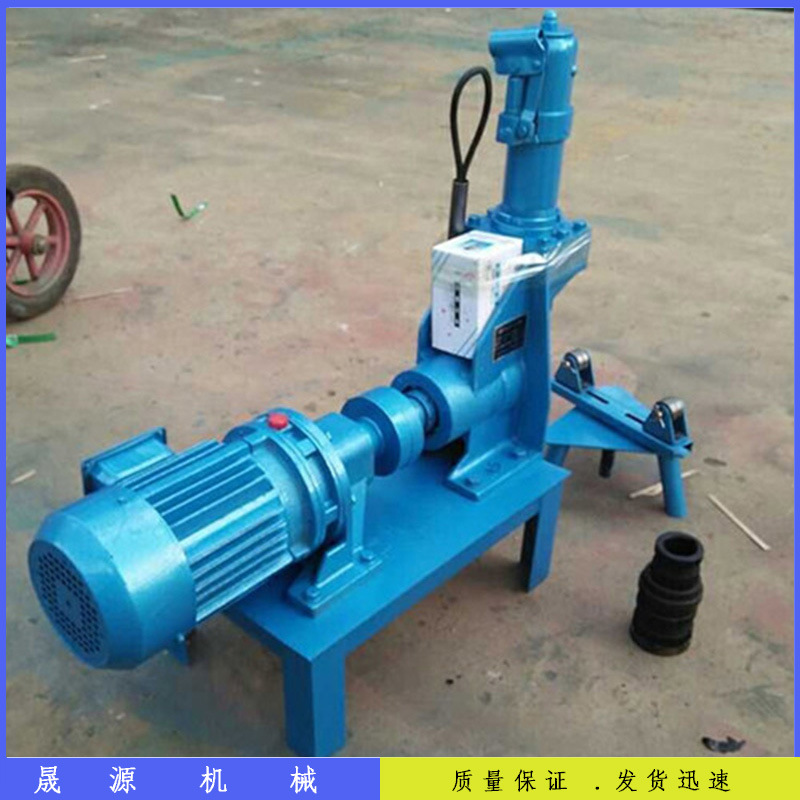

Product: A large number of wholesale electric hydraulic pressure groove…
1. The online quotation is not allowed. Please call the contact phone number for specific product prices.
2. Due to different product production batches and specific models, the above pictures are for reference only. For details, please contact our business personnel for specific verification.
Sales Manager: Ms. Su welcome you to inquire

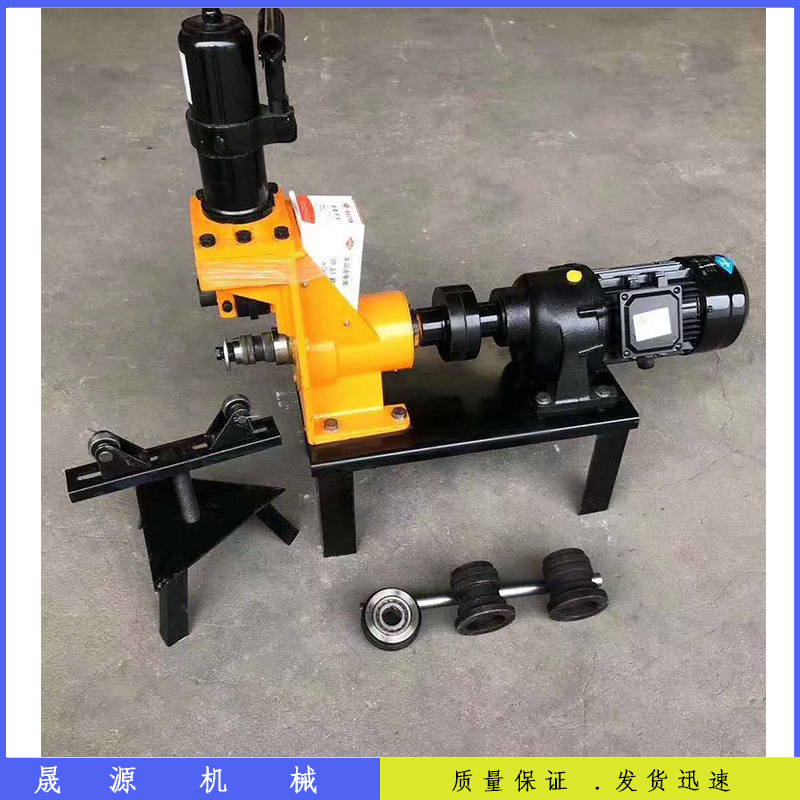

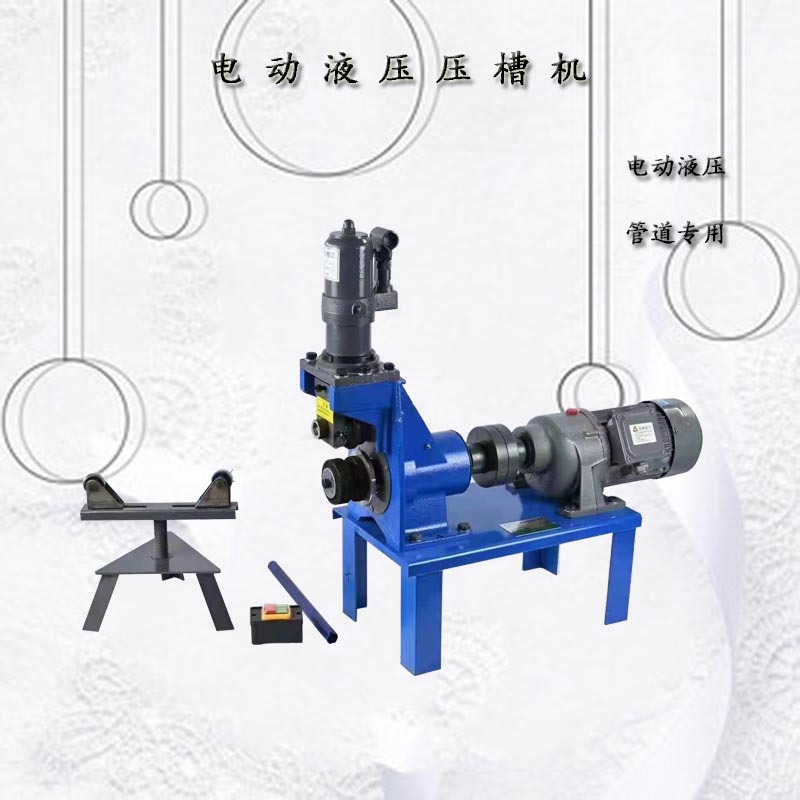

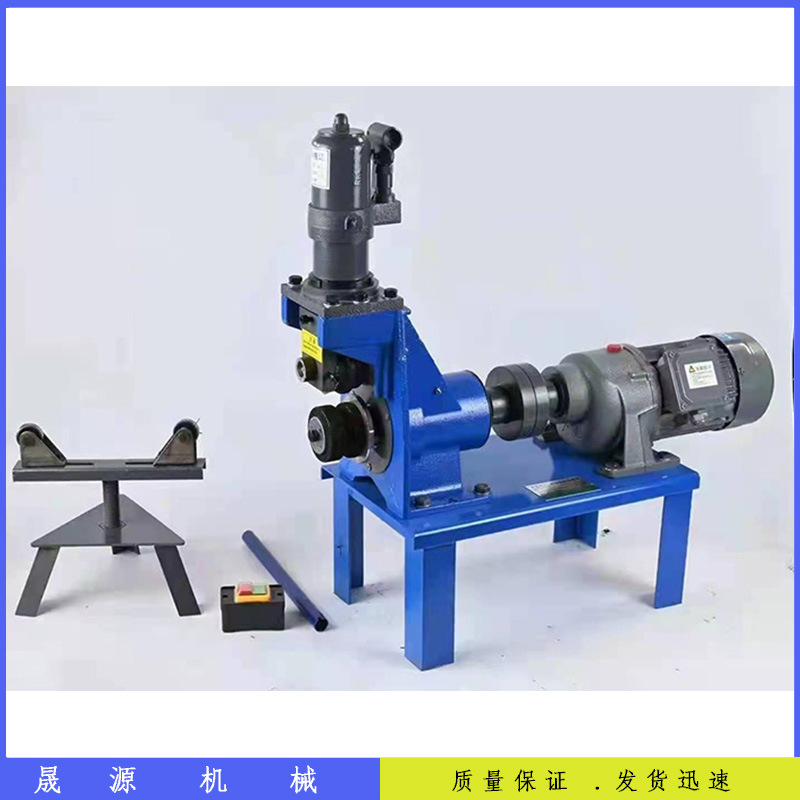

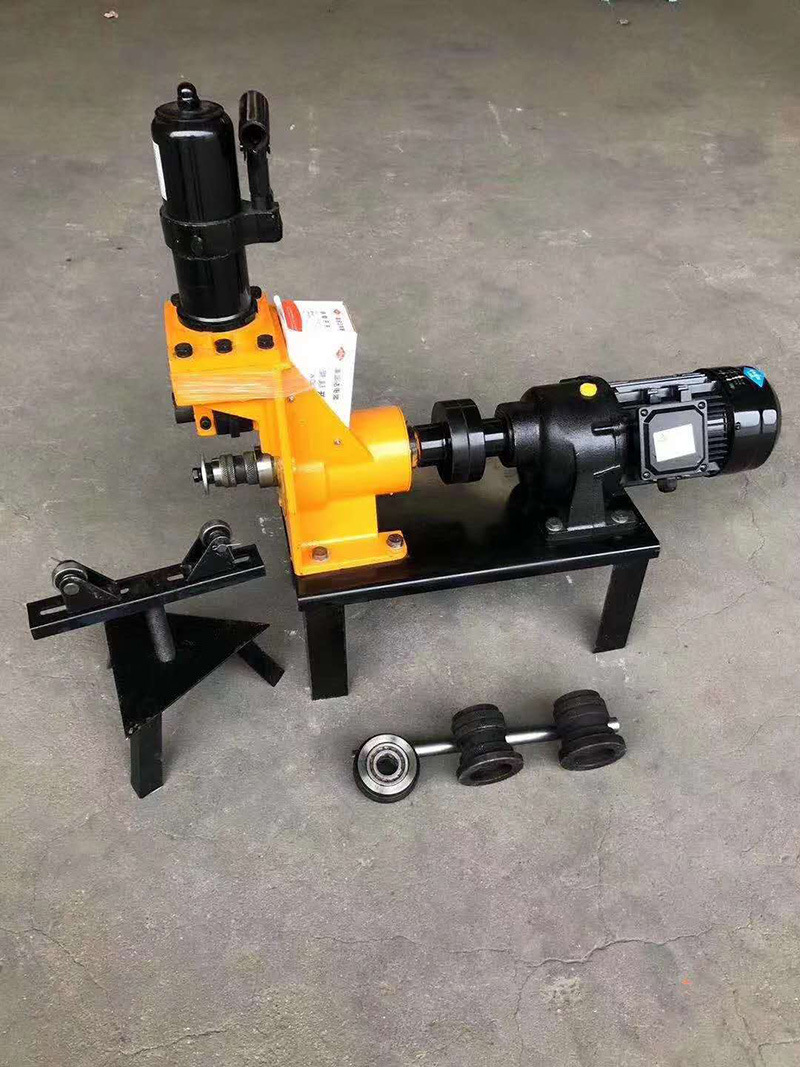

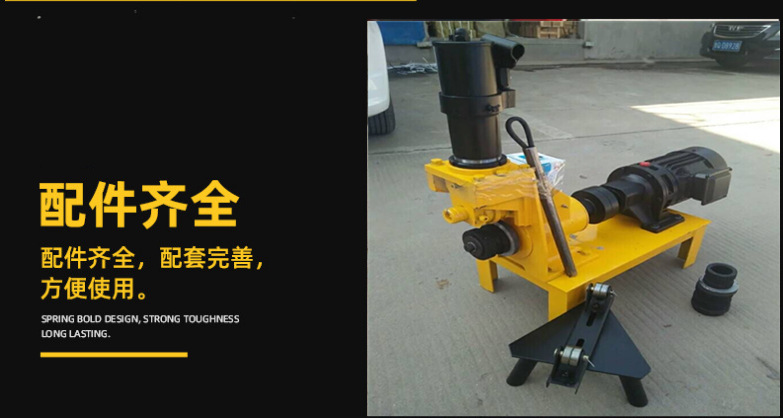

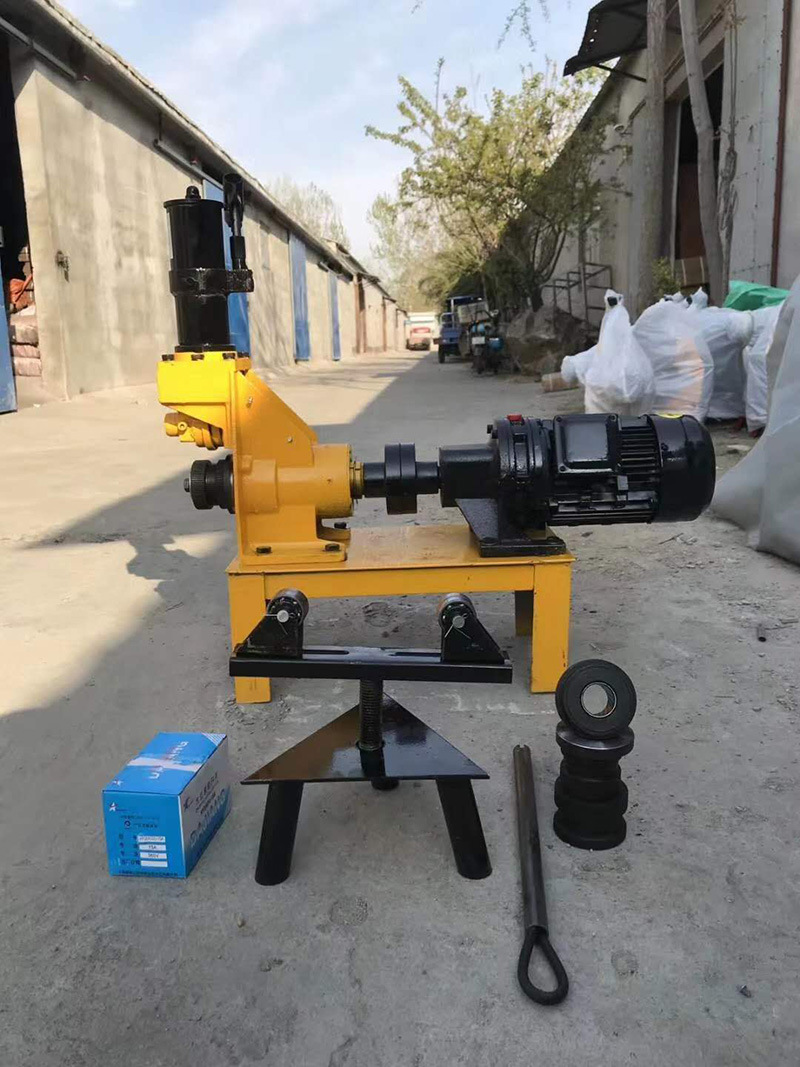

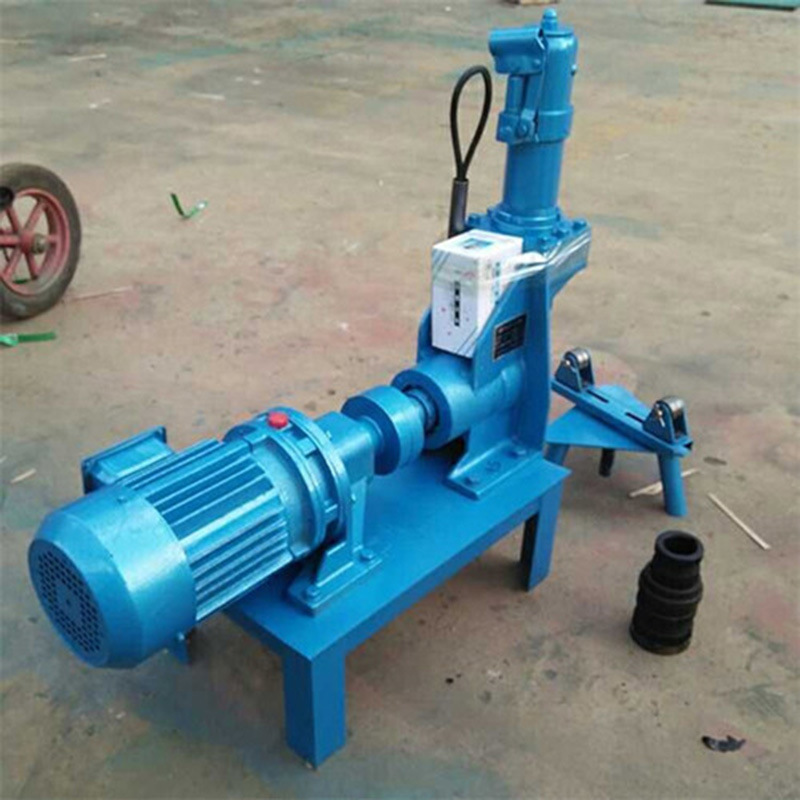

SYYC-219 Electric Hydraulic Grooving Machine Hydraulic Rolling Grooving Machine 168 Rolling Grooving Machine Multi-model Rolling Grooving Machine
The groove machine is a special tool for pre -processing the pipeline when using the groove pipeline as a pipeline connector
Fire pipe grooving machine Electric hydraulic grooving machine Galvanized pipe rolling grooving machine manufacturer
Electric hydraulic pressure groove machine cost -effective high -fire pipeline roller 168 type 325 groove machine
When the groove is used as a pipeline connector using the groove pipeline,Special tools for pre-processing pipe fittings
Model | SYYC-219 | SYYC-325 |
Processing capability | Pipe diameter 76mm-219mm | Pipe diameter 76mm-325mm |
Large wall thickness | 6mm | 6mm |
Motor | 50hz 0.75kw | 50hz 1.5kw |
Product voltage | 380v | 380v |
Net weight | 55kg | 75kg |
gross weight | 65kg | 85kg |
Package Size | 850*580*400mm | 950*780*600mm |

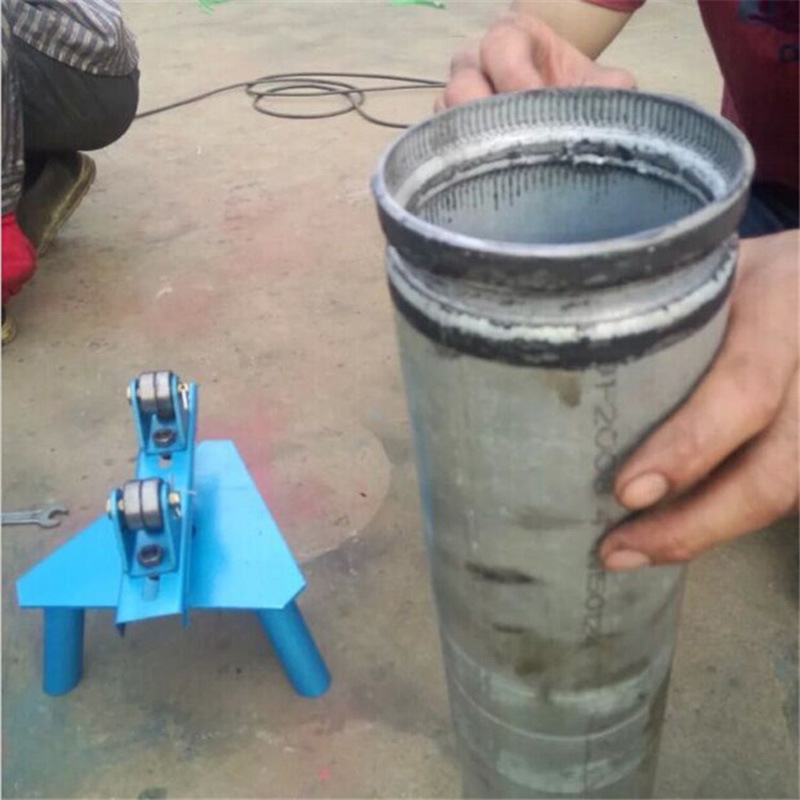

Product use: The groove machine is a special tool for handling the pipe when using the groove joint as a pipeline connector.The working principle is that the concave wheels that rotate rotate drive the tube rotation, and the convex wheels slowly slowly press the tube under the action of the oil cylinder, thereby forming the required grooves to prepare for use.Can be used for installation of pipelines such as fire protection, tap water, and mines.
Structure of the grooving machine: The casing of the machine is made of HT250 cast iron, the main shaft is made of 40Cr quenched and tempered, the front end is a double inclined roller bearing, and the power is a 1.5 kilowatt motor. The structure is reasonable and durable.
Product use: The groove machine is a special tool for handling the pipe when using the groove joint as a pipeline connector.The working principle is that the concave wheels that rotate rotate drive the tube rotation, and the convex wheels slowly slowly press the tube under the action of the oil cylinder, thereby forming the required grooves to prepare for use.Can be used for installation of pipelines such as fire protection, tap water, and mines.
Structure of the grooving machine: The casing of the machine is made of HT250 cast iron, the main shaft is made of 40Cr quenched and tempered, the front end is a double inclined roller bearing, and the power is a 0.75 kilowatt motor. It has a reasonable structure and is durable.
Based on the principles of honesty and trustworthiness, the company's mutual benefit and mutual benefit to go hand in hand, seeking development, welcome calls to negotiate and purchase.
