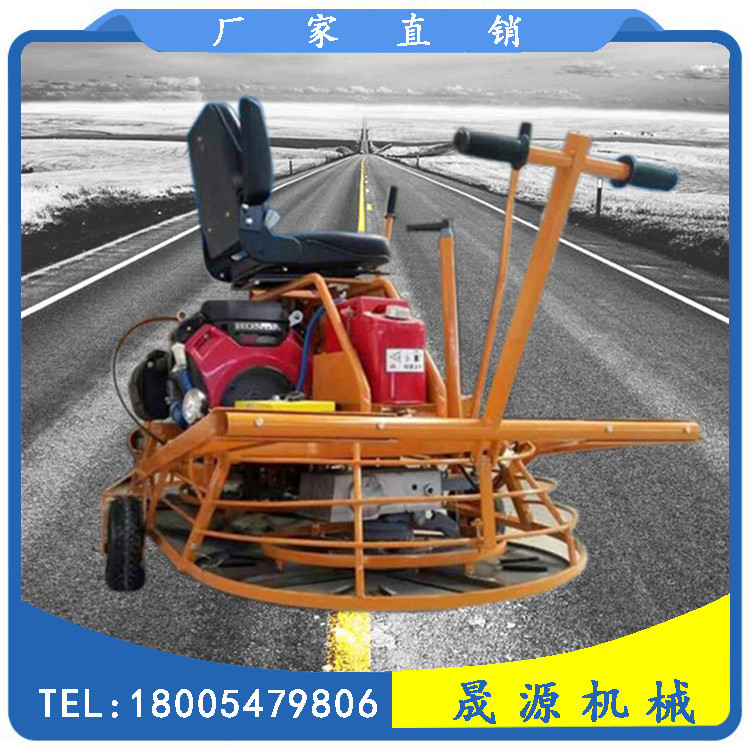

Product: Driven dual -disk concrete light machine large gasoline ground rally…
1. The online quotation is not allowed. Please call the contact phone number for specific product prices.
2. Due to different product production batches and specific models, the above pictures are for reference only. For details, please contact our business personnel for specific verification.
Sales Manager: Ms. Su welcome you to inquire
Order hotline: 18005479806

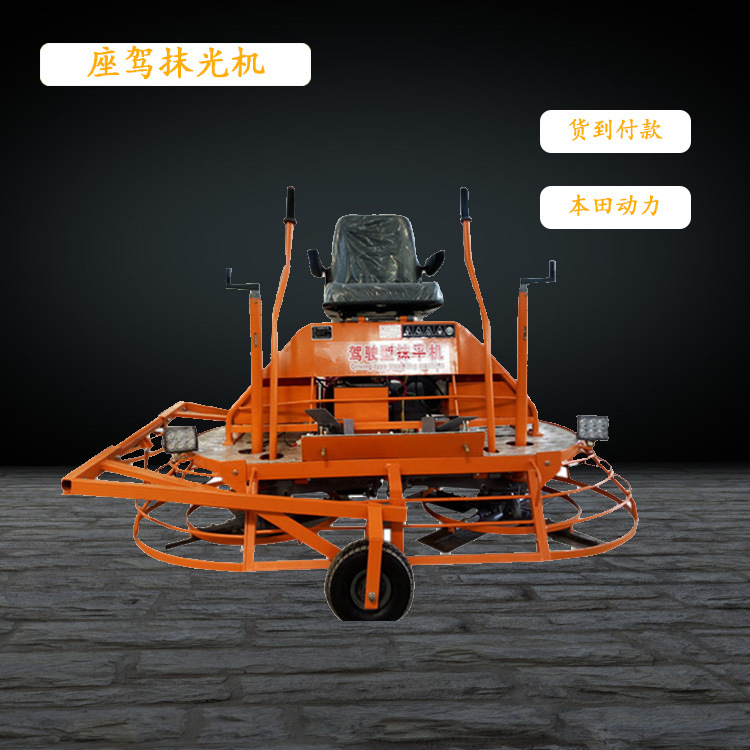

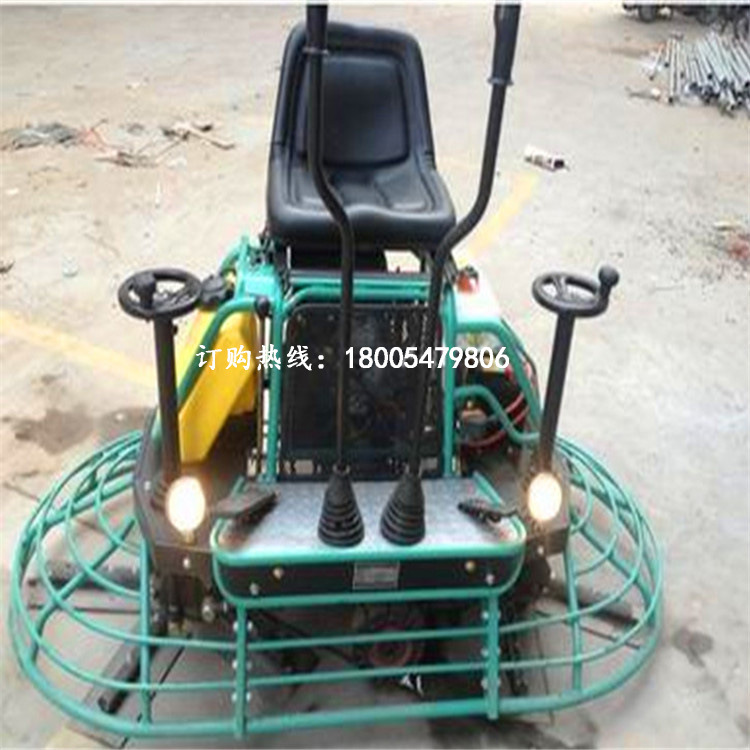

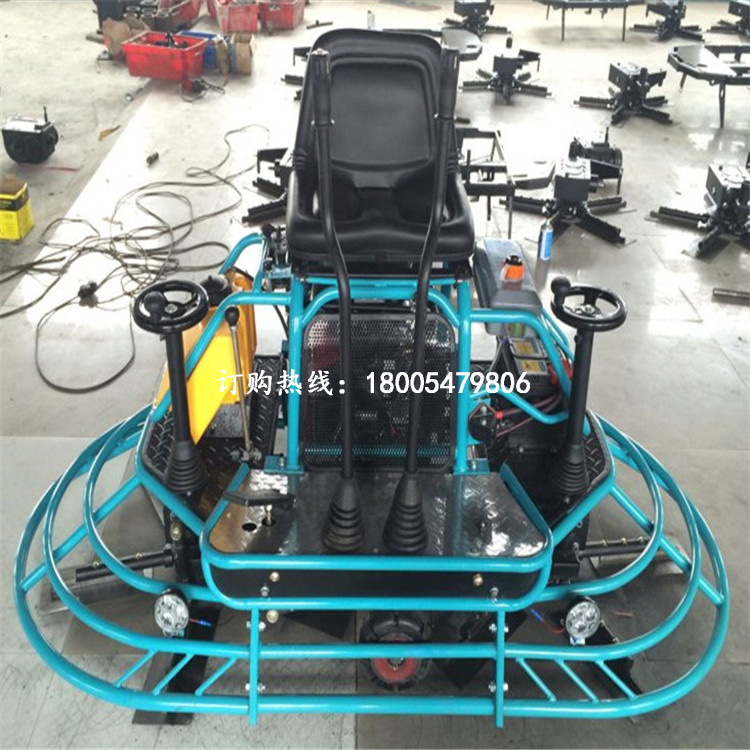

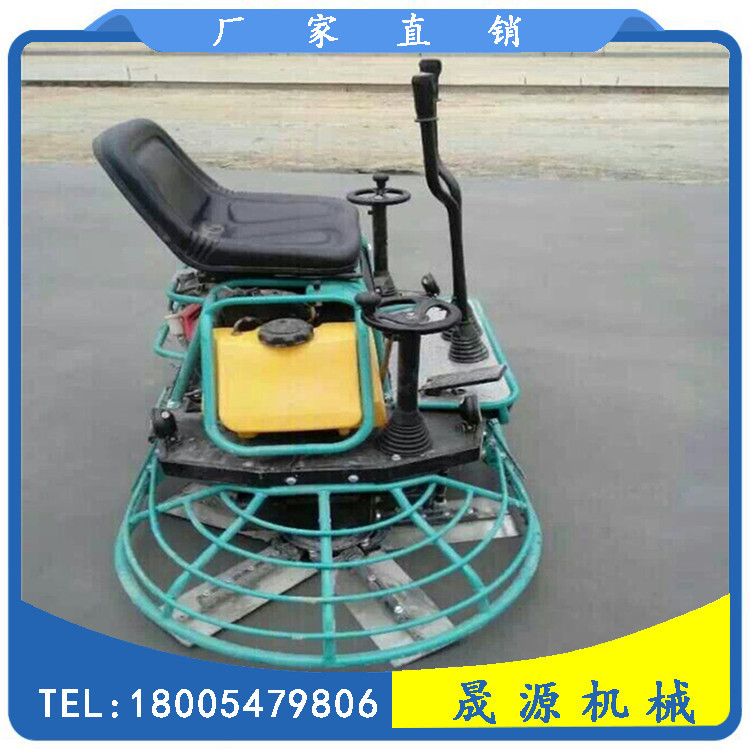

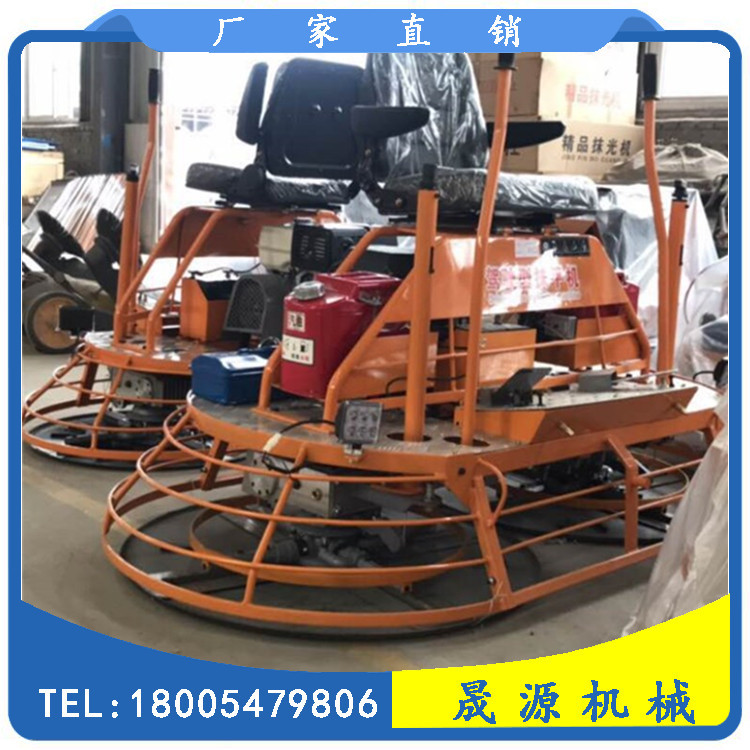

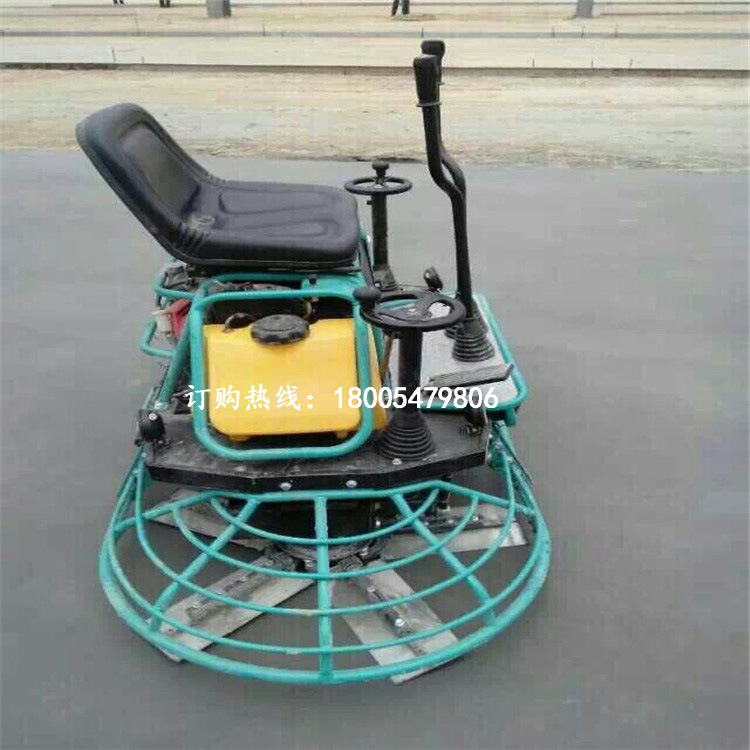

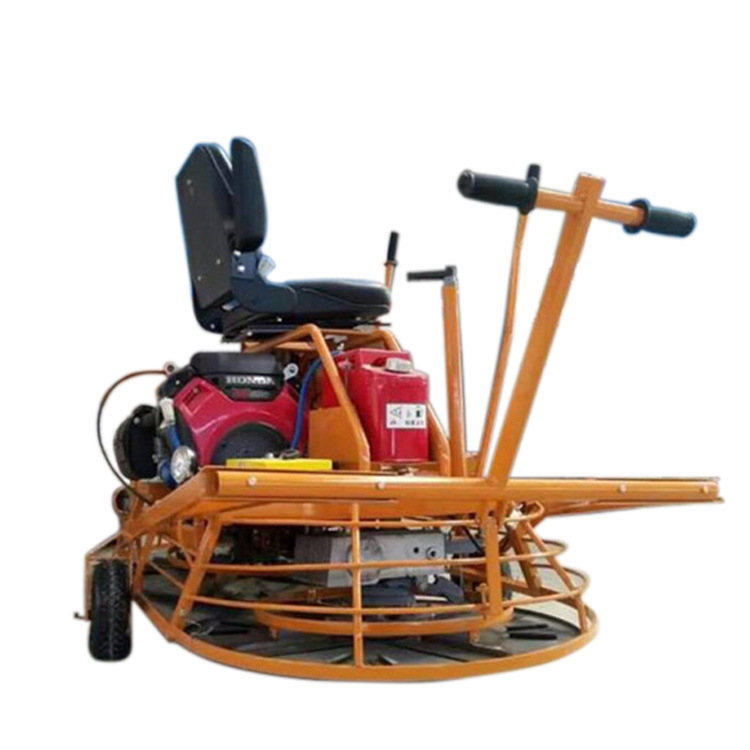

Driven dual -disk concrete light machine large gasoline ground rally coated concrete pavement light machine manufacturer
The ground light machine is also called a cement light machine. Its main structure is a gasoline -driven wipe -driven rotor. There are 10 scratching knives in the bottom of the cross in the middle of the rotor.The tilt direction of the wiping knife is consistent with the rotation direction of the rotor. The gasoline engine drives the triangular belt to rotate the knife rotor.When operating, first fire, hold the handle handle, and push forward together to move forward, and move backwards together.You can do 100 to 300m2 per hour.It is a kind of concrete surface and refined light machine.The surface of the machine construction is smoother and flatter than the surface of the artificial construction, which can greatly improve the density and abrasion resistance of the concrete surface.It can be widely used in high -standard factories, warehouses, parking lots, squares, airports, and frame buildings on the surface of concrete surfaces.It is a machine in concrete construction.

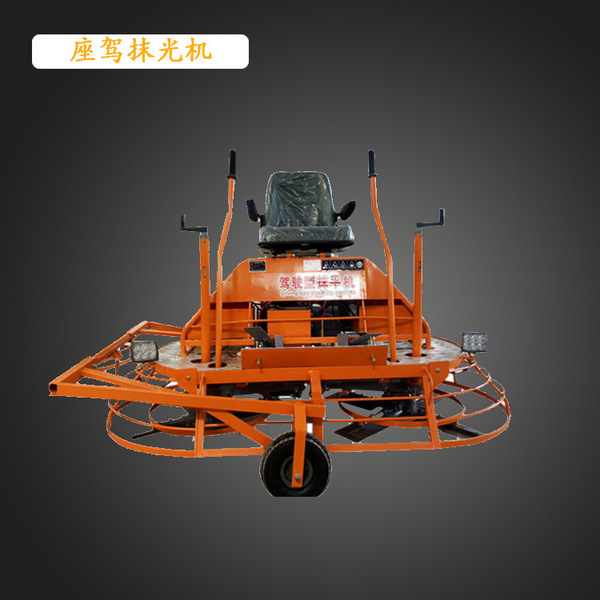

1. Driver -type light machine characteristics: It is mainly for the construction of large -scale cement floor and professional ultra -flat ground. Compared with the hand -type wiper, the construction work efficiency and construction quality are significantly improved. The enhanced transmission and clutch are greatly large.Improve the reliability of the machine. The operation is simple and fast.
2. Driver -type light machine: driver -type light machine
3. Parameter of driving rally machine:
Model | SYS-20HP | SYS-22HP | SYS-24HP |
motivation | GX630 | Chongqing Lifan | GX690 |
Blade size | 2*150*320mm | 2*150*320mm | 2*150*320mm |
Number of blades | 10 | 10 | 10 |
Leaf pore distance | 60-120mm | 60-120mm | 60-120mm |
Diameter | 900mm | 900mm | 900mm |
Machine size | 198*155*105cm | 198*155*105cm | 198*155*105cm |
Self -respect | 400kg | 400kg | 400kg |
Resist | 60-110r/min | 60-110r/min | 60-110r/min |
High -end plastering speed | 110-160r/min | 110-160r/min | 110-160r/min |
Operation method | Ride-on | Ride-on | Ride-on |
Launching | Electric startup | Electric startup | Electric startup |
Ran fuel tank volume | 20L | 20L | 20L |
Oil capacity | 1.5L | 1.5L | 1.5L |
Dynamic | Double cylinders, wind and cold 4 strokes, OHV | Double cylinders, wind and cold 4 strokes, OHV | Double cylinders, wind and cold 4 strokes, OHV |
automatic water spray | Yes | Yes | Yes |
illumination | Yes | Yes | Yes |
Walking wheel | Lifting | Lifting | Lifting |
Type of deceleration | Exemption | Exemption | Exemption |
Working temperature of the deceleration box | 20-36 degrees | 20-36 degrees | 20-36 degrees |
4 Driver -type light machine function:
Used to lift, compact, flatten, and wipe on the concrete floor.Compared to the hand -supported light machine, the efficiency is extremely high.
5. Product characteristics:
Equipped with HONDA gasoline engine, quality assurance, excellent performance, easy start;
The gearbox large model design, aluminum alloy box, exemption, long service life;
The light knife supports the arm, and the large -diameter carbon structure steel with strict heat treatment can be used to adapt to the barbaric operation of individual workers;
Scientific design of centrifugal clutch transmission institutions with large transmission torque, long service life, and convenient maintenance;
The design of the low center of gravity makes the machine run smoothly and flexibly;
Surface spray plastic, beautiful and beautiful, rust -proof and corrosion resistance.
