Low-voltage DC12-24V/36V boost constant current LED fluorescent…

★★★★★5/50 SOLD

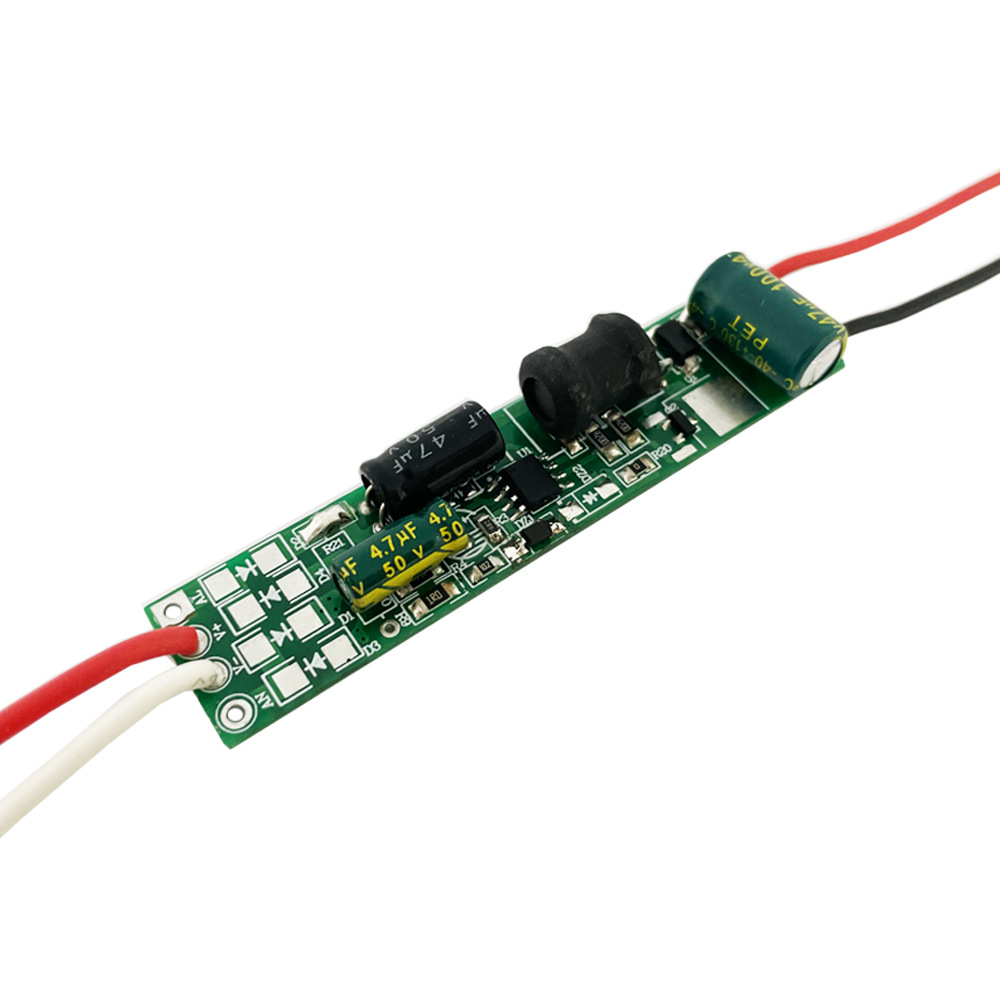

Low-voltage DC12-24V/36V boost constant current LED fluorescent power supply, output DC12-100V 50-350ma
80.00৳1 or more
72.00৳500 or more
65.60৳1000 or more

Product: Low-voltage DC12-24V/36V boost constant current LED fluorescent…

Choose product optionPriceQuantity
98%
Seller: djyoke2014Visit Seller Store
Product 5/5
Level 0/5
Service 5/5
Delivery 2.8/5
OriginShenzhen
Whether To ImportNo
Order NumberDC/DC-4-40W-NZ
BrandDjyoke/Dejian Youke
ModelDC/DC-4-40W-NZ
Item CodeDC/DC-4-40W-NZ
TypeA constant current source
Input Voltage36
Input Frequency50/60hz
Surge Current400mA
Output VoltageDC9-100V
Output Current110/220/300ma
Efficiency0.76
Electromagnetic CompatibilityCompatible
Power Factor0.65
ProtectiveOverload protection
ProtectiveShort circuit protection
ProtectiveOvervoltage protection
ProtectivePremium protection
ProtectiveOver current protection
Installation LocationBuilt -in
Operating Temperature-18 ~ 60 ℃
Applicable LampsLED daylight lamp, travel lights, bulb solar-powered
Overall Dimensions ( L* W* H)69*15*12mm
Warranty2 years
Weight8.5g
Output Power110mA DC12V-100V (Customized 50-150mA)
Output Power220mA DC12V-100V (160-240ma can be customized)
Output Power300mA DC12V-100V (2050-350mA can be customized)
( Cross Border Trading)No
SeriesDCDC series
Product TypeA constant current source
Maximum Output Power80W
Maximum Output Current400mA
Size69*15*12mm
Small Bag, Pack100

Product parameter 1

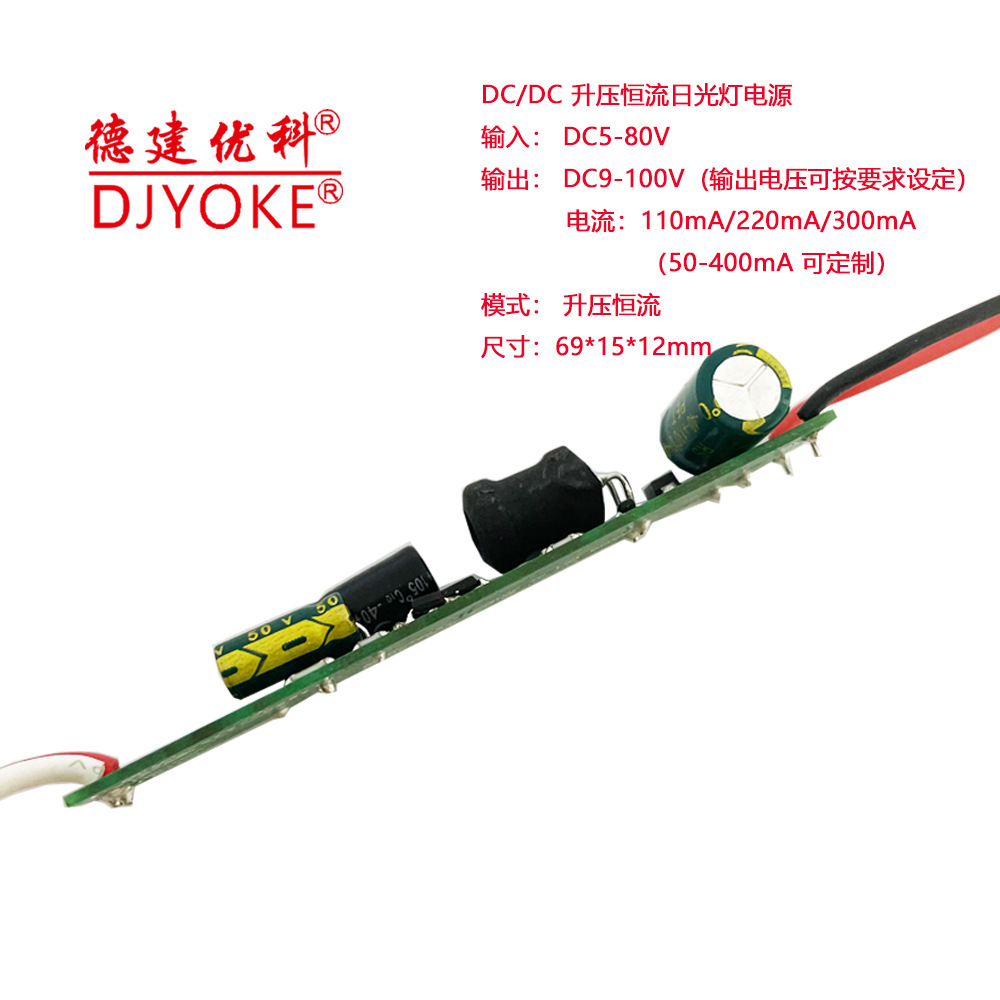

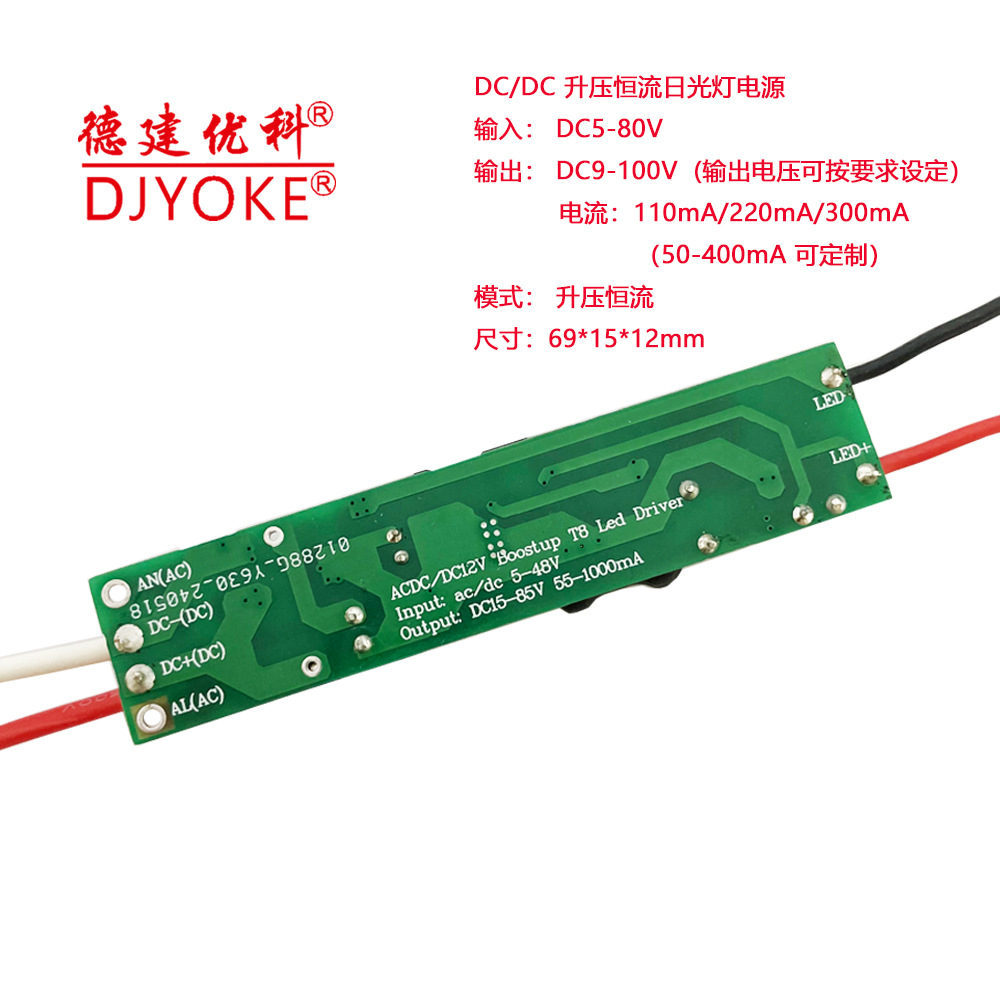

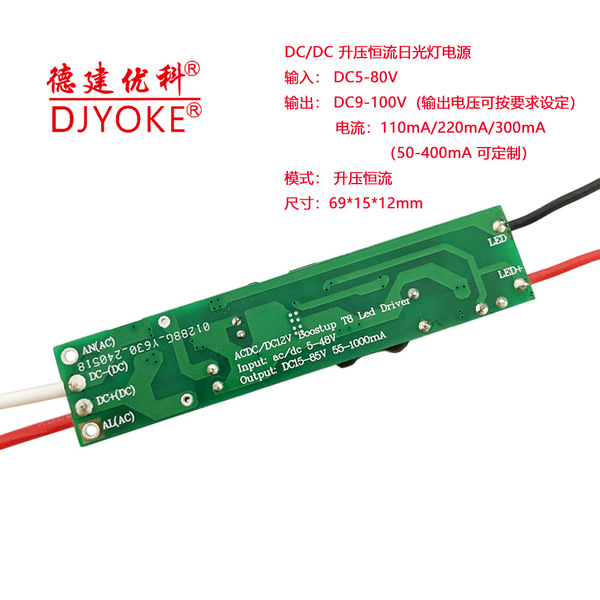

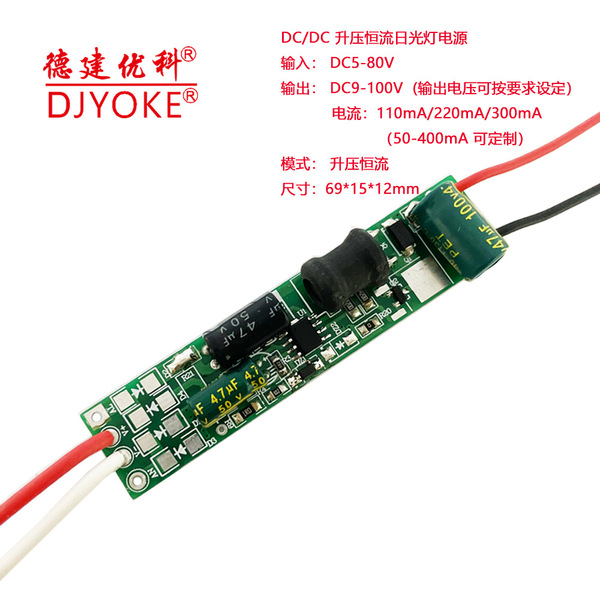

                          【Product name】 Low voltage fluorescent lamp power supply, DC/DC boost fluorescent lamp power supply

                 【   lose enter 】DC5-DC80V

                 【   lose out 】DC9-100V    (The output voltage can be set as required)

                                   Current: 110mA/220mA/300mA (50-400mA Current can be customized)

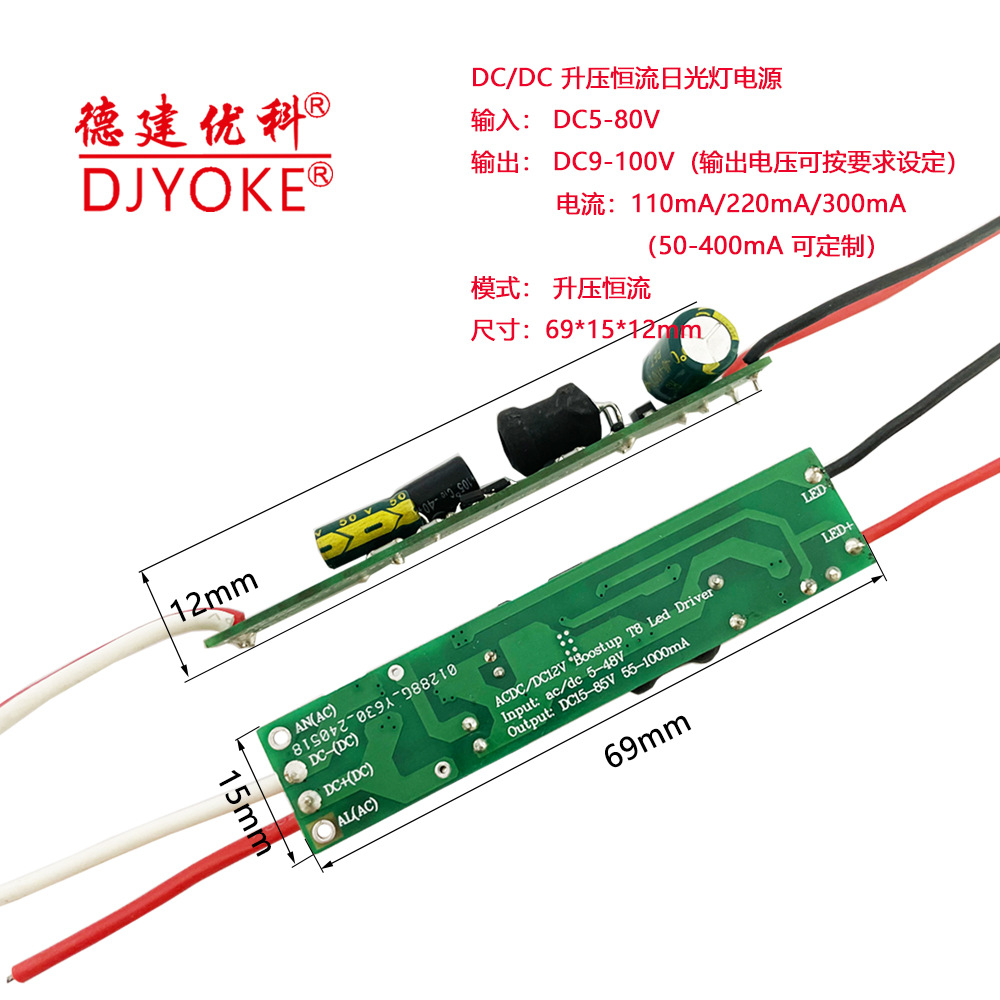

                 【Product Size】 69*15*12mm

                 【   Heavy quantity 】8.5g

                 【   model Mode 】Boost constant current

                 【Working temperature】 -18 ~ 60 ℃

                 【Storage temperature】 -25 ~ 75 ℃

                 [Product use] Low -voltage input shooting lights, ball bubbles, LED solar lights, outdoor solar lamps

                 [Wiring instructions] The input is DC and cannot be reversed.

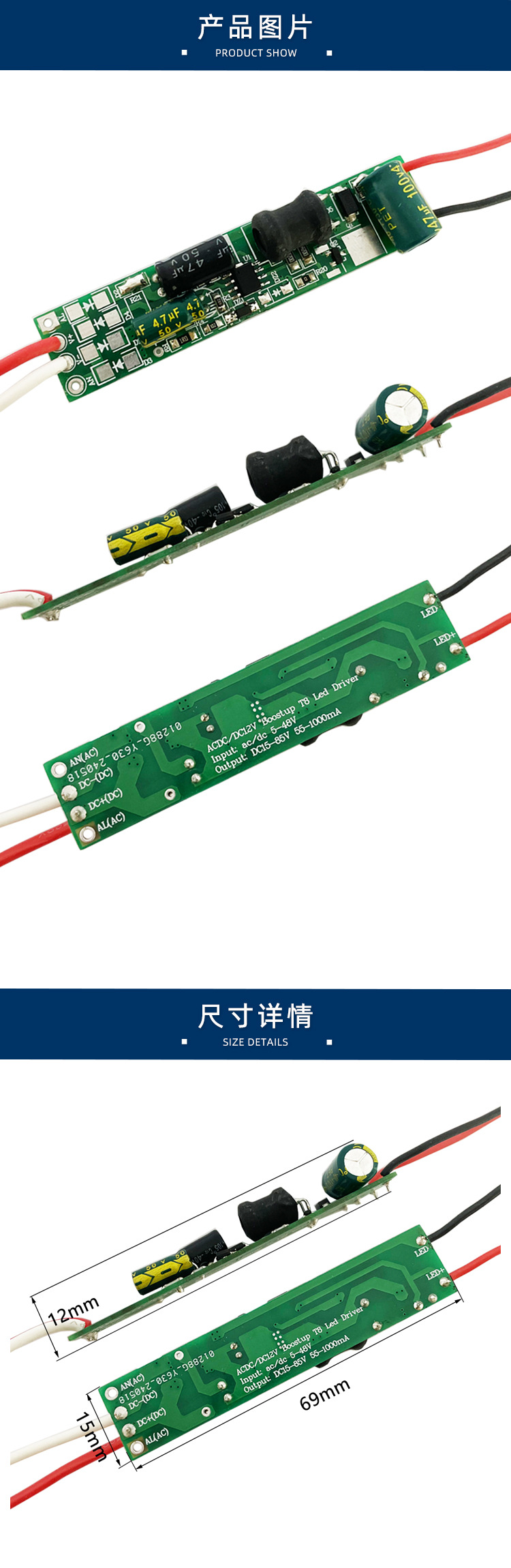

Product picture. Jpg
