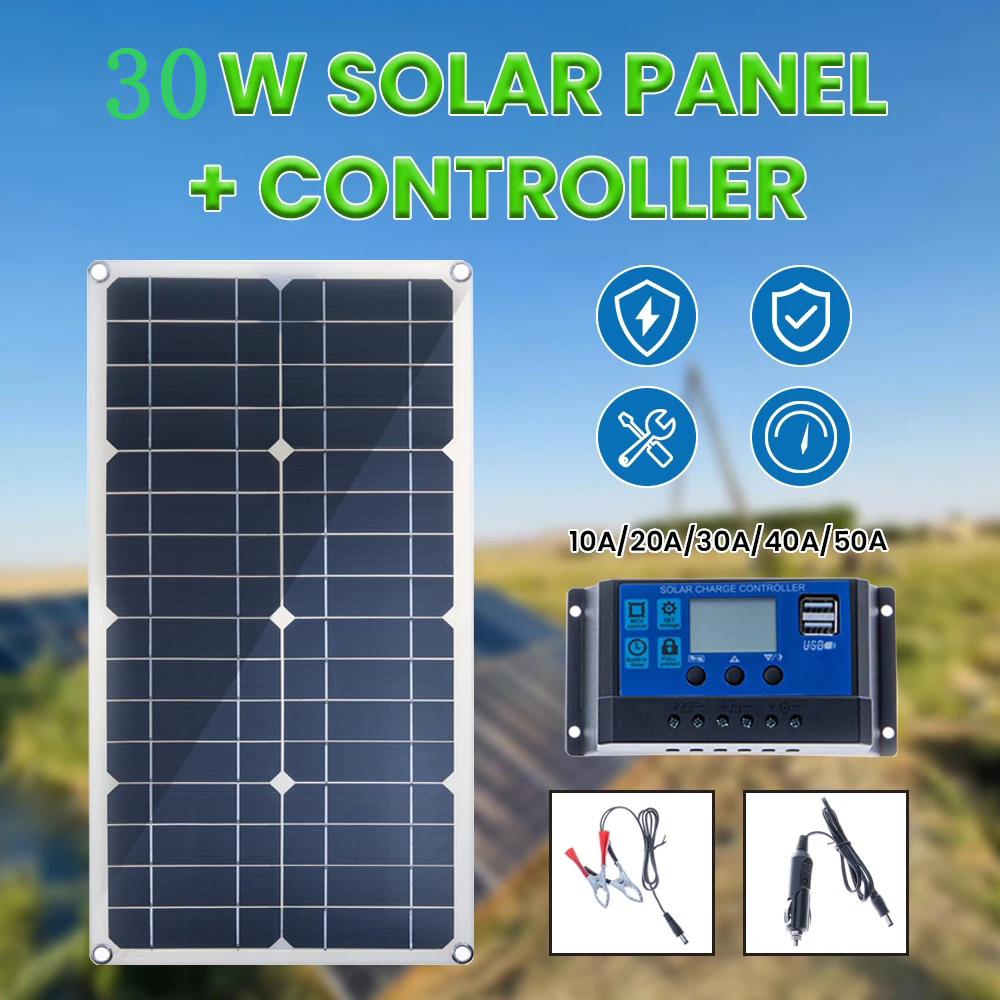

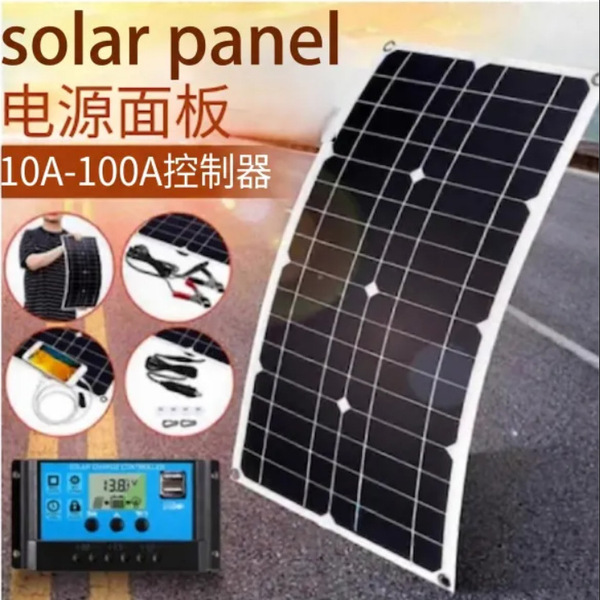

Photovoltaic travel power supply solar-powered charging

 All products do not include transportation and no taxes

Features:

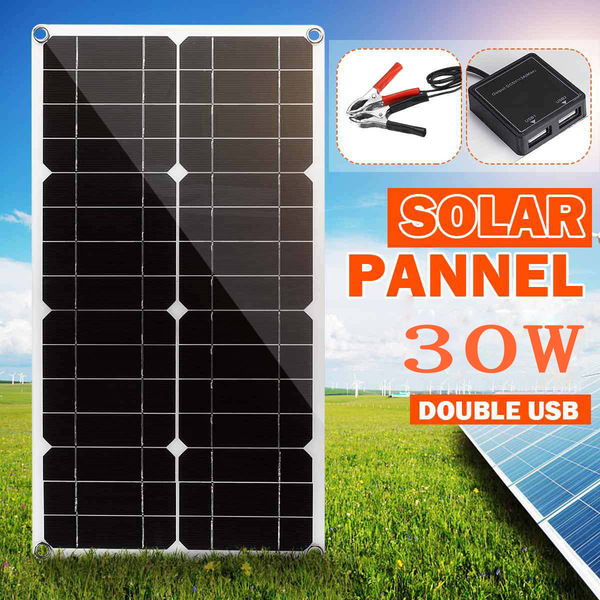

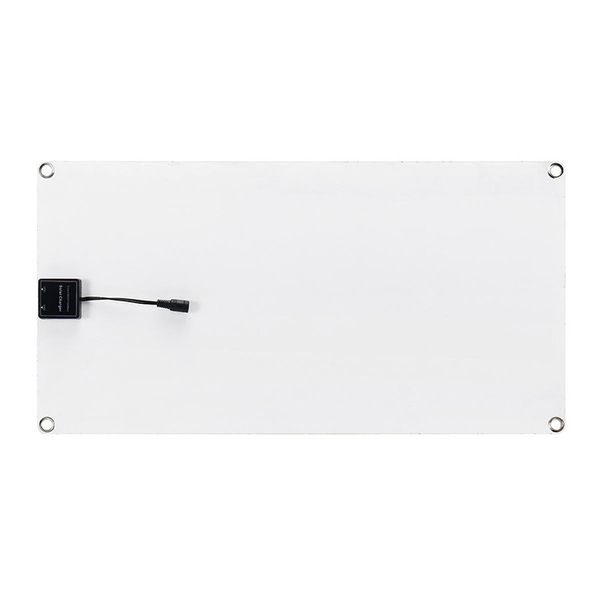

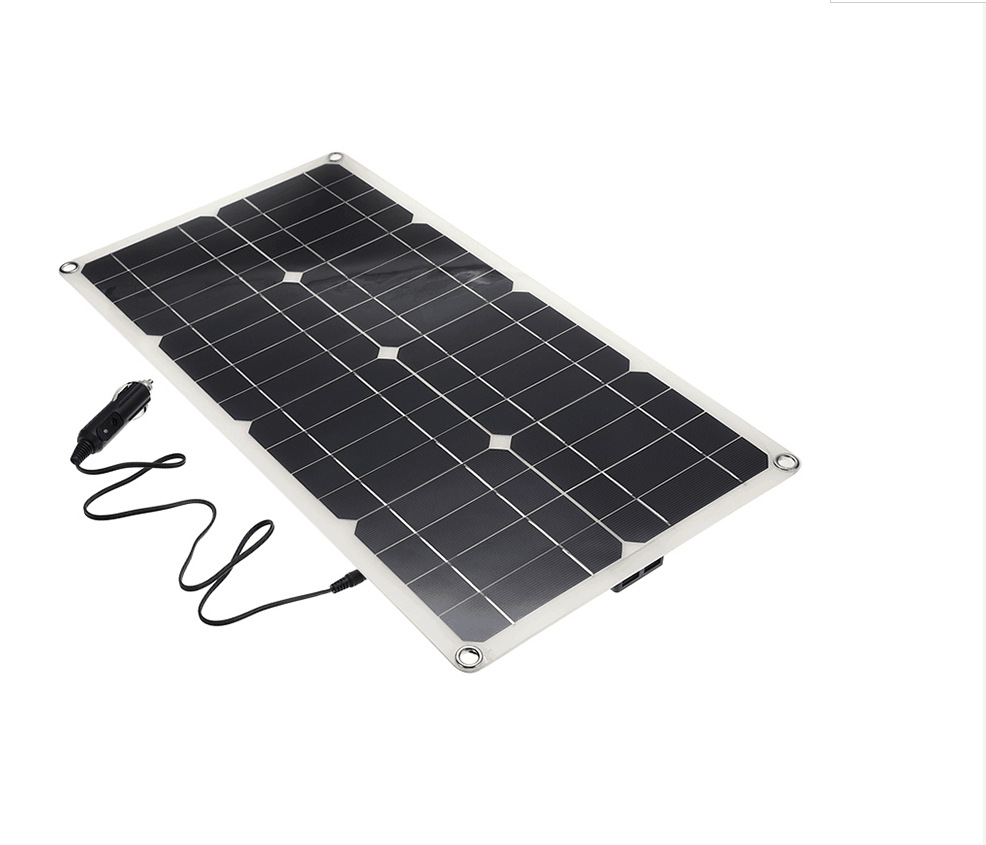

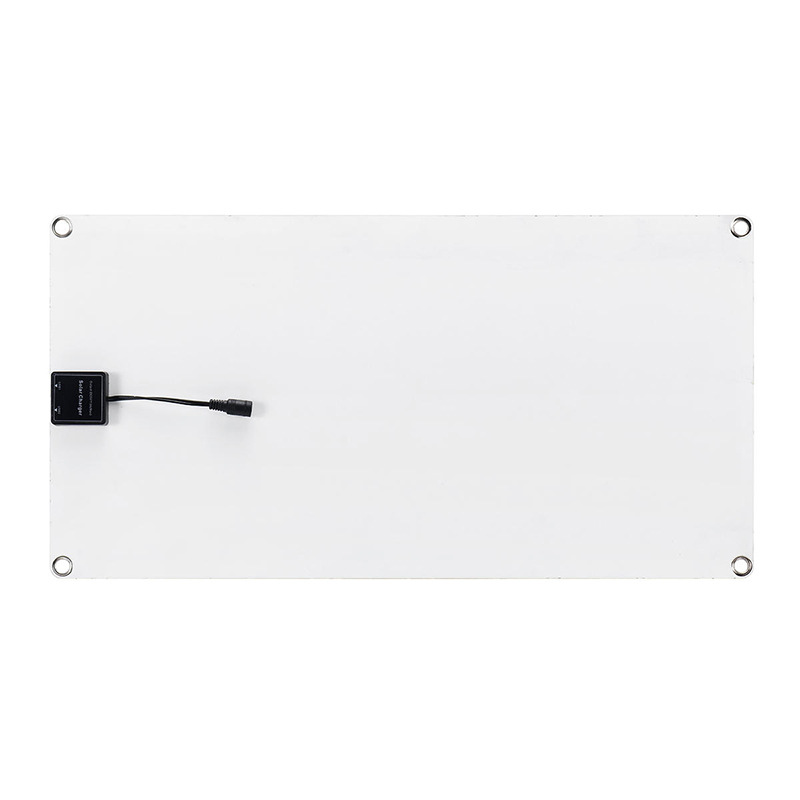

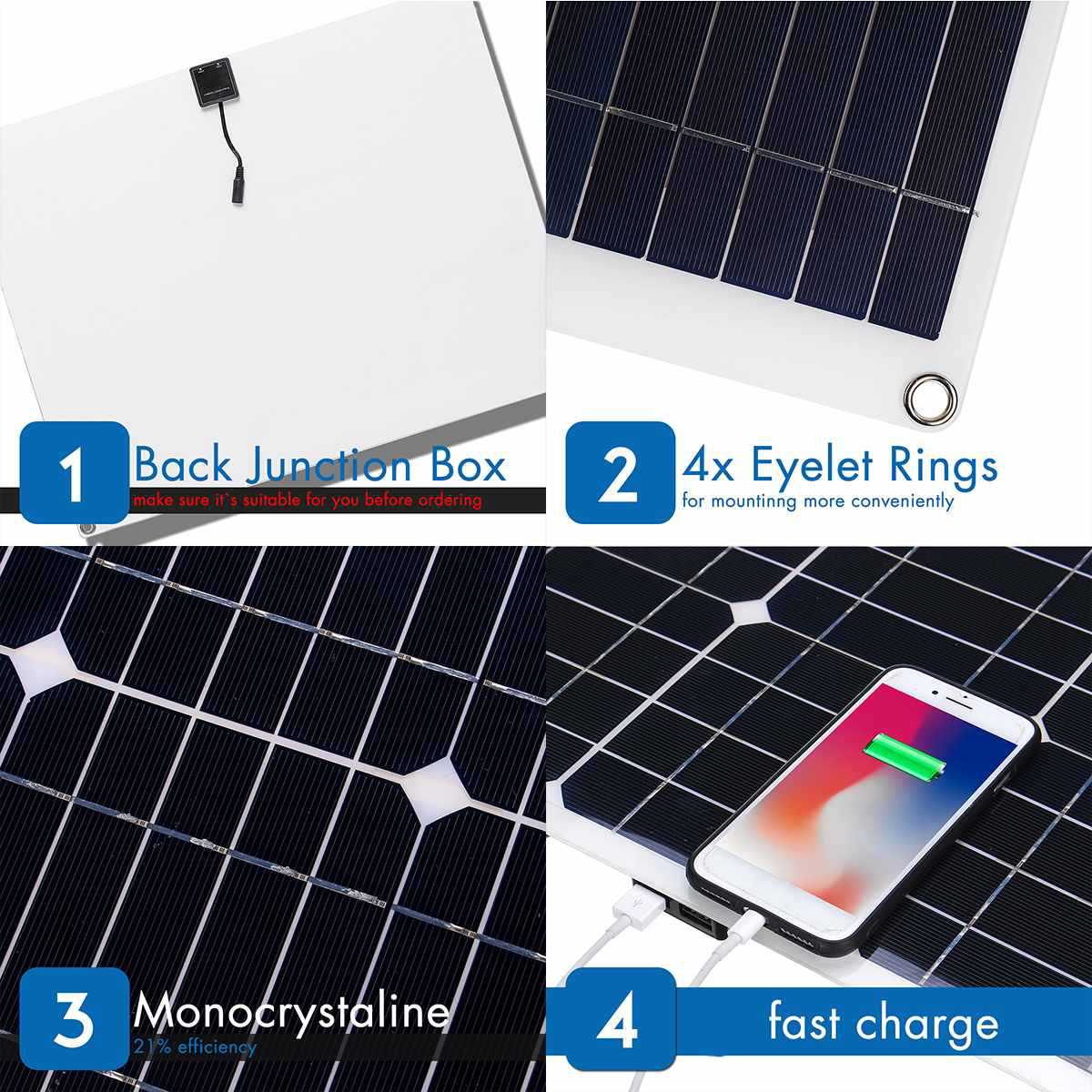

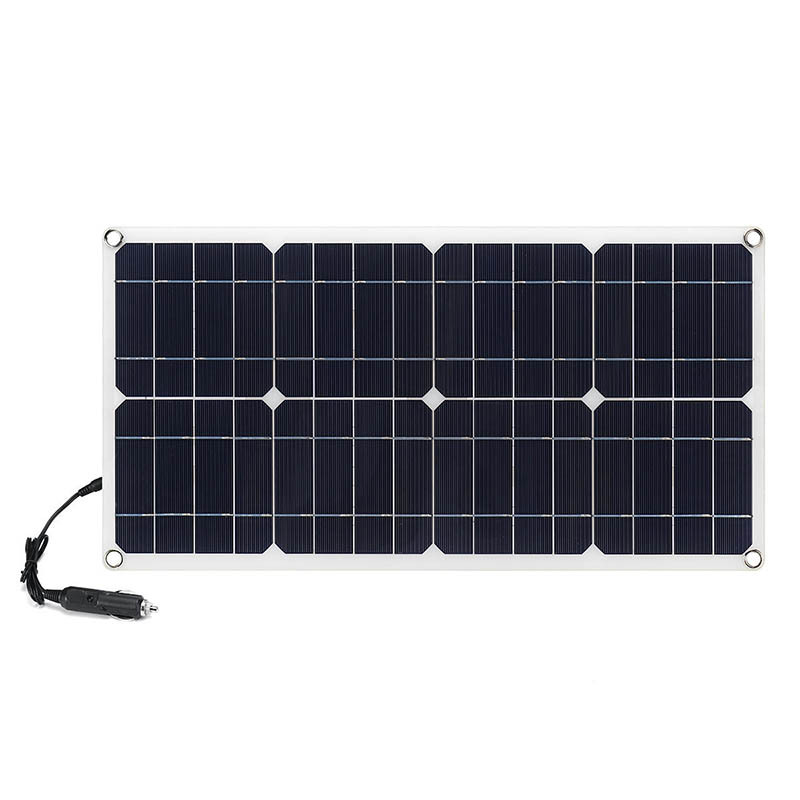

solar panel:
1. Light weight, easy to carry, complete accessories and wide range of uses.

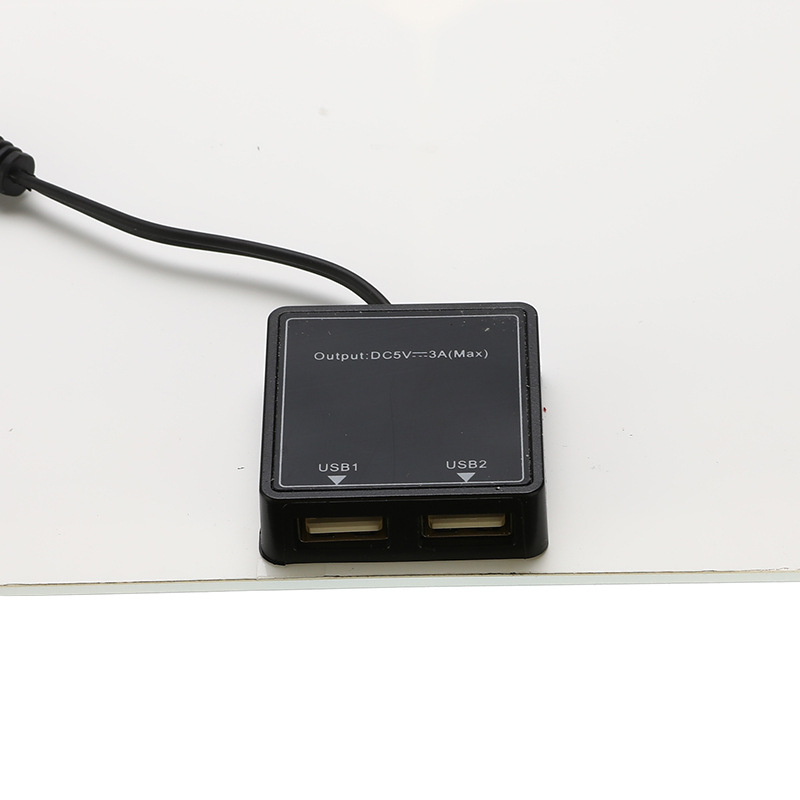

2. Used to charge mobile phones, MP3, iPad or other USB charging devices.
3. You can place the panel in the sun and directly charge your device.
4. Suitable for outdoor bicycles, mountaineering, hiking, camping, traveling, etc.

Controller:
1. Built -in industrial microcontroller.
2. Level 4 PWM charging management.

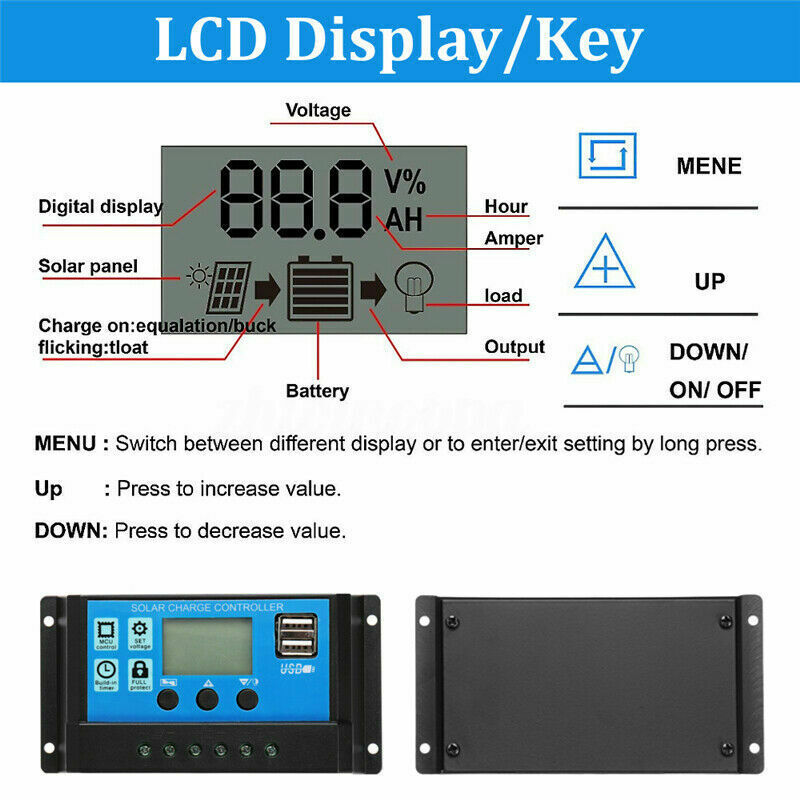

3. One -click settings, number display, automatic memory function.
4. Dual mosfet reverse current protection, low heat generation.
5.5-in circuit breaker protection and short circuit protection.

parameter:

solar panel:
Maximum current: 1.6A
Maximum voltage: 20V
Maximum voltage: 18V
Power: 30W

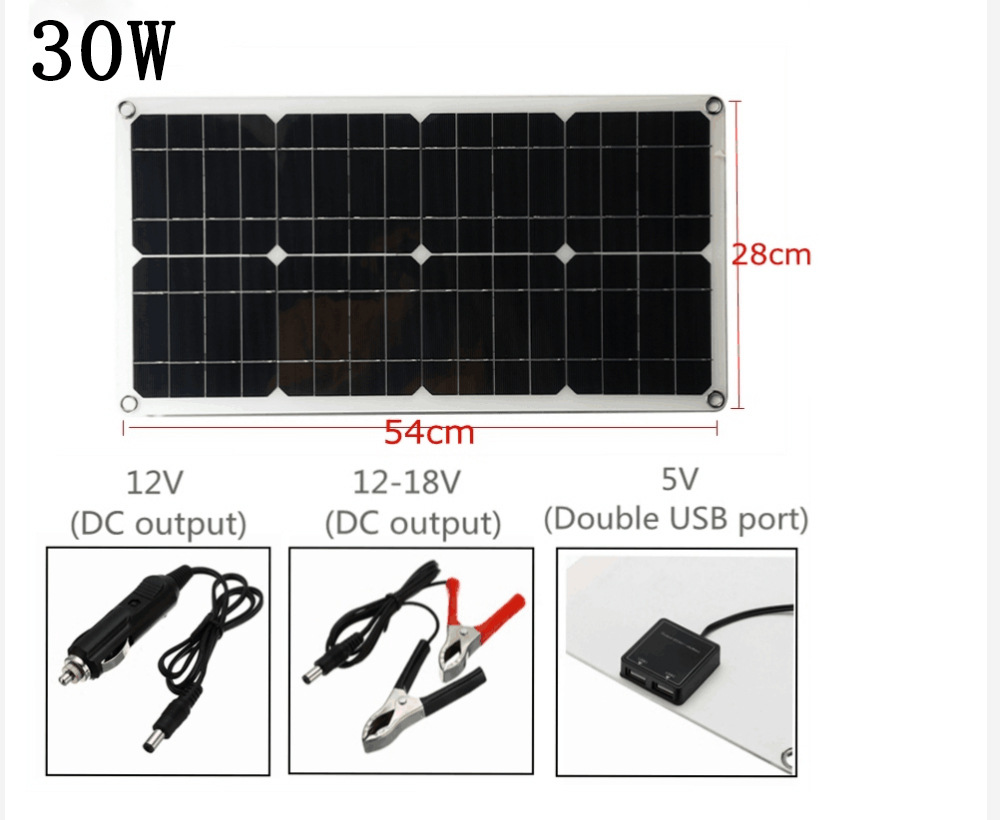

Output: 5V/18V
Size: 540*280*2.5mm
Waterproof grade: IP65
Conversion rate: 19.6-20%

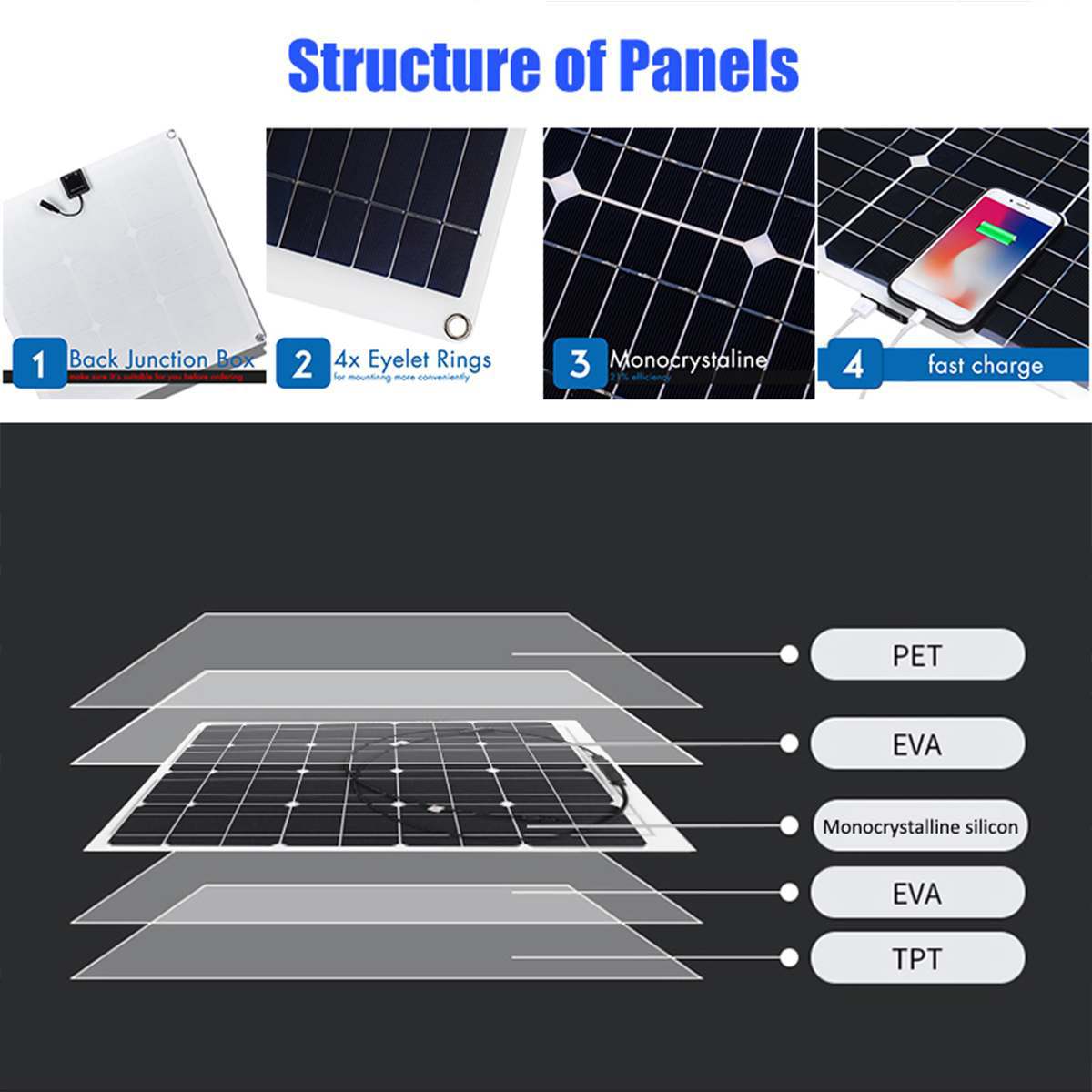

Material: single crystal silicon battery
Product net weight: 400g
Product hair weight: 750g
Product size: 545*275*2.5mm
Packaging size: 280*550*40mm (the most cost-saving size)

Controller:
Model: PWM
Charging: 28.8V
Floating charge: 27.4V
USB output: 5V/1.5A
Self -consumption:<10mA
Stop discharge: 21.4V
Voltage: DC 12V/24V
The largest solar input:<50V
Current: 10A/20A/30A/40A
The rated working current:≤2A
Re -connect discharge: 25.2V
Work temperature: -35 ℃ ~ 60 ℃
Output voltage: 12V/24V automatic voltage divider

safety instructions:

1. Before the first installation, make sure your battery has enough voltage to enable the controller to identify the battery type.

2. The battery cable should be as short as possible to minimize the loss.

3. The regulator is only suitable for lead-acid batteries, not for nickel-hydrogen, lithium-ion or other batteries.

4. The charge regulator is only applicable to regulating solar components.Do not connect other charging power to the charging regulator.

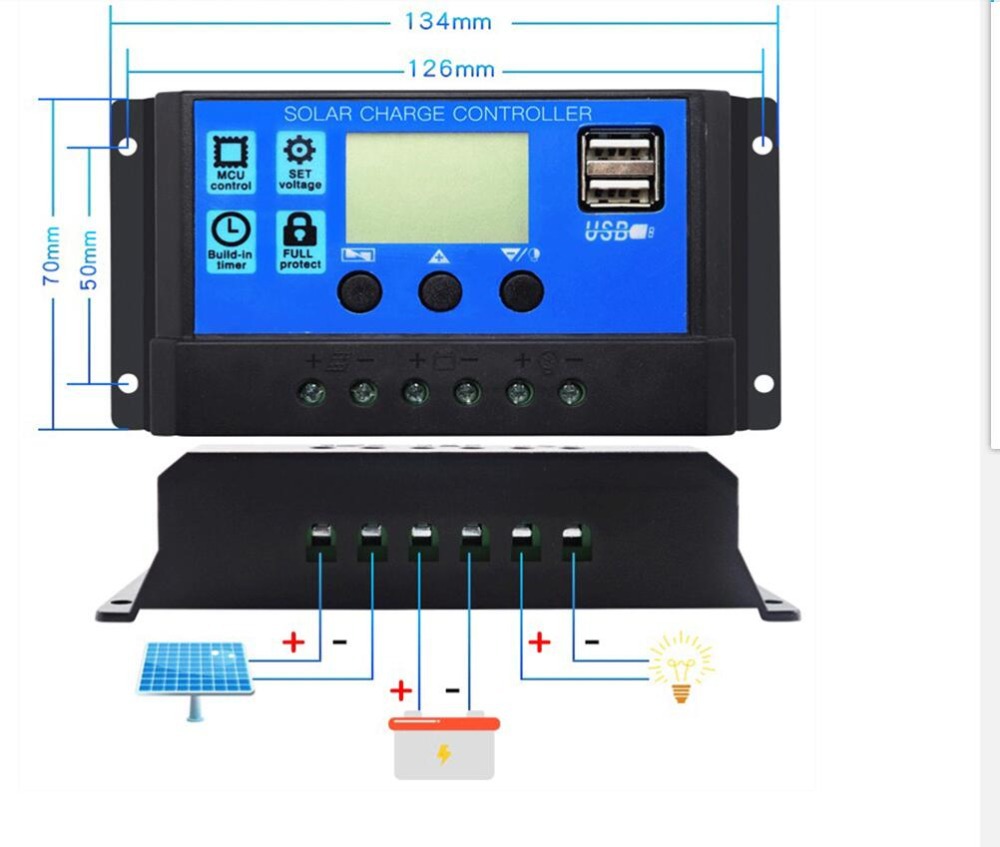

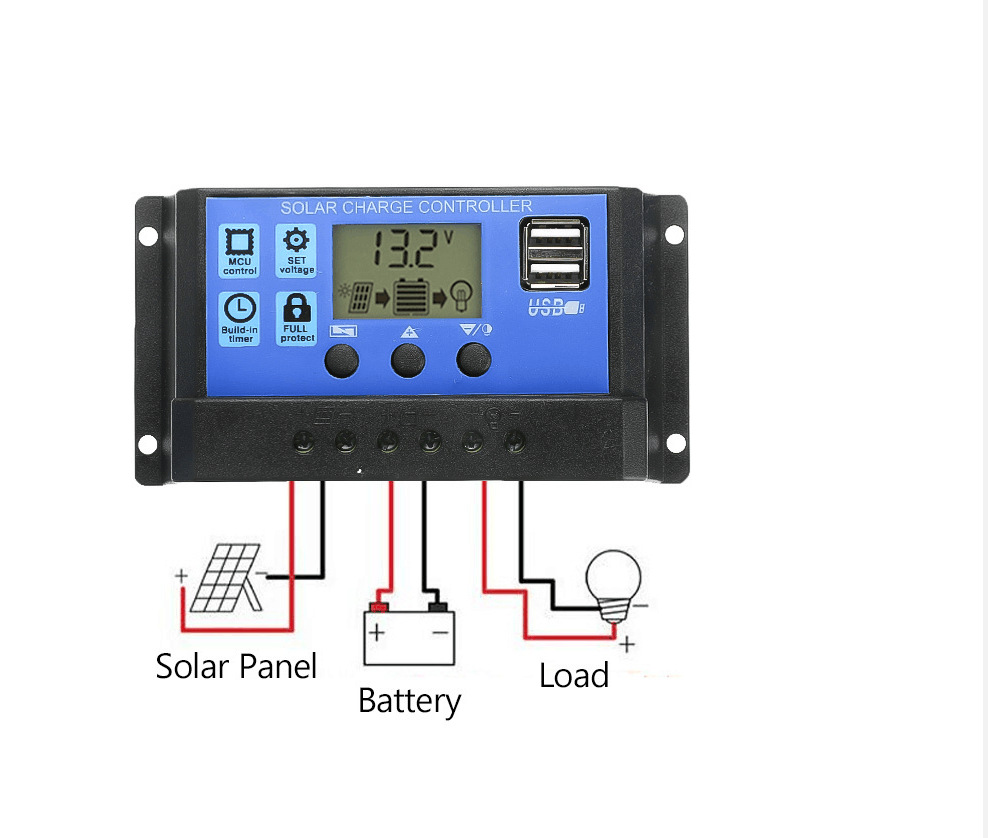

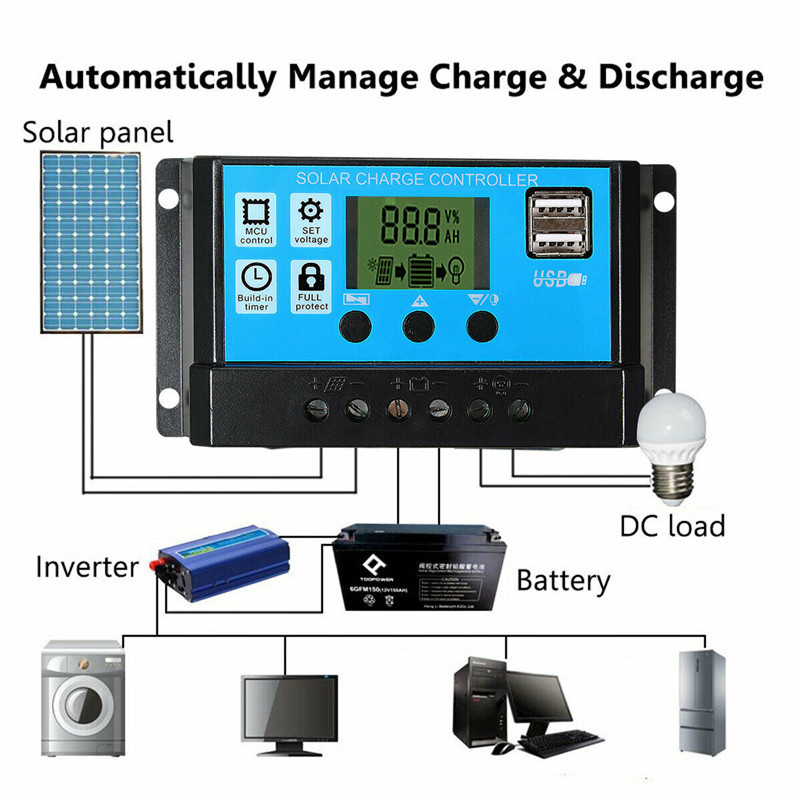

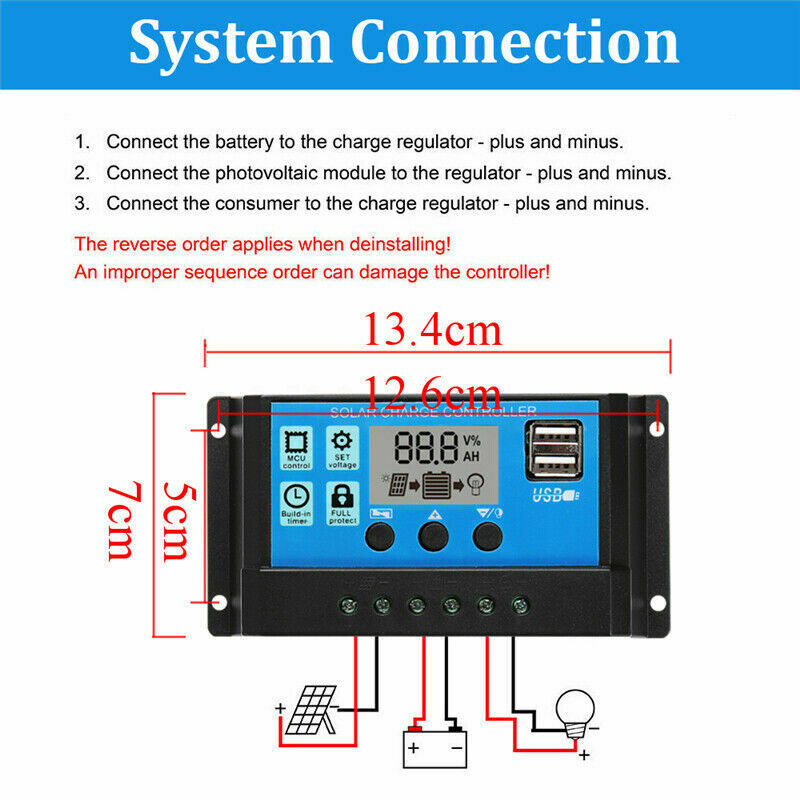

System connection:

1. First connect the controller and the battery. If it detects a 12V battery, it will display 1; if it detects a 24V battery, it will display 2.

2. Connect the photovoltaic module to the positive and negative poles of the regulator.

3. Connect the solar panel to the charging regulator - positive and negative pole.

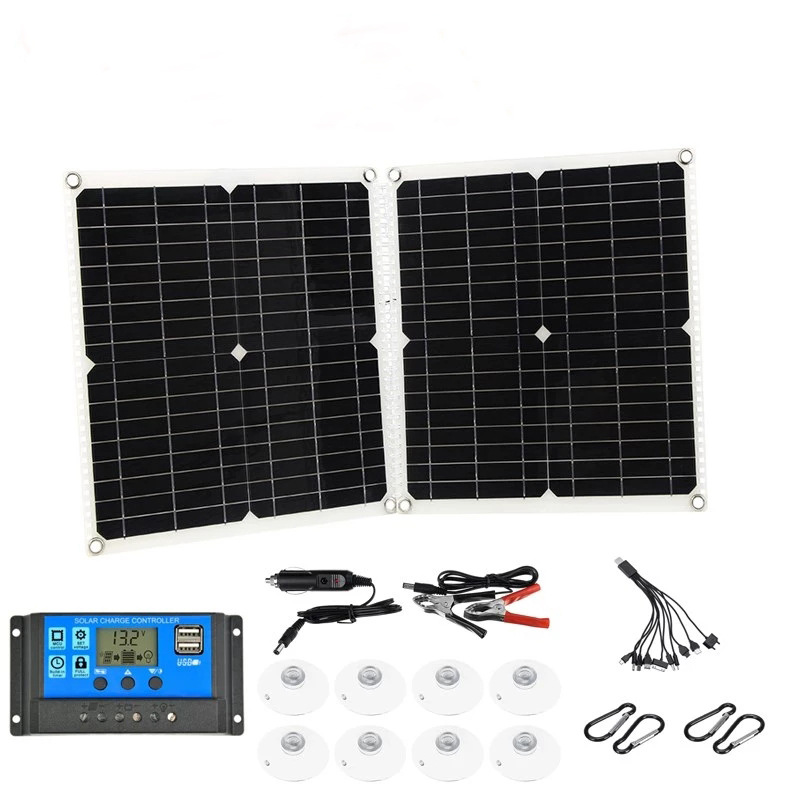

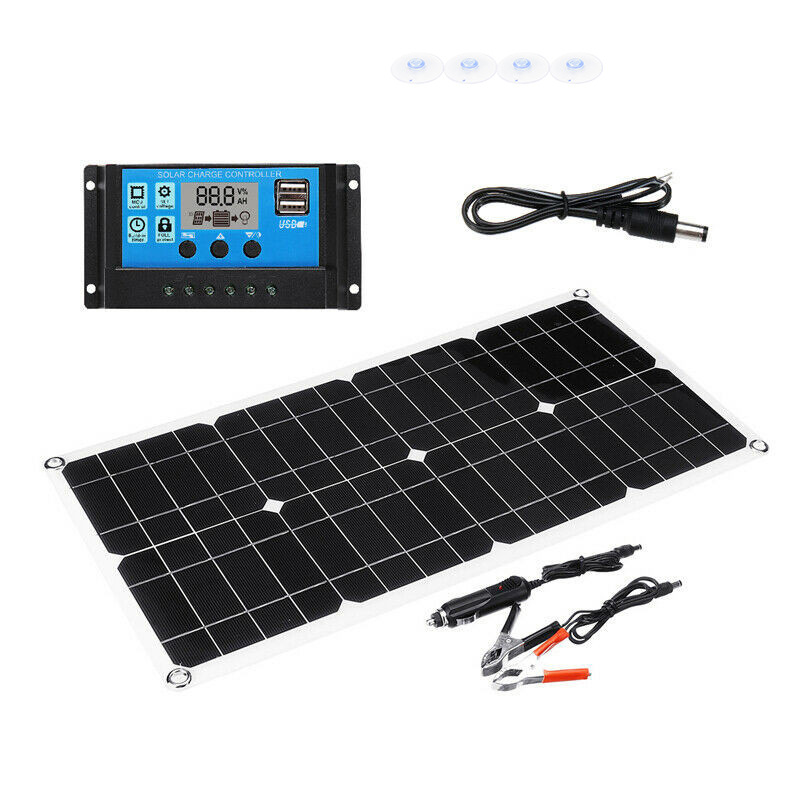

Package Included:
1x 30W solar panel
1X controller

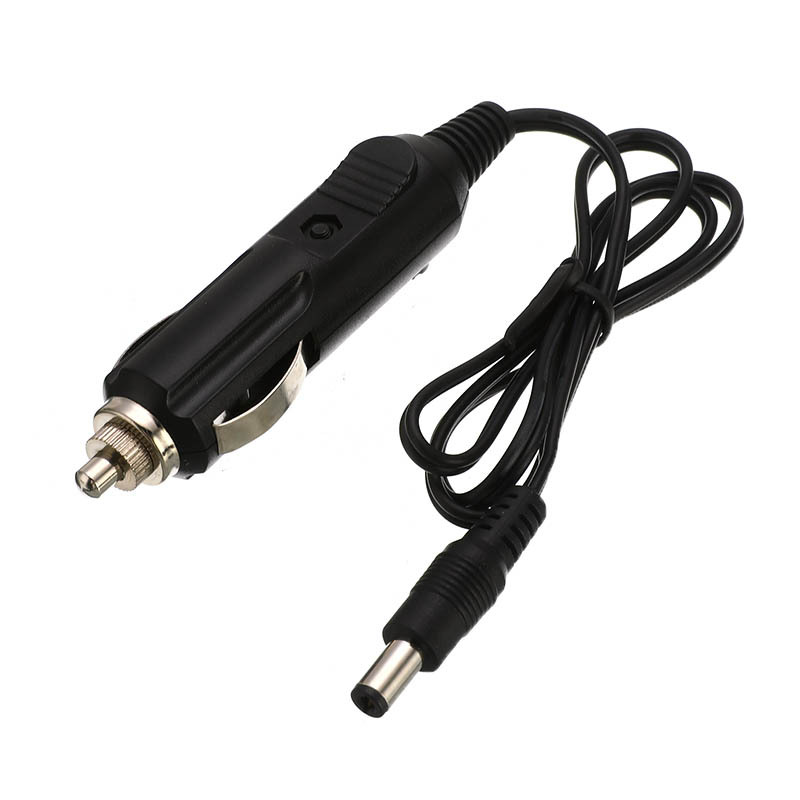

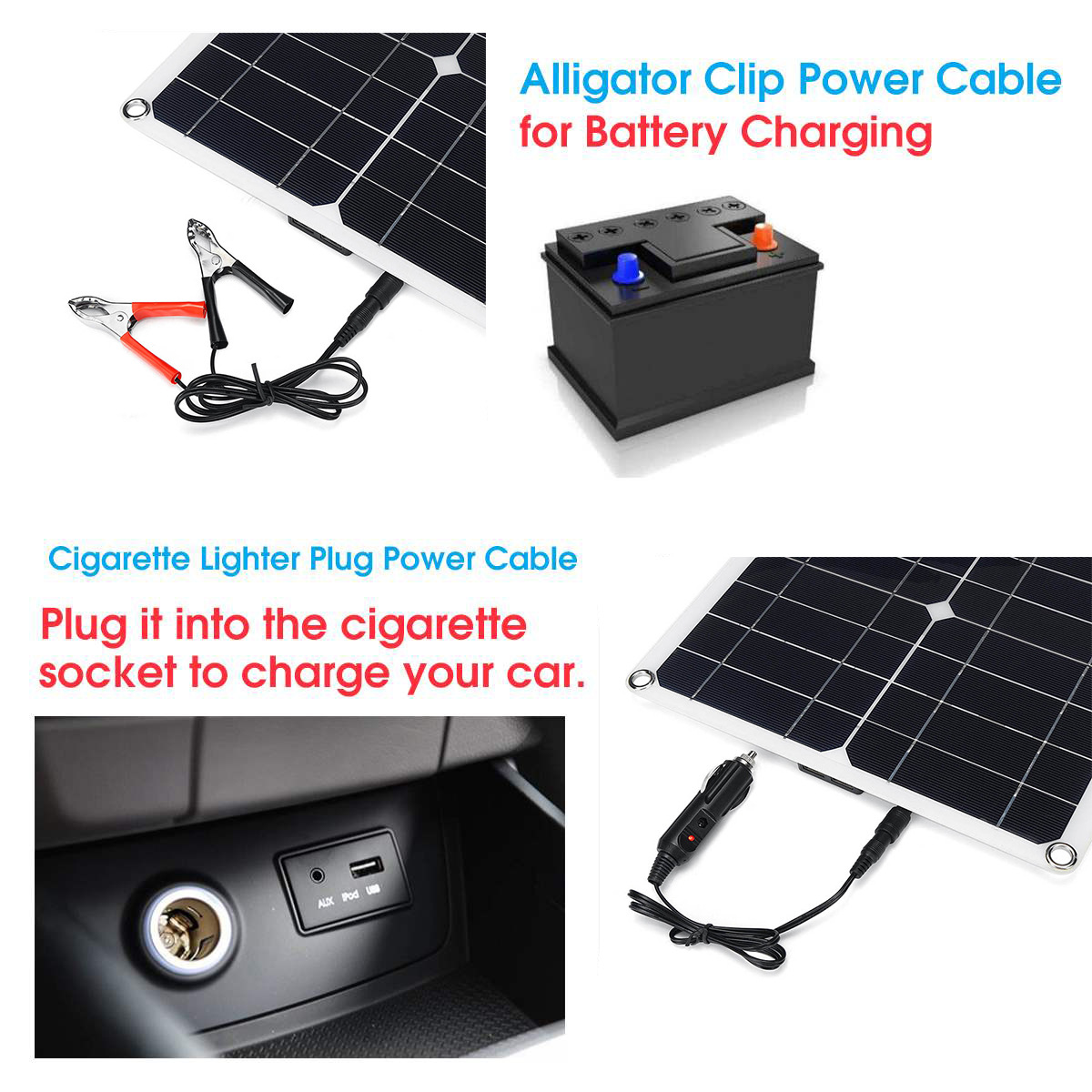

1X car charging

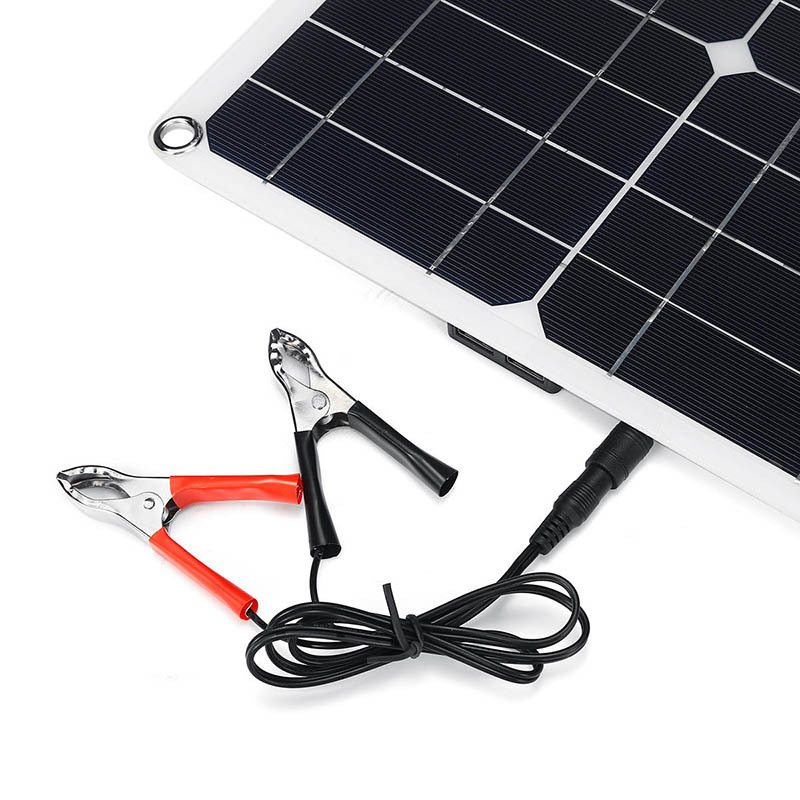

1X battery clip

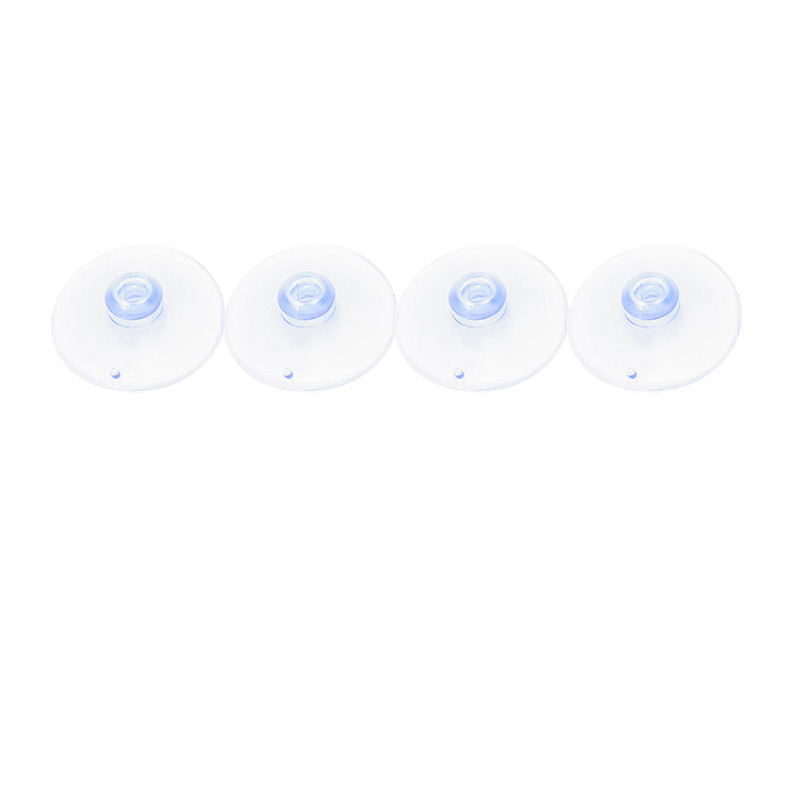

4X big suction cup
