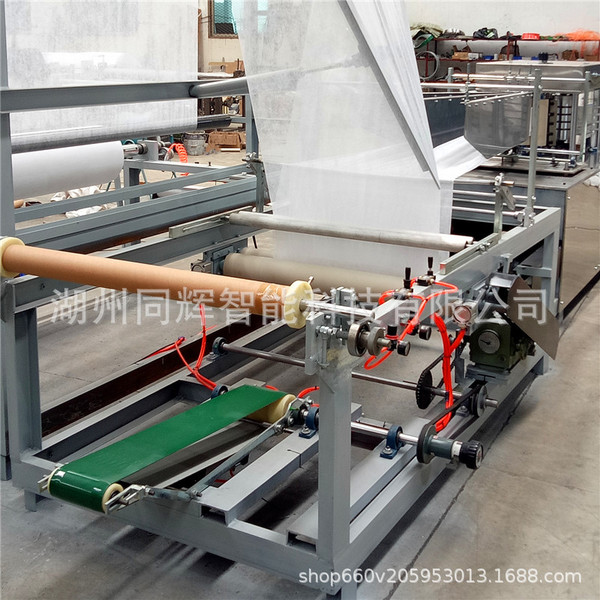

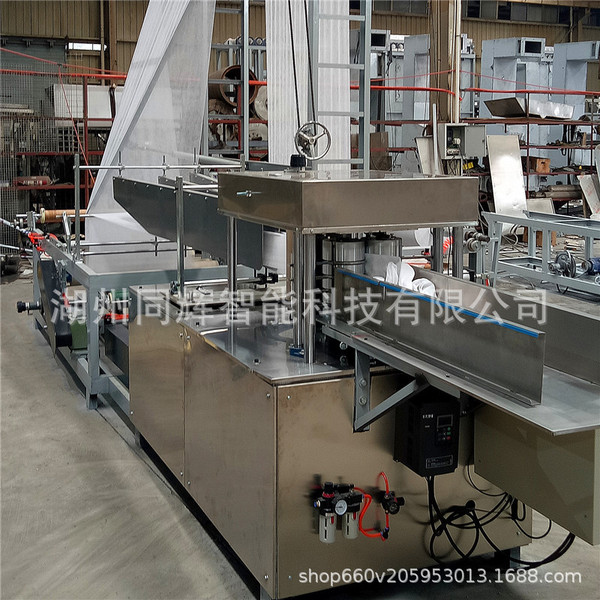

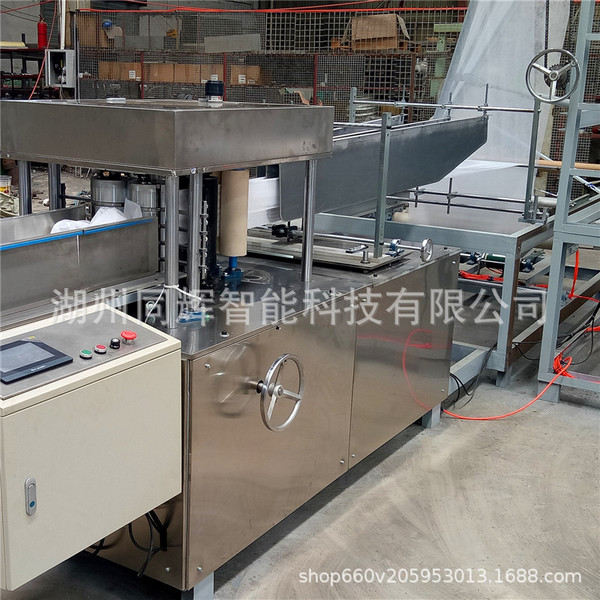

Mechanical automatic high speed folding sheet non-woven cloth

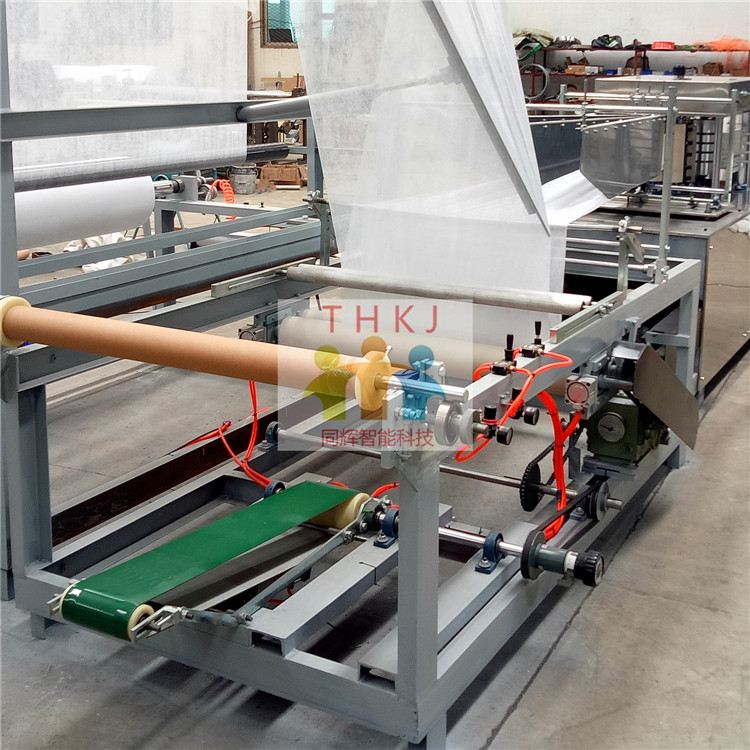

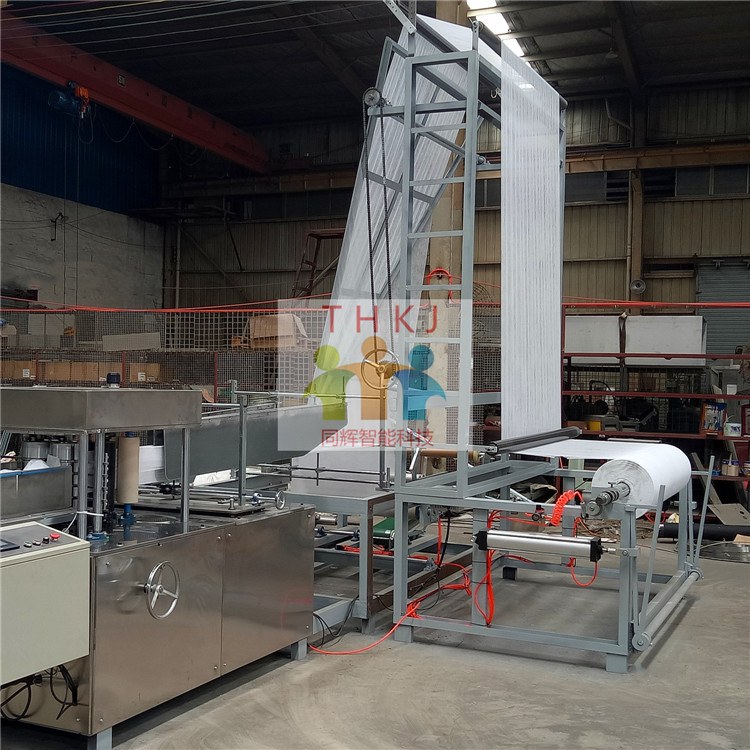

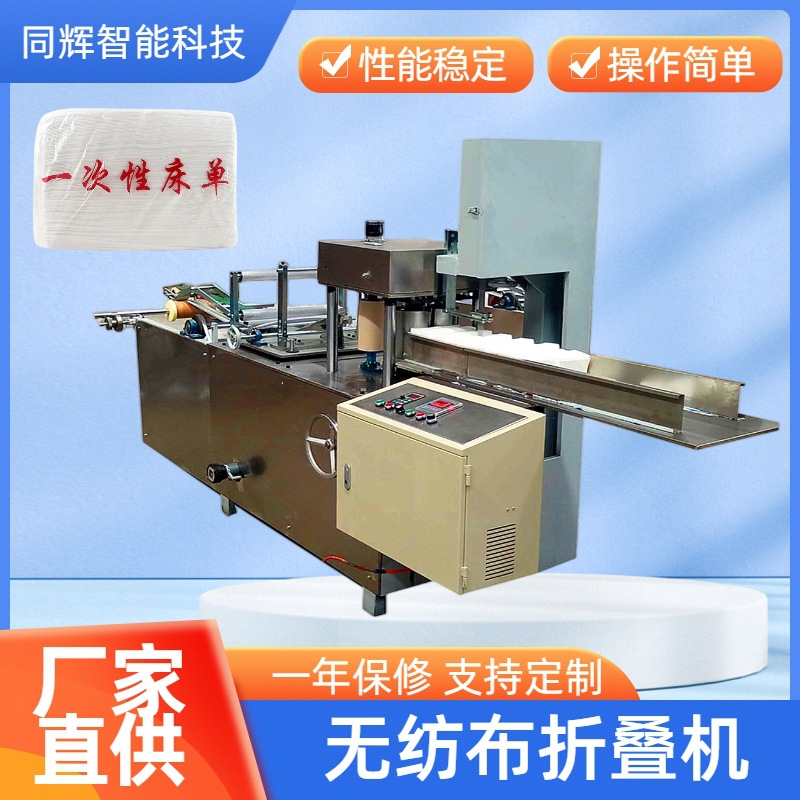

 TH-Z260 non-woven fabric point breaking and folding machine

1. The performance structure and characteristics of the equipment:

1. The working principle of this equipment: automatic feeding→Synchronous transmission→Large W-folding frame folding→Servo wiring→fold→High and low lift counting→Product output is fully automated.

2. The equipment is equipped with an automatic feeding device.

3. The equipment is equipped with a wide belt synchronous conveying device to ensure the dimensional accuracy of the folded finished product and facilitate production.

4. The equipment is equipped with a multi-functional special-shaped folder innovatively designed by our factory, which is easy to adjust.

5. The equipment uses a solenoid valve pneumatic counting device for counting.

6. The equipment adopts servo wiring device, which can set the wiring distance infinitely.

7. The transmission parts of the equipment adopt double-piece gears and bevel gear transmission to eliminate gear gaps, have fine processing technology and low noise.

8. The equipment adopts frequency converter to control speed, and the wiring of electrical parts is standardized, reasonable, beautiful, and easy to operate.

9. The equipment adopts PLC touch screen control system, which is simple to operate and has stable performance.

10. The main body of the equipment is made of national standard 45# steel, with a stainless steel sealing plate.

11. The whole machine and the parts involved in the product are made of 304 stainless steel materials.

 2. Technical parameters of the equipment:

Device model      TH-Z260

Production speed      40-80m/min

Rated voltage/frequency   380V/50Hz

Total power        6.0kw

Dimensions      L9000mm x W2600mm x H1600mm

equipment weight      2000kg

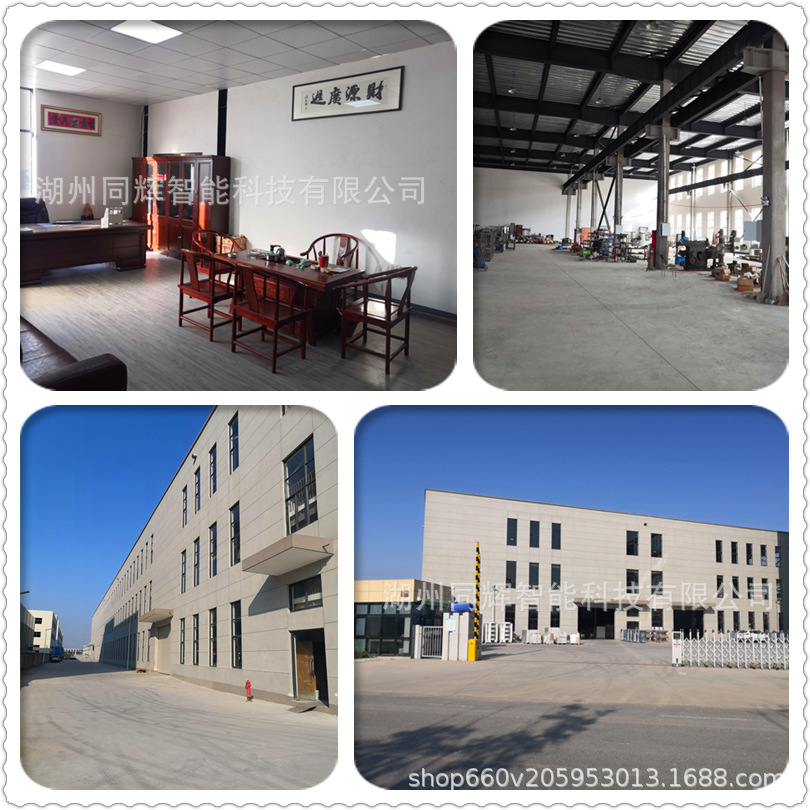

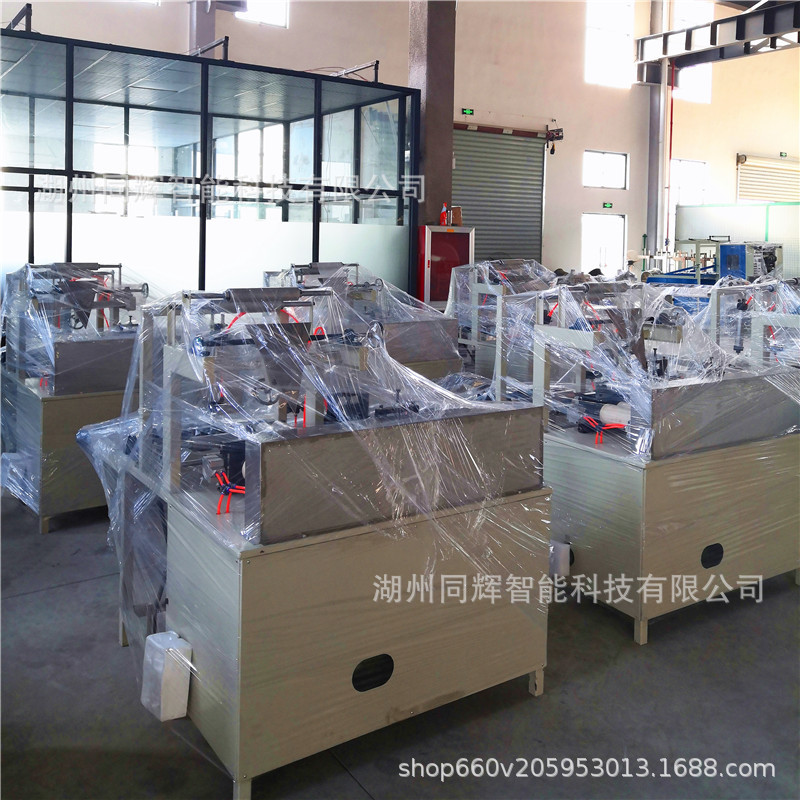

Workshop and office area
