Special AC welding machine for Beijing project Simple steel cage…

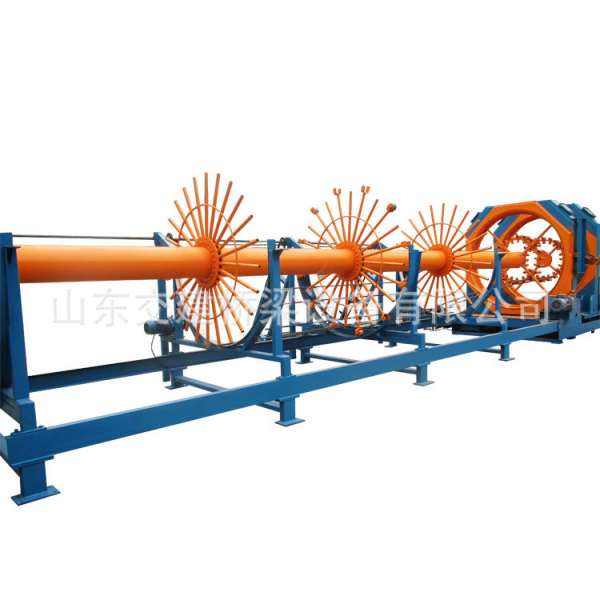

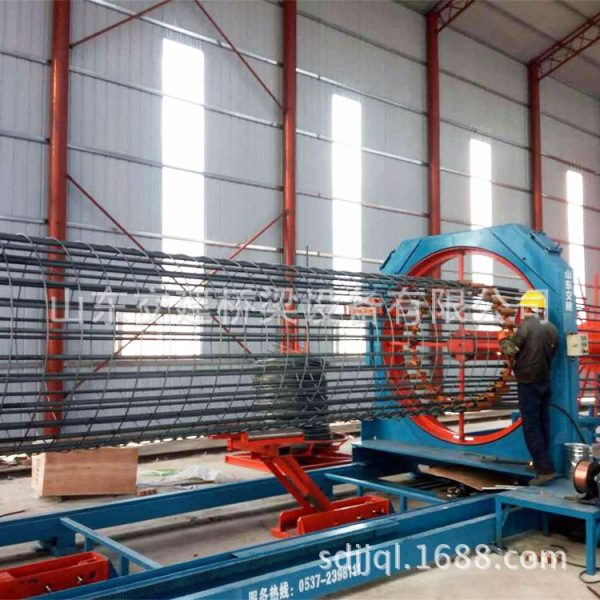

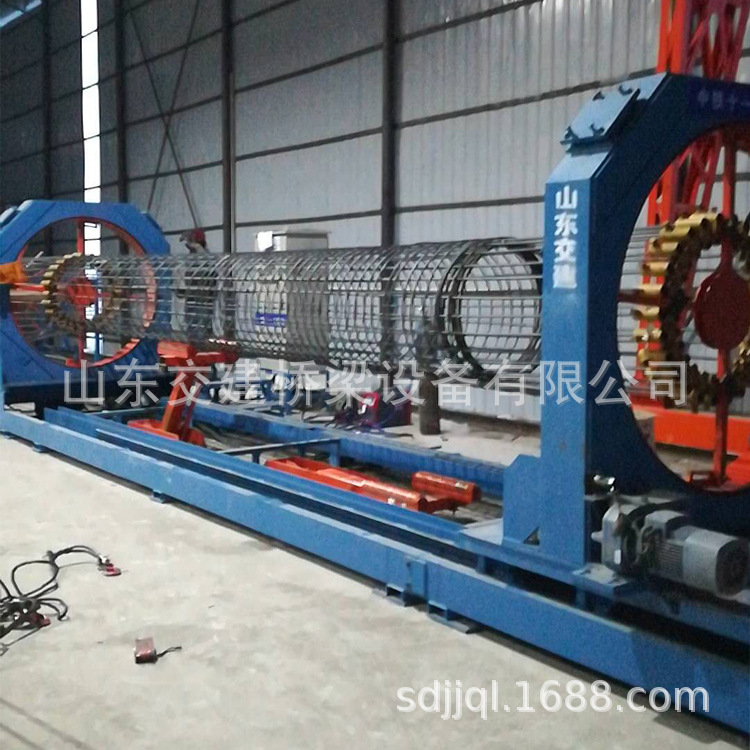

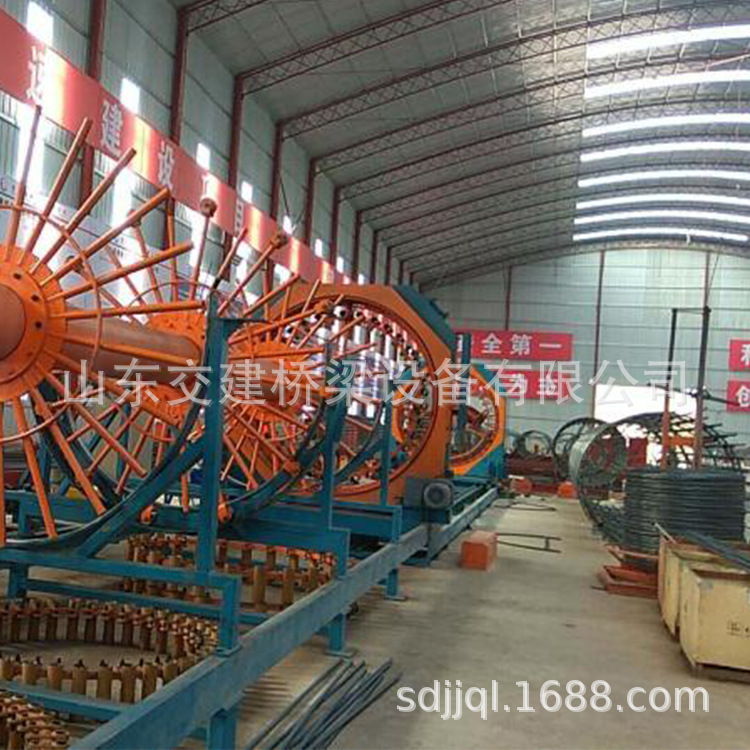

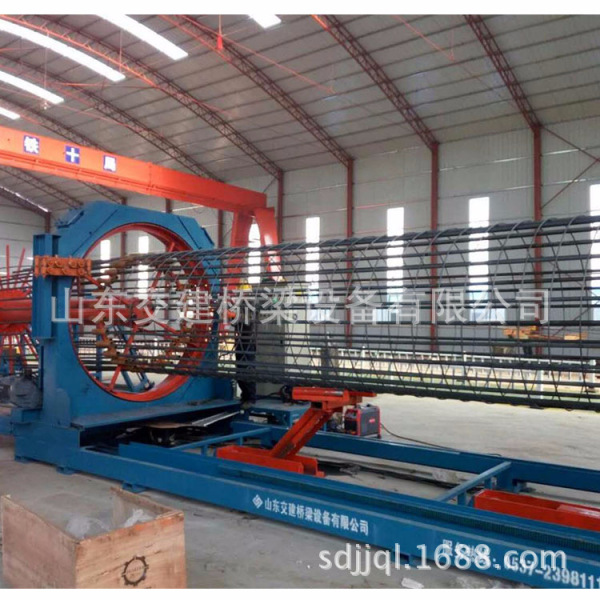

Steel cage rolling welding machine Simple steel cage winding machine CNC steel cage rolling machine     Advantages and characteristics:

1, While the steel cage skeleton is rotating, it is dragged backwards by the moving plate, but the plate bars do not move.

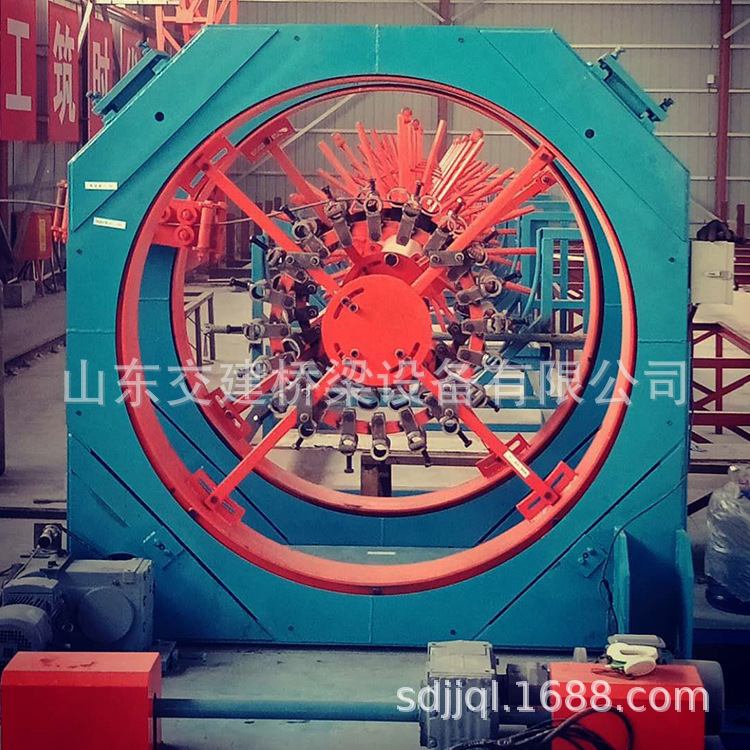

2. The diameter of the steel cage is precisely controlled by formwork of the same diameter. A project usually requires 2—7 templates

3. The spacing between main ribs is determined by the spacing between casings that are manually pre-arranged on the formwork and have the same number as the number of main ribs.

4, When the diameter of the steel cage and the number of main bars change, it is necessary to manually replace the formwork and rearrange the casing, which takes about 1 hour.

5. The spacing between outer stirrups depends on the speed ratio of the traveling motor and the rotating motor. It can be set and adjusted by 1 PLC and 3 frequency converters. It has high requirements on the synchronization of the motors.

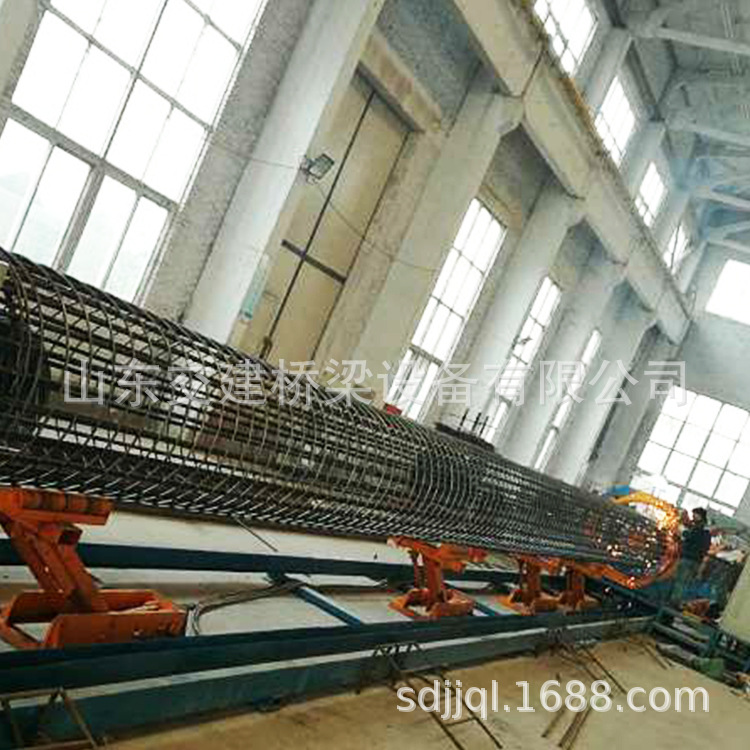

6. Equipped with multiple sets of hydraulic support devices to prevent the steel cage from sagging due to its own weight.

7. Equipped with multi-component material tray to prevent the main ribs from being confused during the production process

8, In order to reduce the labor intensity of workers and improve the construction image, chain-type automatic loading mechanism for main bars and automatic welding manipulator are available for users to choose (not recommended)

Contact: Manager Zhou
Sales hotline: 155-8878-6785
Landline: 0537- 2398111

1. The online quotation is not allowed. Please call the contact number for specific product prices.
2. According to the different shipping locations designated by customers, the freight time is 2-5 days. There are many factors due to the uncertainty of logistics transportation, such as: road conditions, weather, etc., according to the actual situation of the actual situation during the logistics transportation process slightly different.
3. Due to different product production batches and specific models, the above pictures are for reference only. For details, please contact our sales staff to make specific verification.
