US-100 ultrasonic ranging module with temperature compensation…

★★★★★5/50 SOLD

US-100 ultrasonic ranging module with temperature compensation ultrasonic sensor 5 stitches 16 ultrasonic probes

146.00৳1 or more

131.40৳500 or more

119.72৳1000 or more

Product: US-100 ultrasonic ranging module with temperature compensation…

98%

Seller: szftctdzVisit Seller Store

Product 5/5

Level 0/5

Service 5/5

Delivery 5/5

BrandCHT

ModelUS-100

SeriesTest distance

Sensing Distance4.5meter

Output TypeLevel or UART (jumper cap select

Examination Range4.5

Supply Voltage5.5

Supply Current2.2

Resolution1mm

Operating Temperature70

Minimum Packaging Number1

Application FieldSmart home

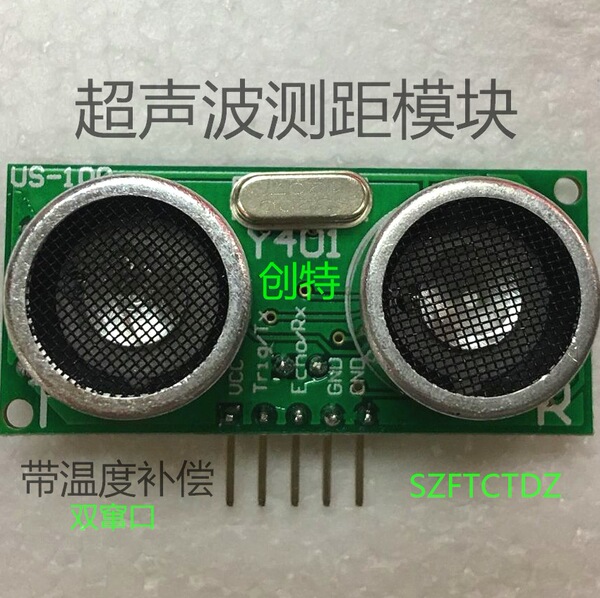

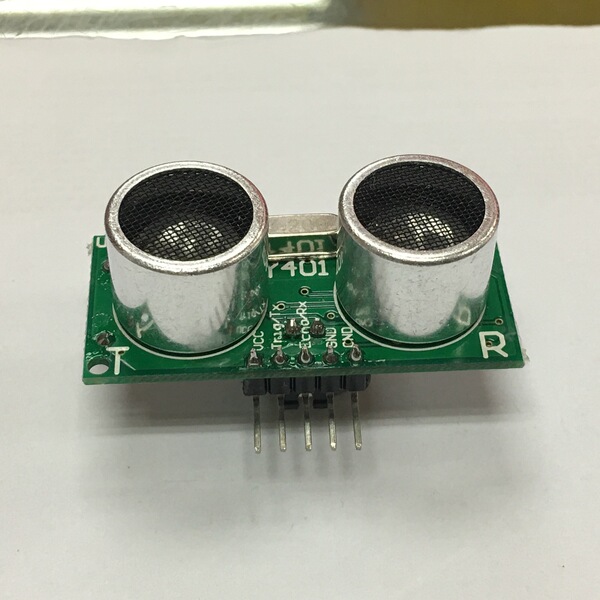

The US-100 ultrasonic ranging module can realize non-contact ranging function from 2cm to 4.5m. It has a wide voltage input range of 2.4~5.5V, and the static power consumption is less than 2mA. It has a built-in temperature sensor to correct the ranging results. It also has GPIO, serial port and other communication methods. It has a built-in watchdog and works stably and reliably.

The main technical parameters

Electrical parameter	US-100Ultrasonic ranging module
Operating Voltage	DC 2.4V~5.5V
Quiescent Current	2mA
Operating temperature	-20 ~+70 degrees
output method	Level or UART (jump cap selection)
Inductive angle	Less than 15 degrees
Detection distance	2cm-450cm
Detection accuracy	0.3cm+1%
Serial port configuration in UART mode	The baud rate is 9600, the starting bit is 1, the stop is 1 bit, the data is 8 bits, there is no strange puppet verification, and there is no flow control.

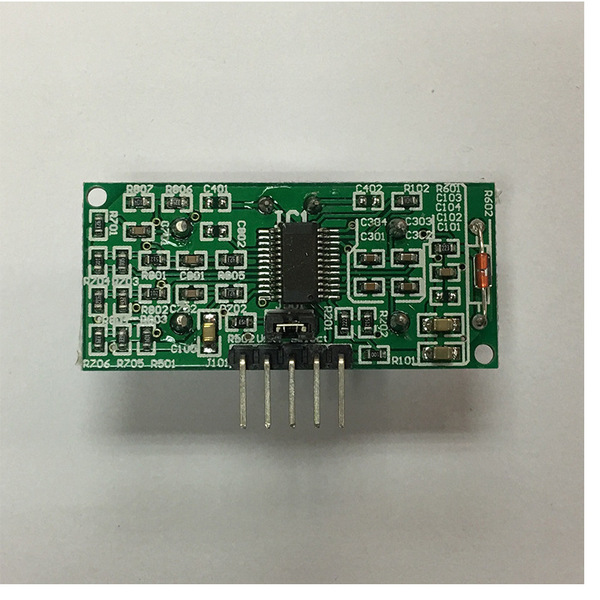

The size of this module: 45mm*20mm*1.6mm.There are two mechanical holes with a radius of 1mm on the board

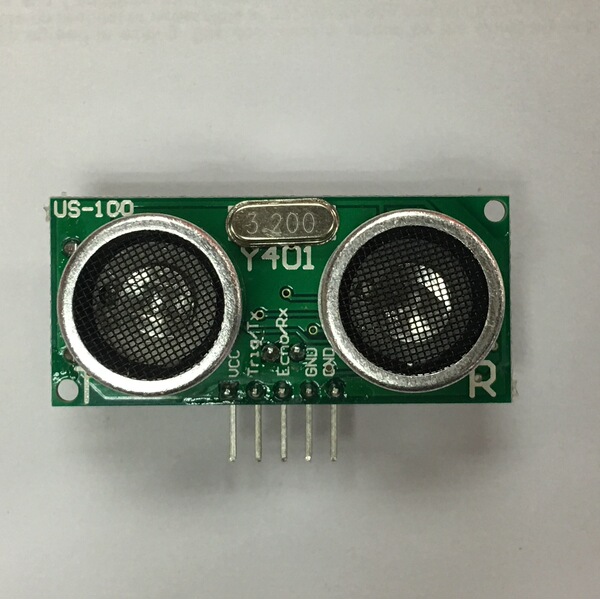

Interface Description

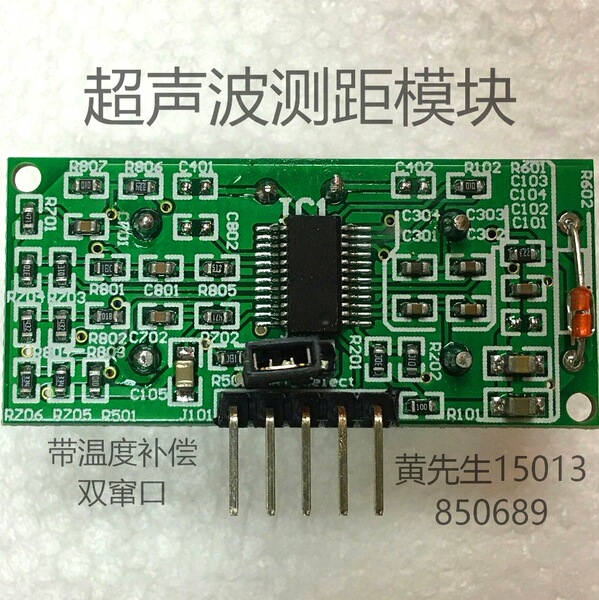

This module has two interfaces, namely mode selection jumper and 5P,The spacing of the mode selection jumper is 2.54mm. When the jumper cap is plugged in, it is UART (serial port) mode, and when it is unplugged, it is level trigger mode.

From left to right, the number is 1,2,3,4,5.Their definitions are as follows:
