Product: Charger *S
This product is only for overseas export sales and not for domestic sales.
|

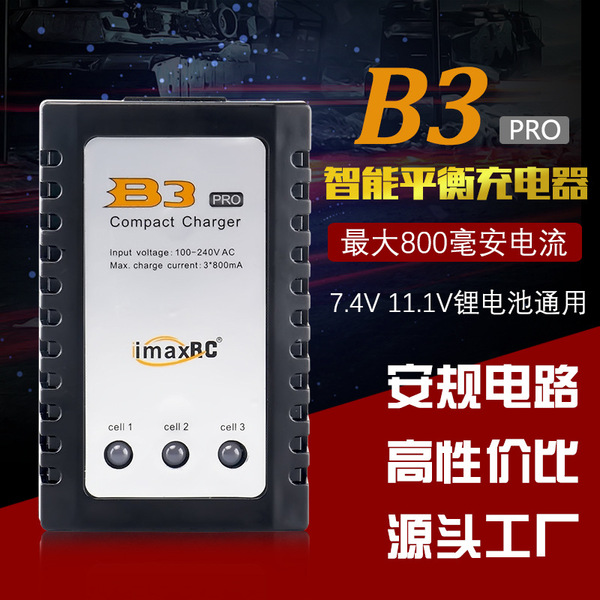

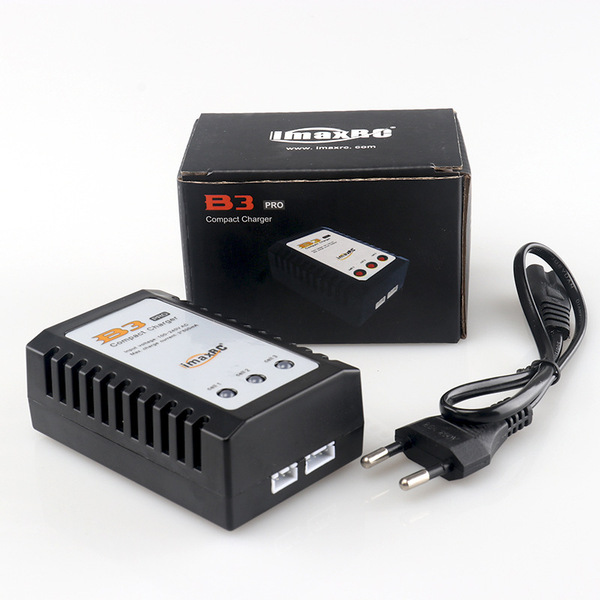

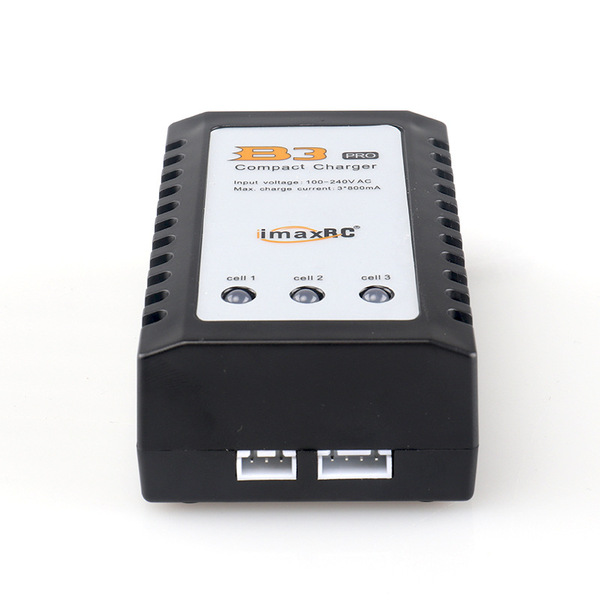

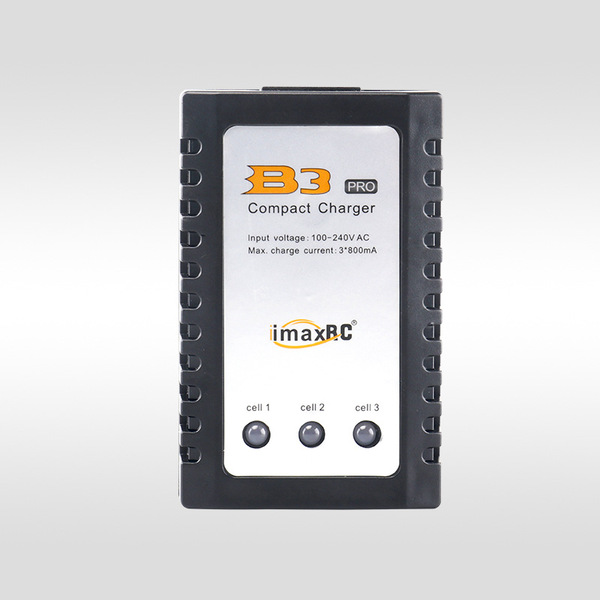

Product Name: B3 Balance Charger
Product model: B3 10W
Product color: black
Input voltage: AC 110-240V 50/60Hz
Output voltage: DC 7.4V / 11.1V 800mA
Rechargeable batteries: 2S 7.4V and 3S 11.1V lithium batteries
Recommended battery capacity: 500-3000mAH
Product size: 90*55*33mm
Charging Instructions: The charger is plugged into the power supply, and the three indicator lights are on yellow.When charging with a 7.4V lithium battery, the first and second indicator lights turn red to indicate that they enter the charging state.When the indicator light turns green, the battery is fully charged.When charging the 11.1V lithium battery, all three indicator lights turn red, and the battery is charged normally.When the indicator light turns green, the battery is fully charged.Because the charger charges multiple batteries in the battery pack separately, there may be a sequence when the indicator lights are turned, and the lights will not be turned at the same time.
Function description: The charger can charge 2S 7.4V / 3S 11.1V lithium batteries respectively, and multiple batteries in the battery pack are charged separately to achieve the balance effect before the battery.After full charge, the voltage of a single battery is controlled between 4.2-4.25V.Full charge will automatically stop charging and will not cause the battery to overcharge.
