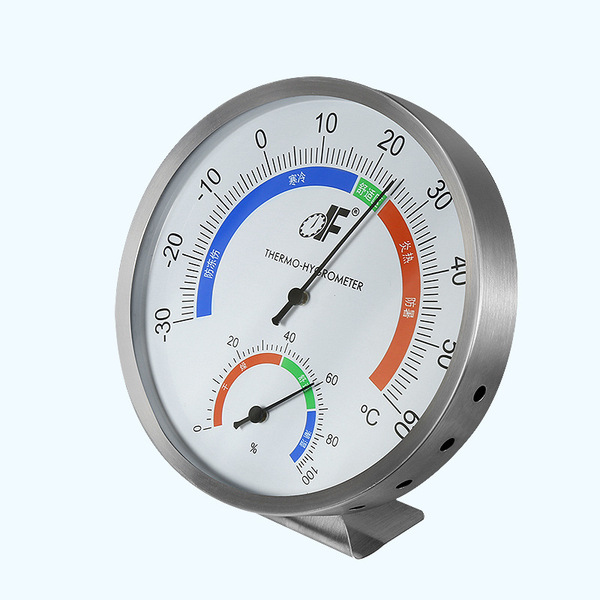

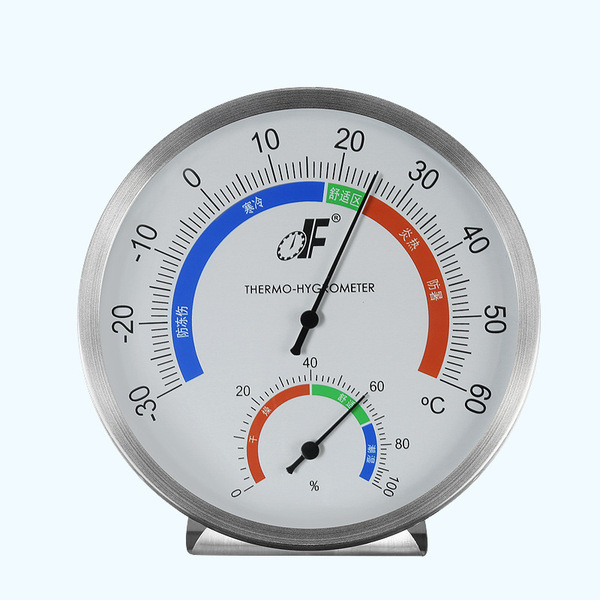

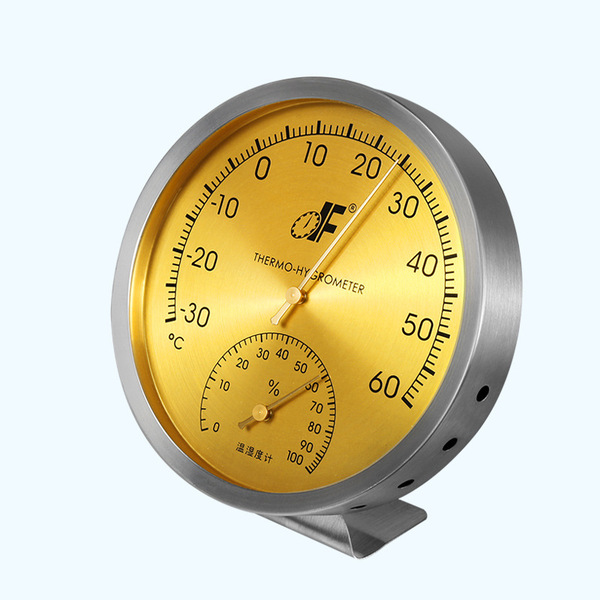

Telford TH608 Series Thermohygrometer Instructions

Telford TH608 seriesThe thermohygrometer is a temperature and humidity instrument designed for measuring the temperature and humidity of indoor and outdoor environments. It is manufactured using high-quality technology, with rigorous workmanship and beautiful appearance.The temperament is outstanding and can better match the modern home decoration.

Ⅰ product characteristics

Mirror——The curved glass is transparent and bright, and the wide scale range is comfortable for viewing.

pointer——It adopts precise dynamically balanced pointer structure, which is clear and easy to distinguish.

dial——Screen printing technology is used to print scales and graphics on the entire aluminum-magnesium alloy dial, which is clear and without ghosting.

movement——It adopts high-quality mechanical temperature and humidity sensing components, which are stable, accurate, shock-resistant and durable.

Shell——TH608The series of temperature and humidity meters are made of metal materials and are stamped in one piece, with laser engraving.

Outer circle——Completely consistent with the shell, zero gap processing

packaging——Environmentally friendly material packaging, exquisite materials and exquisite details

Ⅱ performance parameters&How to use

TH608Series dimensions: 127mm (diameter) X21mm (thickness)

Temperature range: -30℃~60℃, measurement accuracy (error):±1℃

Humidity range: 0~100%RH, measurement error when the humidity range is 40%RH~70%RH±5%RH, other range errors±7%RH

Usage: wall-mounted, hanging or standing

Material Ⅲ Material Description

Stainless steel shell, aluminum alloy surface, flat glass

IV applicable range

This product can be widely used in modern family rooms, offices, large shopping malls, hotels and many other places.This product is used as a reference for healthy living and cannot be used as a measuring instrument.

Ⅴ Note

1.  This product is mainly designed for measuring the temperature and humidity of the indoor environment. Please do not place it in the environment outside the range of measurement scale to avoid affecting the measurement accuracy.

2.  Please place this product in a good ventilation place to ensure that the ambient temperature and humidity can be accurately reflected.

3.  This product cannot be pushed into water, cannot be wiped with corrosive solvents, and avoids vibration and impact.

Ⅵ Temperature and humidity calibration diagram

Upper left/Picture 1

Temperature adjustment: Please use a flat-blade screwdriver of appropriate size to insert into the adjustment hole for temperature adjustment.

Upper right/Picture 2

Humidity adjustment: Please use a flat-blade screwdriver of appropriate size to insert into the adjustment hole for humidity adjustment.

Ⅶ Common questions

1, Does the newly purchased thermometer and hygrometer need to be adjusted?

This product has been strictly adjusted and accurate when leaving the factory. Generally, it can be used normally without adjusting it, but it may be due to transportation vibration reasons.When the error within the range is greater than the technical indicator value, you can observe the reference (about 30 minutes) in the non -wind -free and small ring, and adjust it after confirmation.

2, How to adjust the hygrometer (meter)?

The wet towel is covered on the back of the humidity meter or the entire wrap for about 30 minutes. At this time, the humidity meter should show that the amount of humidity is 95%RH.If the pointer fails to point to the 95%RH, use a suitable size screwdriver with a suitable size, and rotate the left and right to the left and right on the corresponding humidity of the back until the pointer is pointed at 95%RH.

3, How to adjust the thermometer (meter)?

Use a thermometer that has been confirmed to be accurate as a reference. Use a flat-blade screwdriver of appropriate size to rotate the corresponding temperature adjustment hole on the back to adjust the pointer reading to be consistent with the reference specimen.

4, What should you pay attention to when using a temperature and humidity meter?

1)  The thermometer and hygrometer should be hung in a well-ventilated place, and avoid hanging on walls exposed to direct sunlight, the air outlet of air conditioners, etc.

2)  The thermohygrometer shall not be installed in a corrosive gas environment.

5, Why does it feel like the thermohygrometer is not working?

What is the reason why the temperature and humidity meter cannot see the pointer change?Is it bad?In fact, the reason is that changes in temperature and humidity are a slow process, and there will be no significant changes in a short time.If you want to know if the pointer is working effectively, you can blow the inner mouth at the breathable hole, or take a hair dryer around the temperature and humidity meter or the breathable holes. Observe the change of the pointer.Time will return to the normal monitored indoor and outdoor temperature and humidity.

6, Introduction to the temperature measurement principle of pointer type thermometer and hygrometer

The pointer temperature and humidity meter uses the principles of two different metals to expand at different degrees of expansion when temperature changes.The main component is a multi -layer metal piece composed of two or more metal slices.In order to improve the temperature sensitivity, the metal sheet is usually made into a spiral roll shape.When the temperature of the multi -layer metal sheet changes, the metal expansion or contraction of each layer of metal varies, causing the spiral rolling or loosening.Because one end of the spiral roll is fixed and the other end is connected with a pointer that can be rotated freely, when the dual metal tablets feel the temperature change, the pointer can indicate the temperature on the one -circular scale.

ⅧDaily basic temperature and humidity range

temperature:

8—15℃, the optimal temperature for grain storage

18—25℃, optimal indoor temperature

35—38℃, the optimal temperature of bath water

40—45℃, the optimal temperature of foot washing water before going to bed

70—80℃, the optimal temperature for tea boiling water

humidity:

40—70%RH, living environment

40—55%RH, a favorable environment for disease prevention and treatment

40—60%RH, the storage environment of books and cultural relics

45—60%RH, computer and communication equipment storage environment

40—60%RH, storage of cotton and wool textiles

50—60%RH, dairy product storage

50—60%RH, candies and snacks storage

50—70%RH, vegetable and fruit storage

50—70%RH, grain storage

ⅨWarm reminder

1.  Because the air in the packaging does not circulate, the value of the product fails to reflect the actual situation in time when it is taken out, and the constant temperature can be placed for half an hour.

2.  In the internal parts of the parts, the shaking will produce a slight sound, which is a normal phenomenon.

3.  Due to the inaccurate or damage caused by the severe vibration, please contact the dealer or manufacturer.

==============================================================================
