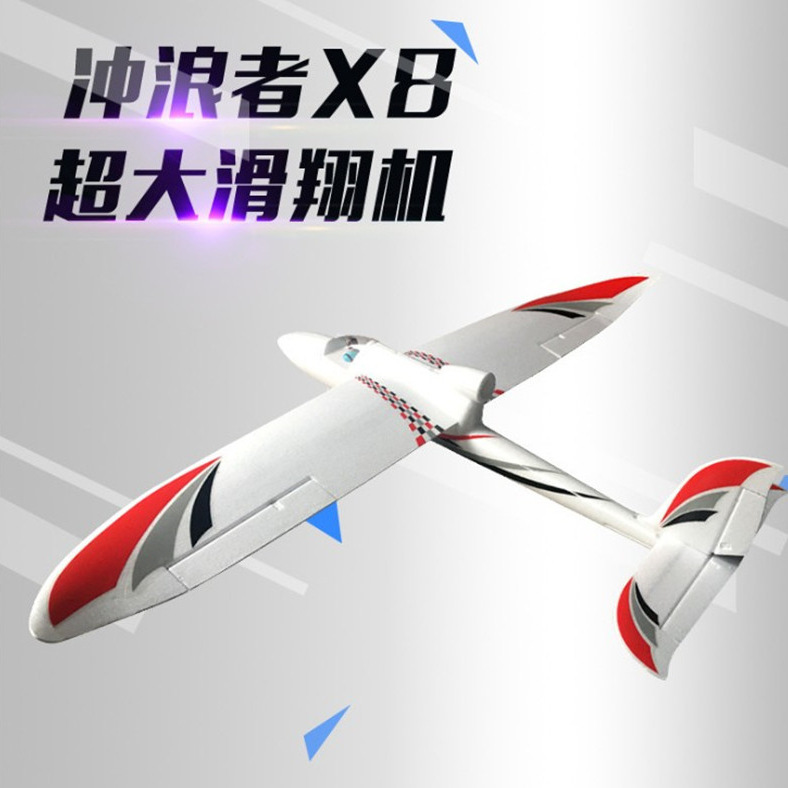

Modified airplane with fixed wing

Installation test flight video of the power suit:

Please copy the link to watch the flight video: http://v.youku.com/v_show/id_XMTM1MTAxMDk4OA==.html

1. Motor description (2000KV)

1. Motor outer diameter: 17.5mm;

2. Motor shaft diameter: 2.0mm;

3. Motor weight: 10 grams (single motor); 16 grams (with accessories)

4. Speed: 2000KV*7.4(2S)=14800RPM    3800Kv*7.4v=28120rpm

5. Size

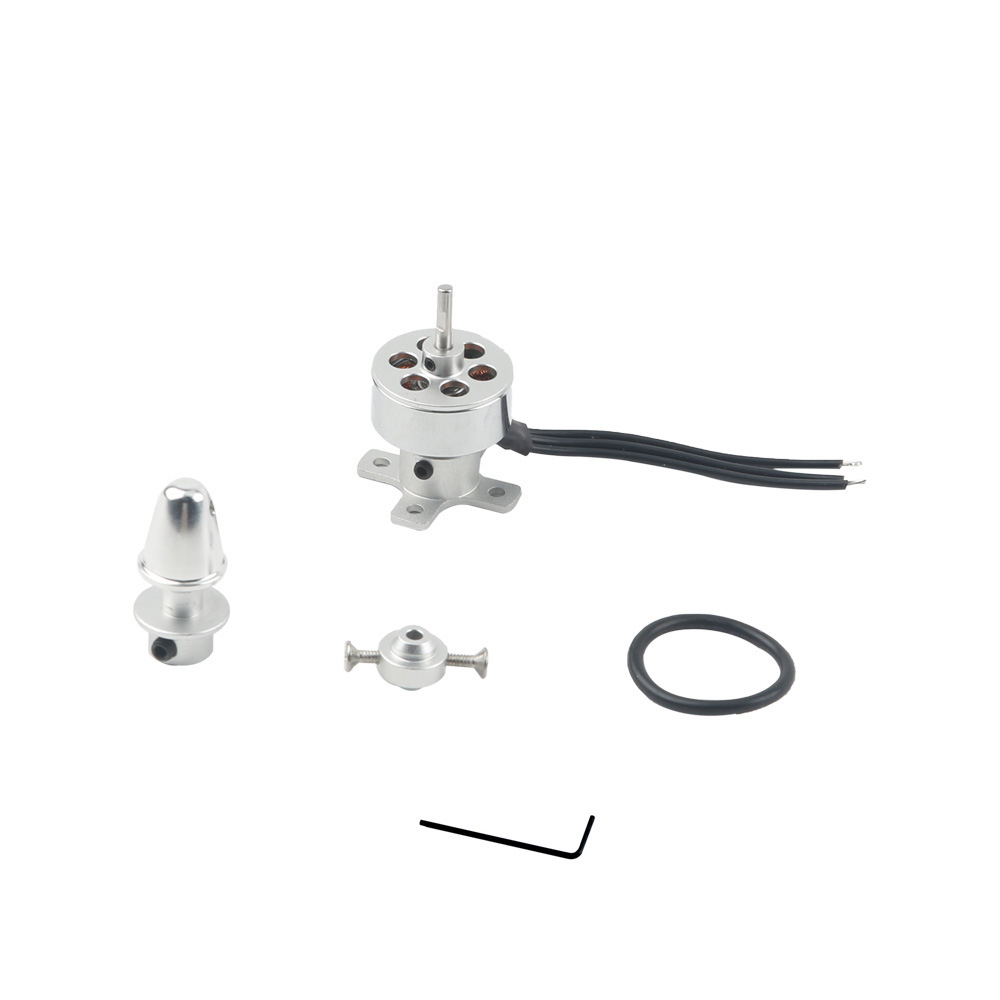

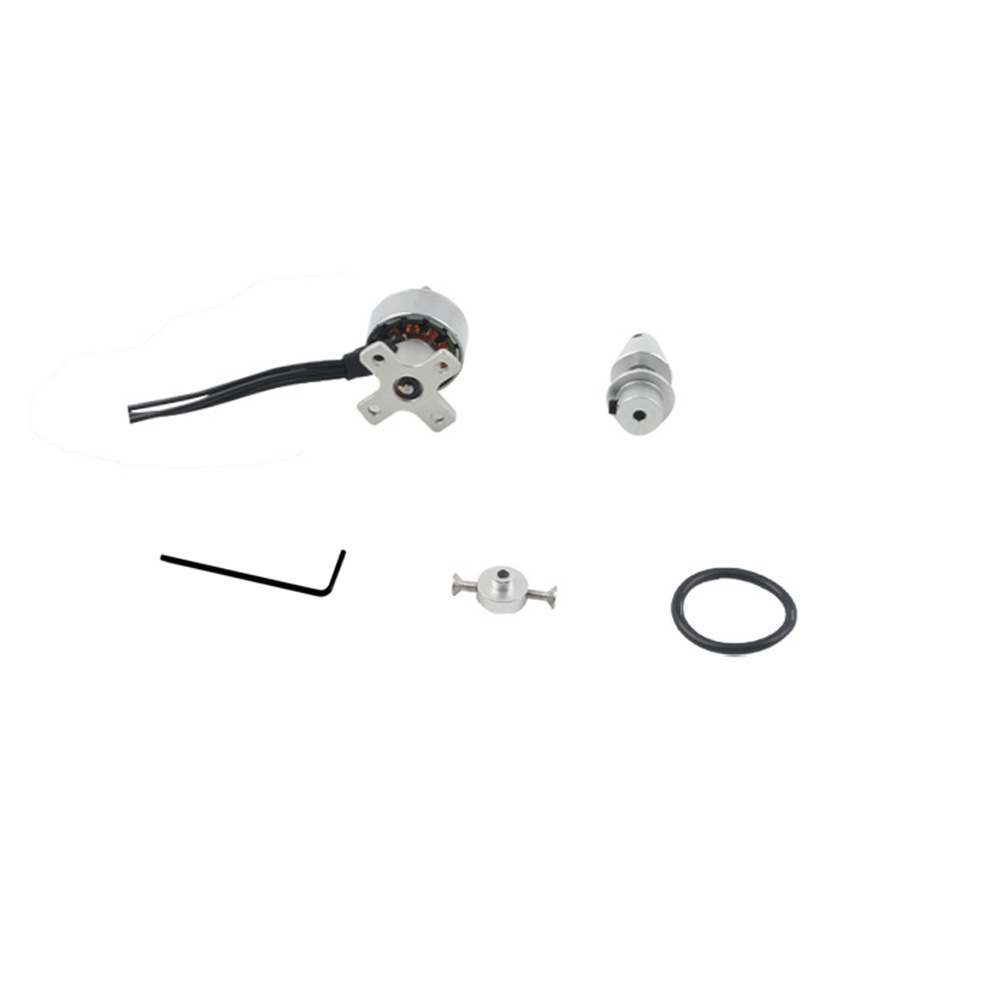

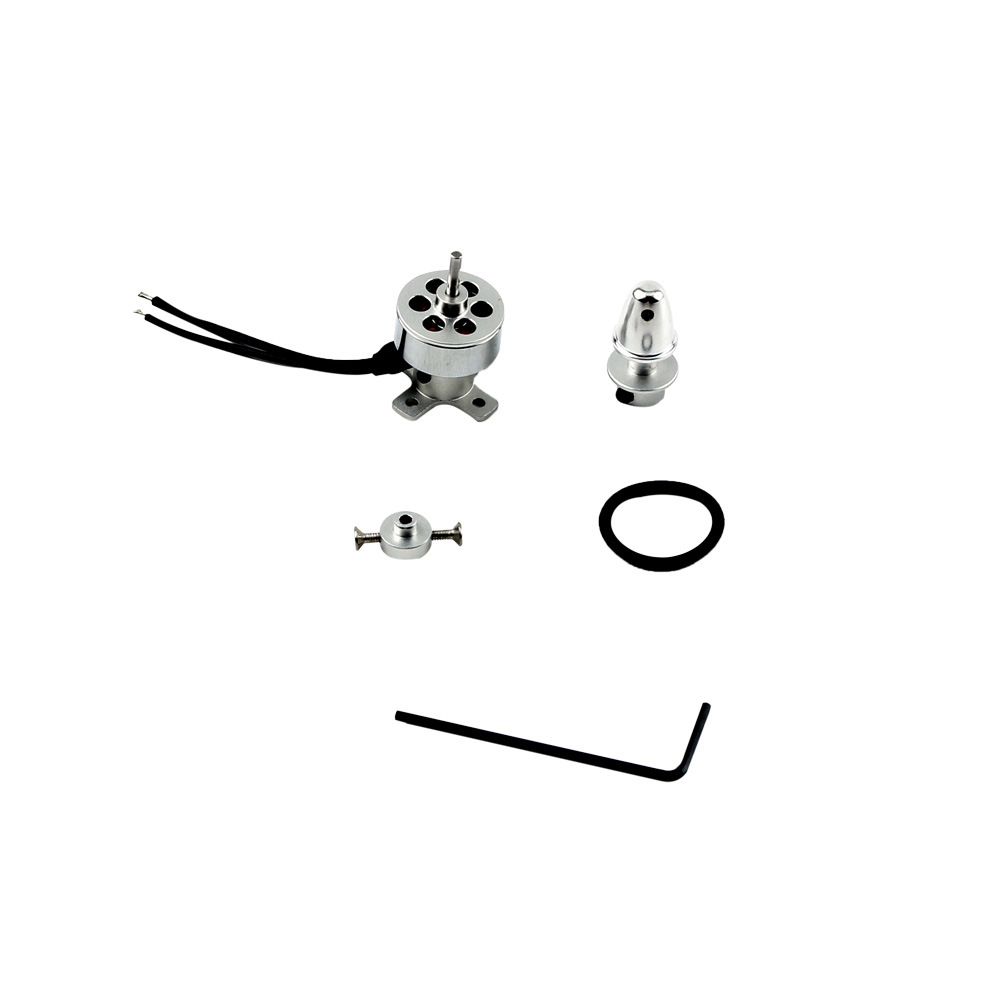

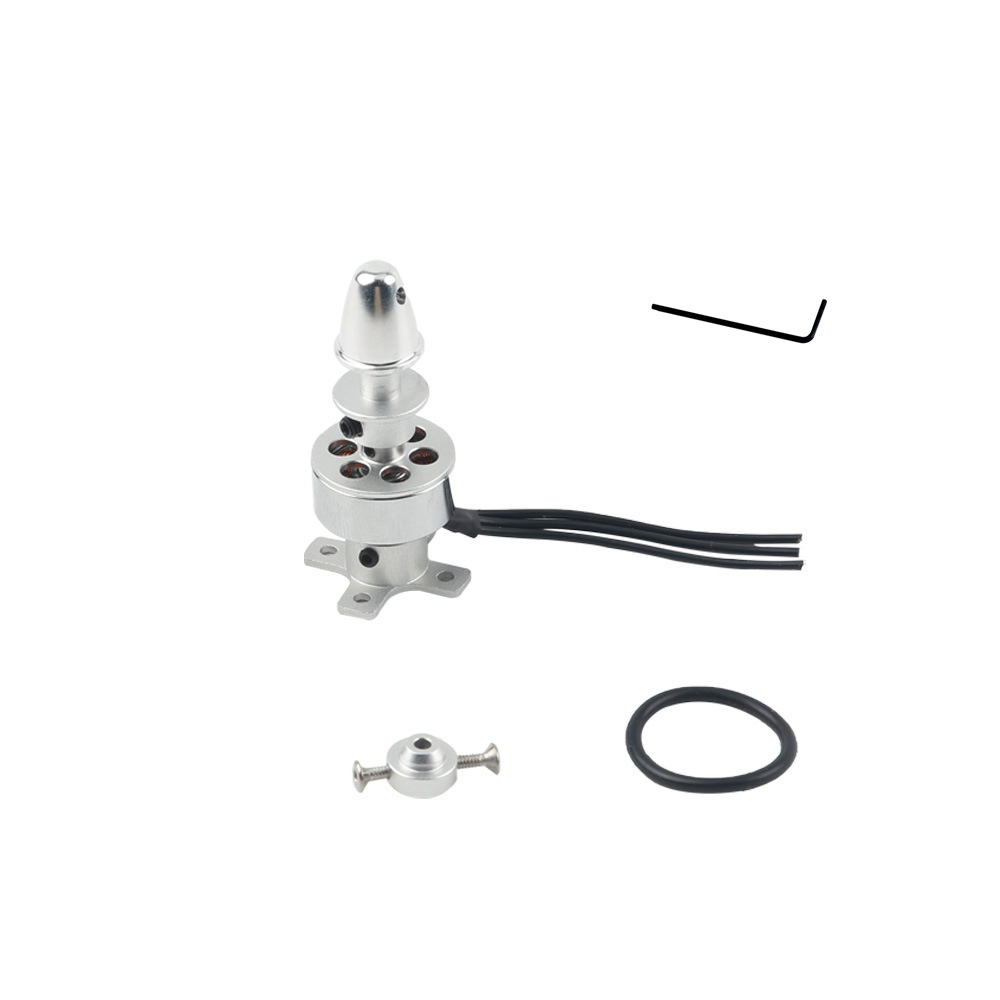

6. Accessories: 2.0mm blade protector, O-ring

7. Four-legged base: screw holesØ2.2*4, screw hole distance 15.5mm

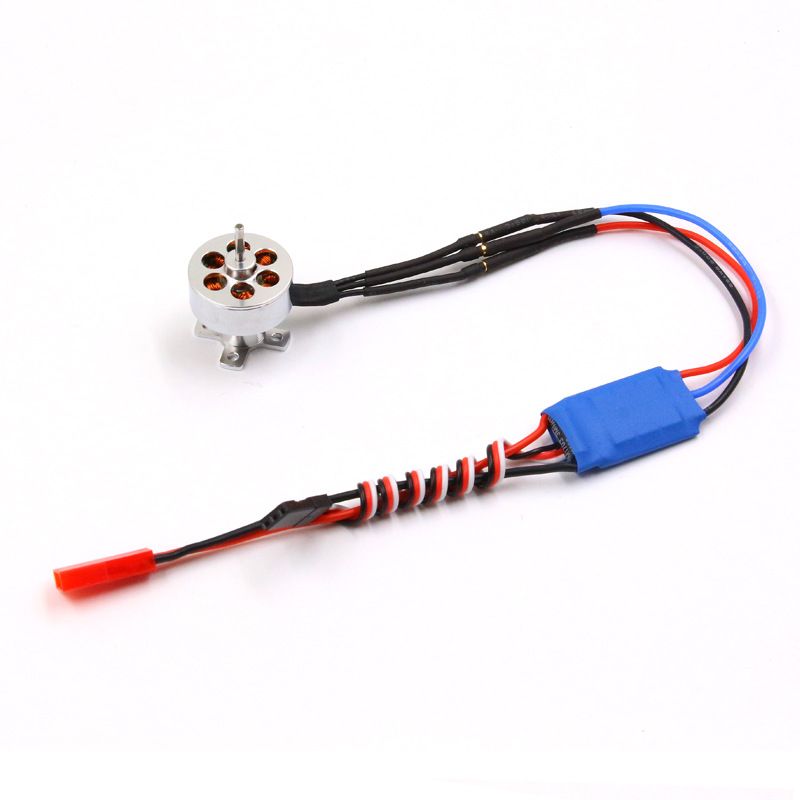

2. Match with ESC

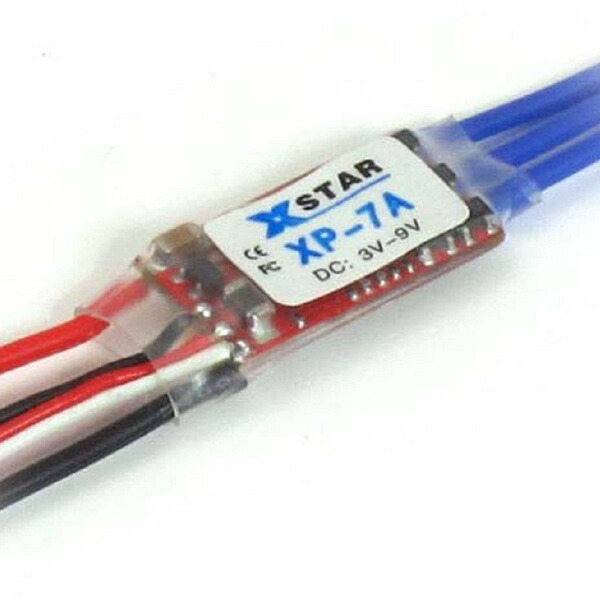

1. xp-7A brushless unidirectional ESC;

2. The ESC supports 1-2S lithium battery, that is, 3-9V;

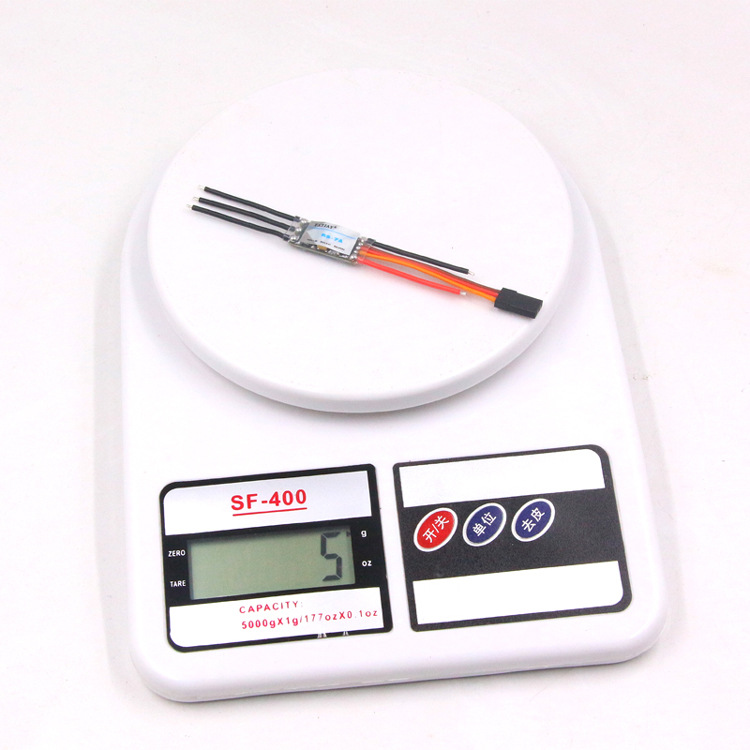

3. ESC weight: 5 grams;

3. Tension

1.2S   5045 paddle Pulling force 135 grams;

2.2S   6030 paddle Pulling force 150 grams;

3.2S     7035 paddle leaves Pulling force 165 grams;

4. Connectors

1. 2.0mm banana head;

2. JST female power connector.

Test data (for reference only):

D1811-2000KV (No-load current: 0.4A/7.4V, resistance: 0.59ohm, maximum power: 38W):

Voltage: 2s, ESC: 7A, propellers: 7*3.5, current: 4.1A, thrust: 165g

Voltage: 2S, Electricity: 7A, Patriot: 6*3, current: 3.4A, thrust: 150g

Voltage: 2S, Electricity: 7A, Patriarch: 5*4.5, current: 4.0A, thrust: 135G

D1811-3800KV(No-load current: 0.6A/7.4V, resistance: 0.205hm, maximum power: 59W):

Voltage: 1S, Electricity: 7A, Patriot: 7*3.5, current: 5.0A, thrust: 110g

Voltage: 2S, Electricity: 7A, Patriarch: 5*3, current: 7.5A, thrust: 205G

Voltage: 2S, Electricity: 7A, Patriot: 4*3, current: 6.0A, thrust: 170g

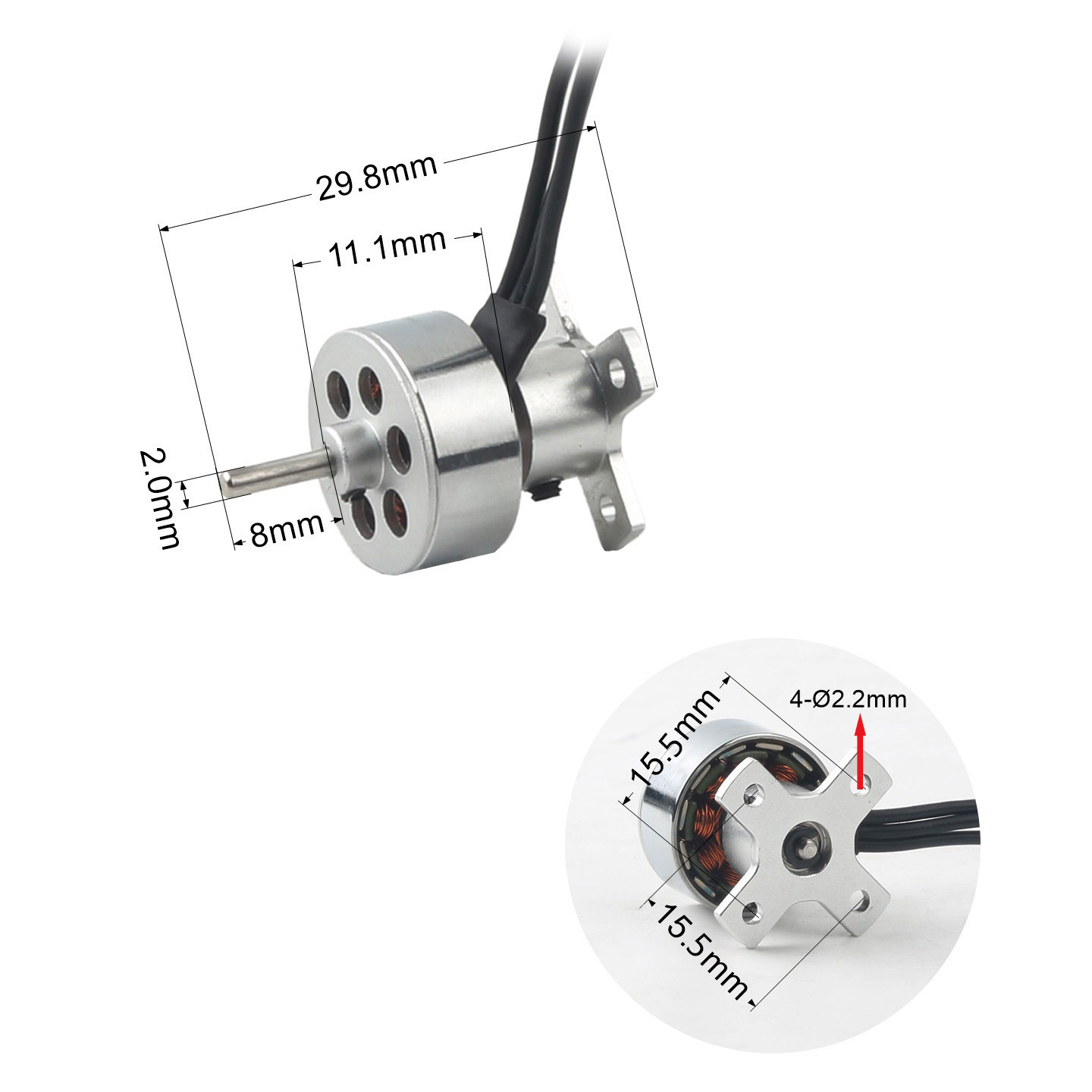

Motor size:
