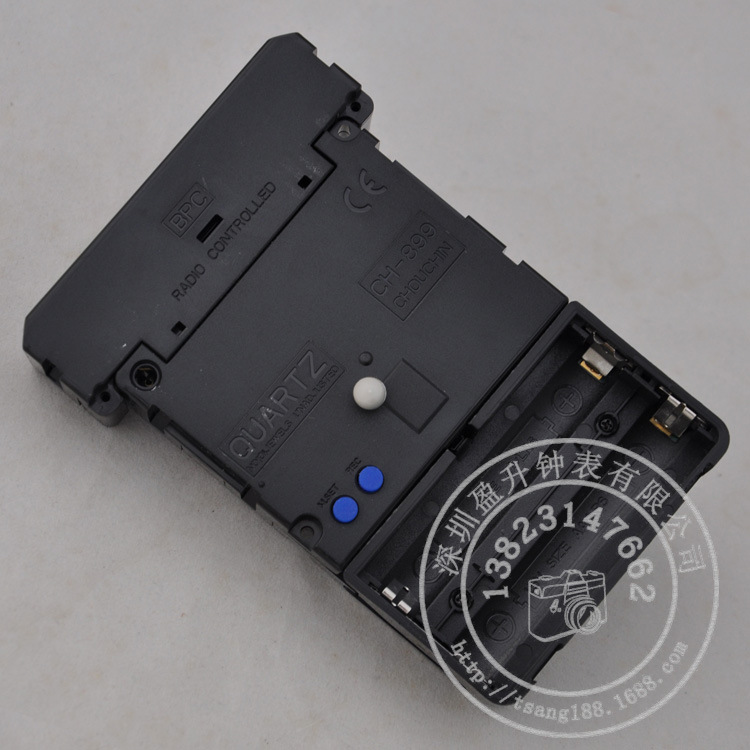

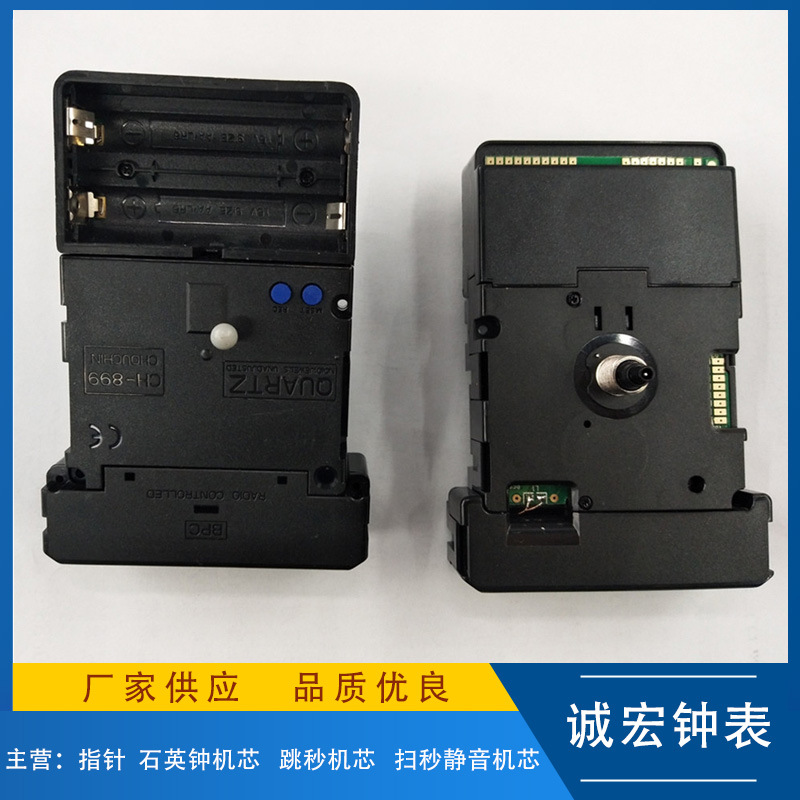

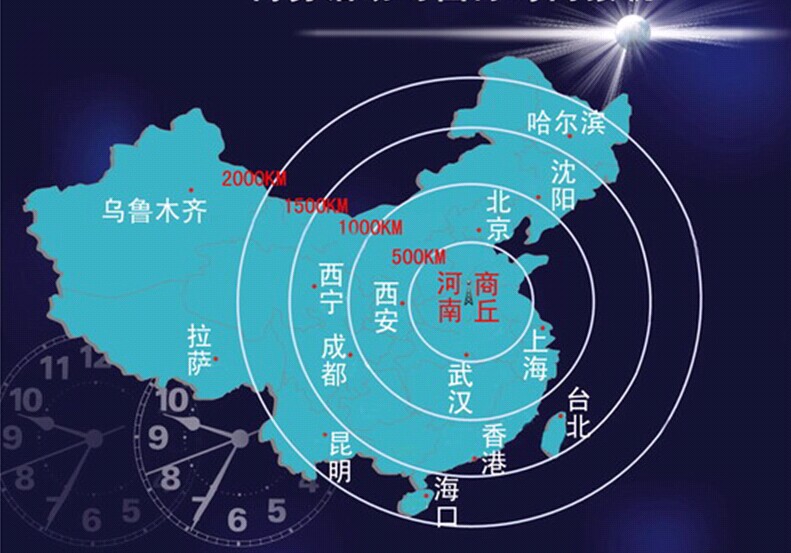

Product: Chinese code BPC second generation sweep second radio wave…

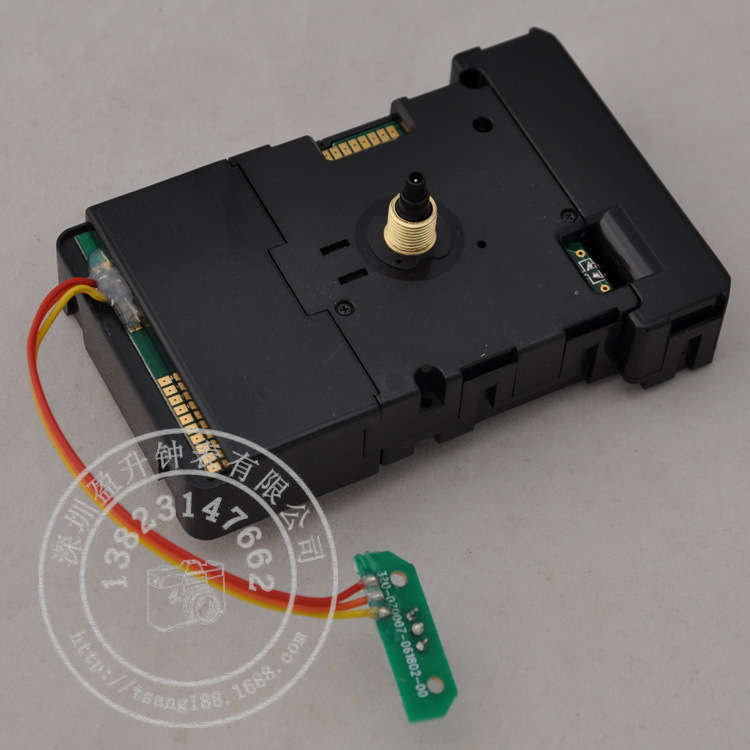

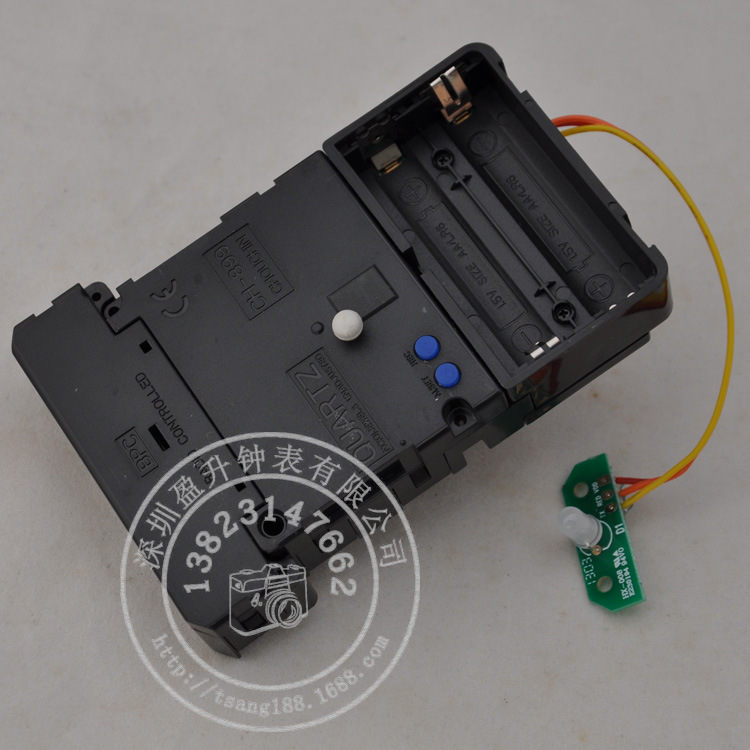

Add money with lights
A small amount of spot adaptation pointer
In 2012, the National College Entrance Examination Standardization Examination Room designated the timer
【Business】

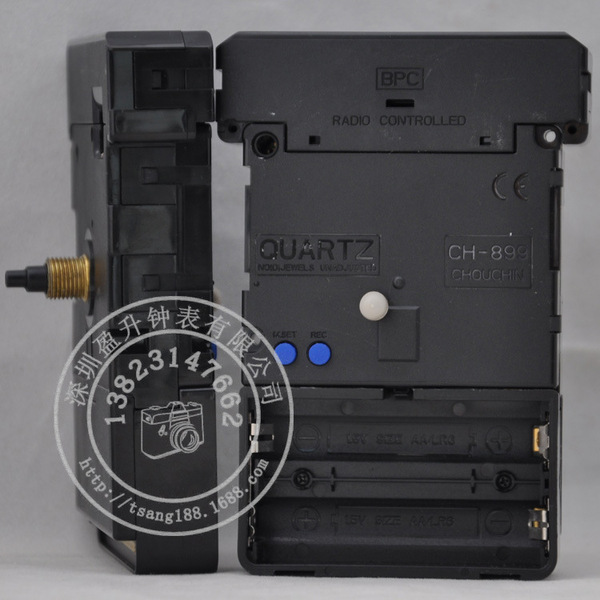

【Name】: CH-899RCS
[Applicable bell type]: hanging clock, table clock, craft clock

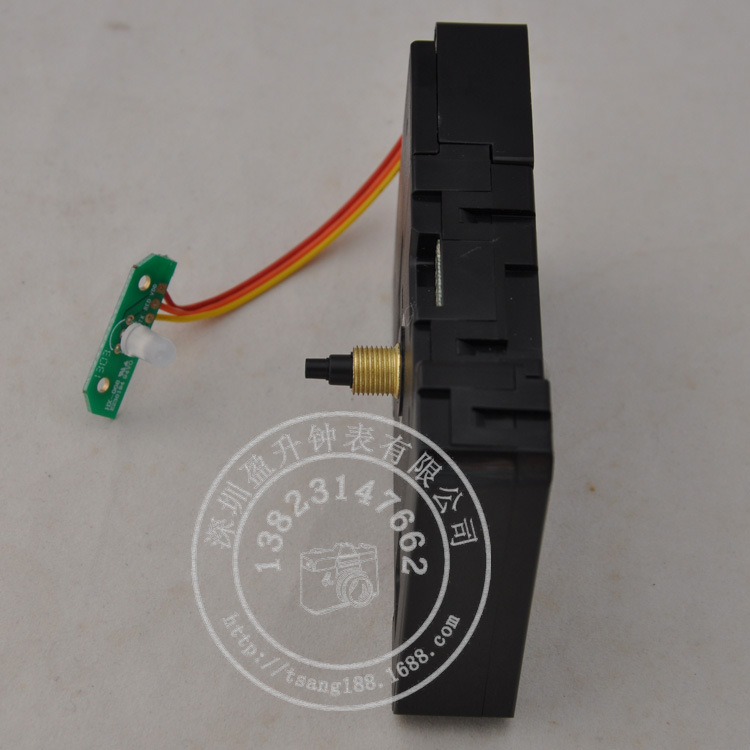

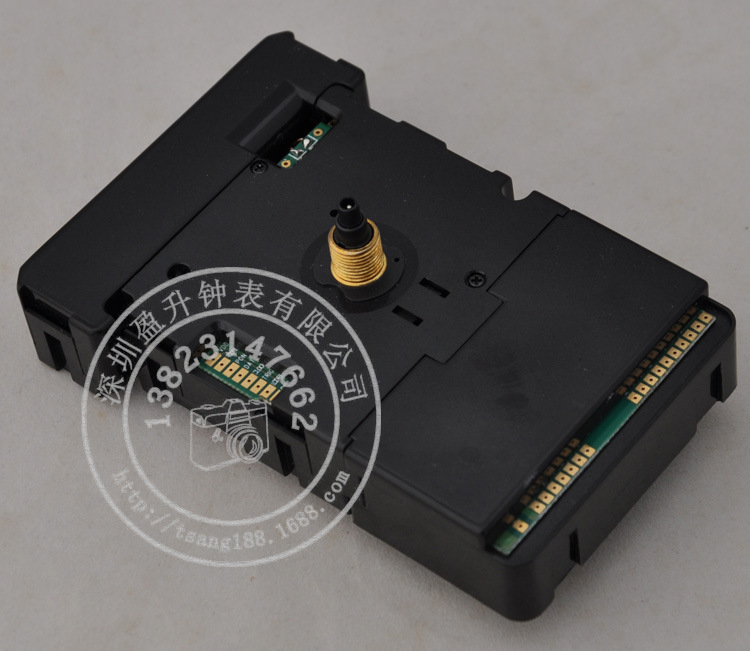

[Specification]: 89*65.5*18.5 mm The screw shaft is 7.7mm long, and the acupuncture shaft is 14.5mm.
[Attachment]: Hexagonal, Huashi, rubber pads, or sinking nuts (all gold, silver optional)
| |||||||||

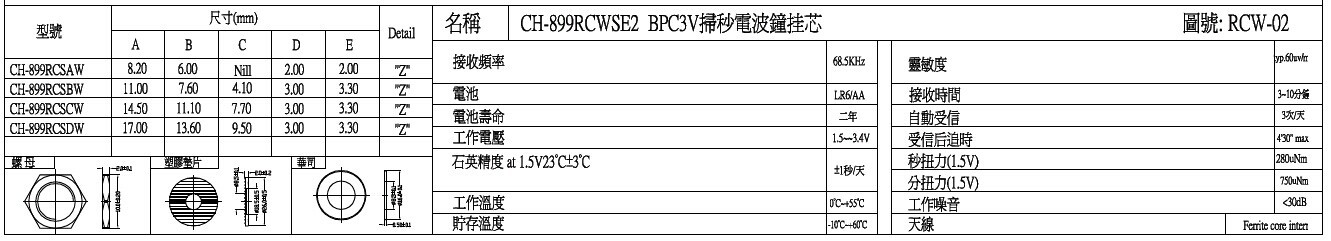

| project | Parameter | ||||||||
| Receive frequency | 68.5KHZ | ||||||||
| Battery | LR6/AA (two alkaline batteries) | ||||||||
| Operating Voltage | Battery voltage: 2.2V~~3.5V A single battery voltage:. 1.1V | ||||||||
| Second travel time current | Bleak150μA | ||||||||
| Travel time current | Bleak150μA | ||||||||
| receive current | Bleak90μA | ||||||||
| Quartz | ±1 second/day | ||||||||
| Battery life | about1 year | ||||||||
| Test ambient temperature | 25±2°C | ||||||||
| Work temperature range | -10℃~+55℃ | ||||||||
| storage temperature | -10 ℃ ~ +60 ℃ | ||||||||
| Trusted time | 3 ～ 10 points | ||||||||
| Zero setting time | Up to 6 points | ||||||||
| Work noise | <30 dB | ||||||||
| Number of receptions | 3Second/day (01:16:00,02:16:00,03:16:00) | ||||||||
| Sensitivity | 60μV/m | ||||||||
| Torque | Hour | length:Bleak100mm;weight:Bleak1.28g;Torque:Bleak476μNm | |||||||
| points | length:Bleak110mm;weight:Bleak1.13g;Torque:Bleak750μNm | ||||||||
| Second | length:Bleak130mm;weight:Bleak0.55g;Torque:Bleak180μNm | ||||||||
【Detail】
1. If you have any questions before shooting, please leave a message and ask for a bid to avoid unnecessary trading trouble.
2. All the movements of the company are 100 % genuine and large in number. They can be shipped directly in the factory. If you are fake ten, please buy it with confidence.
