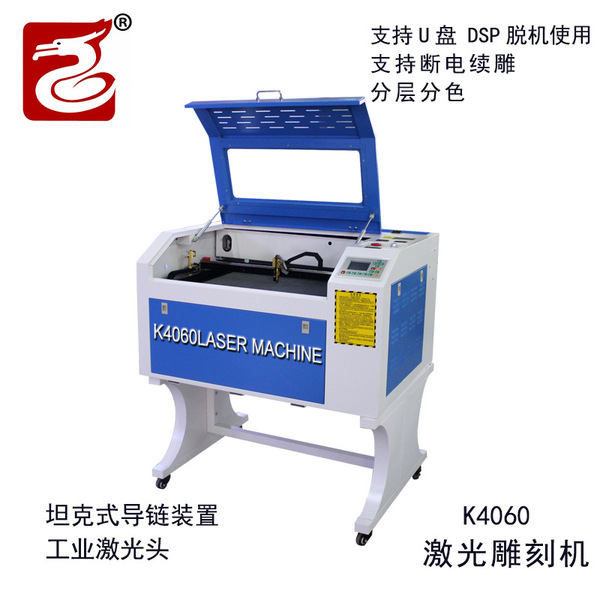

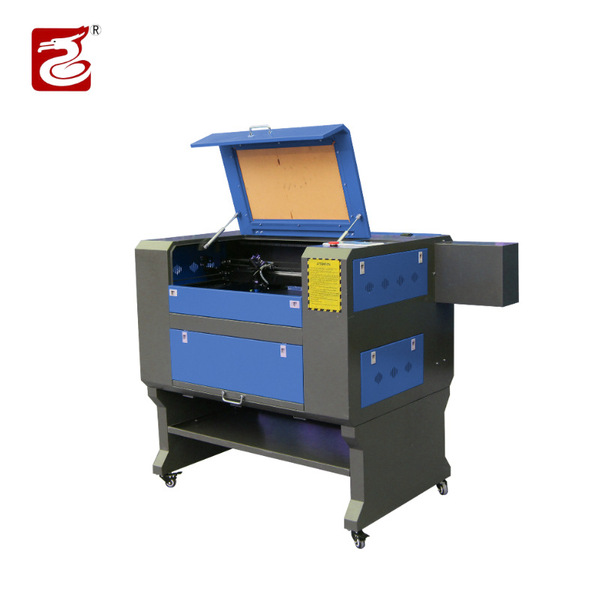

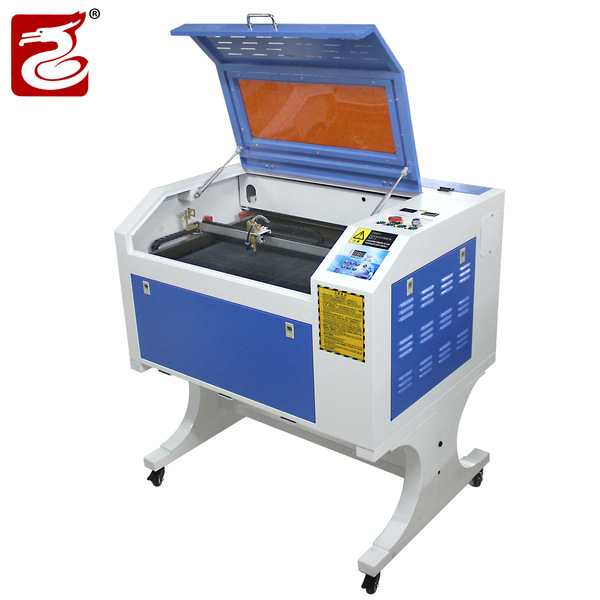

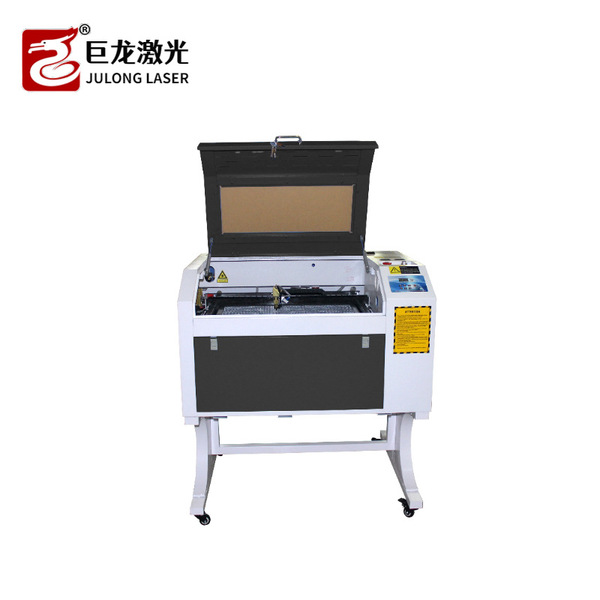

Product: Laser cutting machine leather cloth wooden board Acrylic ceramic PET…
Statement:If you need to open the ticket, add the tax point.Uniformly issue additional votes, please consult customer service for details!
Free upgrade to industrial laser heads, new rails are available for selection (higher accuracy and more durable than traditional linear square rails, if there is no requirement to ship randomly), and tank-type chain guide devices and light-sensitive technology positioning switches are added!Avoid positioning deviation, long-term use of the machine to crash, and combined with the advantages of wear and corrosion resistance of linear square rails, greatly improving the performance and stability of the machine, and a set of high-thickened and thickened mobile racks are given.
According to the actual work needs, select the power size:
The machine can be carved or cut and cut out.However, small power is not suitable for cutting is more suitable for carving.
Small power can also cut.It only needs to slow down when cutting, and the power needs to be increased (increasing the strength of the laser), which increases the time for laser contact with your items, thereby increasing the burning time of laser on your items.Relatively speaking, it will be much worse, and forcibly cutting this is also particularly powerful for the loss of laser tube.The small power itself is more suitable for carving instead of cutting.
Compared to cutting, the greater the power, the better.Because the greater the power, the speed can be placed properly when cutting, so that the time for laser and items can be reduced, thereby reducing the time of laser burning on your items.If the power is small, the effect will be much better.
Processing materials: 、 、 、MDF、 、 、 、 、 、 、 、 、 、 、Bamboo products, PVC, KT board, dual -color board,Non -metal items such as rubber, non -drying stickers, etc., can be used for carving such as carving characters, can also be cut and hollowed out. For details of specific thickness and effects, please ask customer service.
Bone products,Crystal, glass, quartz, marble, stone, ceramic and other non -metals, as well as coating -painted metal surface carvings, metal membrane plates, alumina, can be carved without depth.For details, please ask customer service (please test under the guidance of engineers).
In order to let you see more physical pictures of the sculpture of the machine, we put a lot of physical pictures as much as possible. Those who are interested can pull down as much as possible to watch.
Export standard (linear square rail, non-offline version):

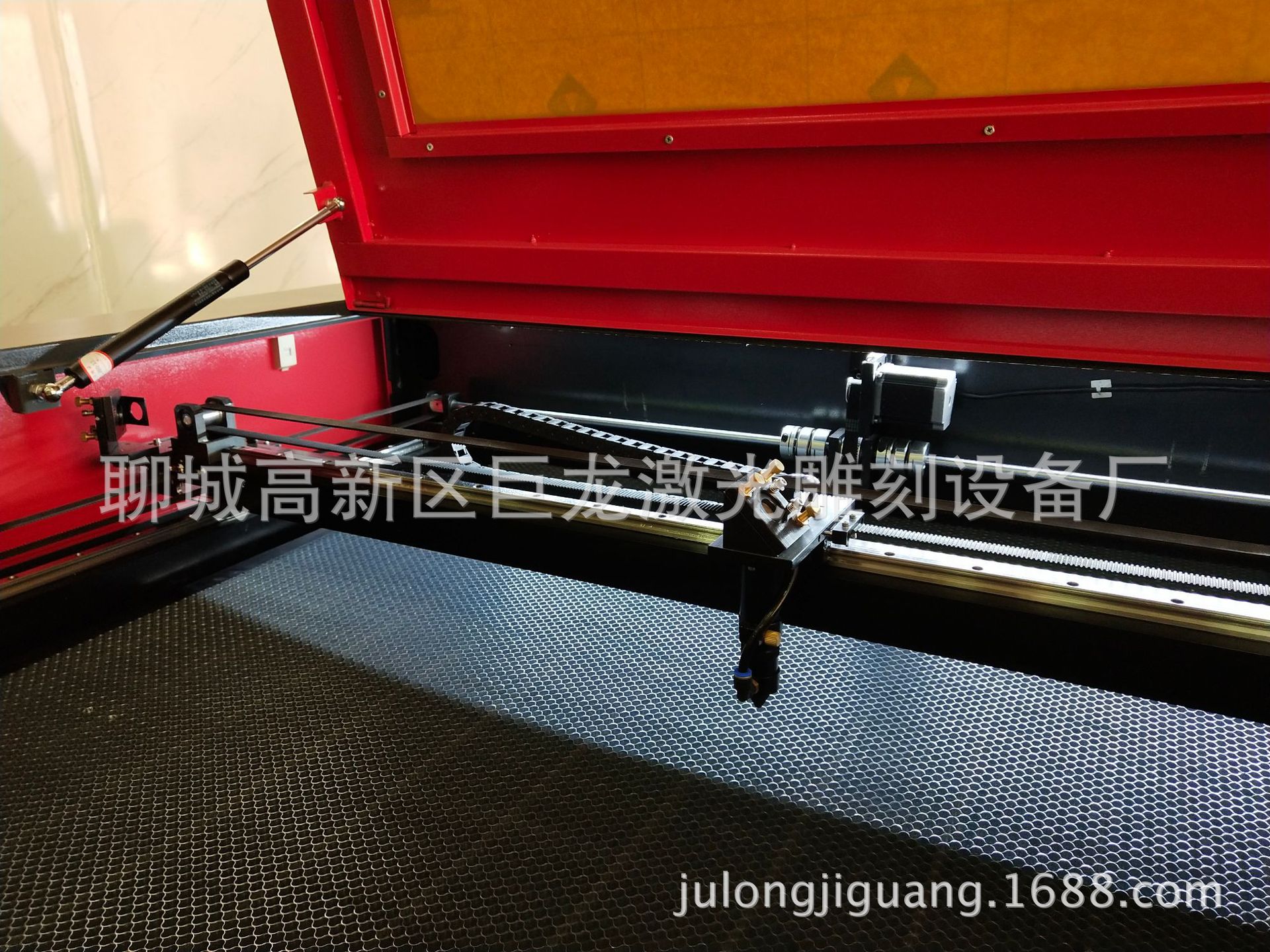

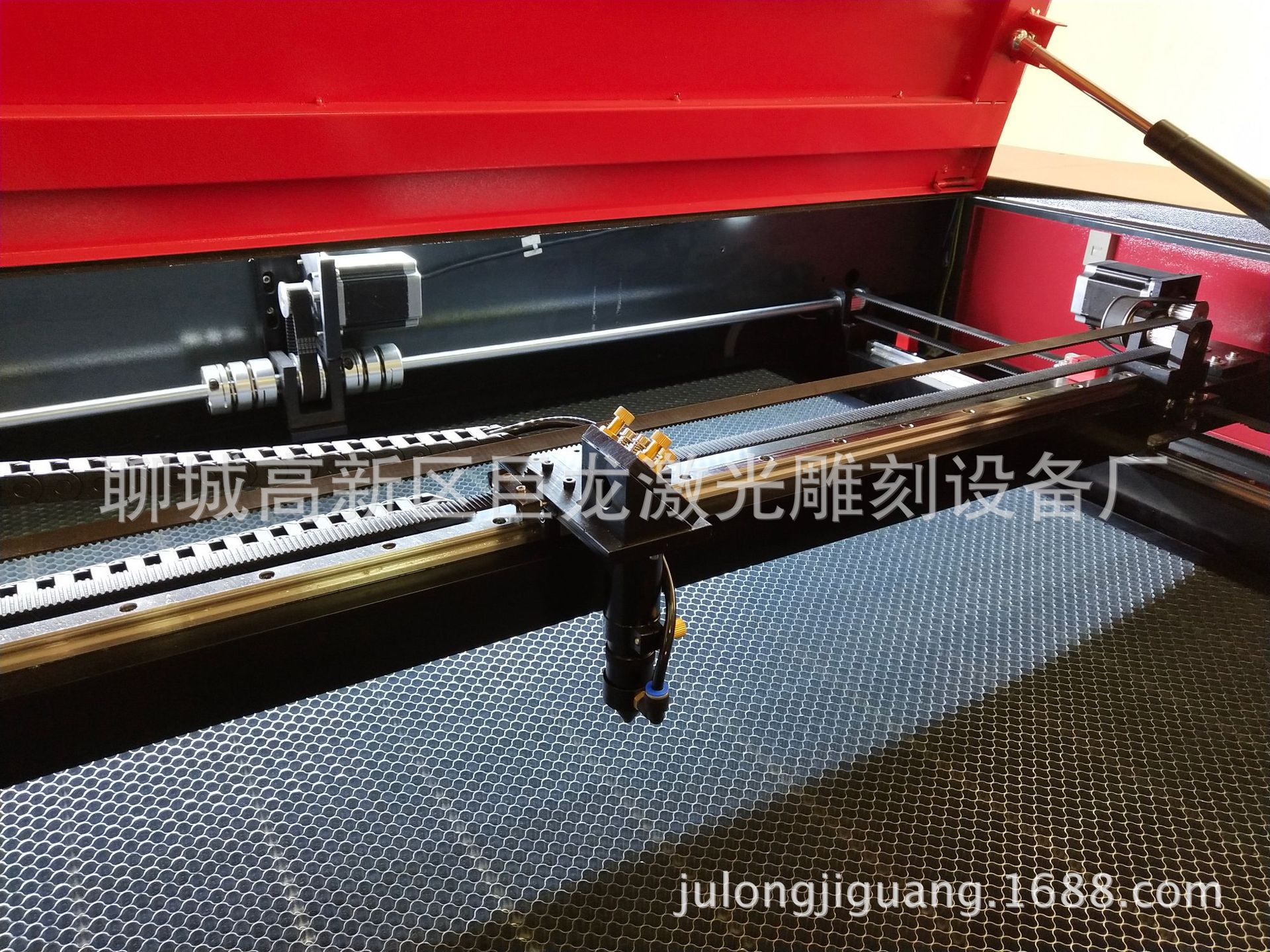

The horizontal axis (X-axis) adopts a linear square rail, and the board adopts the Dragon Platinum Edition HSIC high-speed pioneer board (supports direct output of Easy Ke software and CoreLaser), dual tank-type chain guide device, touch LCD display, red light positioning system, air blowing flame retardant system, electric lifting (can be lifted by 25-30cm), water temperature detection, emergency stop, all-metal mirror, and dual emergency stop switches.Also, a set of high-thickened and thickened mobile racks are given!
Note: The platform can be customized as a flat platform and a honeycomb platform, and the color of the shell can be customized

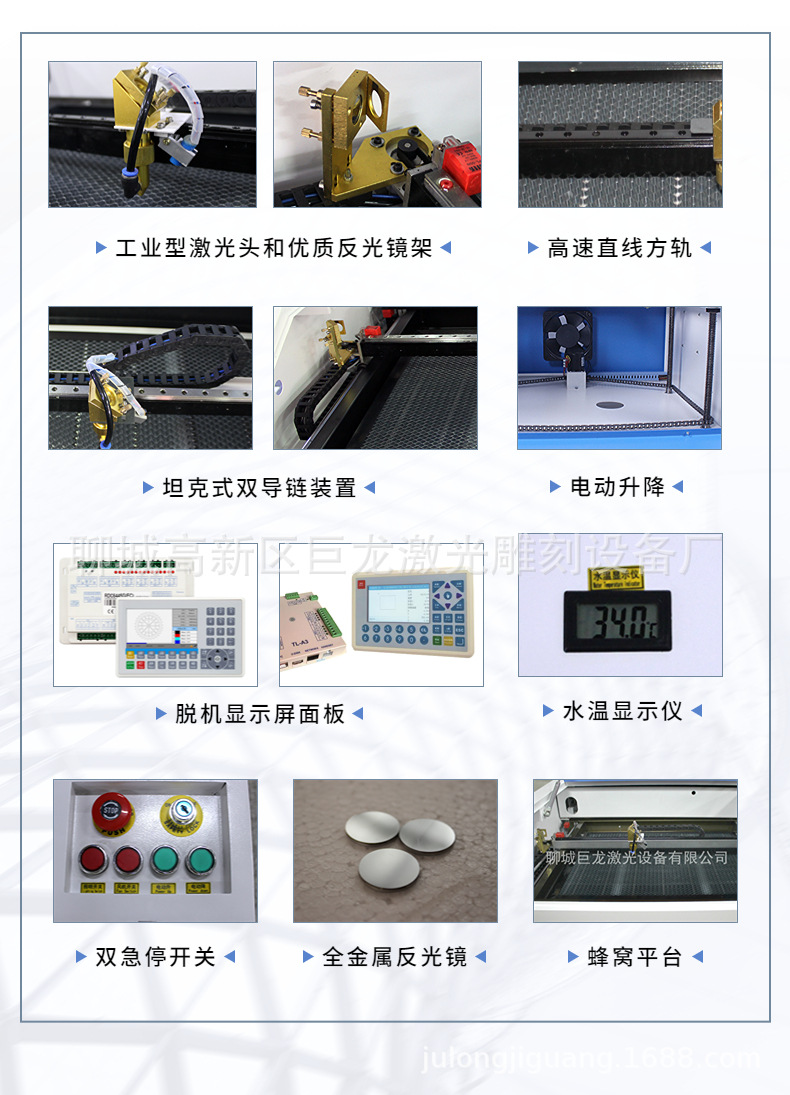

Export Offline Version Linear Square Rail (Offline Version/DSP):

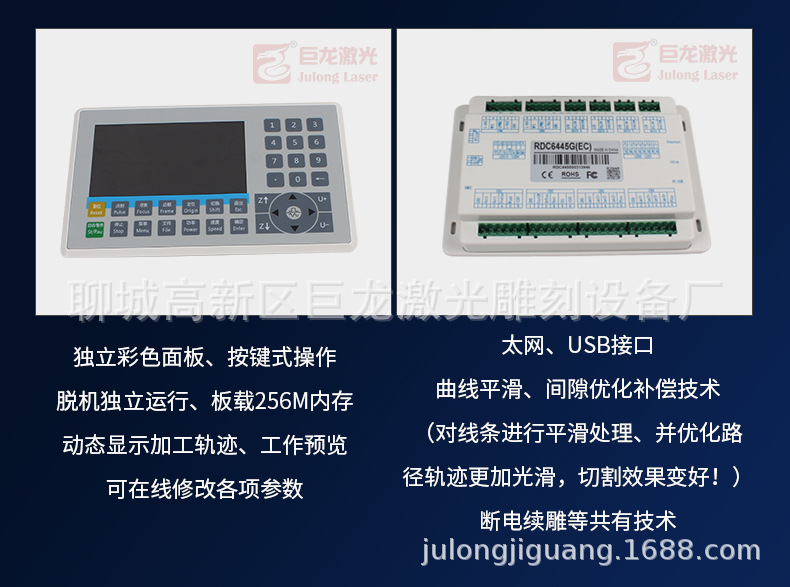

The horizontal axis adopts a linear square rail, the board adopts offline board, LCD display, high-tech control system (Ruida/Taizhi can choose one, if no requirements are required to ship randomly), small industrial laser head (with lens protection system and industrial optical path system), metal reflector, dual power supply, dual drivers, dual emergency stop switches, red light positioning system, air blowing flame retardant system, electric lifting (can be lifted or lowered by about 25cm), and water temperature detection.In addition, a set of high-thickened and thickened mobile racks are given.
USB2.0 offline use, supports CAD, CorelDRAW,Photoshop, AutoCAD, various clothing CADMultiple software typesetting sculptures.
You can complete a number of tasks without a computer and have a stable hardware system.Support CorelDRAW and CAD software typesetting and carving output; carving cutting color division and layering at the same time; the output of the output file output of the U drive can control a variety of machine operations; it can support USB output, U disk direct output, network transmission of network transmission, network transmission, network transmissionMemory files, can be renewed for electricity, repeated work, etc.
Small industrial version:

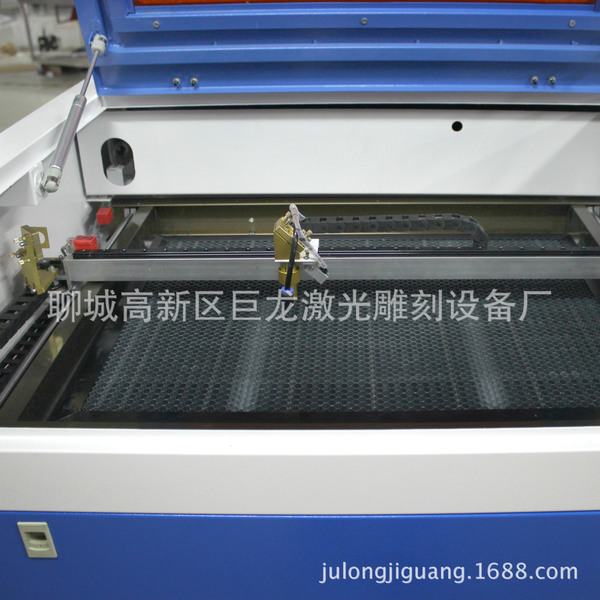

platform:Select one arbitrarily on the knife strip platform and honeycomb platform. If cutting is mostly recommended (but softened items such as cutting leather and fabrics, the softened cuts need to be used to use the honeycomb platform)
In addition, according to work needs, you can buy another: cylindrical carving platform 200

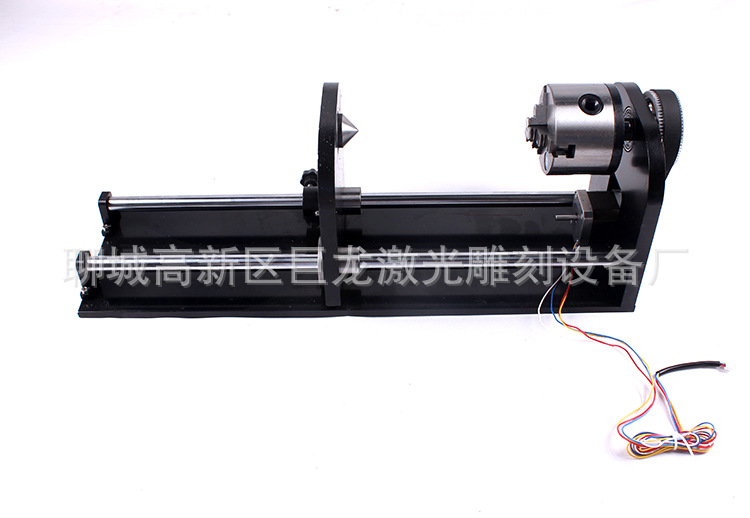

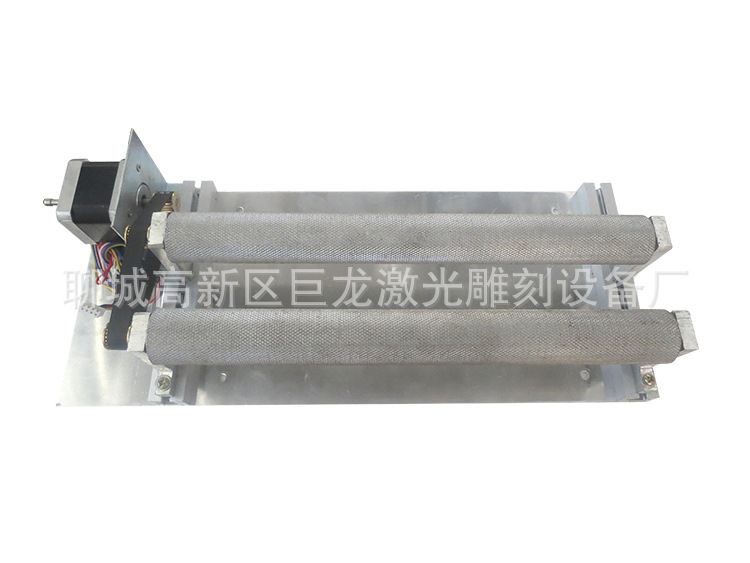

Standard rotation axis (industrial -grade alien cylindrical carving platform) 900.
If you need a cold water machine, please contact the customer service. If the workload is not large or the continuous working time is not long, the large power pump brought by the machine itself is enough.Customers with large workload or cutting are recommended to add water -cooled machines

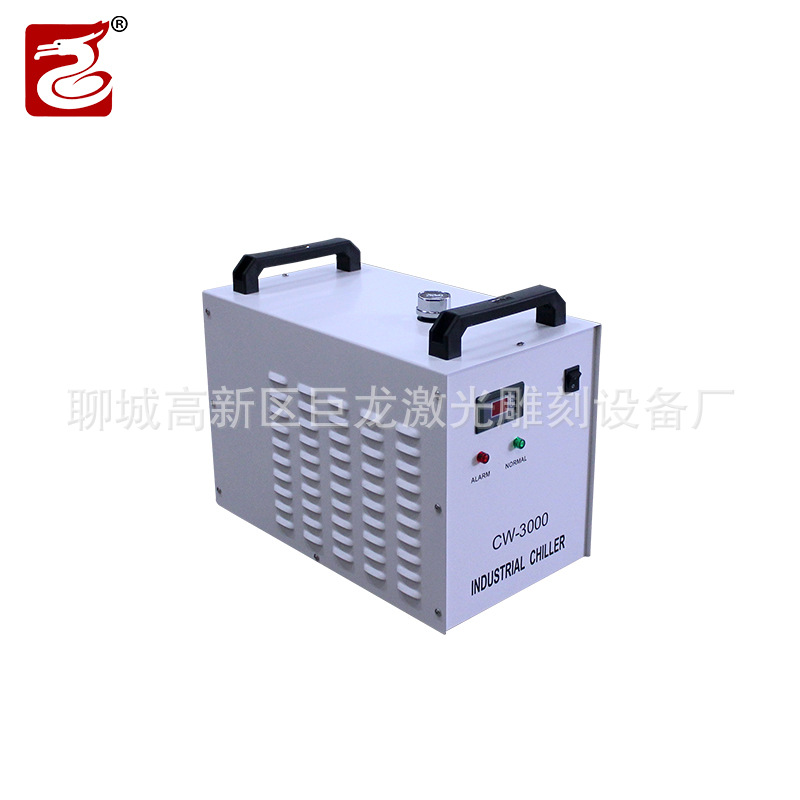

CW-3000 cold water machines purchase 600 separately, and the random machine purchases 500 together (there is no refrigeration effect, but simply combining the water pump and the water tank, the water is hot or the water will be automatically alarm))

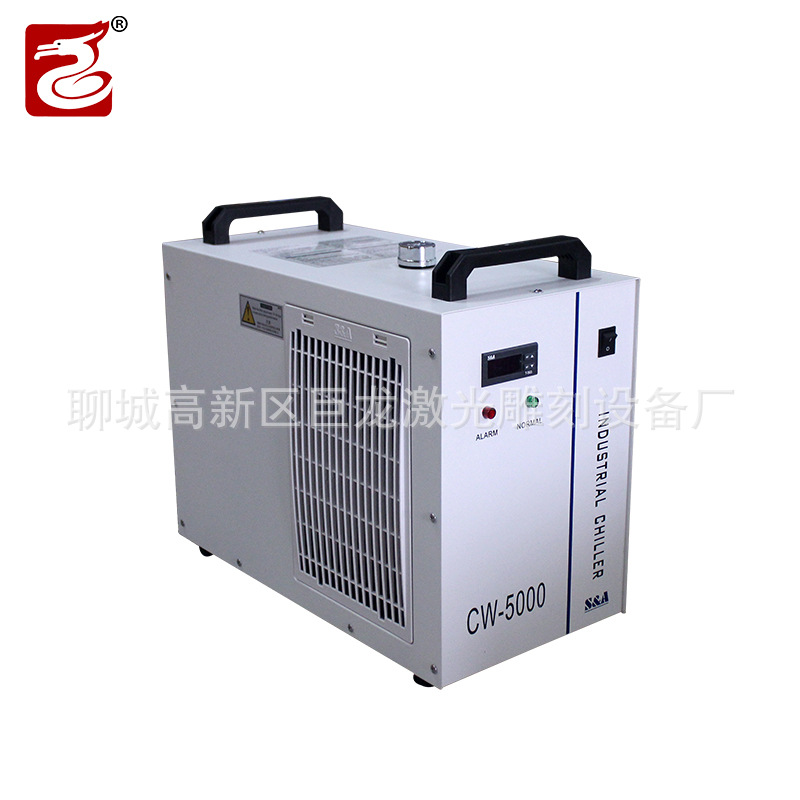

CW-5000 cold water machine (built-in compressor, professional refrigeration equipment) purchase 1900 separately, and buy 1800 together with a random machine
Problem related technical parameters
Product model JL-K6040
Laser power 50W/60W/80W/100W
Laser type CO2 lying glass tube laser, water cooling, 10.6um
Power supply voltage AC220 ± 10% 50Hz/AC110 ± 10% 60Hz
Platform lifting platform/honeycomb platform (optional)
Effective surface 600 × 400mm (laser work amplitude surface)
Scanning speed 0-500mm/s
Sports speed 500mm/s
Cutting speed 0-20mm/s
Laser energy control 1-100 software settings
Topic text Chinese characters 2.0 × 2.0mm English 1.0 × 1.0mm
Scanning accuracy ≤1000dpi
Positioning accuracy ≤ ± 0.05mm
Repeated positioning tolerance ≥0.05mm
After the load test, the working accuracy of the test piece is ≥0.1mm
Work temperature 5 ℃ -35 ℃
Control configuration DSP
Data transmission interface USB
System Environment Windows2000/Windows XP/Vista/Win7
Cooling method water cooling and protection system
Supportable graphic formats that can be recognized by all CorelDRAW, AutoCAD
Support software CorelDRAW, Photoshop, AutoCAD, various clothing CAD software
The thickness of the carving is 0-20mm (the cutting depth is for reference only, mainly depends on the requirements of the material and the customer's cutting quality)
Differential cutting up to 256 layers of color division color cutting
Packaging size 154*91*81cm around
Weighing 75kg of machine

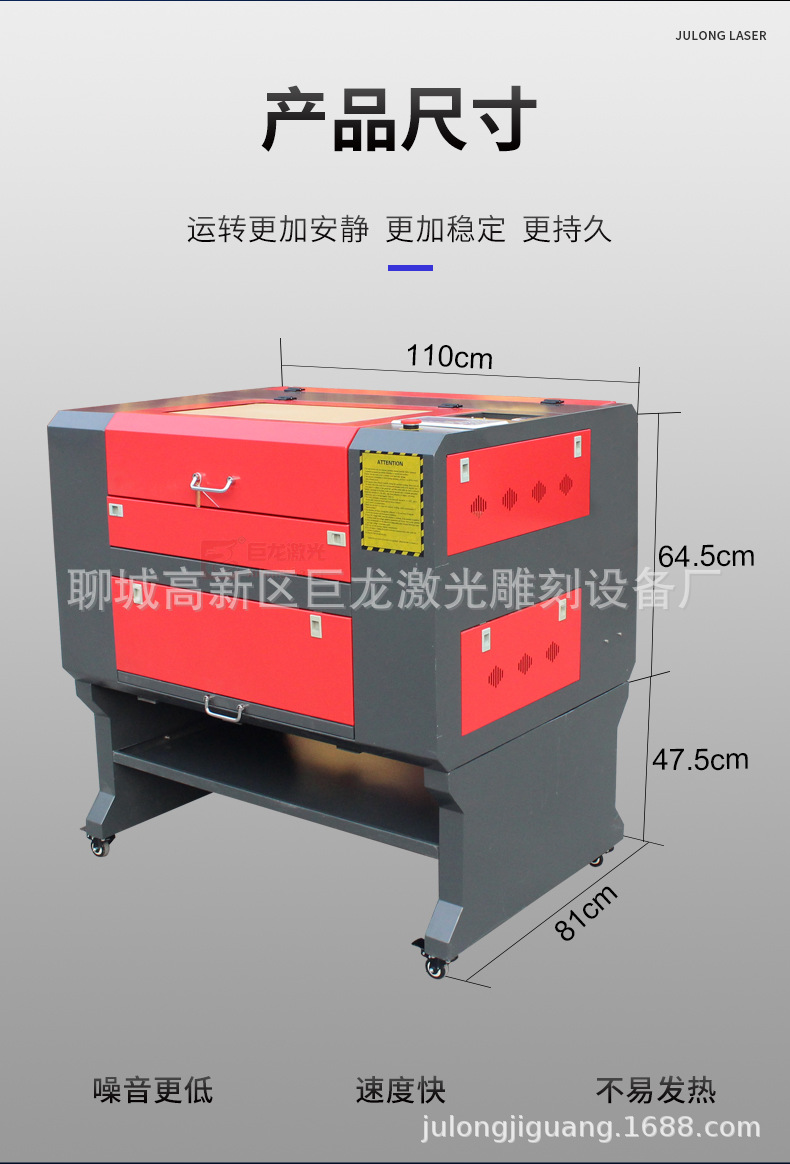

Dimensions 1380*740*640 (mm)
Packing wooden box packaging
Solemnly declare: If you buy goods in our store, any disputes arise, the two parties can negotiate and resolve it. If the negotiation cannot be achieved, either party has the right to sue to the people's court where the seller is located.
Acrylic sample display:
Ceramic sample display:
Marble sample display:
Paper products:
Leather sample display
Plastic silicone carving sample display:
On the surface, there are layers of lacquered metal items:
Glass product:
