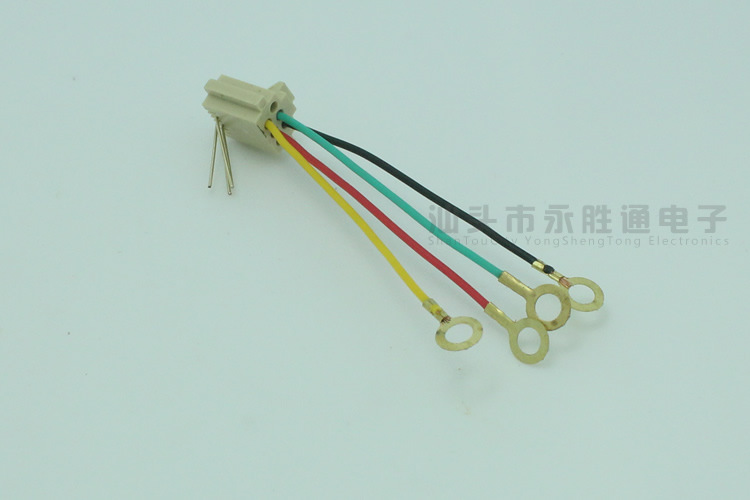

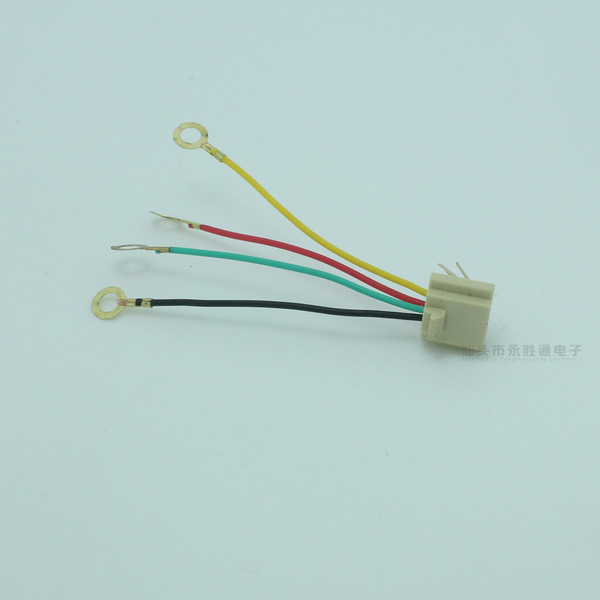

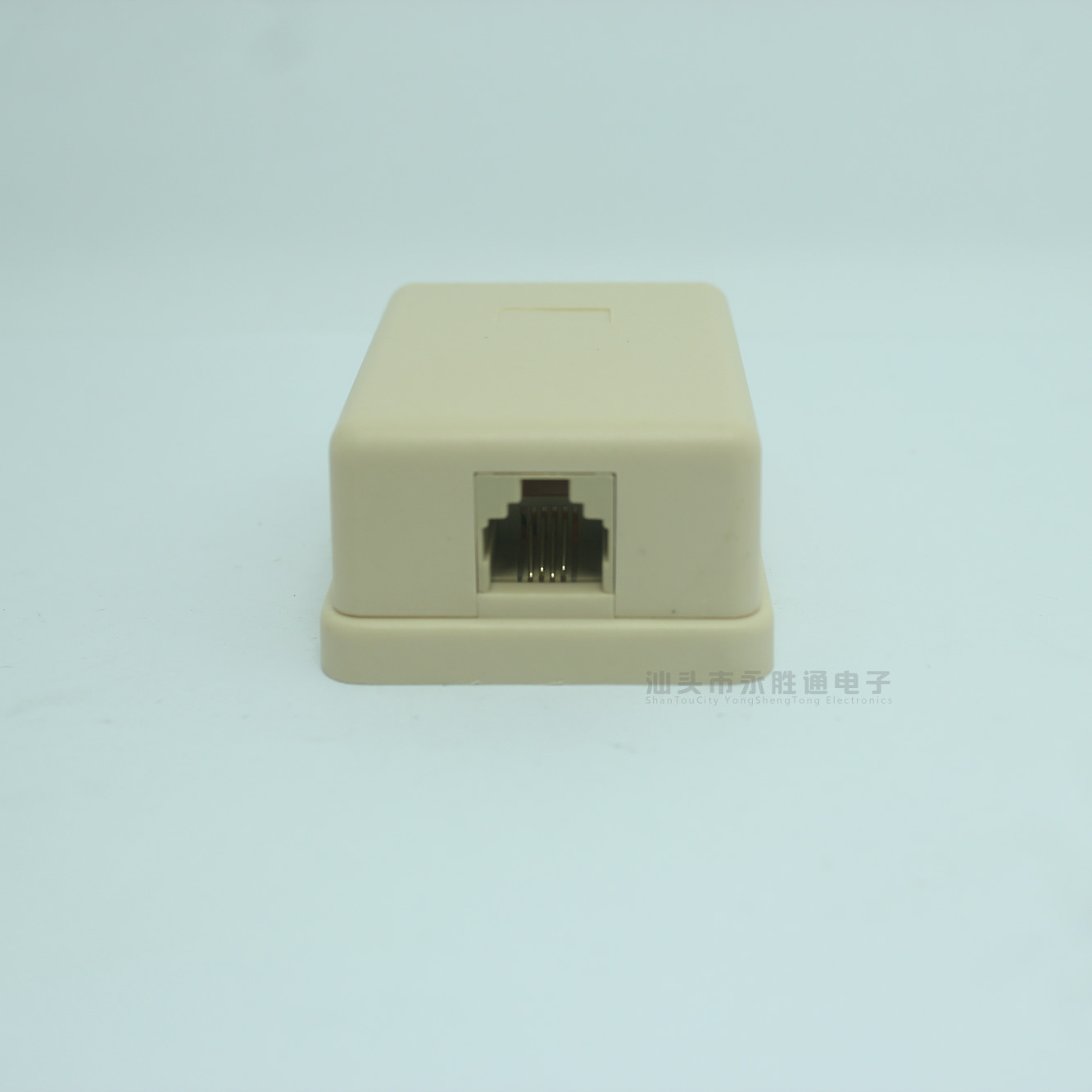

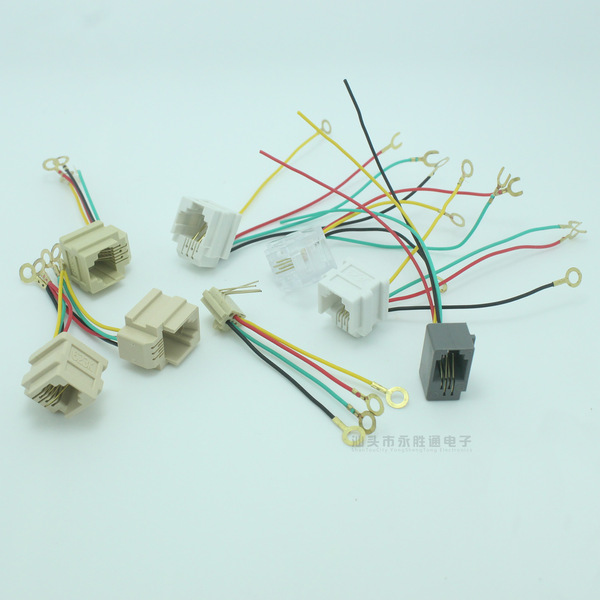

Our factory specializes in 623K, which is suitable for telephone wiring boxes, telephone connectors, and telephone.

ELECTRICAL

Current rating:1.5AMPS

Voltage rating:125VAC

Insulation resistance:100MΩMINI

Withstand voltage:AC 1000 V RMS 50Hz or 60Hz 1 Min

Contact resistance:20mΩMAX

MECHANICAL

Insertion force:2 wire lead…350g,4 wire lead…500g,6 wire lead…750g,

8 wire lead…900g

Retention strength:7.7Kg between jack and plug

Crimp tensile strength:2.27Kg

Durability:750 mating cycles Mini

MATERIAL

Housing:ABS RESIN(UL 94V-0)

Spring wire:0.45mm div phosphor bronze gold plating over nickel

Cold plating:□-3u” inch□3u” inch,□6u’’inch,□15u”,□30u”,□50u”

Wire styles:UL 1061 26 AWG strands

CONDITION

Using condition:-20℃ ~+55℃RH85% bleow

Storing condition:0℃ ~+32℃RH65% bleow
