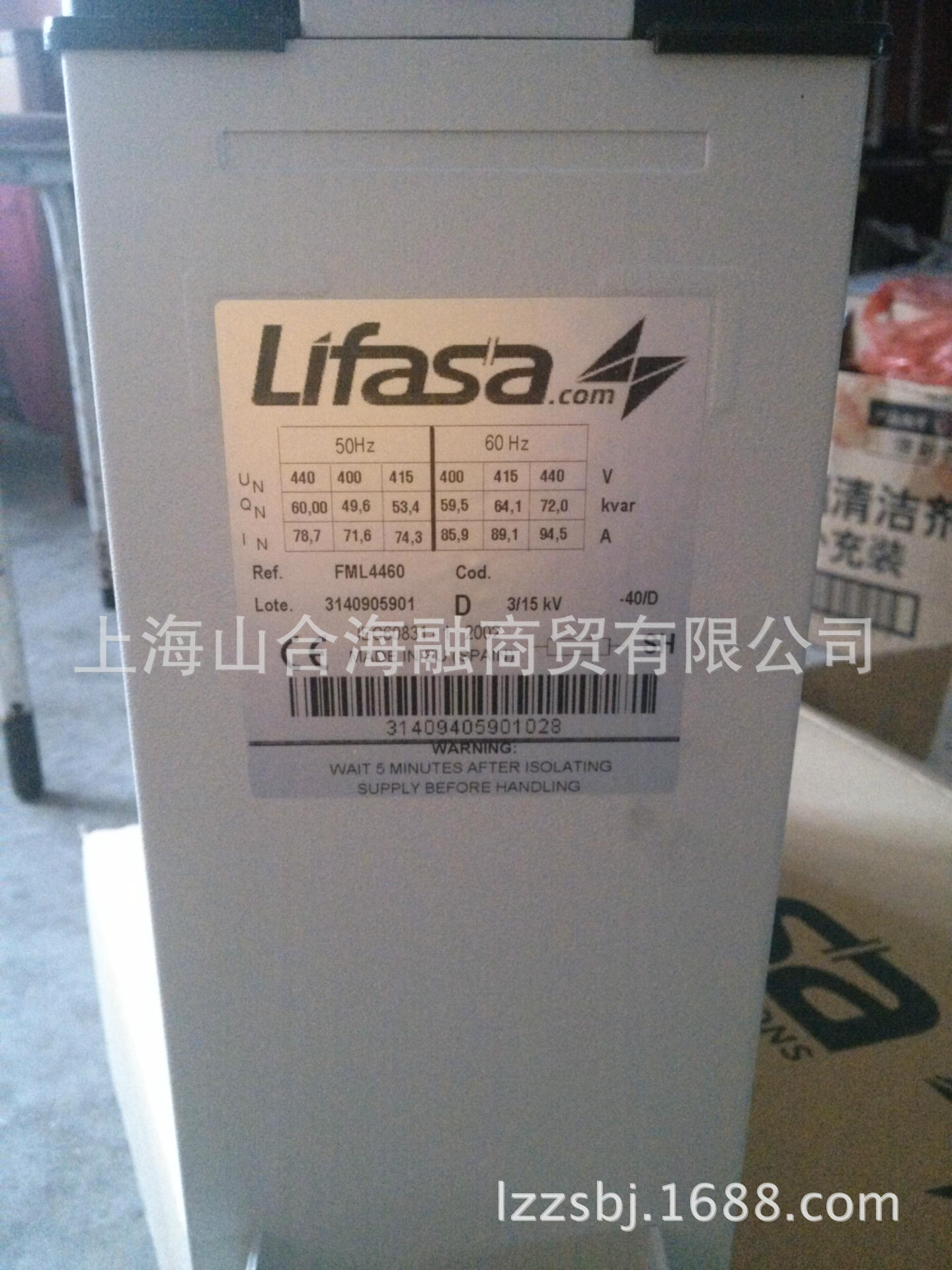

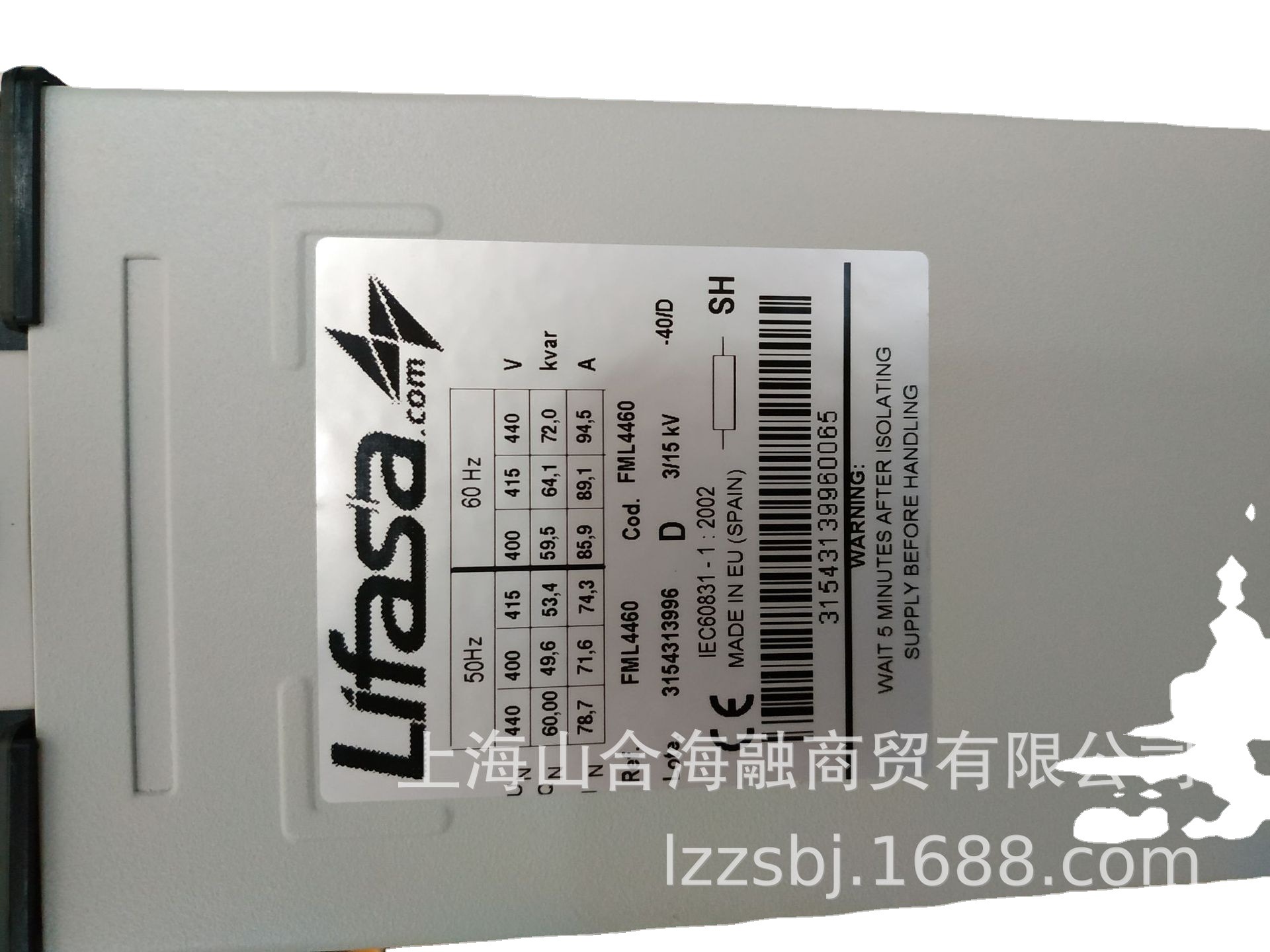

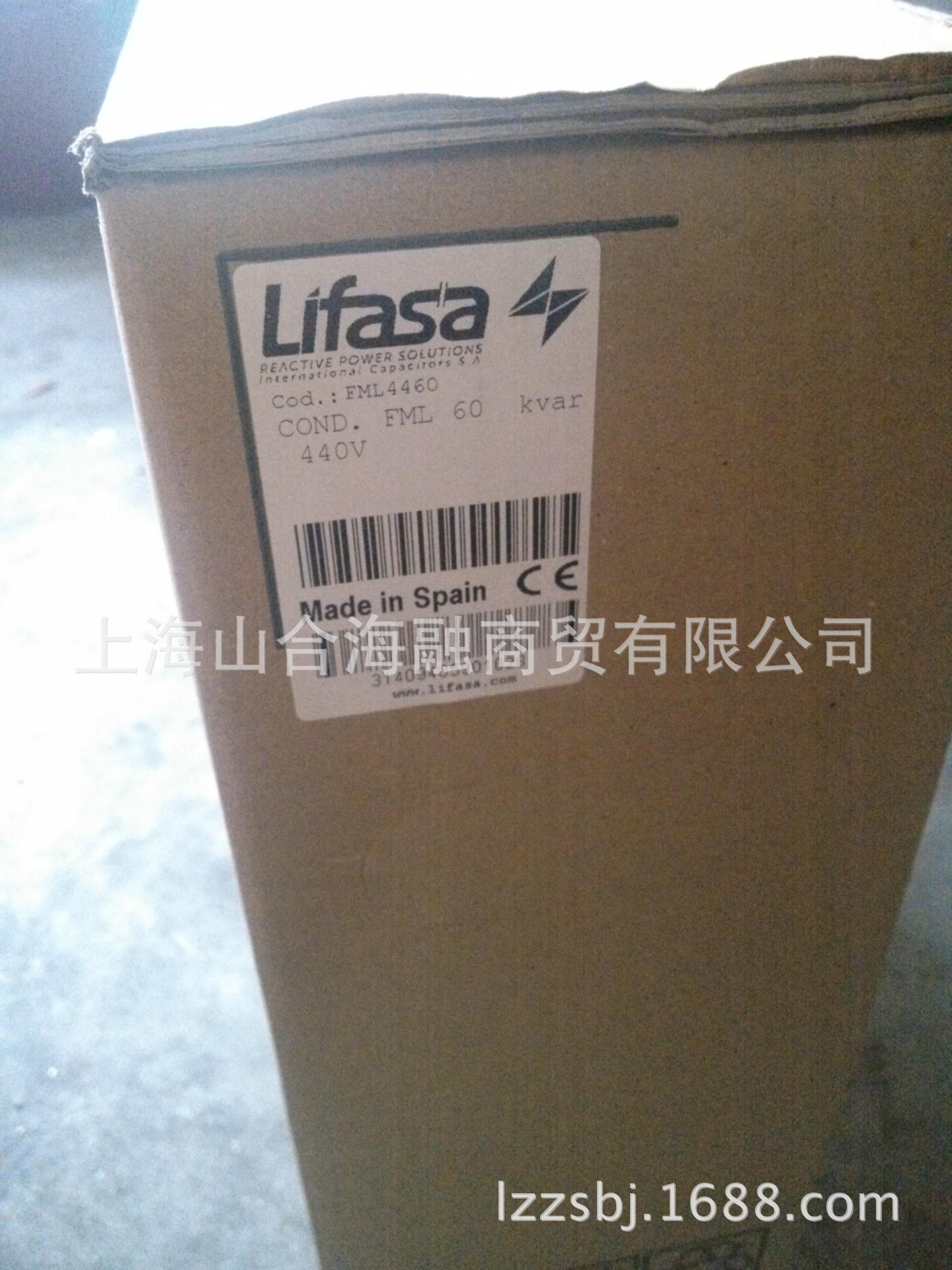

Spanish Lifasa capacitor FML4460 (formerly FMD4050) 400V 50KVAR

    Spanish LIFASA has produced high -quality capacitors and other products since 1949. The products include: motor startup capacitors, high -voltage electric capacitors, lighting capacitors, capacitors groups, tentacles without functional compensation capacitors, filter impedance capacitors, aluminum electrolytic capacitors, high -frequency next to high -frequencyRouter container, high -frequency coupling capacitor, ceramic capacitor, tuning capacitor, polystyrene capacitor, plastic film capacitor, absorption filter…
    The Lifasa capacitor system is suitable for the connection with the load in the AC power system with a working frequency 50Hz or 60Hz, the rated voltage 1000V and below to improve the power factor of the system.The capacitor is used as an electrode and medium with a metal polyacrylin film, so the product has the advantages of self -healing performance and has the advantages of light weight, small volume, and low loss.In addition, the capacitor is equipped with pressure protection devices, over -current protectors and discharge resistors, which have high reliability and security.The Spanish LIFASA capacitor uses a uniquely designed self -healing metal film, which greatly enhances the requirements of the end facial coordination and high pressure resistance of the capacitor element, thereby improving the resistance and reliability of the capacitor;A current impact, thereby effectively extend the service life of the capacitor.
    Shanghai Shanhe Hairong Trading Co., Ltd. acts on sale of Spanish Lifasa company capacitor products, mainly includes the following models. Specific product specifications and price please call and contact:
    FML4440（ FMD4030）、FML4460（ FMD4050）、FMLR4050、FMLR4030、MFB23050、FMLS4430、ELEFP40016AE、POLT44012、POLB44182SK、CPF4420、CPM4450、CAB14460、BATM0844175I、BATM080、BATLV180、BATLV360、BATLV400、BATLV800、BATLV1200、BATLV1600、INA、INR、INAS、INRS、FMLF、FMLFS、BATLVF400、BATLVF600、BATLVF800、BATLVF1000、BATLVF1200、BATLVFS400、BATLVFS600、BATLVFS800、BATLVFS1000、BATLVFS1200、HBF-T、TFA、HAF、HPF、SINAF、MCE ADV、MCE-FPlus、PFCLElite, TCP, MC, CTF-CTB, MCA Plus, Motor and Lighting Capacitors, etc.
Product Description:
1.The bolts are qualified to ensure the reliable and stability of the wiring, and meet the requirements of large capacity and large current;
2.A safe and reliable American excessive explosion -proof structure, built -in discharge resistance, makes the product more secure and reliable;
3.Long life, multi -component design, increase the heat dissipation area, increase the temperature of the capacitor, extend the service life of the capacitor, and the average life span reaches about 100,000 hours (the data is for reference only);
4.The capacitor element uses a special square resistance design with a metallic film, which has high self -healing performance, but also meets the requirements of high reliability contact and high pressure to resist;
5.Safe and effective protection measures to avoid harm to the human body;
6.Convenient and reliable installation method improves work efficiency;
7.High -quality cylindrical aluminum shell, beautiful and beautiful, smaller volume, makes the capacity of the single cabinet larger.The design of industrial products, enhance the image of the finished product, and create value for customers.

The FML4460 is a discontinued original FMD4050 replacement model.

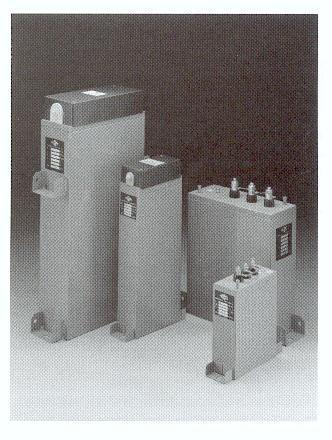

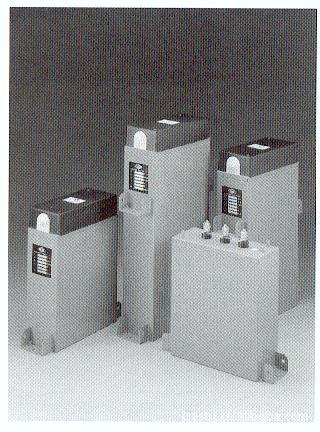

Standard Power Capacitor FML
FML standard power capacitor

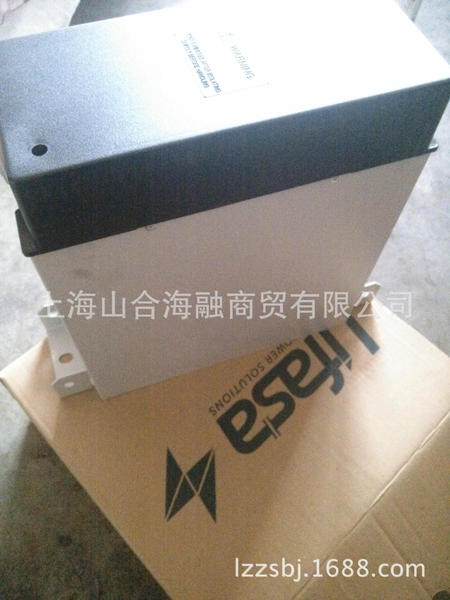

Self-healing capacitors with low losses metallized polypropylene dielectric without impregnant liquid. Mounted in rectangular sheet steel plate enclosure having discharge resistors connected to the terminals, which are protected by the cover.
The low -loss metal acrylic medium does not include a capacitor without immersion liquid.Installed in the rectangular steel shell, the resistance is connected to the terminal, and the terminal is protected by the lid.

These capacitors are especially suitable for the individual compensation of inductive loads and the construction of capacitor banks.
These capacitors are particularly suitable for individual compensation and the structure of the capacitor group with inductive loads.

Other powers, voltages and frequencies on request.
For other power, voltage and frequency can be customized as required.

PRISMATIC CAPACITOR TECHNOLOGY
Aprint capacitor technology

LIFASA capacitors are manufactured using the most advanced technologies, coming from an in depth knowledge of the manufacturing process and also from very strict laboratory and R+D tests. The enormous experience in installations, acquired over many years, allow us to incorporate in the new design the necessary characteristics to optimize the use of the product. Capacitors are composed of capacitive elements wound from low loss polypropylene film. This dielectric is vacuum metallized, what gives it an excellent self-healing characteristic(MKP). Elements are covered with a thermo hardening resin of high dielectric properties and are not oil filled. Elements are connected to obtain the required reactive power and are mounted in steel cases. Void spaces between elements and the case are filled with a non-flammable, inert and non toxic material. Each element is individually protected.60831-2 standards.
The manufacturing of the Lifasa capacitor adopts advanced technology, comes from in -depth understanding of the manufacturing process, and also from very strict laboratories and R & D tests.Many years of accumulated rich installation experience allows us to optimize the use of products in combination with the necessary features in new design.The capacitor consists of a capacitance component entangled with a low -loss polypropylene film.This type of electronics is vacuum metallic, which makes it have excellent self -healing characteristics (MKP).The component is covered by high -agency thermal hardening resin and does not fill in oil.Connecting elements to obtain the required powerless power and install it in the steel box.The gaps between the components and the shell are filled with non -flammable, inertia and non -toxic materials.Each element is protected alone.This constructor avoids the risk of capacitor explosions and meets all tests specified in IEC 60831-1 and IEC 60831-2 standards.

Advantages advantage

• Capacitors are dry type and consequently ecologically safe: there is no possibility of impregnating liquid leakage.
  The capacitor is dry, so it is safe in ecology: there is no possibility of leakage of impregnation liquid.
• Losses are specially reduced: lower than 0.05% (< 0.5 W/kvar).
  Losses were specially reduced: below 0.05%(<0.5 W/KVAR).
• Capacitors are a self-healing type: in case of a dielectric breakdown, due for example, to a transient overvoltage, the self-healing mechanism vaporizes the metallic electrode around the breakdown point, allowing the capacitor to go on working normally.
  Capacitors are self -healing types: For example, when the dielectric breakdown is caused by instantaneous overvoltage, the self -healing mechanism evaporates the metal electrode near the breakdown point, allowing the capacitor to work normally.
• Their weight and volume are very low, allowing them to be installed everywhere without problems.
  Their weight and volume are very low, and there is no problem allowing them to be installed anywhere.
• Capacitors use strong terminals that guarantee a fast and safe connection.
  The capacitor uses a solid wiring terminal to ensure fast and safe connection.
• Capacitors, cover with their different series, a wide range of power and voltages to satisfy the most varied requirements.
  Capacitors, covering different series, wide power and voltage range to meet most different requirements.

Power Capacitors LIFASA capacitors are manufactured using the most advanced technologies, coming from an in depth knowledge of the manufacturing process and also from very strict laboratory and R+D tests. The enormous experience in installations, acquired over many years, allow us to incorporate in the new design the necessary characteristics to optimize the use of the product. Capacitors are composed of capacitive elements wound from low loss polypropylene film. This dielectric is vacuum metallized, what gives it an excellent self-healing characteristic (MKP). Elements are covered with a thermohardening resin of high dielectric properties and are not oil filled. Elements are connected to obtain the required reactive power and are mounted in steel cases. Void spaces between elements and the case are filled with a non-flammable, inert and non toxic material. Each element is individually protected. This construction system avoids any risk of explosion of the capacitor and meets all the tests specified Advantages Capacitors are dry type and consequently ecologically safe: there is no possibility of impregnating liquid leakage. Losses are specially reduced: lower than 0.05% (< 0.5 W/kvar). Capacitors are a self-healing type: in case of a dielectric breakdown, due for example, to a transient over-voltage, the self-healing mechanism vaporizes the metallic electrode around the breakdown point, allowing the capacitor to go on working normally. Their weight and volume are very low, allowing them to be installed every-where without problems. Capacitors use strong terminals that guarantee a fast and safe connection. Capacitors, cover with their different series, a wide range of power and voltages to satisfy the most varied requirements.   FML STANDARD PRISMATIC CAPACITOR 5 ... 100 kvar   Filmetal Power Capacitors DeSCRJPTion Self-healing capacitors with low losses metallized polypropylene dielectric without liquid impregnants. Mounted in rectangular sheet steel plate enclosure having discharge resistors connected to the terminals, which are protected by the cover. These capacitors are especially suitable for the individual compensation of inductive loads and the construction of capacitor banks. Technical Characteristics Rated Voltage 230-1000V Frequency 50Hz-60Hz Insulation level 3kV rms/15kV crest Dielectric Polypropylene Discharge resistors Fitted Dielectric losses ≤ 0.2 W/ kvar Total losses ≤ 0.5 W/ kvar Max. overvoltage 1.1 Un(8h/dia/day) Max. overcurrent 1.3 In Power tolerance -5/+10% climatic range -40/+ 55 ℃ Connection terminal M10 Protection degree IP41 Colour RAL 7035 Discharge resistors Fitted     *Other Voltages and FrequenCies on Request. Capacities with a Height of H <420mm Do not have upper fapper fapstenings. Model Reference 50Hz 60Hz high H (mm) Weight (kg) Weight 230V 240V 260V 230V 240V 260V Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) FML2305 5,0 12,6 5,4 13,1 6,4 14,2 6,0 15,1 6,5 15,7 7,7 17,0 270 2,8 FML2307 7,5 18,8 8,2 19,6 9,6 21,3 9,0 22,6 9,8 23,6 11,5 25,5 270 2,8 FML2310 10,0 25,1 10,9 26,2 12,8 28,4 12,0 30,1 13,1 31,4 15,3 34,1 270 3,5 FML2312 12,5 31,4 13,6 32,7 16,0 35,5 15,0 37,7 16,3 39,3 19,2 42,6 270 3,5 FML2315 15,0 37,7 16,3 39,3 19,2 42,6 18,0 45,2 19,6 47,1 23,0 51,1 270 3,5 FML2320 20,0 50,2 21,8 52,4 25,6 56,8 24,0 60,2 26,1 62,9 30,7 68,1 270 4,2 FML2325 25,0 62,8 27,2 65,5 31,9 70,9 30,0 75,3 32,7 78,6 38,3 85,1 270 5,0 FML2330 30,0 75,3 32,7 78,6 38,3 85,1 36,0 90,4 39,2 94,3 46,0 102,2 270 5,0 FML2340 40,0 100,4 43,6 104,8 51,1 113,5 48,0 120,5 52,3 125,7 61,3 136,2 460 7,5 FML2350 50,0 125,5 54,4 131,0 63,9 141,9 60,0 150,6 65,3 157,2     460 8,2 FML2360 60,0 150,6 65,3 157,2                 460 9,0 Model Reference 50Hz 60Hz high H (mm) Weight (kg) Weight 440V 400V 415V 400V 415V 440V Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) FML4406 6,25 8,2 5,2 7,5 5,6 7,7 6,2 8,9 6,7 9,3 7,5 9,8 270 2,8 FML4412 12,5 16,4 10,3 14,9 11,1 15,5 12,4 17,9 13,3 18,6 15,0 19,7 270 2,8 FML4415 15,0 19,7 12,4 17,9 13,3 18,6 14,9 21,5 16,0 22,3 18,0 23,6 270 2,8 FML4420 20,0 26,2 16,5 23,9 17,8 24,8 19,8 28,6 21,4 29,7 24,0 31,5 270 3,5 FML4425 25,0 32,8 20,7 29,8 22,2 30,9 24,8 35,8 26,7 37,1 30,0 39,4 270 3,5 FML4430 30,0 39,4 24,8 35,8 26,7 37,1 29,8 42,9 32,0 44,6 36,0 47,2 270 3,5 FML4435 35,0 45,9 28,9 41,8 31,1 43,3 34,7 50,1 37,4 52,0 42,0 55,1 270 4,2 FML4440 40,0 52,5 33,1 47,7 35,6 49,5 39,7 57,3 42,7 59,4 48,0 63,0 270 4,2 FML4445 45,0 59,0 37,2 53,7 40,0 55,7 44,6 64,4 48,0 66,8 54,0 70,9 270 4,2 FML4450 50,0 65,6 41,3 59,6 44,5 61,9 49,6 71,6 53,4 74,3 60,0 78,7 270 5,0 FML4455 55,0 72,2 45,5 65,6 48,9 68,1 54,5 78,7 58,7 81,7 66,0 86,6 270 5,0 FML4460 60,0 78,7 49,6 71,6 53,4 74,3 59,5 85,9 64,1 89,1 72,0 94,5 270 5,0 FML4465 65,0 85,3 53,7 77,5 57,8 80,4 64,5 93,0 69,4 96,5 78,0 102,3 460 6,8 FML4470 70,0 91,9 57,9 83,5 62,3 86,6 69,4 100,2 74,7 104,0 84,0 110,2 460 6,8 FML4475 75,0 98,4 62,0 89,5 66,7 92,8 74,4 107,4 80,1 111,4 90,0 118,1 460 6,8 FML4480 80,0 105,0 66,1 95,4 71,2 99,0 79,3 114,5 85,4 118,8 96,0 126,0 460 7,5 FML4485 85,0 111,5 70,2 101,4 75,6 105,2 84,3 121,7 90,7 126,2 102,0 133,8 460 7,5 FML4490 90,0 118,1 74,4 107,4 80,1 111,4 89,3 128,8 96,1 133,7 108,0 141,7 460 7,5 FML4495 95,0 124,7 78,5 113,3 84,5 117,6 94,2 136,0 101,4 141,1 114,0 149,6 460 8,2 FML4499 100,0 131,2 82,6 119,3 89,0 123,8 99,2 143,1 106,8 148,5     460 8,2 Model Reference 50Hz 60Hz high H (mm) Weight (kg) Weight 460V 400V 440V 400V 440V 460V Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) FML4605 5,0 6,3 3,8 5,5 4,6 6,0 4,5 6,5 5,5 7,2 6,0 7,5 270 2,8 FML4610 10,0 12,6 7,6 10,9 9,1 12,0 9,1 13,1 11,0 14,4 12,0 15,1 270 2,8 FML4615 15,0 18,8 11,3 16,4 13,7 18,0 13,6 19,6 16,5 21,6 18,0 22,6 270 3,5 FML4620 20,0 25,1 15,1 21,8 18,3 24,0 18,1 26,2 22,0 28,8 24,0 30,1 270 3,5 FML4625 25,0 31,4 18,9 27,3 22,9 30,0 22,7 32,7 27,4 36,0 30,0 37,7 270 4,2 FML4630 30,0 37,7 22,7 32,7 27,4 36,0 27,2 39,3 32,9 43,2 36,0 45,2 270 4,2 FML4635 35,0 43,9 26,5 38,2 32,0 42,0 31,8 45,8 38,4 50,4 42,0 52,7 270 5,0 FML4640 40,0 50,2 30,2 43,7 36,6 48,0 36,3 52,4 43,9 57,6 48,0 60,2 270 5,0 FML4645 45,0 56,5 34,0 49,1 41,2 54,0 40,8 58,9 49,4 64,8 54,0 67,8 460 6,8 FML4650 50,0 62,8 37,8 54,6 45,7 60,0 45,4 65,5 54,9 72,0 60,0 75,3 460 6,8 FML4655 55,0 69,0 41,6 60,0 50,3 66,0 49,9 72,0 60,4 79,2 66,0 82,8 460 7,5 FML4660 60,0 75,3 45,4 65,5 54,9 72,0 54,4 78,6 65,9 86,4 72,0 90,4 460 7,5 FML4665 65,0 81,6 49,1 70,9 59,5 78,0 59,0 85,1 71,4 93,6 78,0 97,9 460 8,2 FML4670 70,0 87,9 52,9 76,4 64,0 84,0 63,5 91,7 76,9 100,8 84,0 105,4 460 8,2 FML4675 75,0 94,1 56,7 81,9 68,6 90,0 68,1 98,2 82,3 108,0 90,0 113,0 460 9,0 FML4680 80,0 100,4 60,5 87,3 73,2 96,0 72,6 104,8 87,8 115,3 96,0 120,5 460 9,0 FML4685 85,0 106,7 64,3 92,8 77,8 102,0 77,1 111,3 93,3 122,5 102,0 128,0 550 10,2 FML4690 90,0 113,0 68,1 98,2 82,3 108,0 81,7 117,9 98,8 129,7 108,0 135,6 550 10,2 FML4695 95,0 119,2 71,8 103,7 86,9 114,1 86,2 124,4 104,3 136,9 114,0 143,1 550 10,9 FML4699 100,0 125,5 75,6 109,1 91,5 120,1 90,7 131,0 109,8 144,1 120,0 150,6 550 10,9 Model Reference 50Hz 60Hz high H (mm) Weight (kg) Weight 525V 480V 550V 480V 525V 550V Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) FML5205 5,0 5,5 4,2 5,03 5,5 5,76 5,0 6,03 6,0 6,60 6,6 6,91 270 2,8 FML5210 10,0 11,0 8,4 10,05 11,0 11,52 10,0 12,07 12,0 13,20 13,2 13,82 270 2,8 FML5215 15,0 16,5 12,5 15,08 16,5 17,28 15,0 18,10 18,0 19,79 19,8 20,74 270 3,5 FML5220 20,0 22,0 16,7 20,11 22,0 23,04 20,1 24,13 24,0 26,39 26,3 27,65 270 3,5 FML5225 25,0 27,5 20,9 25,14 27,4 28,80 25,1 30,16 30,0 32,99 32,9 34,56 270 4,2 FML5230 30,0 33,0 25,1 30,16 32,9 34,56 30,1 36,20 36,0 39,59 39,5 41,47 270 4,2 FML5235 35,0 38,5 29,3 35,19 38,4 40,32 35,1 42,23 42,0 46,19 46,1 48,39 270 5,0 FML5240 40,0 44,0 33,4 40,22 43,9 46,08 40,1 48,26 48,0 52,79 52,7 55,30 270 5,0 FML5245 45,0 49,5 37,6 45,25 49,4 51,84 45,1 54,29 54,0 59,38 59,3 62,21 460 6,8 FML5250 50,0 55,0 41,8 50,27 54,9 57,60 50,2 60,33 60,0 65,98 65,9 69,12 460 6,8 FML5255 55,0 60,5 46,0 55,30 60,4 63,36 55,2 66,36 66,0 72,58 72,4 76,04 460 7,5 FML5260 60,0 66,0 50,2 60,33 65,9 69,12 60,2 72,39 72,0 79,18 79,0 82,95 460 7,5 FML5265 65,0 71,5 54,3 65,35 71,3 74,89 65,2 78,43 78,0 85,78 85,6 89,86 460 8,2 FML5270 70,0 77,0 58,5 70,38 76,8 80,65 70,2 84,46 84,0 92,38 92,2 96,77 460 8,2 FML5275 75,0 82,5 62,7 75,41 82,3 86,41 75,2 90,49 90,0 98,97 98,8 103,69 460 9,0 FML5280 80,0 88,0 66,9 80,44 87,8 92,17 80,2 96,52 96,0 105,57 105,4 110,60 460 9,0 FML5285 85,0 93,5 71,1 85,46 93,3 97,93 85,3 102,56 102,0 112,17 111,9 117,51 550 10,2 FML5290 90,0 99,0 75,2 90,49 98,8 103,69 90,3 108,59 108,0 118,77 118,5 124,42 550 10,2 FML5295 95,0 104,5 79,4 95,52 104,3 109,45 95,3 114,62 114,0 125,37 125,1 131,34 550 10,9 FML5299 100,0 110,0 83,6 100,55 109,8 115,21 100,3 120,65 120,0 131,97 131,7 138,25 550 10,9 Model Reference 50Hz 60Hz high H (mm) Weight (kg) Weight 690V 600V 725V 600V 660V 690V Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) FML6905 5,0 4,2 3,8 3,6 5,5 4,4 4,5 4,4 5,5 4,8 6,0 5,0 270 2,8 FML6910 10,0 8,4 7,6 7,3 11,0 8,8 9,1 8,7 11,0 9,6 12,0 10,0 270 2,8 FML6912 12,5 10,5 9,5 9,1 13,8 11,0 11,3 10,9 13,7 12,0 15,0 12,6 270 2,8 FML6915 15,0 12,6 11,3 10,9 16,6 13,2 13,6 13,1 16,5 14,4 18,0 15,1 270 3,5 FML6920 20,0 16,7 15,1 14,6 22,1 17,6 18,1 17,5 22,0 19,2 24,0 20,1 270 3,5 FML6925 25,0 20,9 18,9 18,2 27,6 22,0 22,7 21,8 27,4 24,0 30,0 25,1 270 3,5 FML6930 30,0 25,1 22,7 21,8 33,1 26,4 27,2 26,2 32,9 28,8 36,0 30,1 270 4,2 FML6935 35,0 29,3 26,5 25,5 38,6 30,8 31,8 30,6 38,4 33,6 42,0 35,1 270 4,2 FML6940 40,0 33,5 30,2 29,1 44,2 35,2 36,3 34,9 43,9 38,4 48,0 40,2 270 5,0 FML6945 45,0 37,7 34,0 32,7 49,7 39,6 40,8 39,3 49,4 43,2 54,0 45,2 270 5,0 FML6950 50,0 41,8 37,8 36,4 55,2 44,0 45,4 43,7 54,9 48,0 60,0 50,2 270 5,0 FML6955 55,0 46,0 41,6 40,0 60,7 48,4 49,9 48,0 60,4 52,8 66,0 55,2 460 6,8 FML6960 60,0 50,2 45,4 43,7 66,2 52,8 54,4 52,4 65,9 57,6 72,0 60,2 460 6,8 FML6965 65,0 54,4 49,1 47,3 71,8 57,1 59,0 56,8 71,4 62,4 78,0 65,3 460 7,5 FML6970 70,0 58,6 52,9 50,9 77,3 61,5 63,5 61,1 76,9 67,2 84,0 70,3 460 7,5 FML6975 75,0 62,8 56,7 54,6 82,8 65,9 68,1 65,5 82,3 72,0 90,0 75,3 460 7,5 FML6980 80,0 66,9 60,5 58,2 88,3 70,3 72,6 69,8 87,8 76,8 96,0 80,3 460 8,2 FML6985 85,0 71,1 64,3 61,8 93,8 74,7 77,1 74,2 93,3 81,6 102,0 85,3 460 8,2 FML6990 90,0 75,3 68,1 65,5 99,4 79,1 81,7 78,6 98,8 86,4 108,0 90,4 460 9,0 FML6995 95,0 79,5 71,8 69,1 104,9 83,5 86,2 82,9 104,3 91,2 114,0 95,4 460 9,0 FML6999 100,0 83,7 75,6 72,8 110,4 87,9 90,7 87,3 109,8 96,0 120,0 100,4 460 9,0 Model Reference 50Hz 60Hz high H (mm) Weight (kg) Weight 1000V 900V 1100V 900V 950V 1000V Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) Qn(kvar) In(A) FML0010 10,0 5,8 8,1 5,2 12,1 6,4 9,7 6,2 10,8 6,6 12,0 6,9 270 3,5 FML0015 15,0 8,7 12,2 7,8 18,2 9,5 14,6 9,4 16,2 9,9 18,0 10,4 270 5,0 FML0020 20,0 11,5 16,2 10,4 24,2 12,7 19,4 12,5 21,7 13,2 24,0 13,9 270 5,0 FML0025 25,0 14,4 20,3 13,0 30,3 15,9 24,3 15,6 27,1 16,5 30,0 17,3 460 7,5 FML0030 30,0 17,3 24,3 15,6 36,3 19,1 29,2 18,7 32,5 19,7 36,0 20,8 460 7,5 FML0035 35,0 20,2 28,4 18,2 42,4 22,2 34,0 21,8 37,9 23,0 42,0 24,2 460 9,0 FML0040 40,0 23,1 32,4 20,8 48,4 25,4 38,9 24,9 43,3 26,3 48,0 27,7 460 9,0 FML0050 50,0 28,9 40,5 26,0 60,5 31,8 48,6 31,2 54,2 32,9 60,0 34,6 460 9,0 FML0060 60,0 34,6 48,6 31,2 72,6 38,1 58,3 37,4 65,0 39,5 72,0 41,6 550 10,9 FML0065 65,0 37,5 52,7 33,8 78,7 41,3 63,2 40,5 70,4 42,8 78,0 45,0 550 10,9 FML0070 70,0 40,4 56,7 36,4 84,7 44,5 68,0 43,6 75,8 46,1 84,0 48,5 650 13,0 FML0075 75,0 43,3 60,8 39,0 90,8 47,6 72,9 46,8 81,2 49,4 90,0 52,0 650 13,0
