Induction safe protective alarm

infrared electronic dog
Product Description
The infrared electronic dog can emit an on-site alarm sound for 30 seconds when it detects movement of people in the defense area, realizing the alarm and deterrence function.Due to the use of dual-element infrared sensors and dedicated infrared integrated circuits, it has the characteristics of low false alarm rate, high reliability, and high cost performance. It is suitable for anti-theft alarms in homes, offices, courtyards, and stores along the street.

Installation requirements:

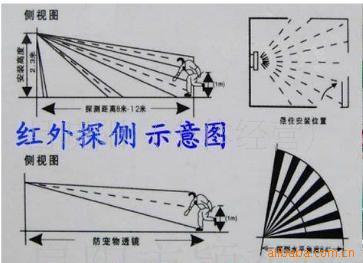

◆Since the electronic dog has high infrared detection sensitivity when the human body moves laterally relative to the lens, but poor sensitivity for longitudinal movement, attention should be paid to the angle and height of the horizontal plane of the detector during installation, which has a great impact on the protection area.
◆During installation, the electronic dog should be kept away from hot and cold sources, such as hot and cold air outlets, air conditioning outlets, electric heaters, air coolers, etc., and should not be directly facing doors or windows.
◆The electronic dog should be able to see directly into the protected area without any obstacles.
◆The electronic dog should be at an angle of 10 to 30 degrees with the wall. At this time, the detection distance is far. During actual installation, adjust the installation angle according to the situation.

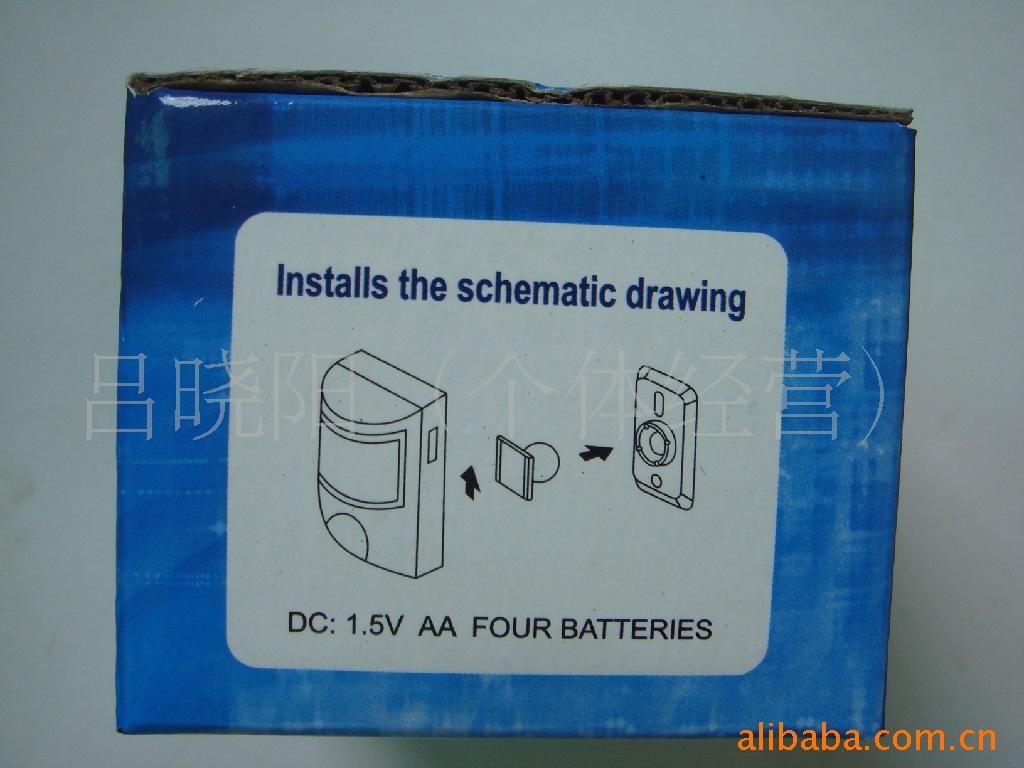

installation method:
1.Fixed Wanxiangzo in a place about 2 meters from the ground.
2.Open the battery cover and install 4 batteries No. 7 in the inside of the battery box.
3.Fix the electronic dog on the gimbal and rotate the electronic dog so that it meets the installation requirements and detection needs.
Instructions:
1.Turn on the power switch and turn on the lighting light, indicating that the white inspection is normal.
2.The electronic dog will not detect the alarm signal within 20 seconds after it is turned on. You must leave the detection area of ​​the electronic dog within these 20 seconds.
3. If someone enters the detection area of ​​the electronic dog after 20 seconds, the electronic dog will sound a harsh alarm sound for 30 seconds.5 seconds after the alarm sounds, if someone touches the electronic dog again, it will alarm again, and the cycle starts again.
4．When the electronic dog alarms, you can turn off the power switch to end the alarm.
Technical Parameters:
1．Power supply: DC 6V (4 AA batteries)
2.The current of the machine:≤100LlA
3.Alarm current:≤150mA
4．Alarm sound loudness: not less than 80dB within 1 meter
5.Infrared detection distance: about 7 meters, 110 degrees left and right

Things to note:
1．It is recommended that you regularly check whether the electronic dog is working properly to avoid missing alarms.
2.When the power-on indicator light goes dark, the alarm sound becomes quieter, and the false alarm rate of the electronic dog is high, it is usually because the battery voltage is insufficient, and the battery should be replaced in time.

   Summer nights are sweltering, and people often need to open their windows to ventilate and cool down before they can sleep. This is exactly what thieves do to steal."Good opportunity".If you use an infrared electronic police dog, just hang it on the wall opposite the window so that it faces the window monitor, so that you can sleep peacefully with the window open.As long as a thief appears 1 meter outside your window, the alarm will automatically detect and alarm, thus preventing the thief from approaching your window.If the alarm is installed on the balcony, all windows on the balcony can be monitored at the same time; if it is installed indoors where people must pass by, one alarm can monitor a house.The miniature electronic police dog is your real safety guardian.
  When you go out, whether you stay in a hotel or an ordinary hotel, your safety is a concern.Countless cases have shown that the doors and windows of hotels are very unsafe. In many cases, the money and belongings carried by travelers have been robbed by uninvited guests while they are asleep (in addition to thieves, of course, including those inside the hotel)"Family thief"Taking advantage of one's position to steal); and in some cases, if a guest is awakened while a thief is stealing, a hand-to-hand fight will inevitably occur!The traveler's miniature electronic police dog can ensure that every second after you fall asleep,"Without blinking"Monitor all the time"Enemy"EssenceAs long as the thief probes from any part of the doors and windows, the alarm will be high -intensive alarm sound, and the thief will be frightened before entering the room!
