285,600.00৳1 or more
257,040.00৳500 or more
234,192.00৳1000 or more

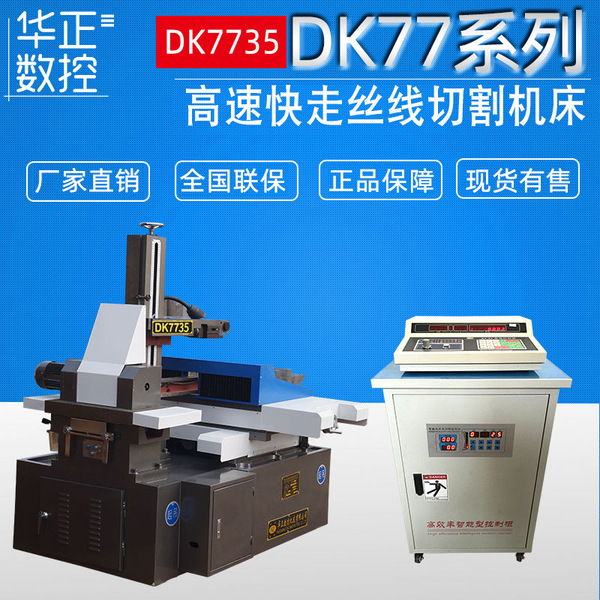

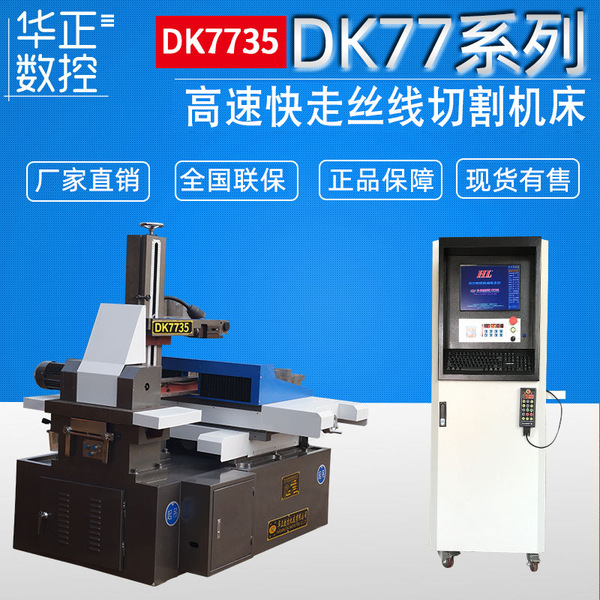

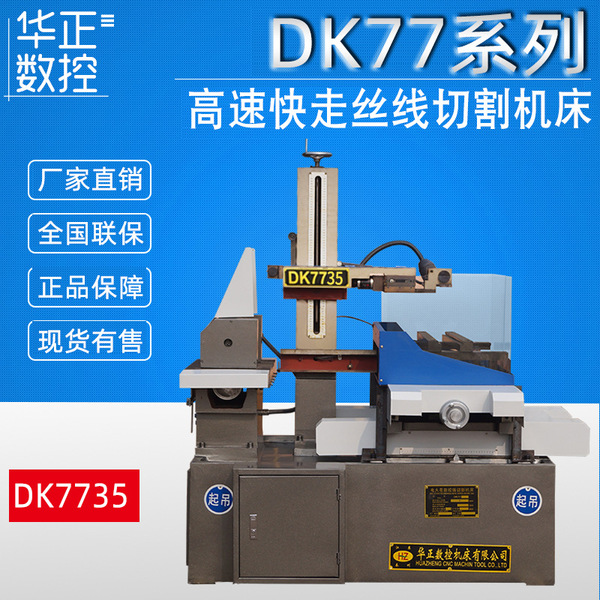

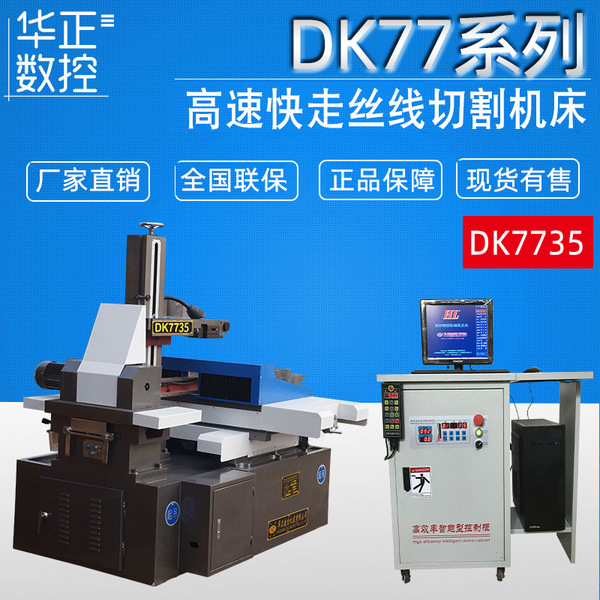

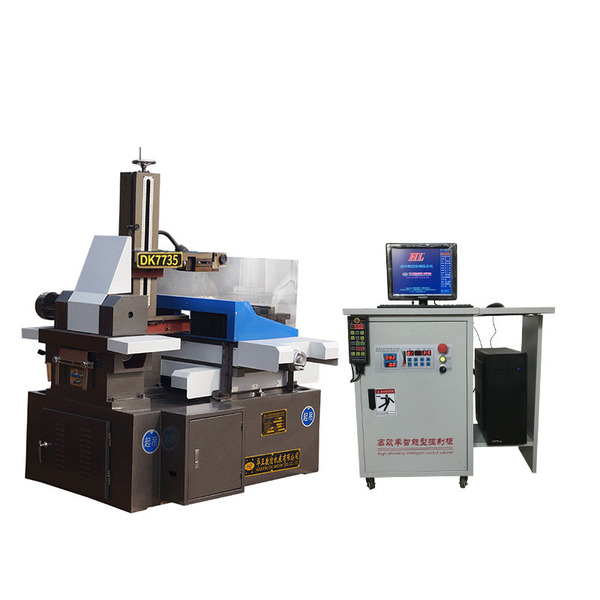

Product: Recommend DK7735 "Optical Machine" CNC electric spark cutter cutting…
BrandHuazheng
ModelDK7735
Item Code35-0
Applicable IndustryUniversal
Work Table Size710X470mm
Work Oil Size25X25X25X25mm
Workbether's Itinerary (x*y)350X450mm
Z Axis Itinerary500mm
Maximum Cut Thickness500
Cone6 degrees
Weight Capacity400kg
Host Weight1200kg
Most Packaging Size1300X1600X1600mm
Maximum Processing Speed160
Maximum Processing Current8
Minimum Electrode Consumption Ratio0.01/10000
Surface Roughness1.6-3.2
Maximum Power Consumption1.5kw
Input Voltage380/220V
Control Box Weight200kg
Control Box Loading Size550X650X750mm
Electrical Wire Diameter Range0.12-0.2mm
Workbench Bearing Weight400kg
Machine RailV -type rail, Shangyin line rail optional
Processing Accuracy0.012-0.015mm
Control SystemHL, HF, KX, CAXA, CAD, and single boards are available
Shredded5.8-11.5 adjustment
Maximum Cutting Slope/workpiece Thickness100mm
After Sales ServiceFree warranty for equipment for one year
( Cross Border Trading)No
Net Weight1200.0
The price of this product isLight machineDoes not containControl cabinetprice
Company Namehuazhengsk
Business TypeManufacturer/Wholesaler
LocationJiangsu
Rating3.6
Total Sale0
