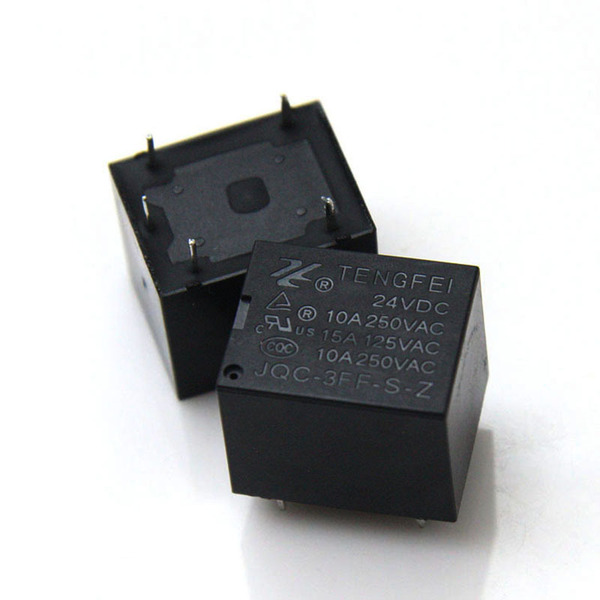

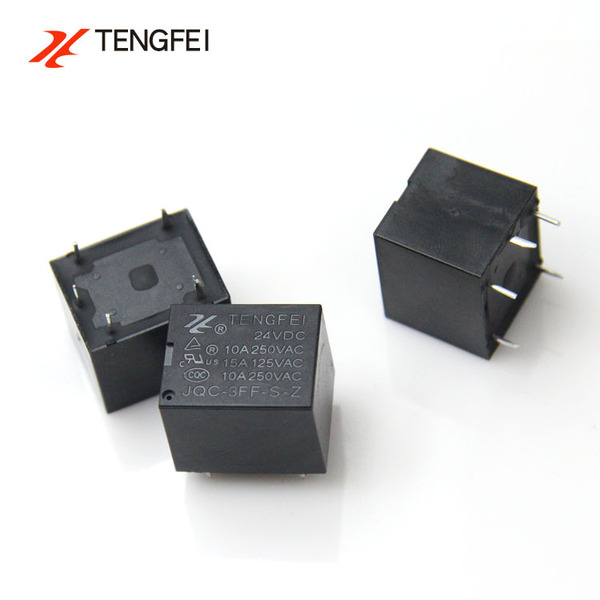

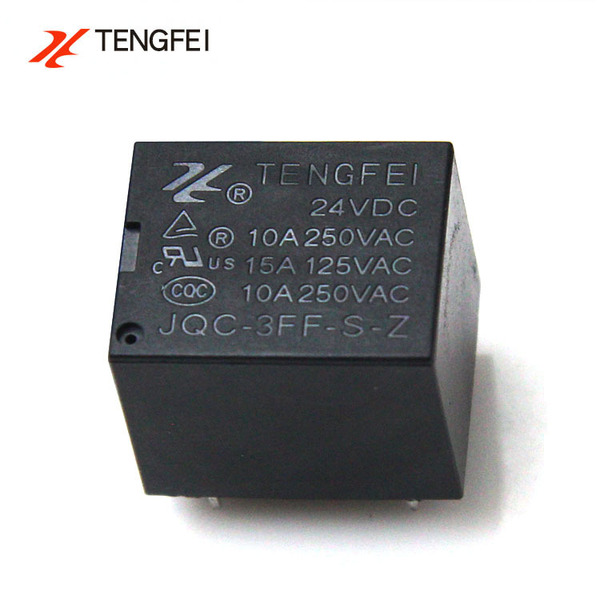

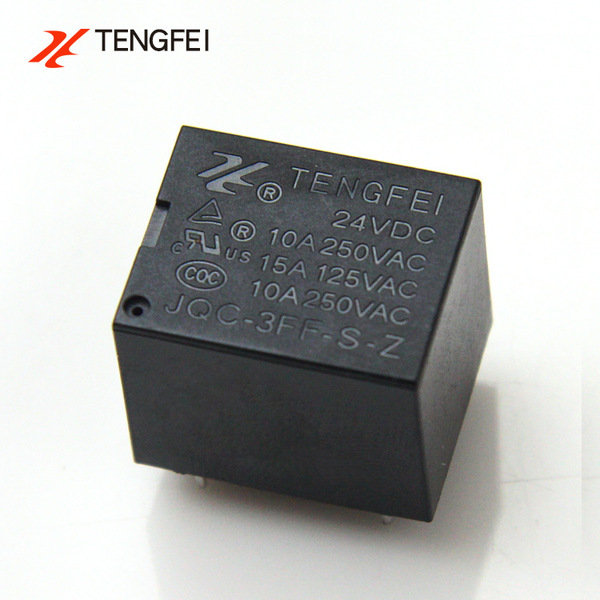

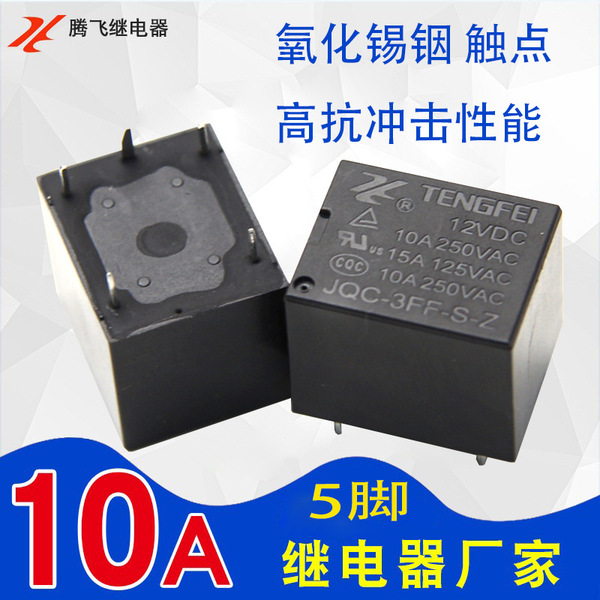

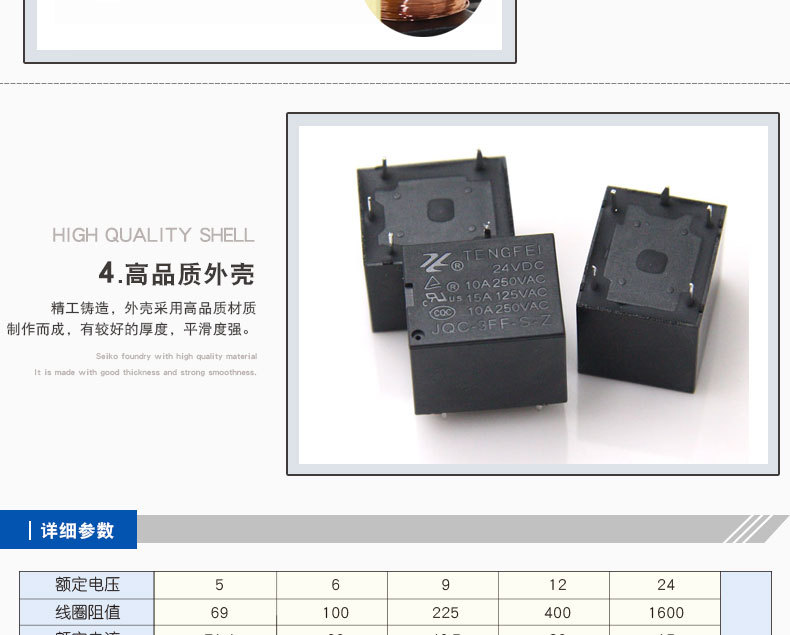

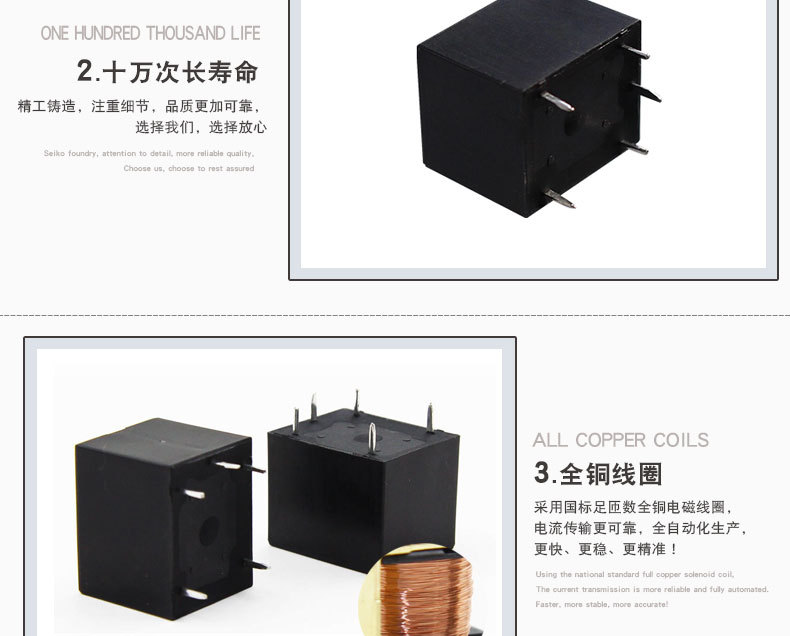

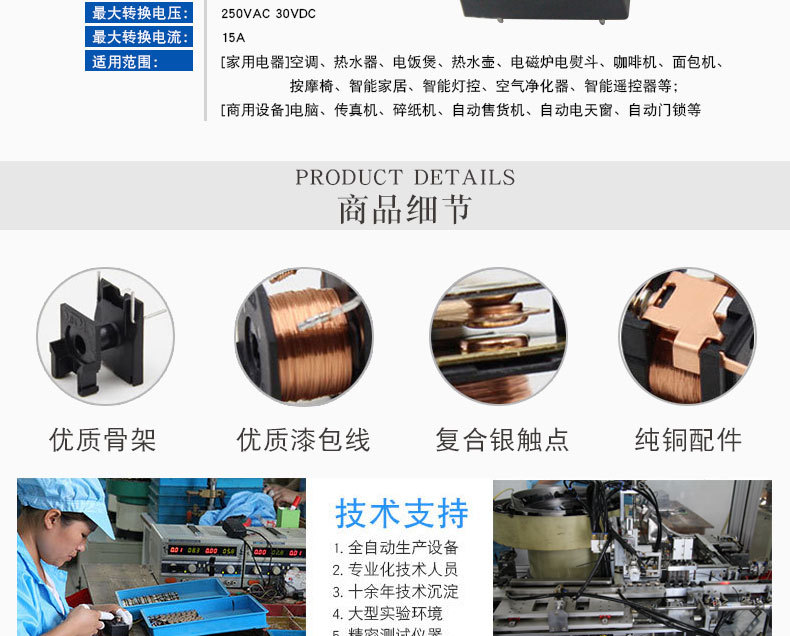

Product: Gao Yanfei jqc-3FF-Z small relay 5V9V12V24V5 pin T73 DC relay 10A…
Jifei jqc -3fff Z relay T73 DC 24V relay small 5 -pin conversion 10a related
Jifei jqc -3fff Z relay T73 DC 24V relay small 5 -pin conversion 10a related
NC00001
PCBFollowelectricityDevice | JQC-3FF |
●10A switching capability ●Small footprint ●Sealed type available ●Class B/F available ●Conform to RoHS,ELV directive
|
■COIL DATACoil parameters (at 20℃)
Nominal VoltageRated voltage(VDC) | 3 | 5 | 6 | 9 | 12 | 18 | 24 | 48 |
0.36W |
Coil ResistanceCoil resistance(Ω±10%) | 25 | 69 | 100 | 225 | 400 | 900 | 1600 | 6400 | |
Rated CurrentRated current(mA) | 120 | 71.4 | 60 | 40 | 30 | 20 | 15 | 7.5 | |
Max Operate VoltageLarge suction voltage(VDC) | 2.25 | 3.75 | 4.5 | 6.75 | 9 | 13.5 | 18 | 36 | |
Min Release VoltageSmall release voltage(VDC) | 0.15 | 0.25 | 0.3 | 0.45 | 0.6 | 0.9 | 1.2 | 2.4 | |
Max ApplicableVoltageLarge overload voltage | 70℃Rated voltage130%,23℃Rated voltage170% | ||||||||
■CONTACT DATAContact parameters
Contact FormContact form | 1H/1Z |

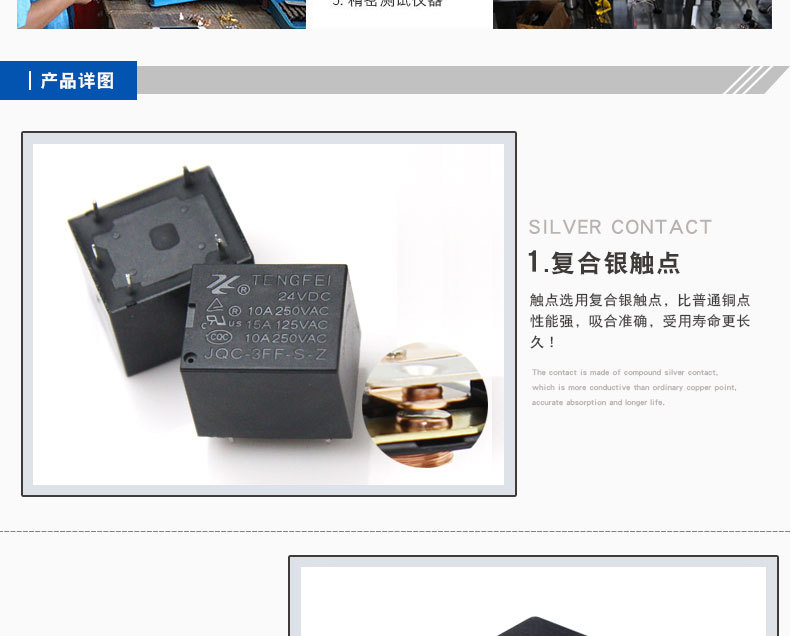

Contact MaterialContact material | Silver Alloy |
Loadload | Resistive load(COSФ =1) |
Contact RatingsContact load | 1H:10A 240VAC 1Z: 7A 240VAC 12A120VAC 10A120VAC |
Minimum loadSmall load | 100mA 5VDC |
Max Switching VoltageBig conversion voltage | 250VAC/30VDC |
Max Switching CurrentLarge conversion current | 15A |
Max Switching PowerBig conversion power | 2770VA/240W |
Contact ResistanceContact resistance | 100mΩMax at 6VDC 1A |
Life Expectancylife | ElectricalElectrical life:100,000 Operations(at30Operations/minute) |
MechanicalMechanical life:10,000,000Operations(at300Operations/minute) |
■CHARACTERISTICS DATAPerformance parameters
Insulation ResistanceInsulation resistance | 100MΩMinat 500VDC |
Dielectral Strength Between Open ContactsDisease between contact between contact | 750VAC(50/60Hz for one minute) |
Between Contacts and coilDisease between contact and coils | 1500VAC(50/60Hz for one minute) |
Operate TimeSuction time | 10ms |
Release Timerelease time | 5ms |
Temperature Rangeambient temperature | -40℃to+85℃ |
Shock Resistanceimpact | Operating ExtremesMotion limit: 10G |
Damage LimitsDestroy the limit: 100G | |
Vibration Resistancevibration | 10-55Hz, 1.5mm |
Max. switching frequencyBig conversion frequency | Mechanical: 18,000 operations/hr Electrical: 1,800 operations/hr |
HumidityHumidity | 40-85% |
Weightweight | Approx 10g |
Safety Standardsafety standards | UL cUL TüV CQC VDE |
■ENGINEERING DATADesign Parameters
-

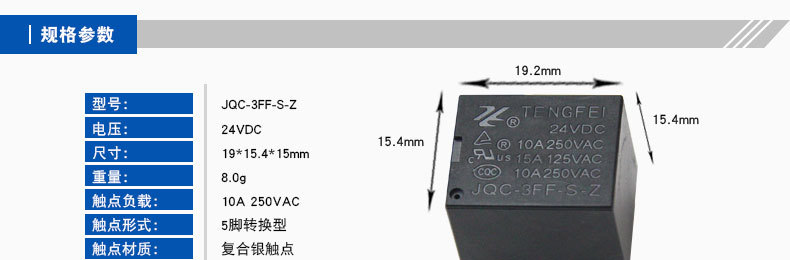

■OVERALL AND MOUNTING DIMENSIONSinstructions
Others Others
1: The performance parameters in the specification book are based on the initial value measured based on the standard test conditions
All the performance data listed in the datasheet are the initial values tested under standard testing condition.
2: Non -plastic seal relay needs to prevent welded or pollutants from entering relay
Unsealed relays should be hand soldered to avoid flux contamination of the relay.
3: Avoid using relay under the condition of strong magnetic fields. The external strong magnetic field will cause changes in parameters such as relay movements and release.
To avoid using relays under strong magnetic field because it will change the parameters of relay such as pull-in and drop-out voltage.
4: In order to maintain the performance of the relay, please be careful not to cause the relay to drop or be strongly impacted.It is recommended to be used after the drop of relay.
To maintain the performances of relays, please do not make the relay drop or be shocked strongly. Suggest that the relays dropped not be used.
REMARK(Remark):
1, No dimensional tolerance is included in the shape of the product: when the shape of the product≤1mmTime, tolerance is±0.2mm;1~5mmTime, tolerance is±0.3mm; When the size >5mmTime, tolerance is±0.4mm.
2, The non -injection size to the installation hole size is all±0.1mm.
Voicebright:
The specifications of this product are for reference only when customers use. If there are changes, they will not be notified separately.
