Product: Brushless engine
We have the technical strength of the development and design of electronic control boards and intelligent controller products, which can tailor electronic control boards and controllers for customers; and can assist customers in product -related appearance and structural design and development
You put forward design requirements (function, performance indicators, etc.). We design and develop products that meet your requirements for you, improve the grade of your products, and achieve a win -win situation.
1. Quick design: Provide fast design delivery time and one or more scheme;
2. Demand customization: customized functional products according to customer needs;
3. Professional technology: own professional engineering R & D and design team;

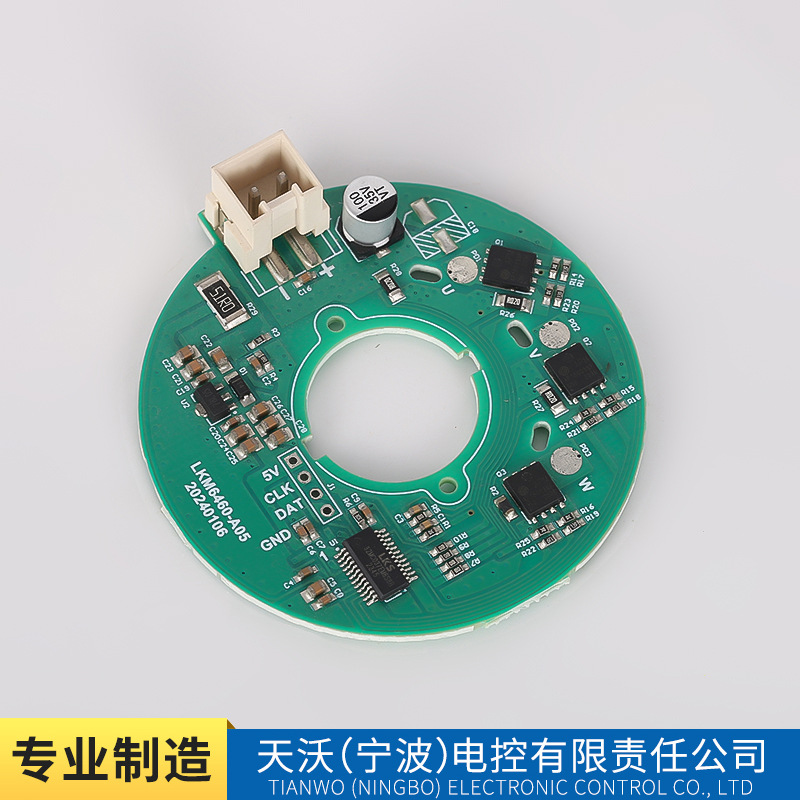

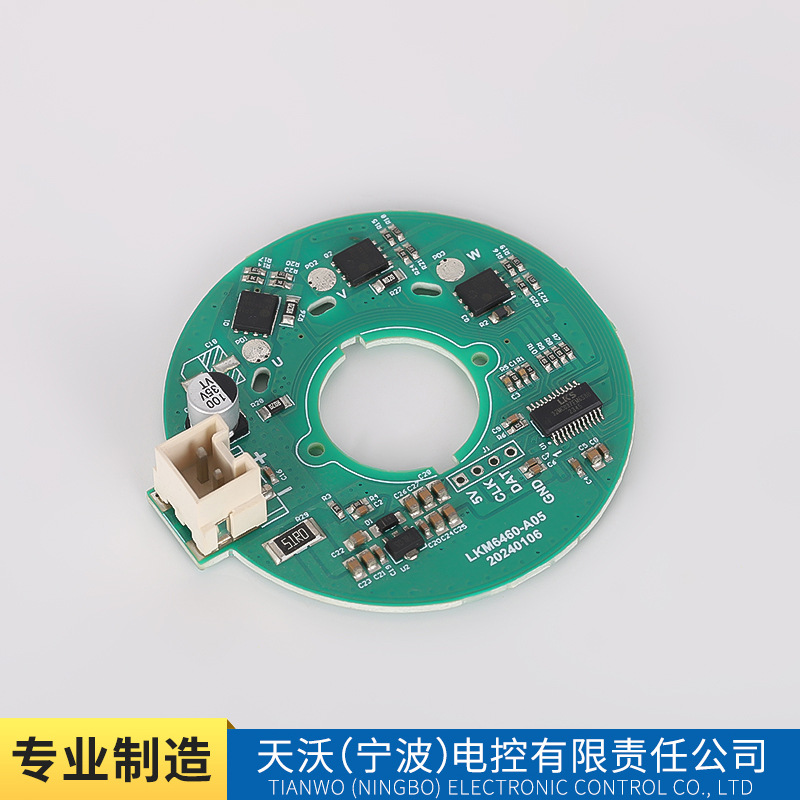

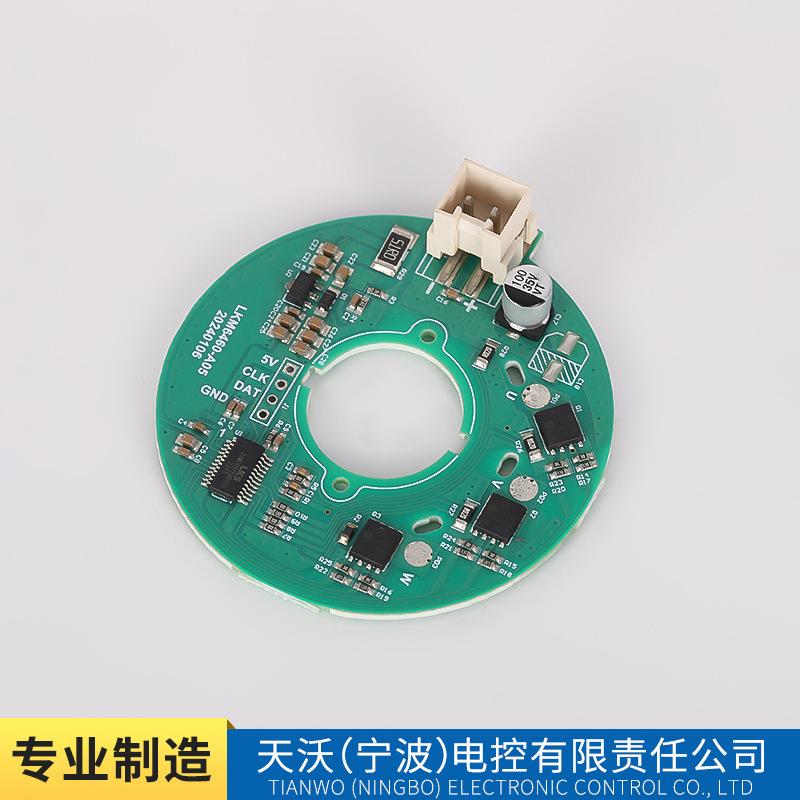

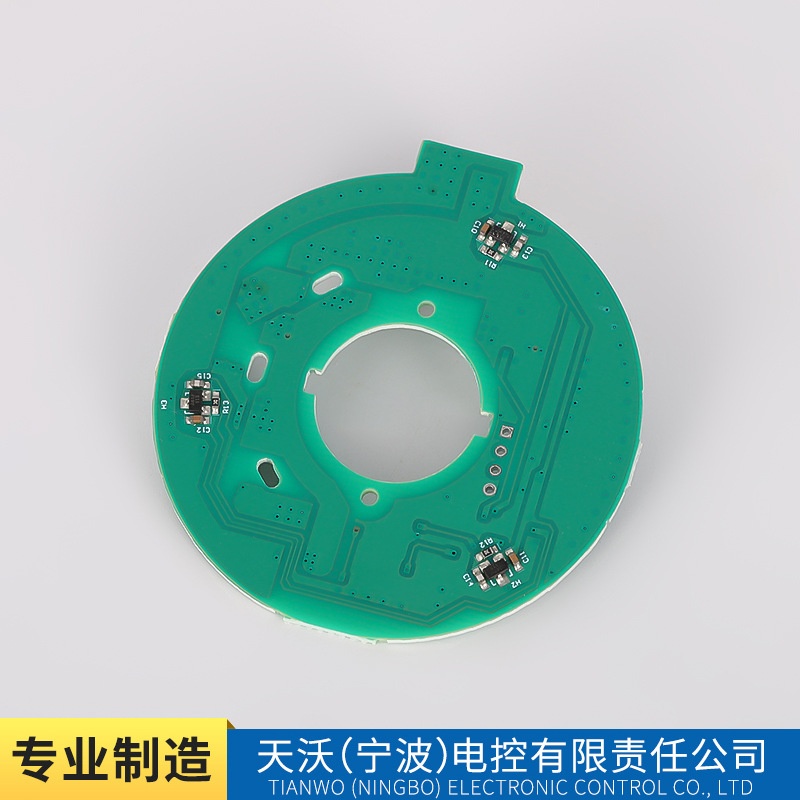

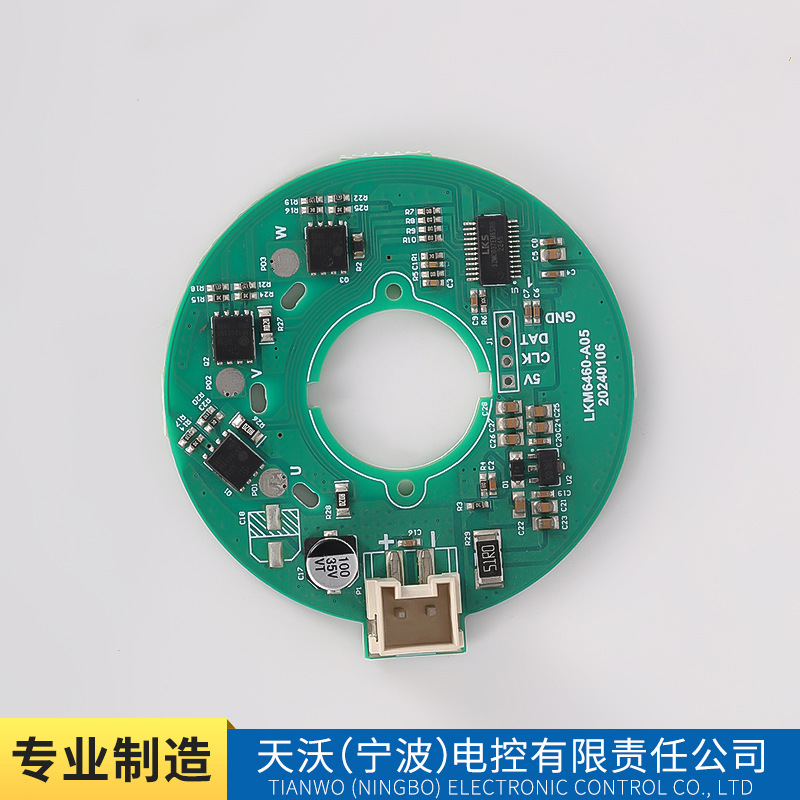

| Part name (product name | Brushless control board |
| Part NO (product model) | FD-3610 |
| Control Technology (Control Technology) | Fang wave control |
| Rated Voltage (rated voltage) | 36V |
| Voltage Range (allowed operation voltage) | 12-24V |
| Max Continuous Current (maximum continuous current) | 5A |
| Max Peak Current (maximum instant current) | 10A |
| Hall Electrical Angle (Hall Electric angle) | 120Degree/Compatible |
| Product size (product size) | 75mm*50mm |
| Weighe (product weight) | 135g |
| SF speed feedback | Speed Pulse Output |
| FR | High or not connected = ccw, low or connected to gnd = cw (Connect to GND, rotate the motor clockwise; disconnect with GND, the motor runs counterclockwise) |
| EN | High or not connected = running, low or connected to gnd = stop (Connect to GND, the motor stops running; disconnect with GND, the motor runs normally) |
| VSP | Input 0-5VDC Voltage or PWM Pulse (2 ~ 50K Hz/5V) to change motor speard, please make sure the apeed pot on the driver is set on the max to get full spssd. (Enter 0-5V DC voltage or PWM pulse signal (1kHz-5V) to adjust the speed of the motor. If you need to run at full speed, please ensure that the potentiometer comes with the driver rotates to the maximum position) |
| 5V | 5V Voltage Supply (Driver input 5V DC voltage) |
