Product: Pangwei direct sales!American standard TC4 titanium alloy plate…
- Product name:Titanium alloy
- Product number:TC4
- chemical composition:
Titanium Ti margin Iron Fe ≤0.30 Carbon C ≤0.10 Nitrogen N ≤0.05 Hydrogen H ≤0.015 Oxygen O ≤0.20 Aluminum Al 5.5～6.8 Pyramid 3.5 ~ 4.5
Poor stamping and good thermoplasticity.Various forms of welding can be performed, and the intensity of welding joints can reach the metal strength of the base of the base of 90%.The mechanical processing performance is still good. It is necessary to use a hard alloy, a large amount of knife, slow, and sufficient cooling.Cortency resistance is good and good thermal stability.It is one of the most widely used titanium alloys
Make parts of long -term work below 400 ° CTC4 titanium alloy has a series of advantages such as excellent erosion resistance, small density, high ratio and good toughness and welding. It has been successfully applied in aerospace, petrochemical, shipbuilding, automobiles and other departments.
TC4 titanium alloy mechanical properties:
tensile strengthσb/MPa≥895, stipulate the residual extension stressσr0.2/MPa≥825, elongation rateδ5(%)≥10, section contraction rateψ(%)≥25TC4 titanium alloy density: 4.5 (G/CM3) working temperature -100 ~ 550 (℃)
- Instructions for ordering
- Multiple materials can be selected

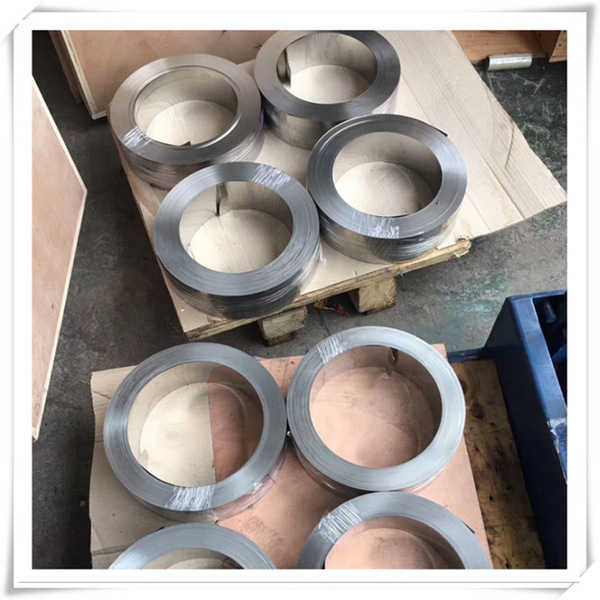

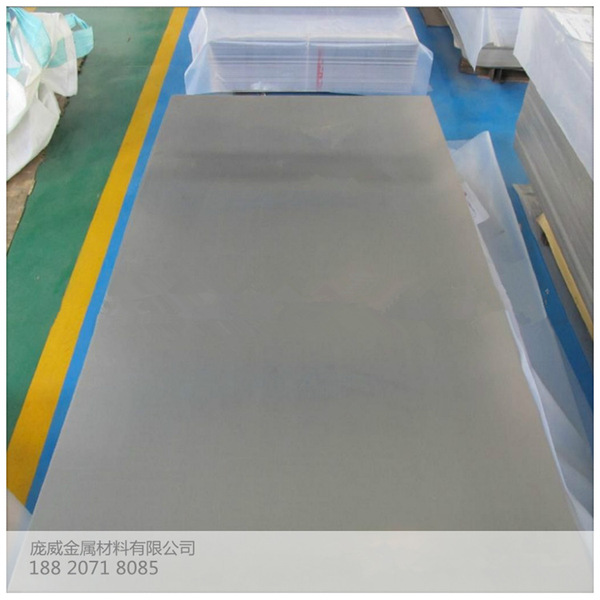

- 1. When purchasing boards and strips, please explain the required materials.Length, thickness, width

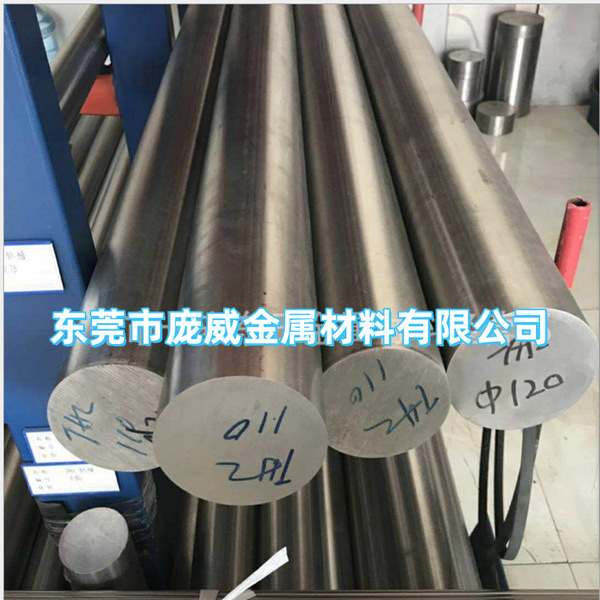

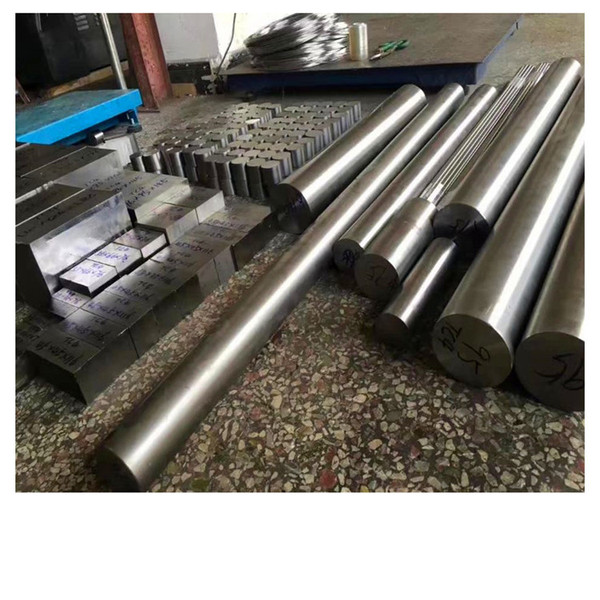

- 2. When purchasing bars and wires, please indicate the required materials.Diameter, length, tolerance
- 3. When purchasing pipes.Please specify the required materialsOuter diameter, inner diameter, wall thickness, length
- 4. The default unit of all materials in this store ismm (mm)
- 5. Please be sure to contact our customer serviceCheck the required material specifications, in case of errors!
- Our company's products have stable quality and reasonable prices. Welcome to call us for consultation and negotiation! Mobile: 18820718085! Mobile: 13798762883! Contact: Ms. Zhou!
Different quantity; different prices, the larger the quantity; the more preferential the price.
Shearing and stripping can be done according to customer requirements.
You can optionally mix batches if the plate is more than one piece, the tape is more than 30 kg, and the rod is more than one (2.5 meters).
13% VAT can be charged.
