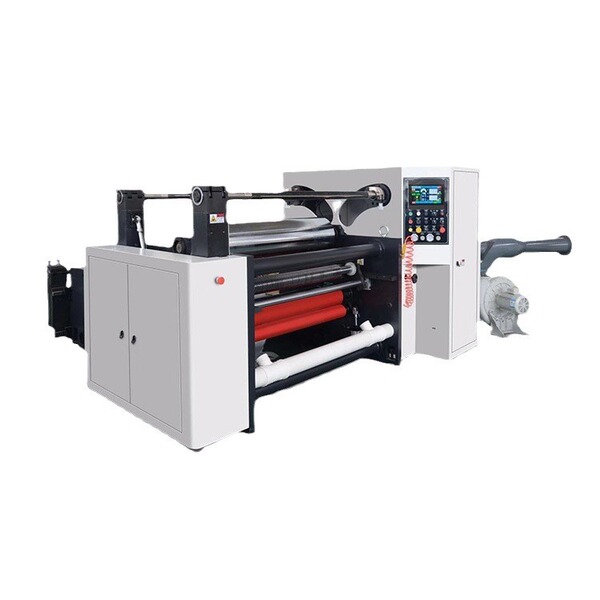

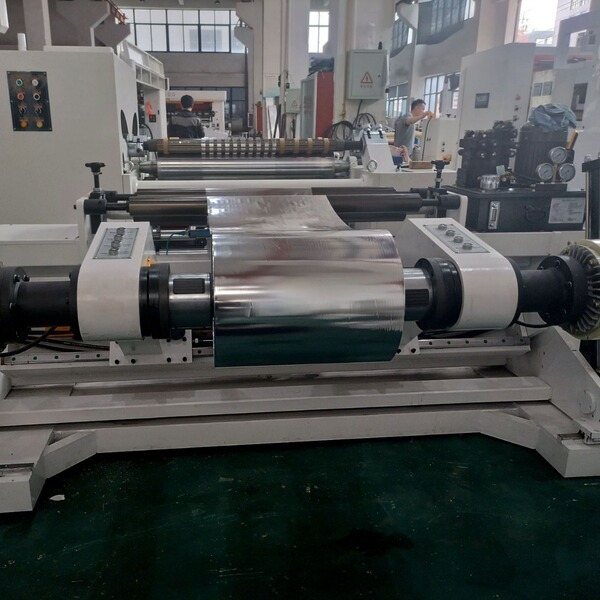

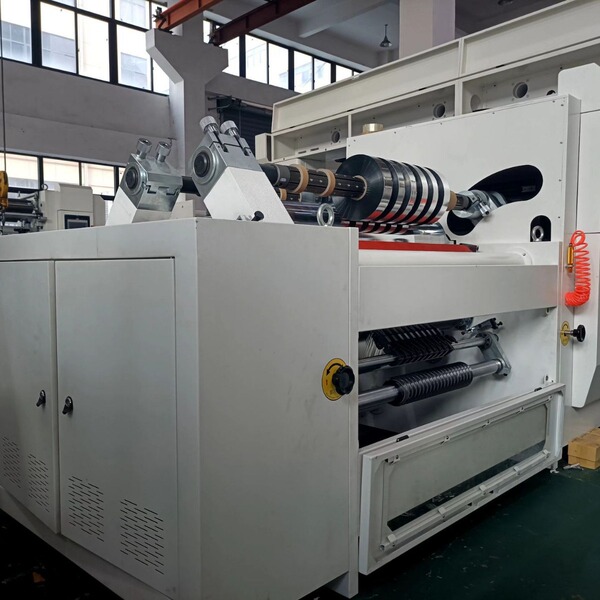

Product: HFQB-800 fully automatic roll non-woven slitting machine
Scope of application:
This machine is suitable for slitting and rewinding a variety of webs, such as offset paper, straw paper, copper paper, white cardboard, etc., and roll packaging materials such as aluminum foil, PVC, plastic film, insulation materials, etc. It is widely used in the paper product processing industry, printing and packaging industry, etc.
Performance and characteristics:
1. This machine uses PLC to control fixed growth, has automatic counting, and has no material alarm to stop.
2. The unwinding adopts automatic loading (conjoined | split) and is equipped with automatic deviation correction function.
3. The winding is controlled by servo motor.

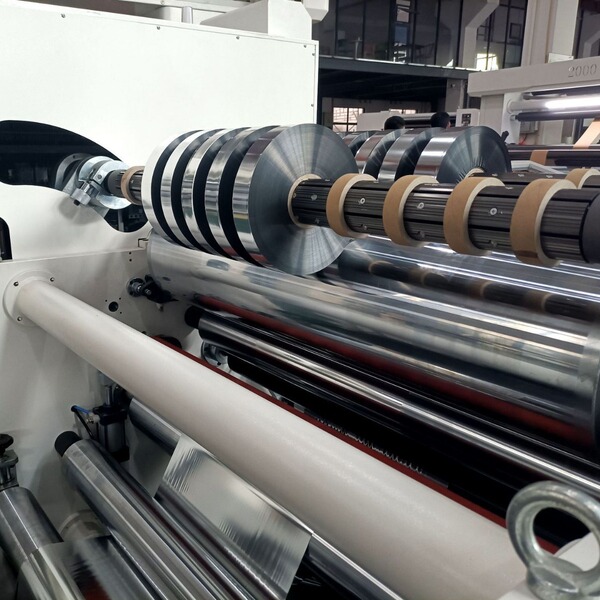

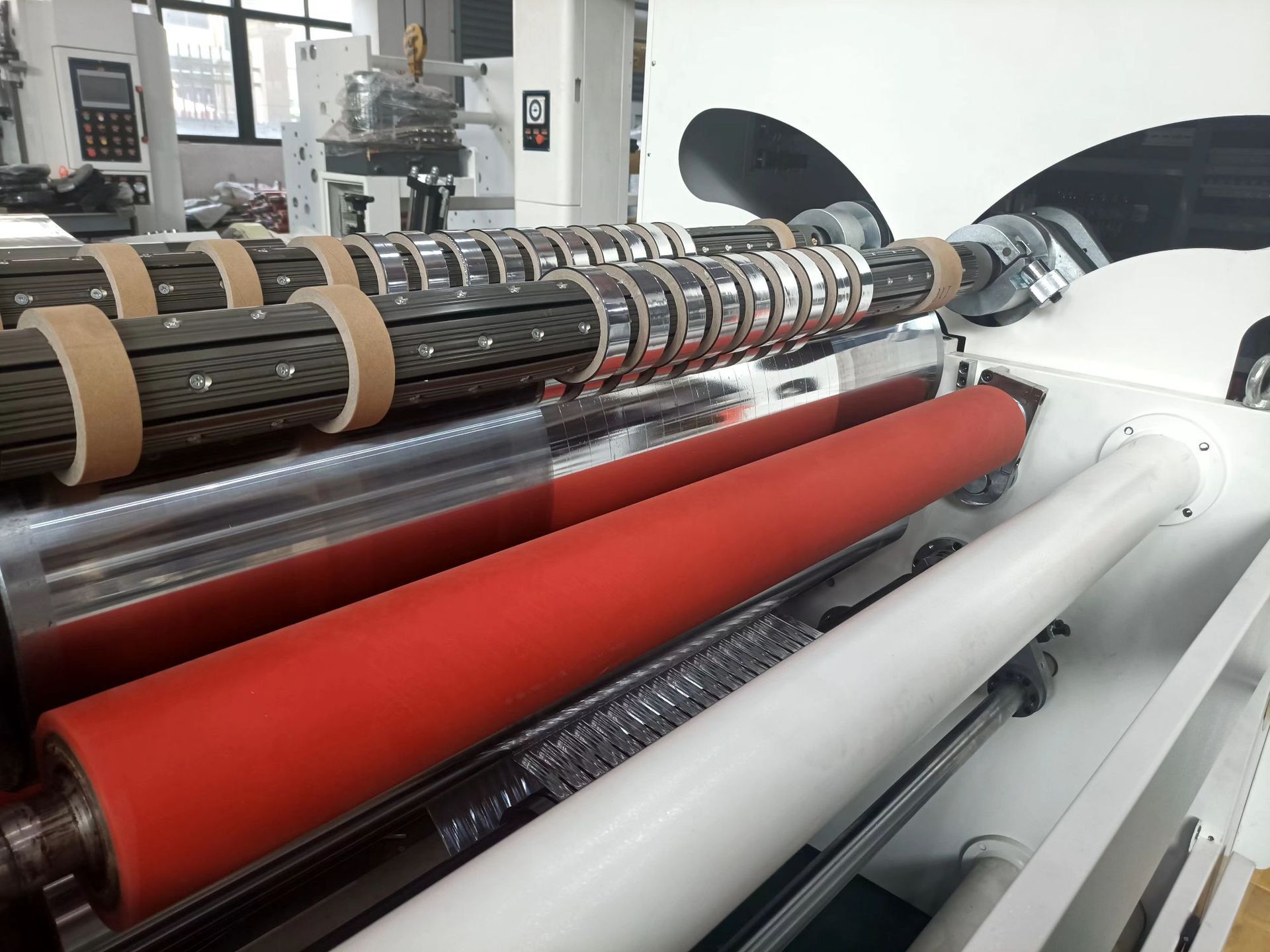

4. Round knife/flat knife slitting structure, waste edges are automatically removed by a fan.
5. The finished product is cut into small specifications, making it an ideal equipment for cutting narrow and small materials.
The main technical parameters:
| Model | HFQB-800 | HFQB-1100 | HFQB-1300 |
| Maximum unwinding width | 800mm | 1100mm | 1300mm |
| Maximum volume diameter | 1400mm | 1400mm | 1400mm |
| Maximum winding diameter | 800mm | 800mm | 800mm |
| Minimum finished product width for slitting | 5mm | 7mm | 7mm |
| Slitting speed | 30-400m/min | 30-400m/min | 30-400m/min |
| Segmentation accuracy | ±0.2mm | ±0.2mm | ±0.2mm |
| Raw material range | 10-500g/㎡ | 10-500g/㎡ | 10-500g/㎡ |
| Total power | 18kw | 18kw | 21kw |
| Weight | 3000kg | 3700kg | 4300kg |
| Dimensions | 3500x2300x1650mm | 3500x2800x1650mm | 3500x3200x1650mm |

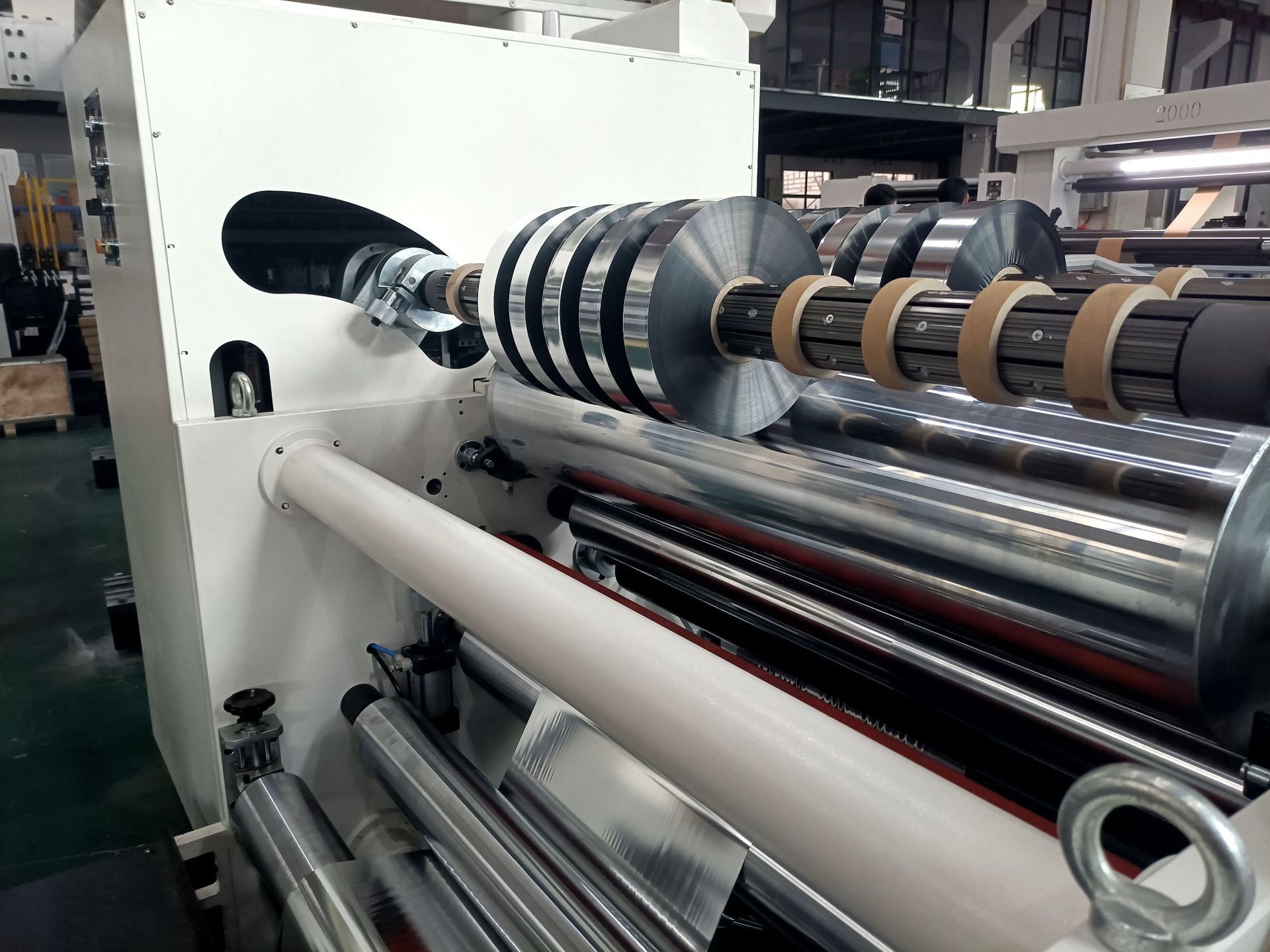

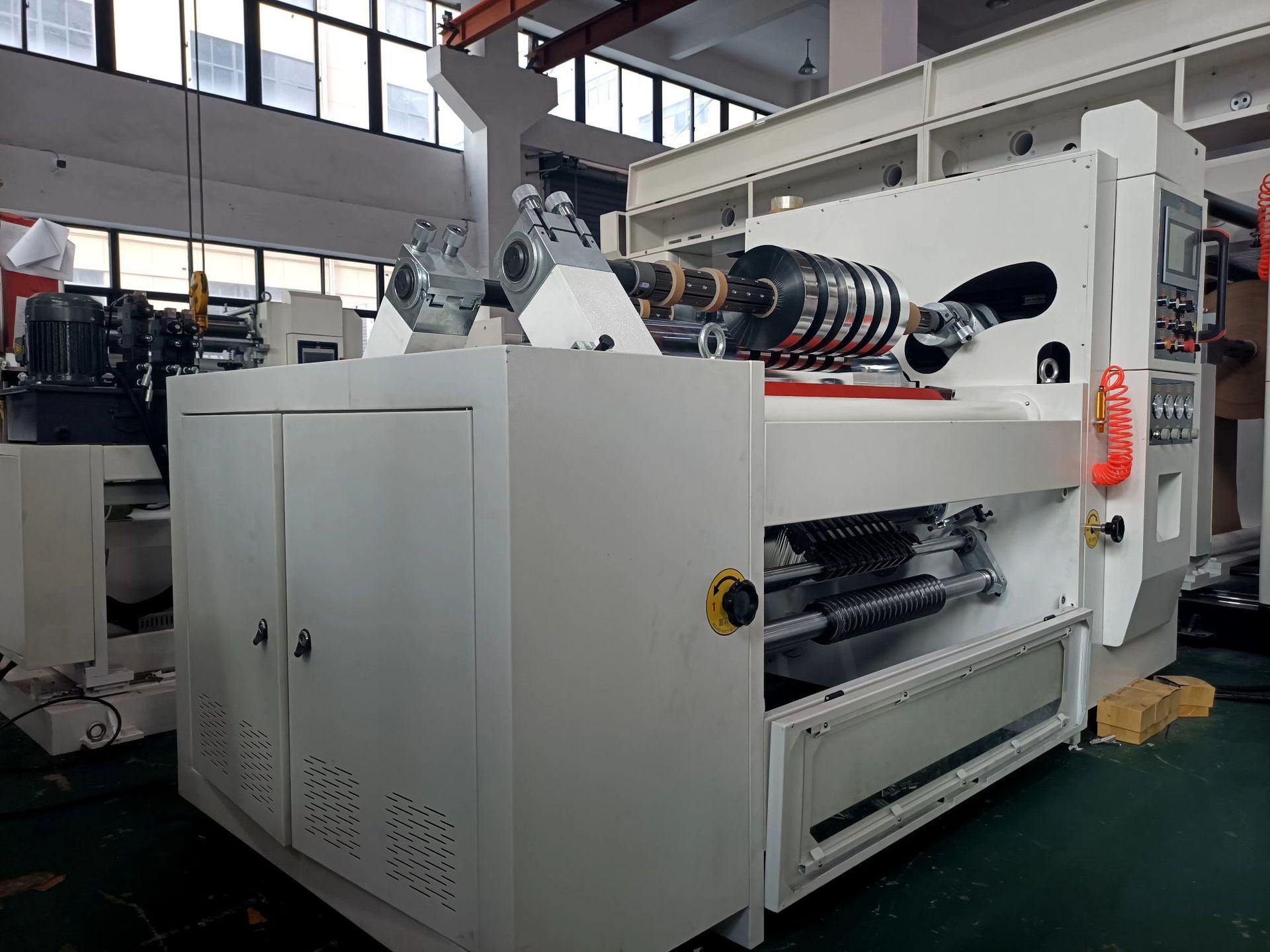

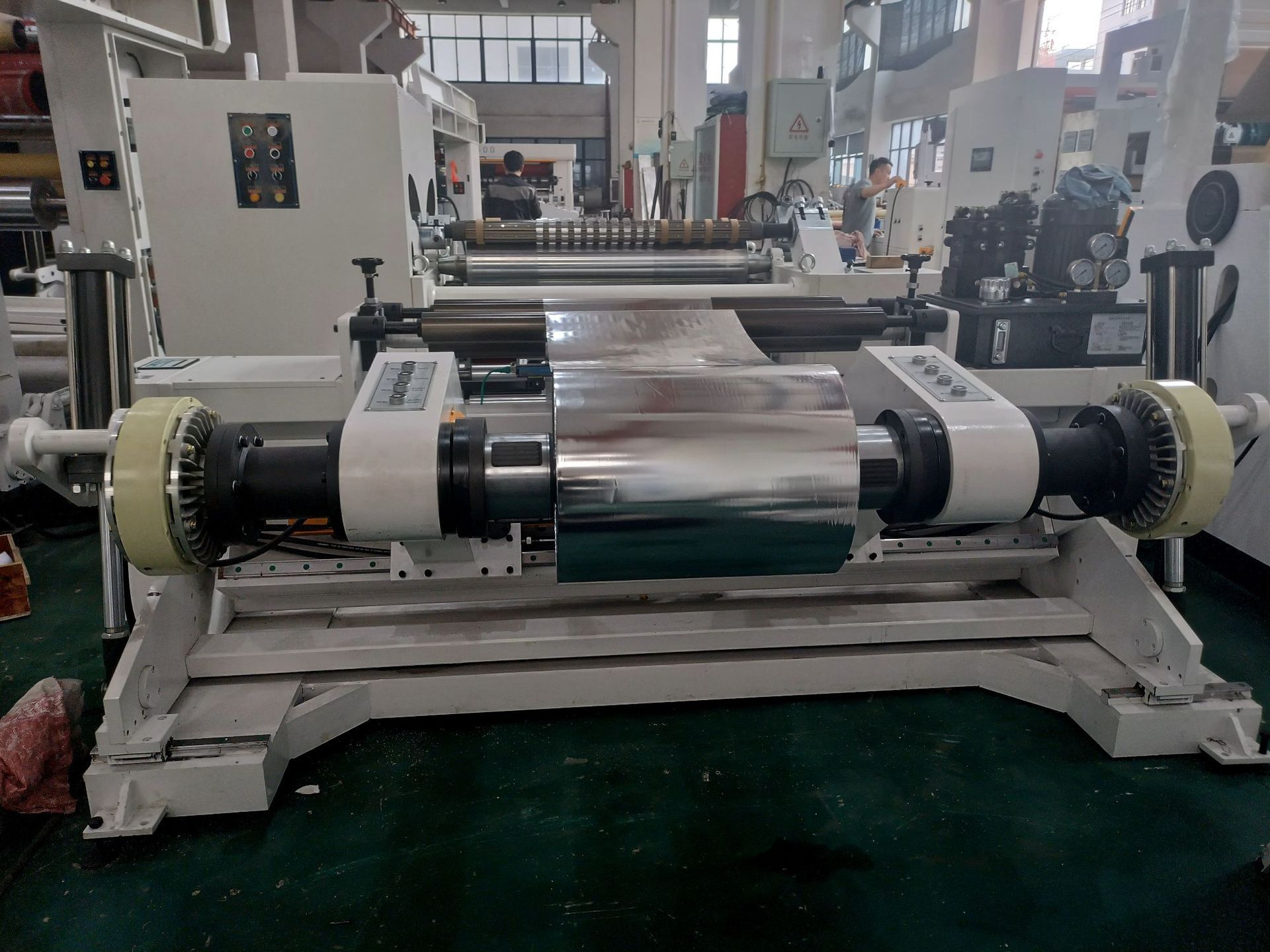

Product details

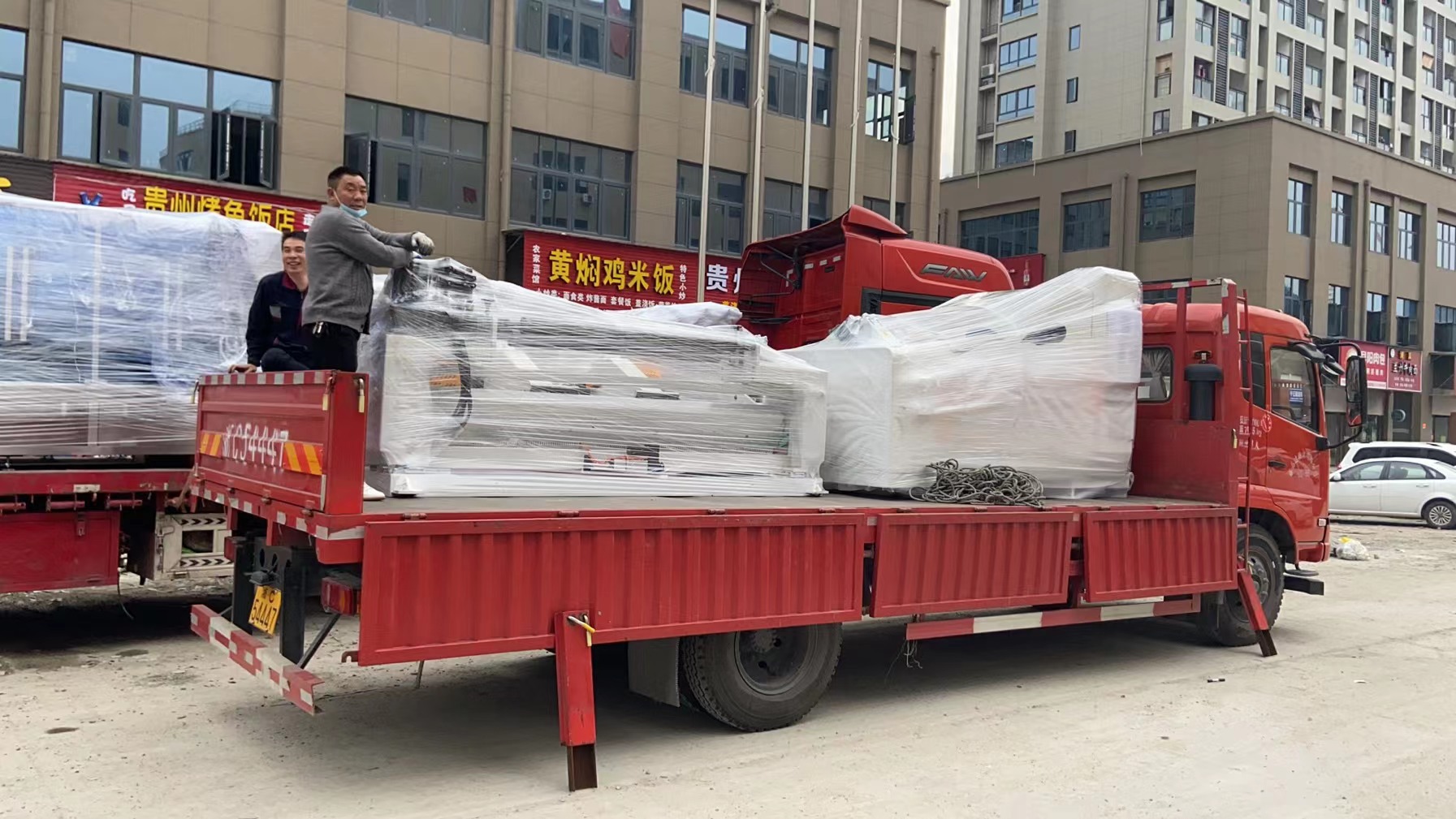

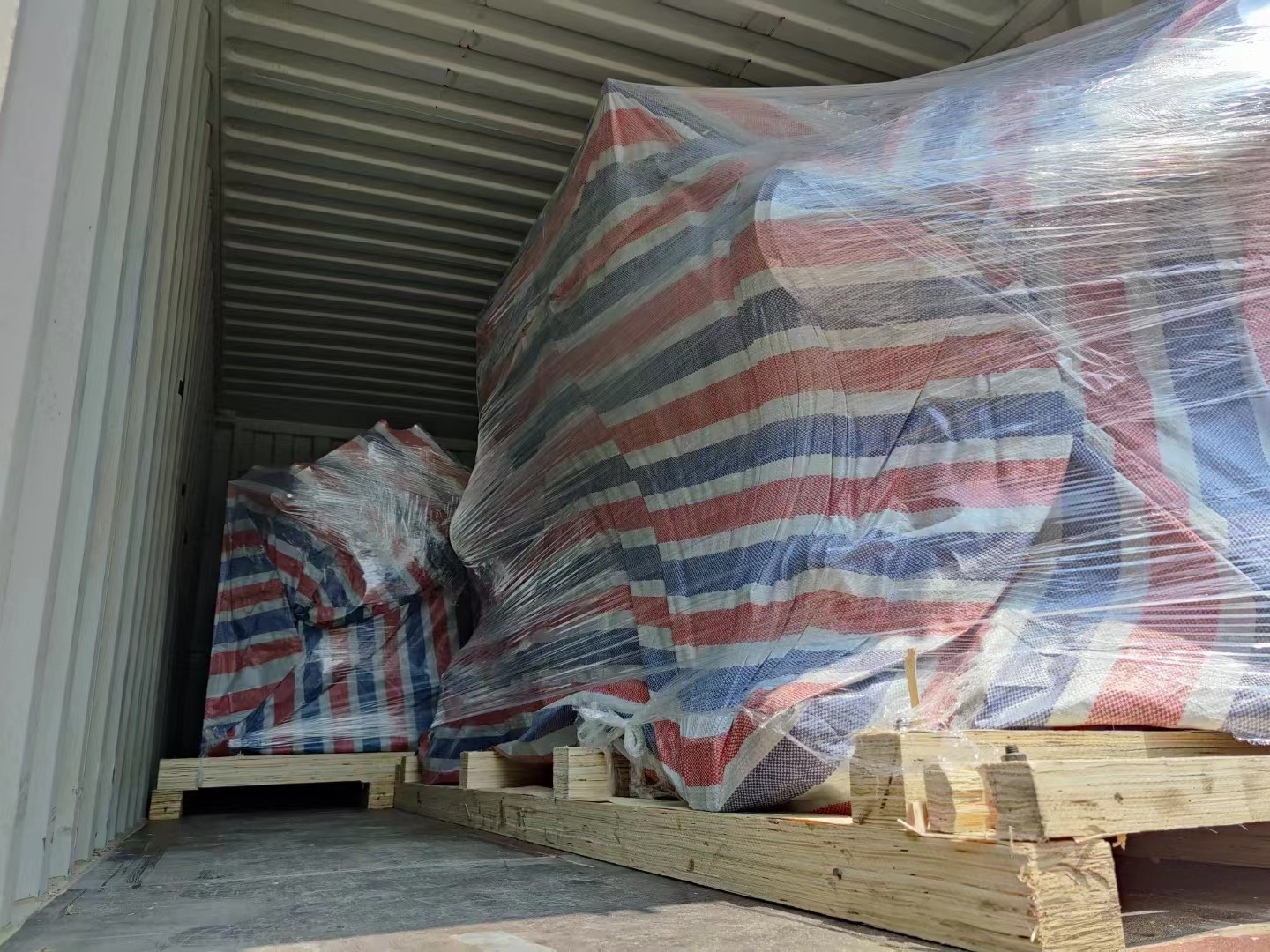

Packaging Logistics
Company Profile
Wenzhou Hongke Machinery Co., Ltd. is located in Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province. The company is a professional intelligent equipment manufacturing company integrating machinery R&D, manufacturing and marketing.Hongke Machinery mainly focuses on the manufacturing of processing equipment for roll packaging materials. The mechanical products it produces are widely used in the paper product packaging industry and the printing and packaging industry.Through our meticulous and refined management system and systematic R&D and manufacturing, Hongke's honorable products mainly include: series of high-speed slitting machines, series of high-speed intelligent slitting machines, series of automatic finishing cross-cutting machines, series of intelligent high-precision cross-cutting machines, etc.The company will continue to absorb advanced technologies from similar products at home and abroad, and exert its own innovation capabilities to continuously meet the needs of market-oriented customers and provide customers with high-quality products and services.
