5,855.00৳1 or more
5,269.50৳500 or more
4,801.10৳1000 or more

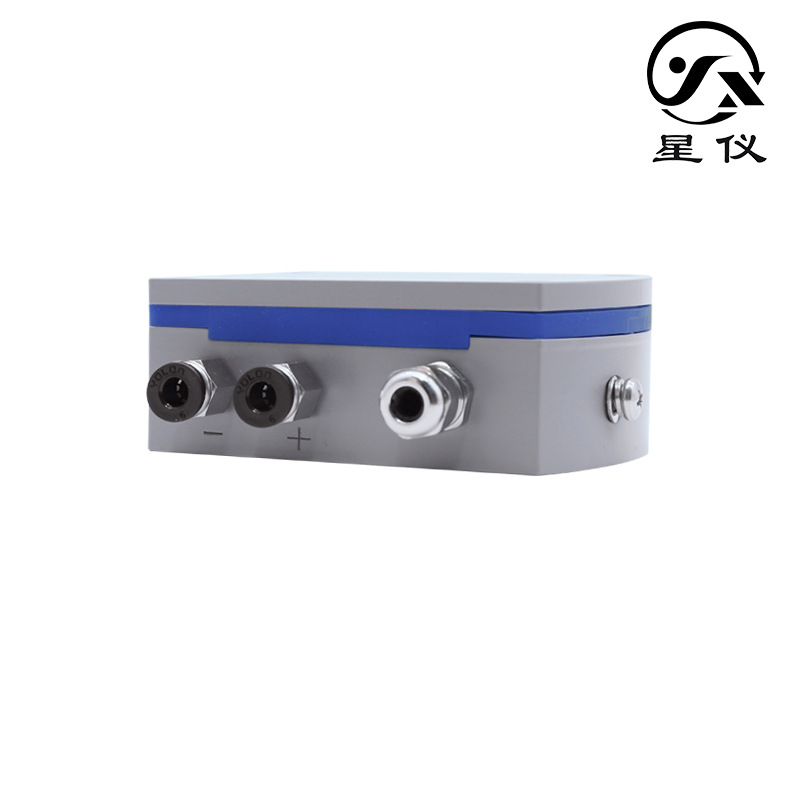

Product: CCY30 micro-differential pressure transmitter RS485 high-precision…
Whether To ImportNo
Order NumberCCY30 wall-mounted micro-differential pressure transmitter
Custom ProcessingYes
Item CodeCCY30 wall-mounted micro-differential pressure transmitter
BrandStar instrument
ModelCCY30 wall-mounted micro-differential pressure transmitter
TypeMicrocompry transmitter

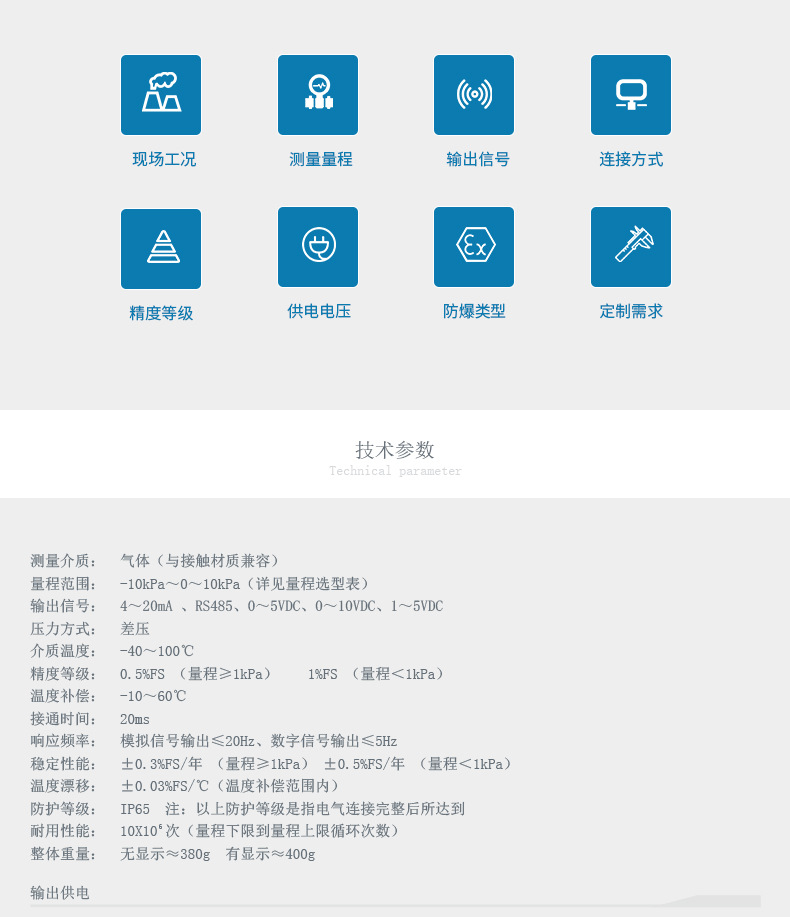

Measuring MediumGas (compatible with contact materials and humidity
Measuring Range-10～0～10kPa
Accuracy Level0.5%FS (range ≥1kPa), 1%FS (range

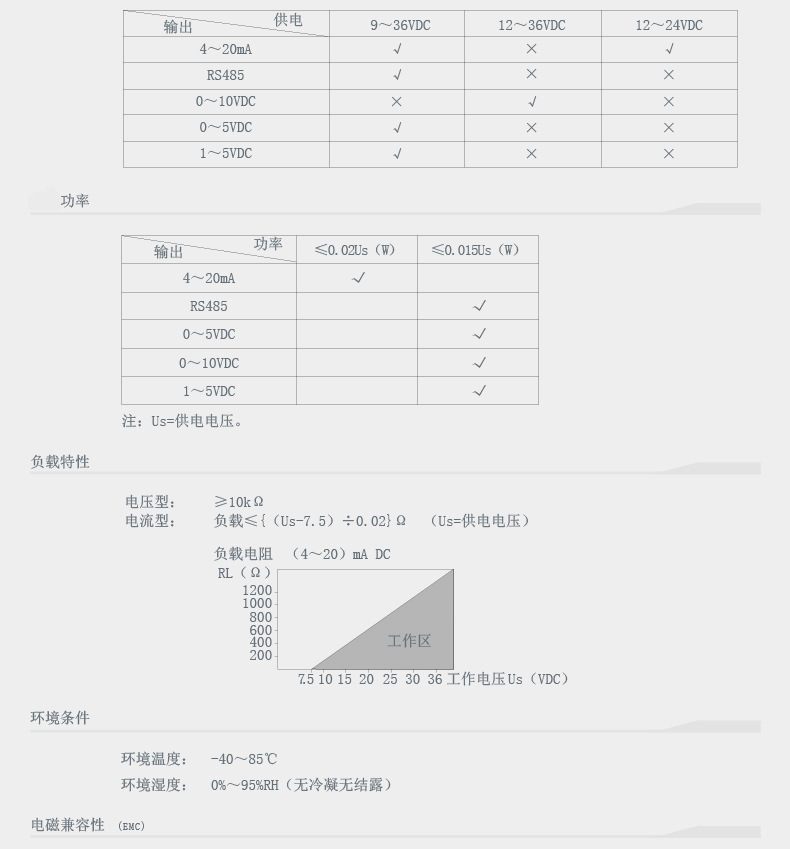

Output SignalRS485, 0~5VDC, 0~10VDC, 1~5VDC, 4~20mA
Supply Voltage9～36VDC, 12～24VDC, 12～36VDC
Operating Temperature-40 ~ 85 ℃

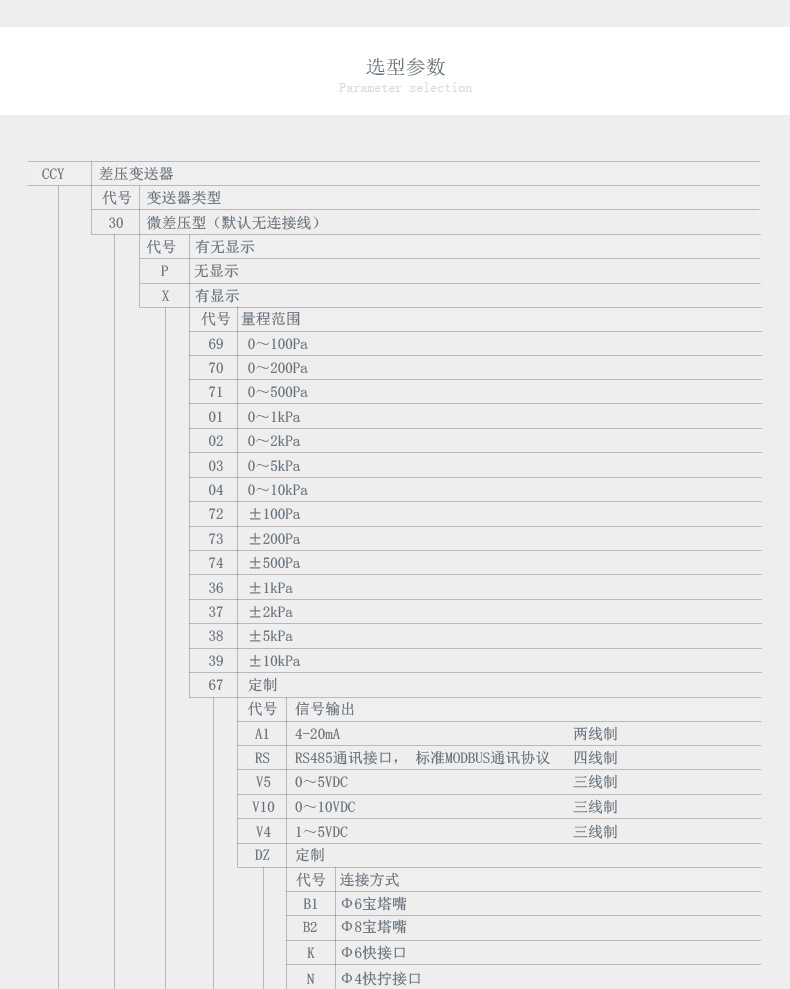

SpecificationCCY30 regular no display
SpecificationCCY30 regular display
SpecificationCCY30 intrinsically safe explosion-proof without display
SpecificationCCY30 intrinsically safe explosion-proof with display
SpecificationCCY30 dust intrinsically safe explosion-proof without display

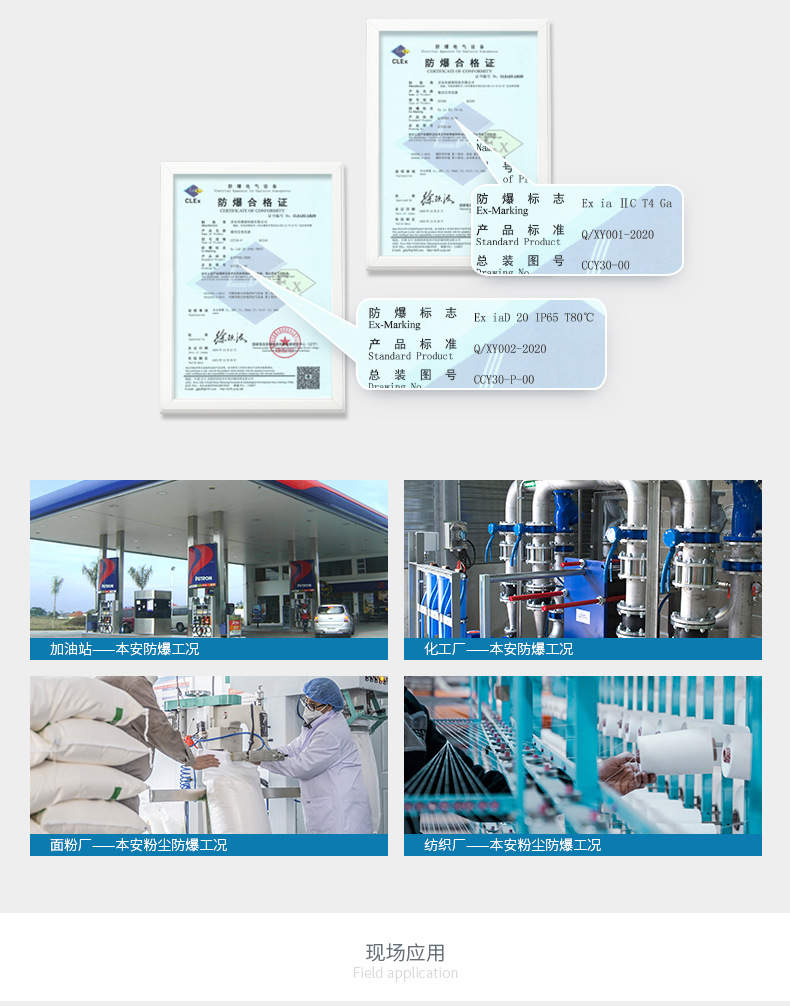

Explosion ProofIntrinsically safe type, dust intrinsically safe type
| Fiber grating | ||
| In stock, customized details Contact customer service | ||

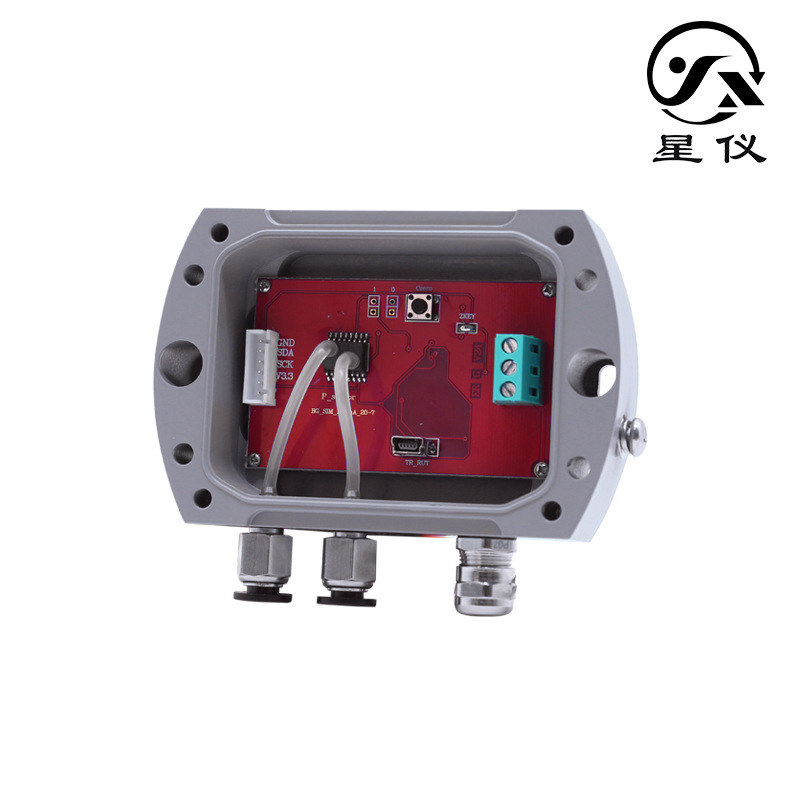

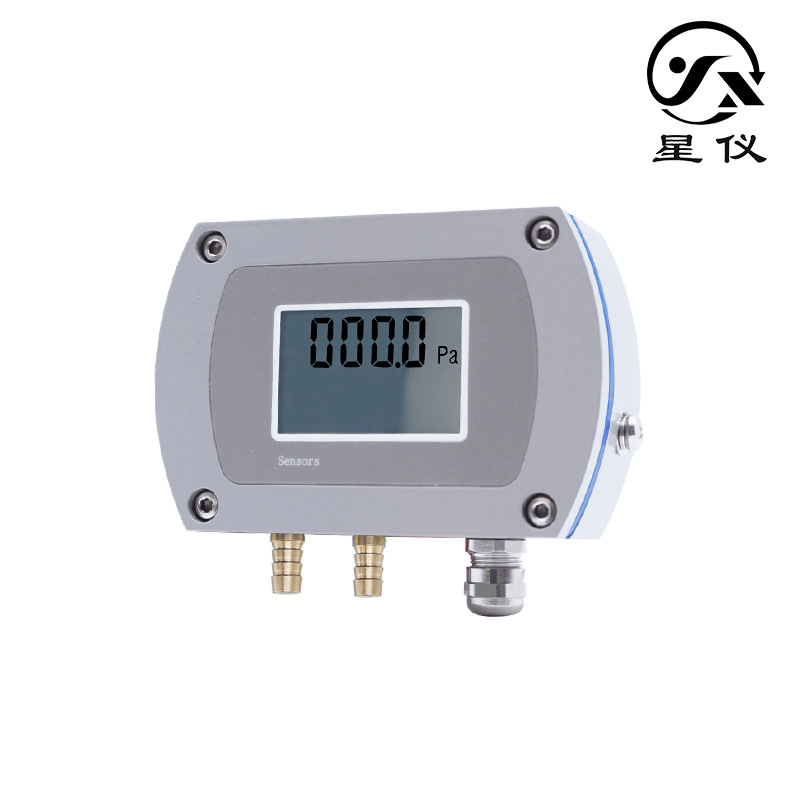

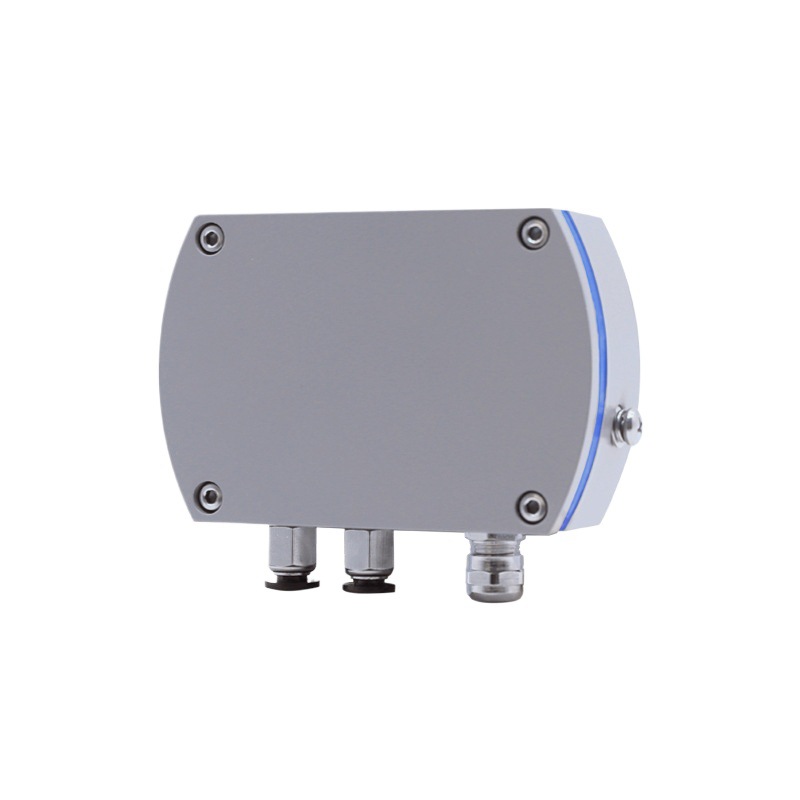

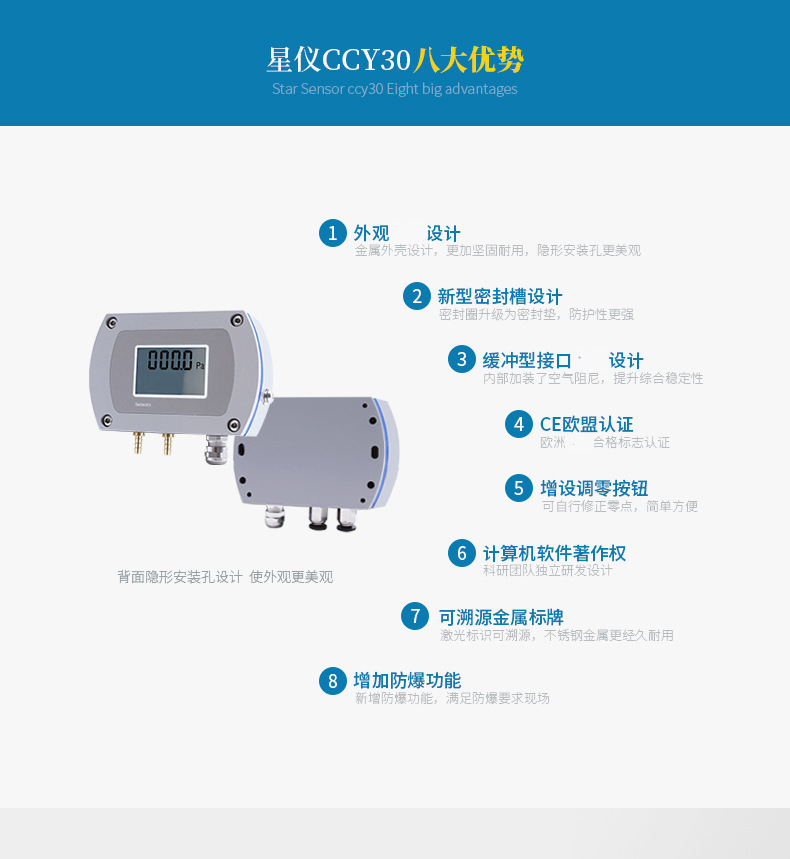

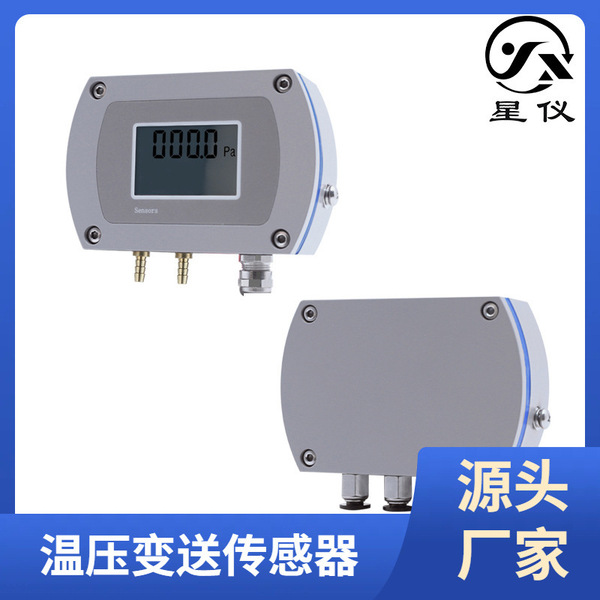

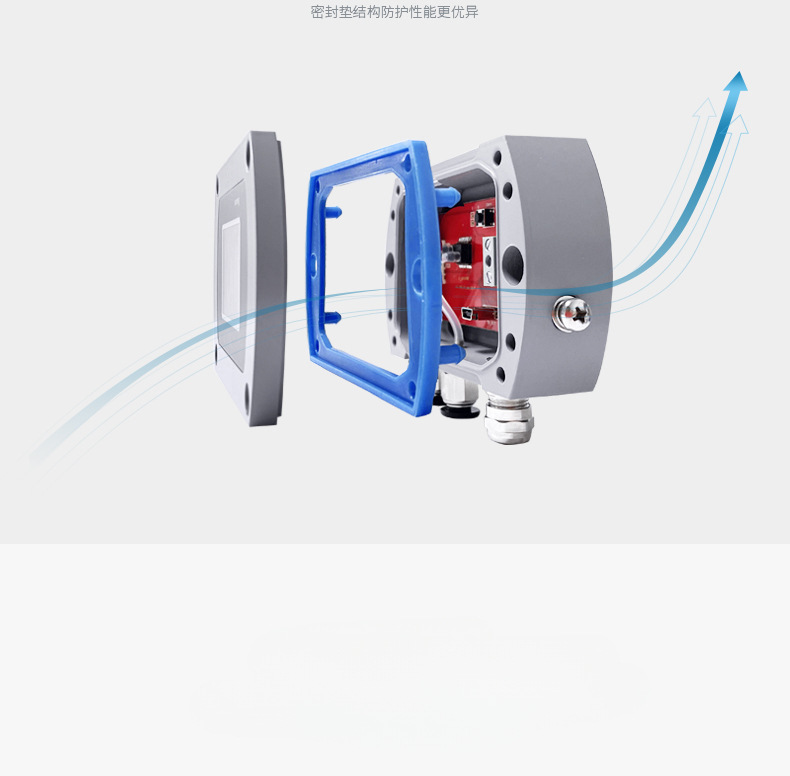

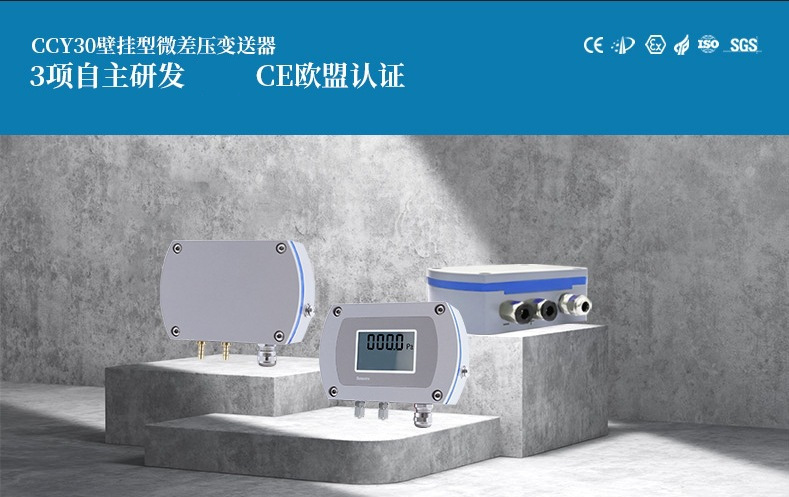

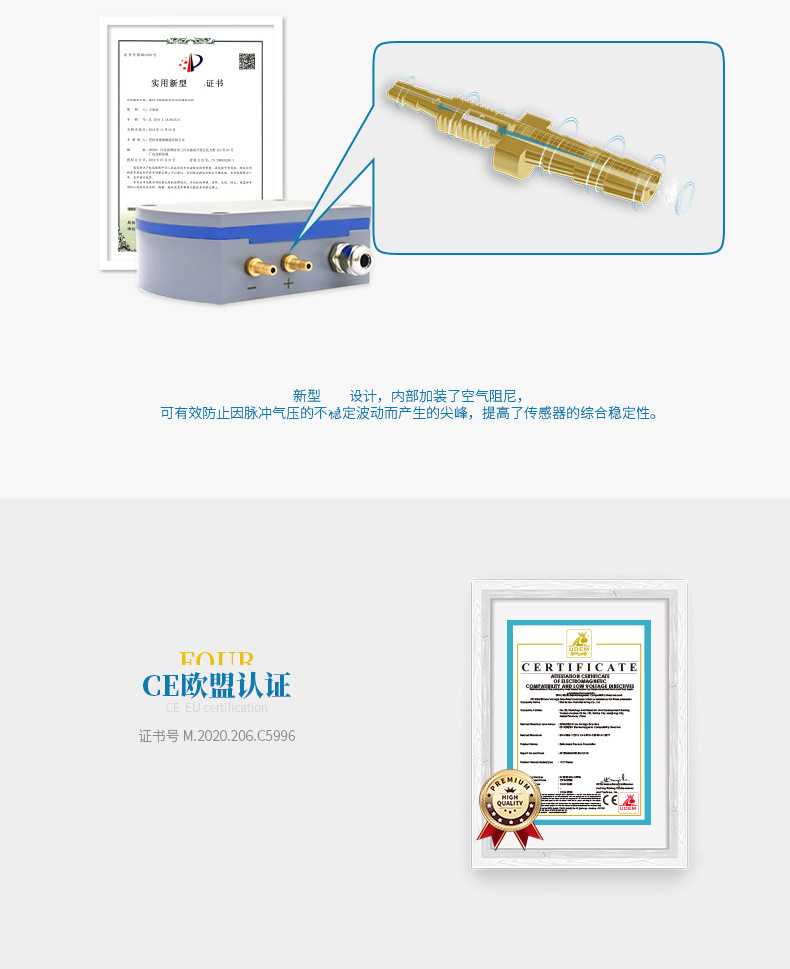

| The CCY30 wall-mounted micro-differential pressure transmitter can meet general site needs and can also meet sites with explosion-proof requirements. It is divided into three models: conventional (no explosion-proof), intrinsically safe explosion-proof, and intrinsically safe dust explosion-proof.Air damping is installed internally, which can effectively prevent spikes caused by unstable fluctuations in pulse air pressure and improve the overall stability of the sensor.You can choose whether to display or not according to the site, and the installation holes are hidden to make the appearance more beautiful. |
| Range::-10kPa~0~l0kPa |
| Output: 4~20mA, RS485, 0~5VDC, 0~10VDC, 1~5VDC |
| powered by: 9~36VDC, 12~24VDC, 12~36VDC |
| Accuracy:0.5%FS, 1%FS |
| typical application:Industrial equipment HVAC Industrial control Building automation Explosion-proof site |
| In addition, we can also provide customized products that meet customer application needs in a short time based on their applications.. |

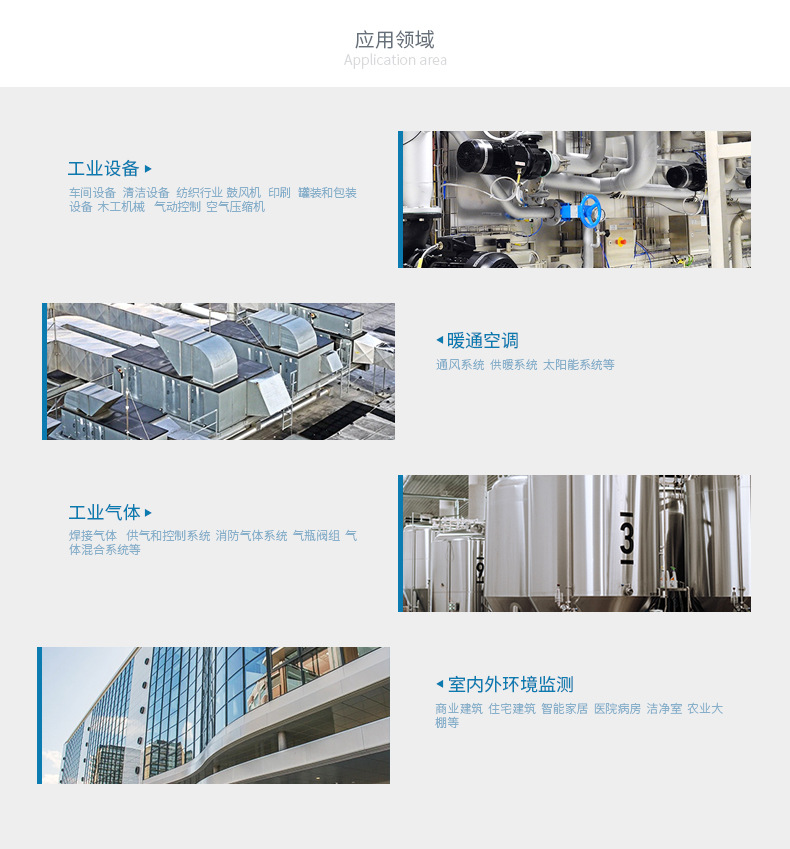

Application area |

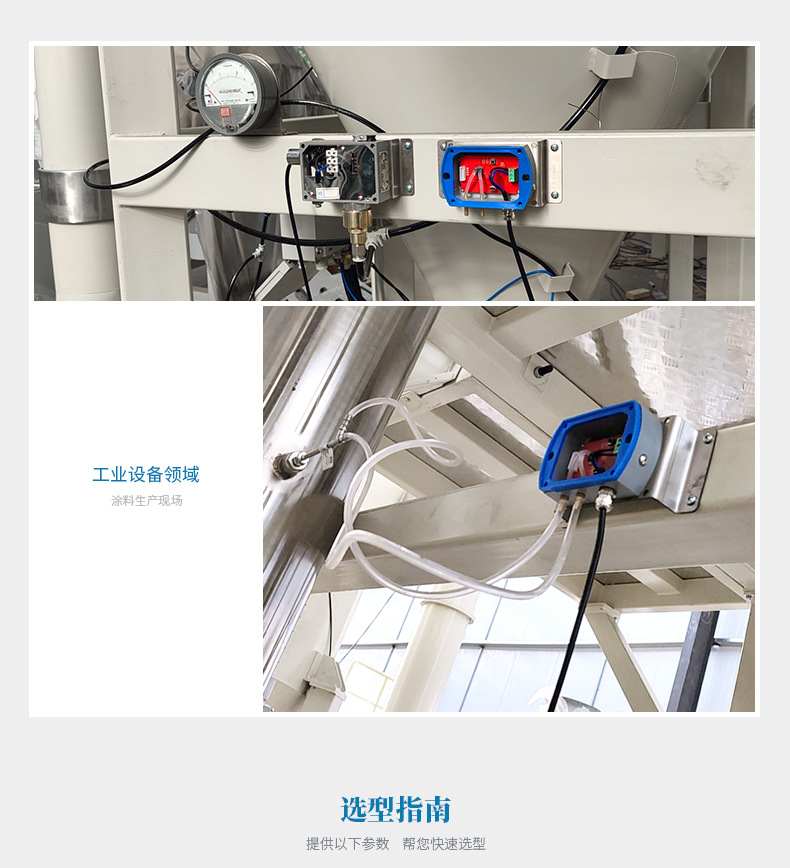

| Industrial equipment:Workshop equipment Cleaning equipment Textile industry Blower Printing and packaging equipment Woodworking machinery Pneumatic controls Air compressors |
| HVAC:Ventilation system, heating system, solar system, etc. |
| Industrial gases:Welding gas, gas supply and control system, fire gas system, gas cylinder valve group, gas mixing system, etc. |
| Indoor and outdoor environment monitoring:Commercial buildings, residential buildings, smart homes, hospital wards, clean rooms, agricultural greenhouses, etc. |
