Pingxiang Cologne PVDF liquid box

The liquid collecting tank is a common tower internal component in the chemical industry.There are many types of liquid collection tanks. The common one in general applications is the riser pipe liquid collection tank. According to the riser hole, it can be roughly divided into two categories: rectangular hole and cylindrical hole.

Application principle of liquid collection tank:After the gas passes through the liquid collecting tank, it undergoes heat and mass transfer processes with the liquid from the distributor. In this process, the uniformity of distribution of the two phases is very important. Uneven distribution of any phase will affect the heat transfer efficiency.The liquid collection tank produced by Jiangxi Pingxiang Kelong Petrochemical Equipment Packing Co., Ltd. should not only have a collection function, but also have a gas distribution function and can be combined with a liquid distributor to improve efficiency.As shown in the picture, Pingxiang Cologne Co., Ltd. produces the plastic tower internal parts workshop.DN2000 liquid collecting tank made of PVDF.

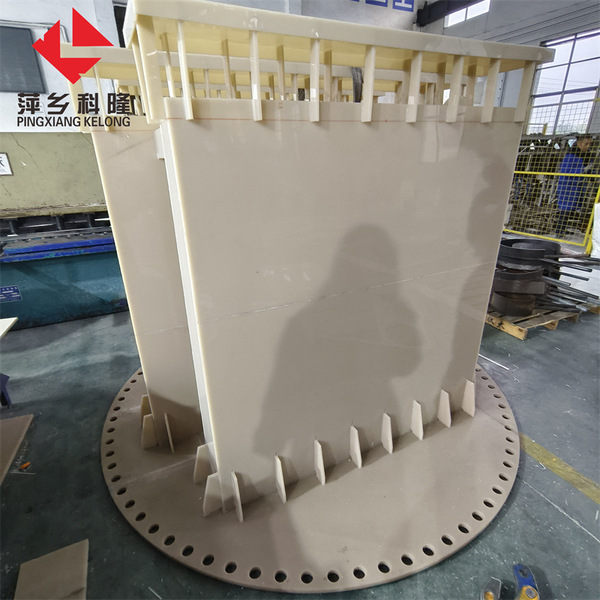

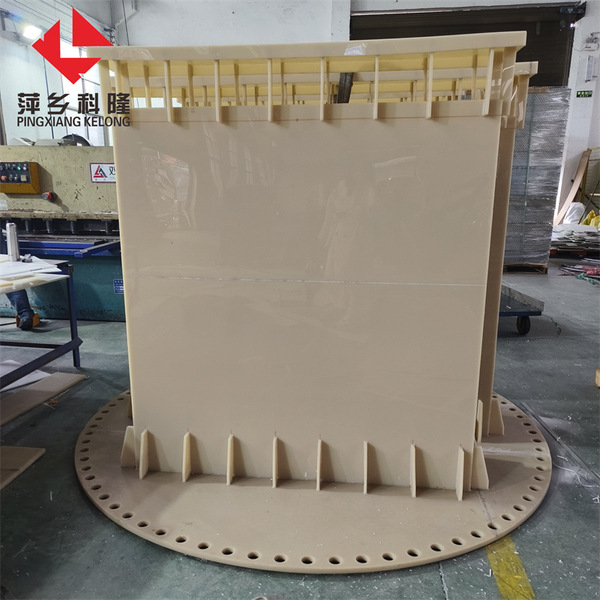

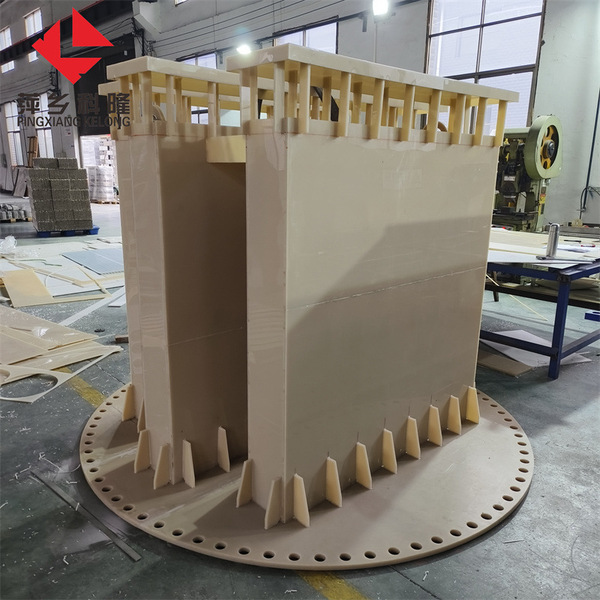

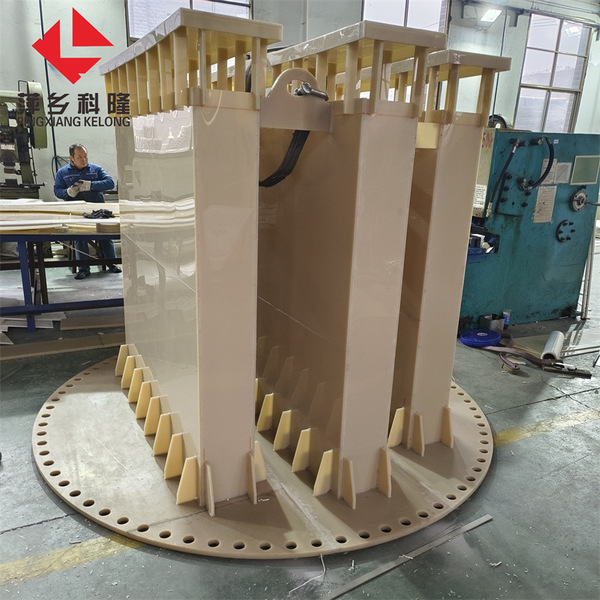

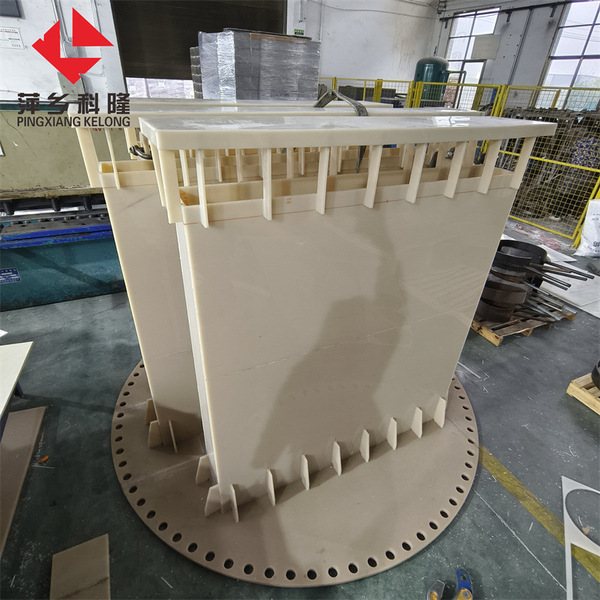

PVDF liquid collecting tank Pingxiang Cologne real product pictures:

Introduction to PVDF material:Mainly refers to vinylidene fluoride homopolymer or copolymer of vinylidene fluoride and other small amounts of fluorine-containing vinyl monomers, which has bothFluorine resinand general resin properties. In addition to good chemical corrosion resistance, high temperature resistance, oxidation resistance, weather resistance, and radiation resistance, it also has special properties such as piezoelectricity, dielectricity, and thermoelectricity. It is aFluoroplastyA large product with the second largest production volume.

Introduction to the structure of the liquid collecting tank:Liquid collecting tankIt is mainly composed of the upper branch liquid collecting tank, the middle branch liquid collecting tank and the bottom collecting liquid collecting tank; the upper branch liquid collecting tank and the middle branch liquid collecting tank are connected by supports, each branch liquid collecting tank is connected to the cylinder at one end close to the cylinder body, and one end of the middle branch liquid collecting tank is connected to the bottom collecting liquid collecting tank; the branch liquid collecting tanks in the upper and middle parts of the liquid collecting tank are arranged at a certain gap, and there is a certain gap between the upper branch liquid collecting tank and the middle branch liquid collecting tank layer, and the above gap is a gas channel.
During the mass transfer process, the gas passes through the liquid collection tank from bottom to top and performs gas-liquid mass transfer with the descending liquid. The liquid after gas-liquid mass transfer seamlessly falls into the liquid collection tank, and finally accumulates at the bottom, and is extracted through the extraction pipe to become a side line product or for mid-stage circulation.
Production of Cologne Petrochemical Equipment Filling Co., Ltd., Pingxiang City, Jiangxi ProvinceStructural features of the liquid collecting tank:1,The gas phase is evenly distributed;2. Less mist entrainment; 3. Lower pressure; 4. Stable structure.
companyMainly engaged in the development, design and production of green separation technology and equipment, including the research and development, manufacturing of a complete set of process package technology and various tower internal equipment technologies and products, as well as the production and sales of various chemical equipment.Welcome new and old customers to call the sales department for consultation:0799-6685658, 6685655, 6685657,6685650.
