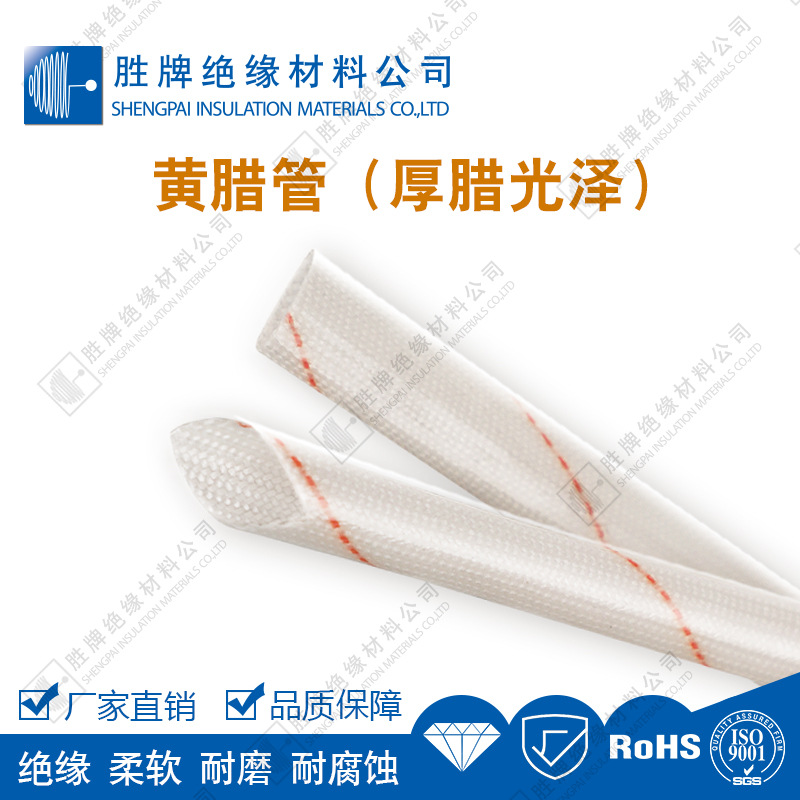

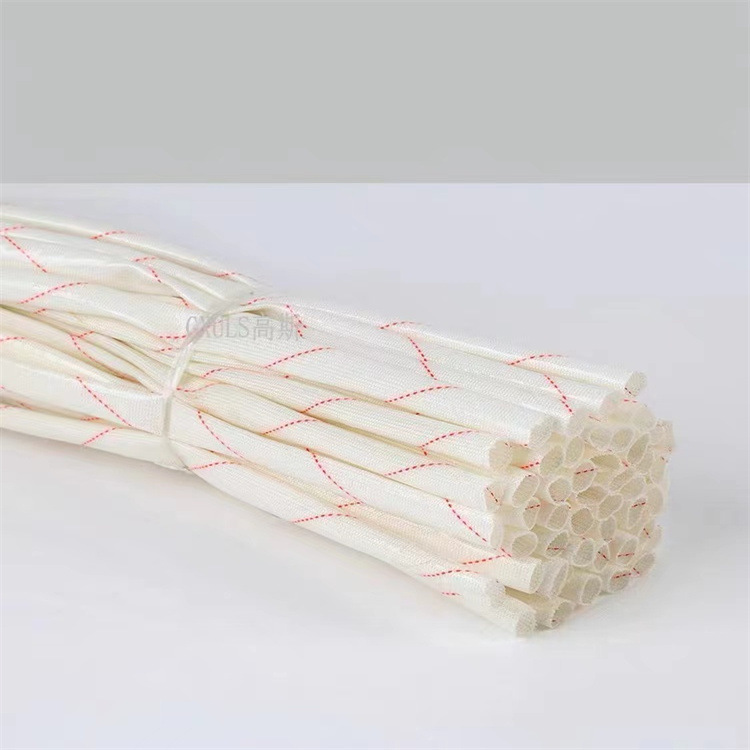

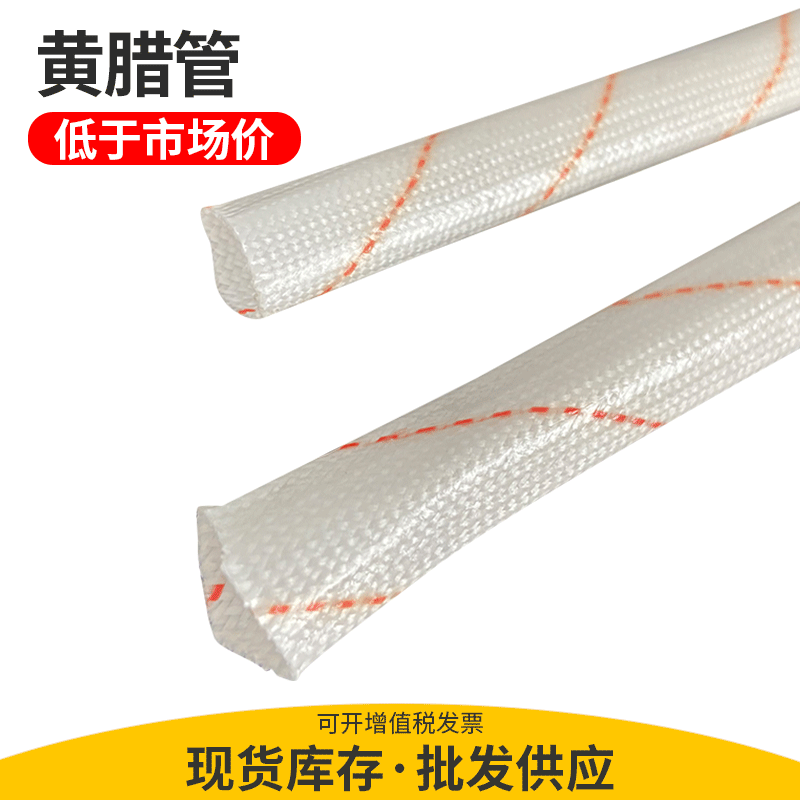

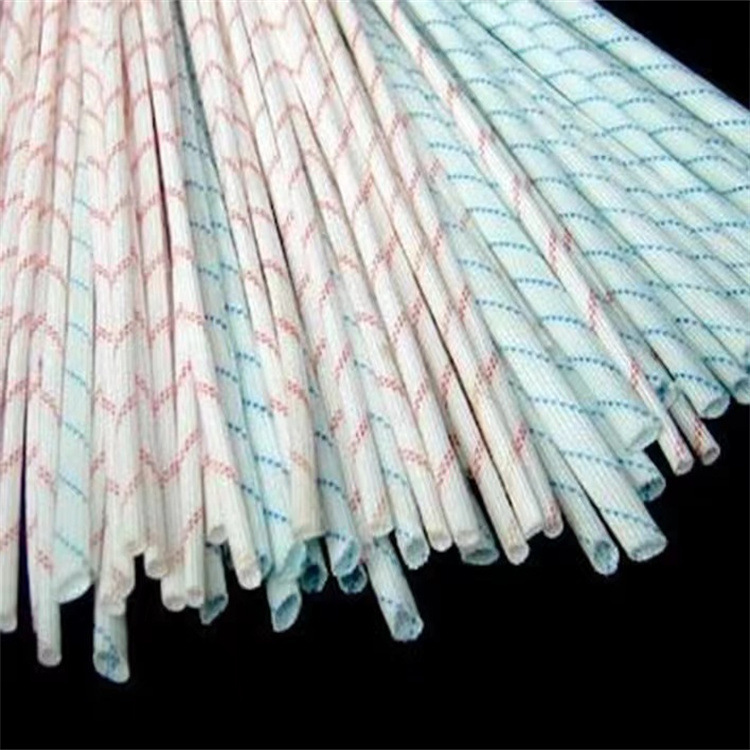

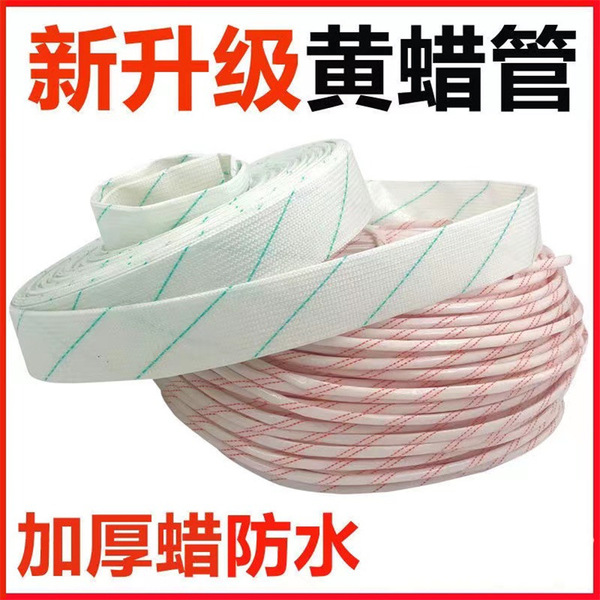

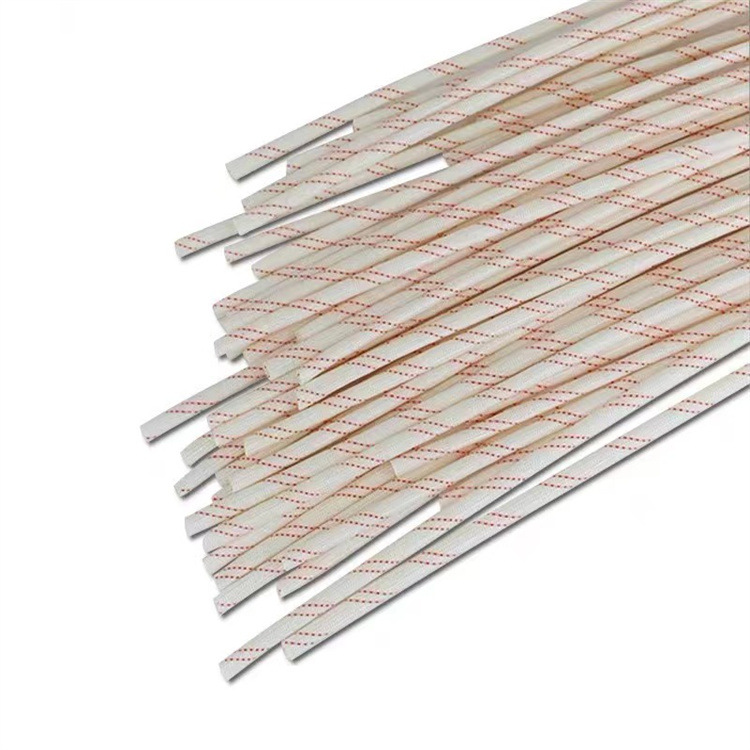

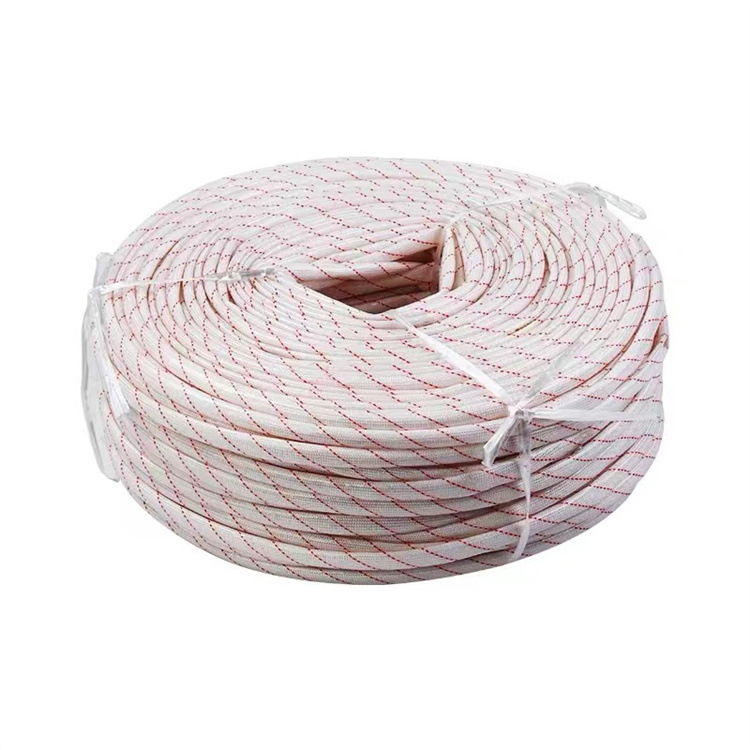

Manufacturers supply insulating yellow wax tubes

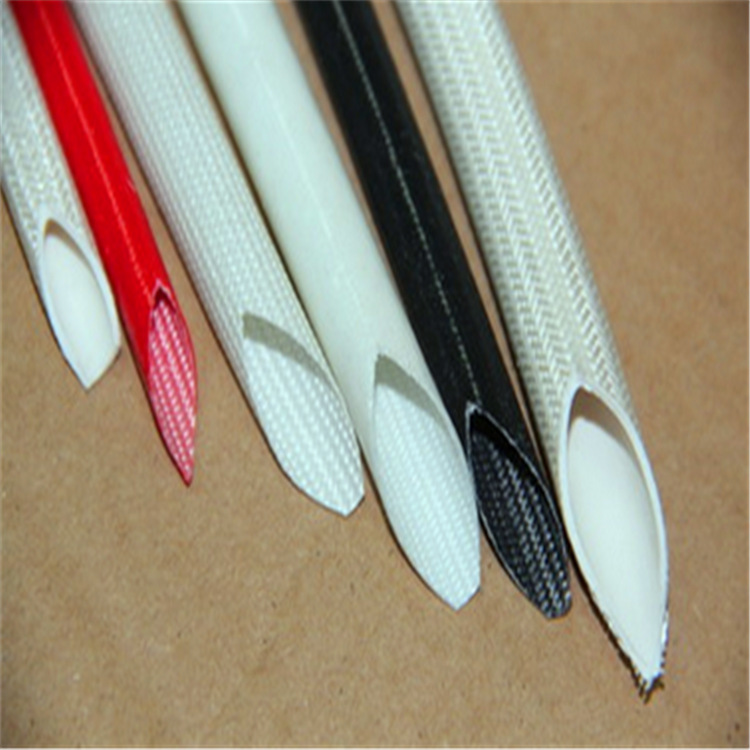

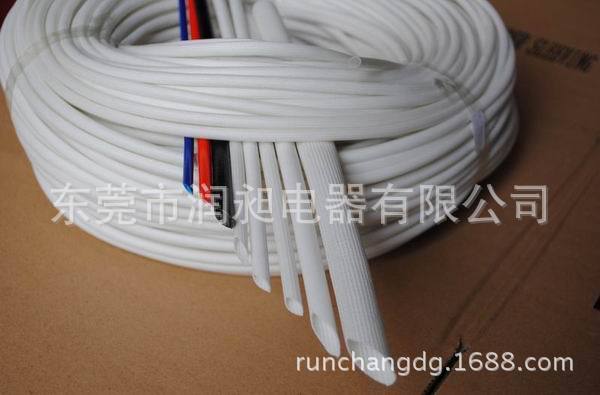

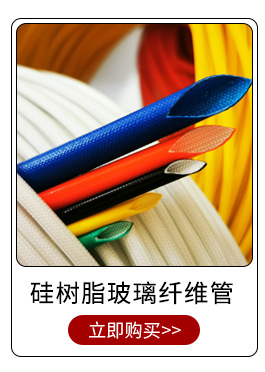

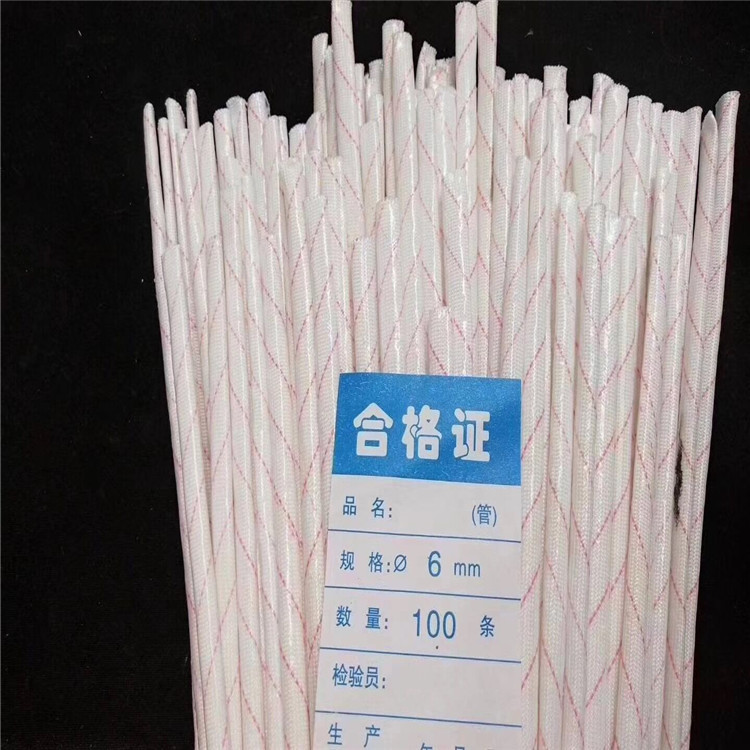

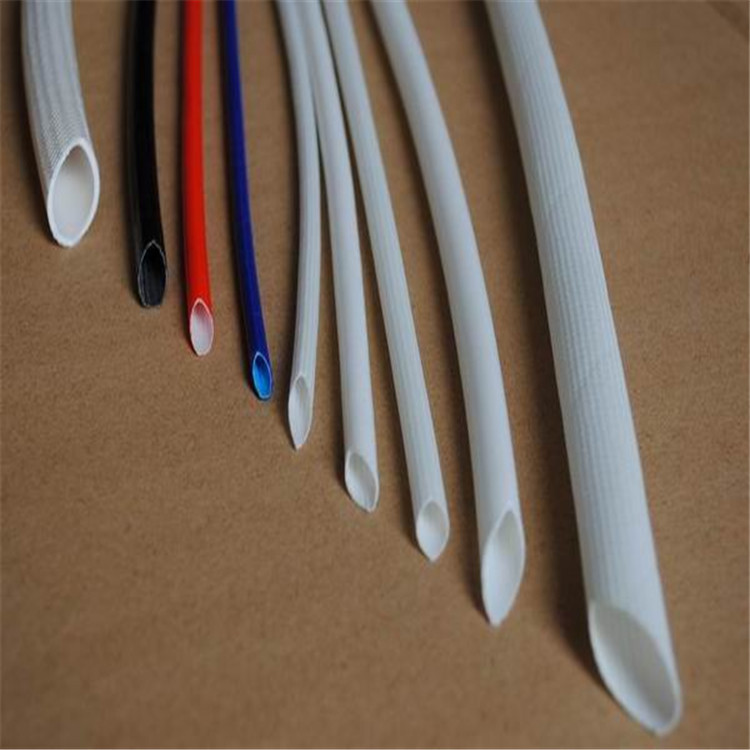

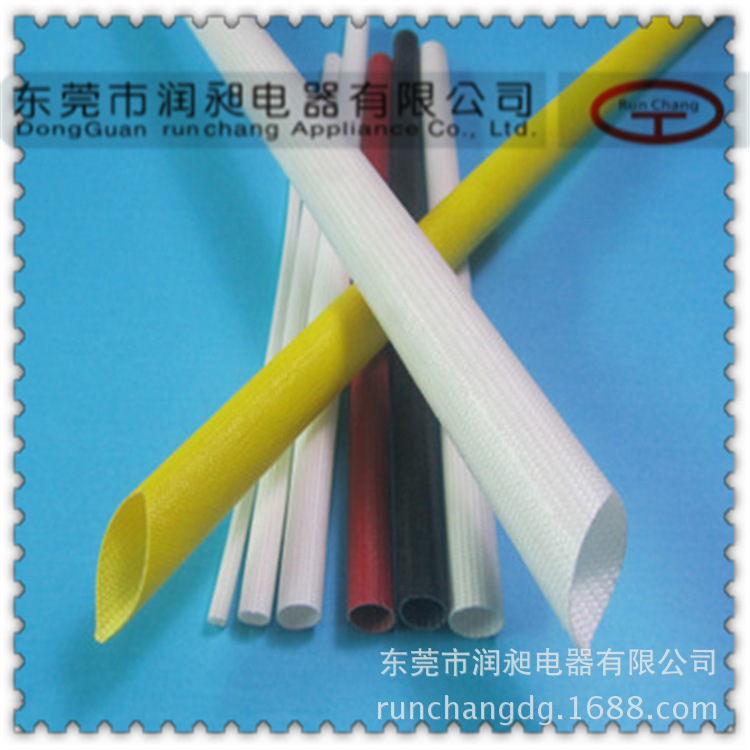

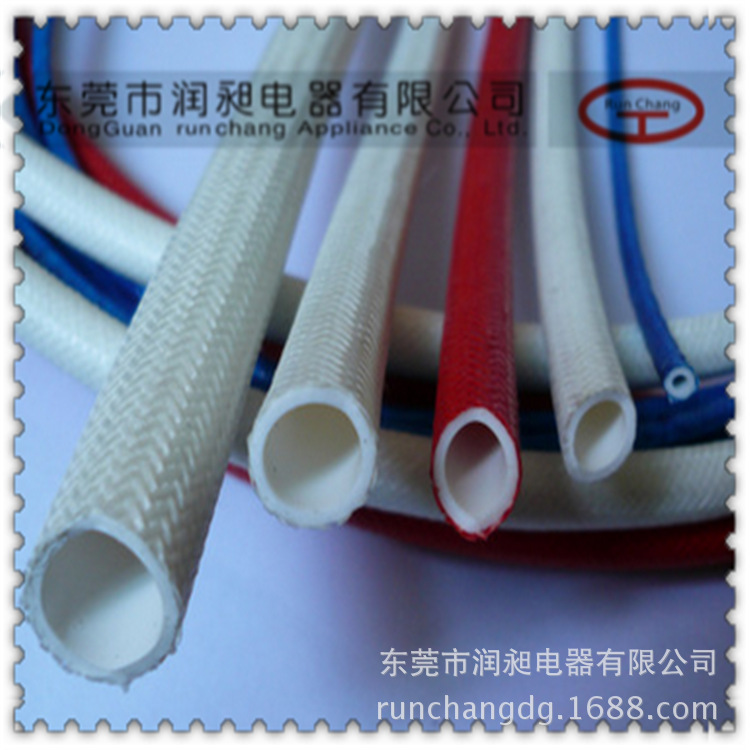

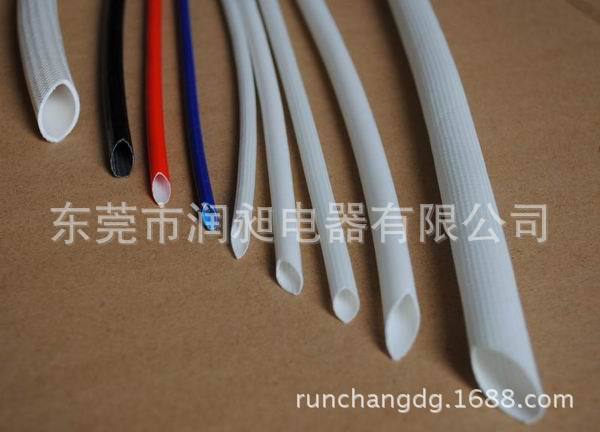

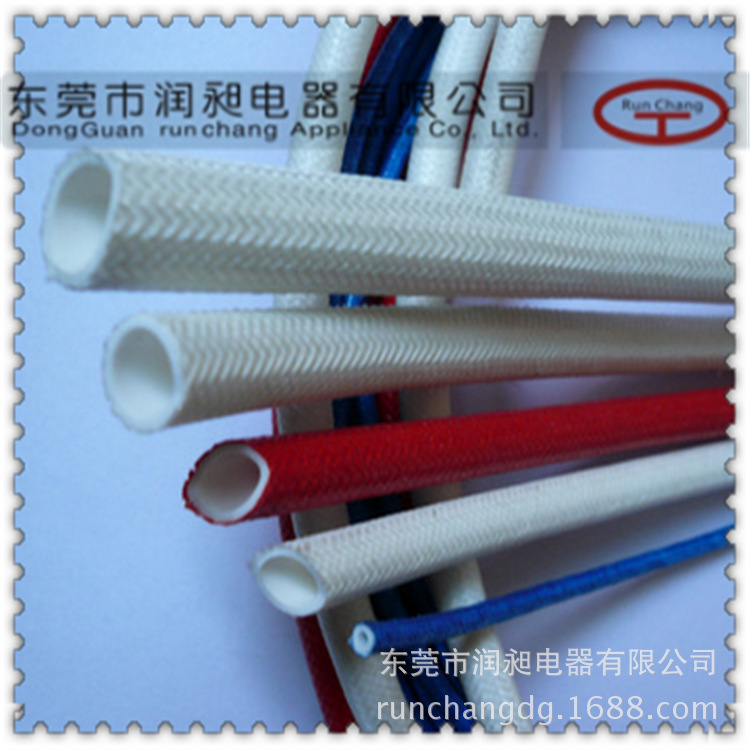

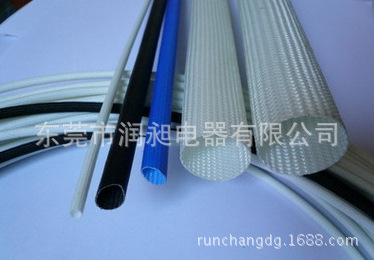

Self-extinguishing tube, fiberglass sleeve, silicone fiberglass sleeve

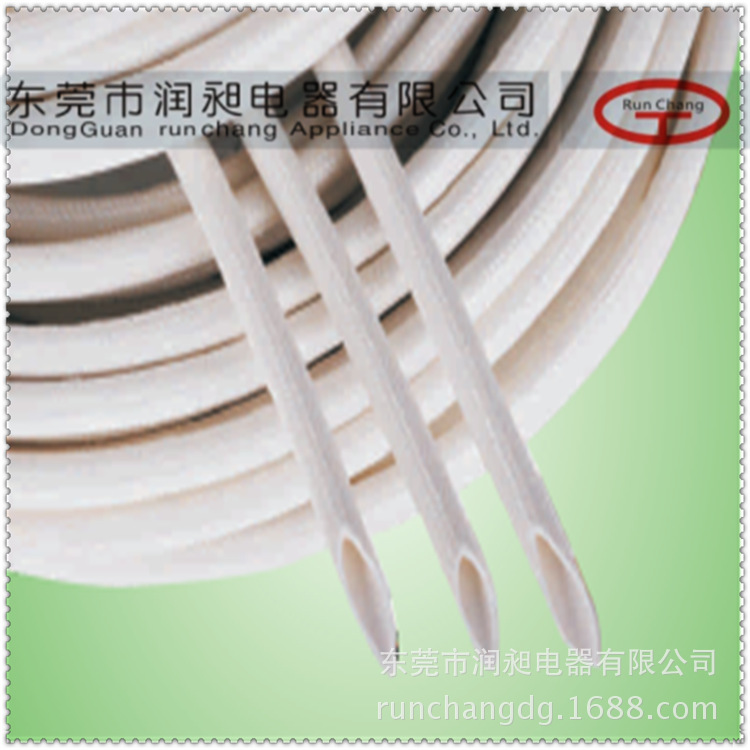

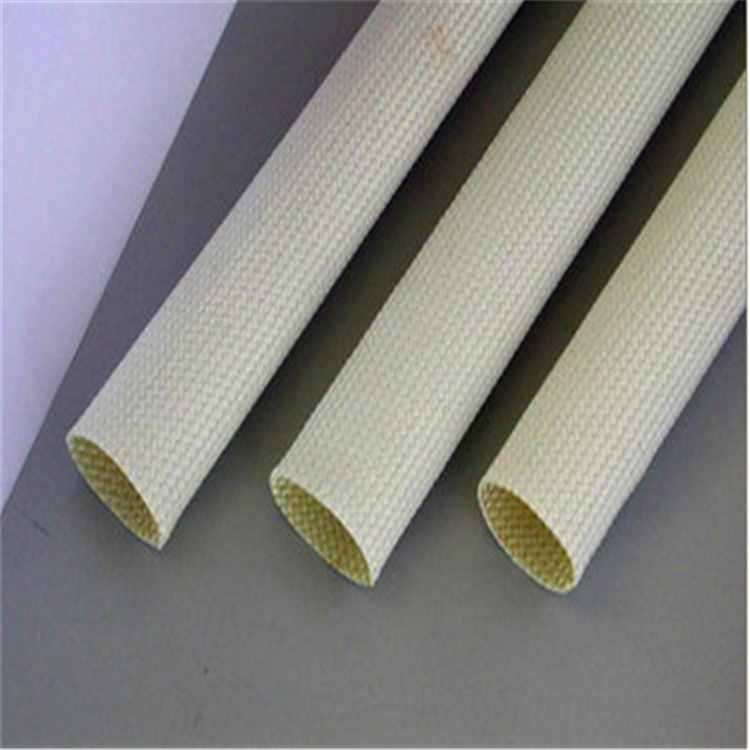

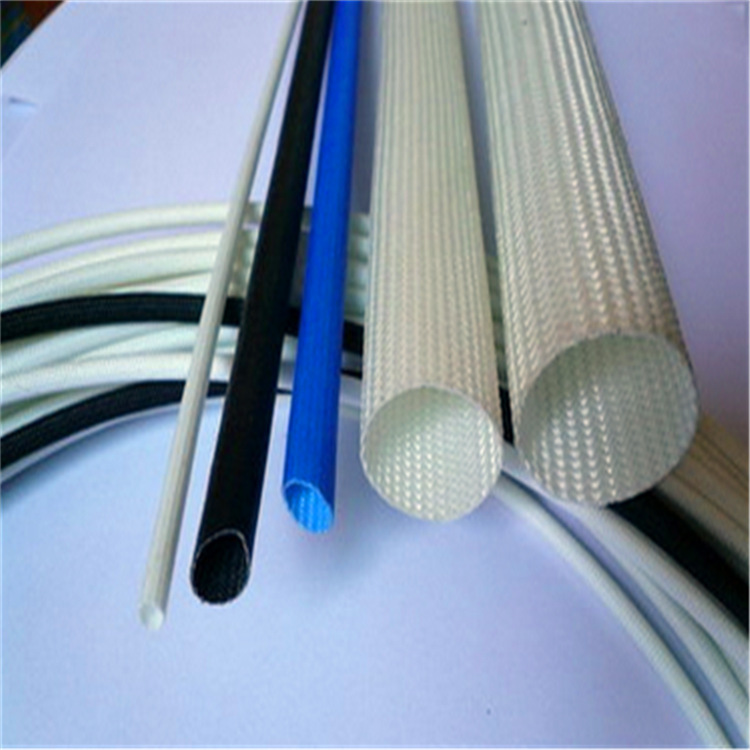

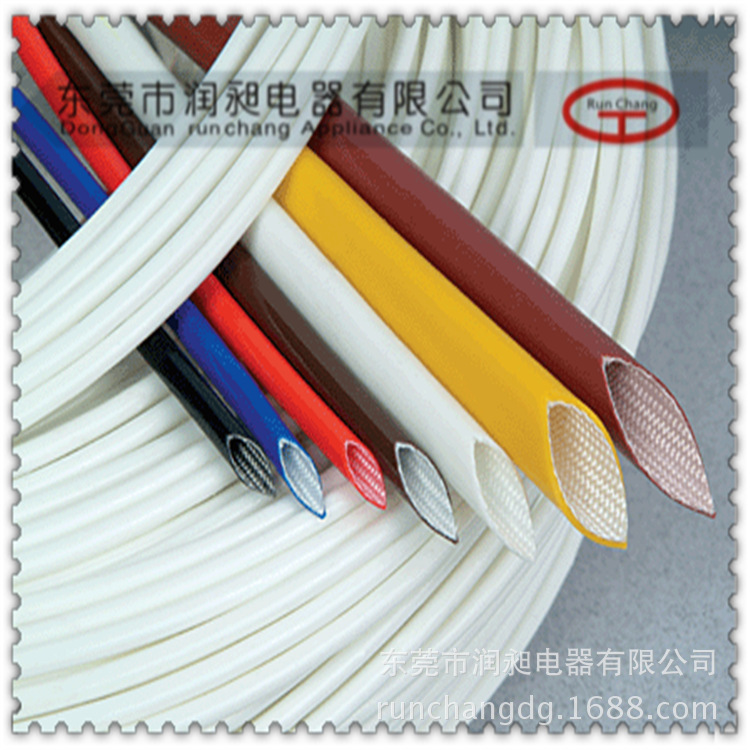

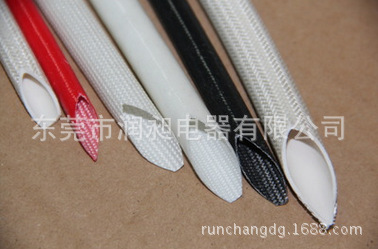

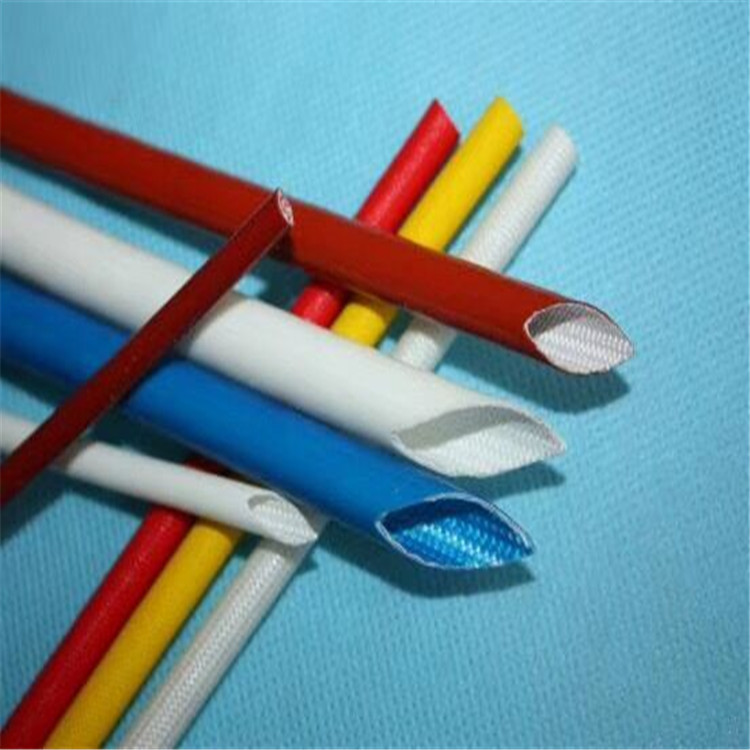

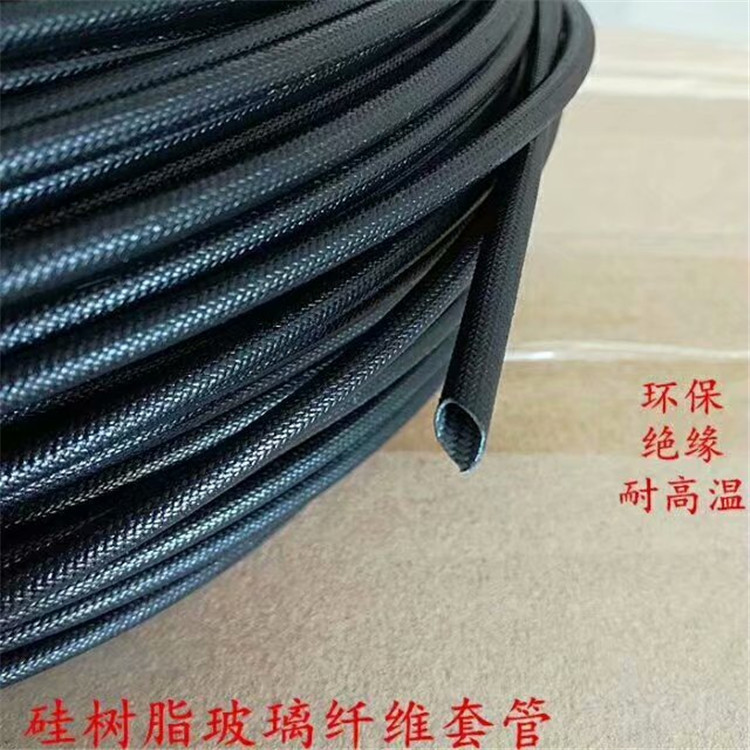

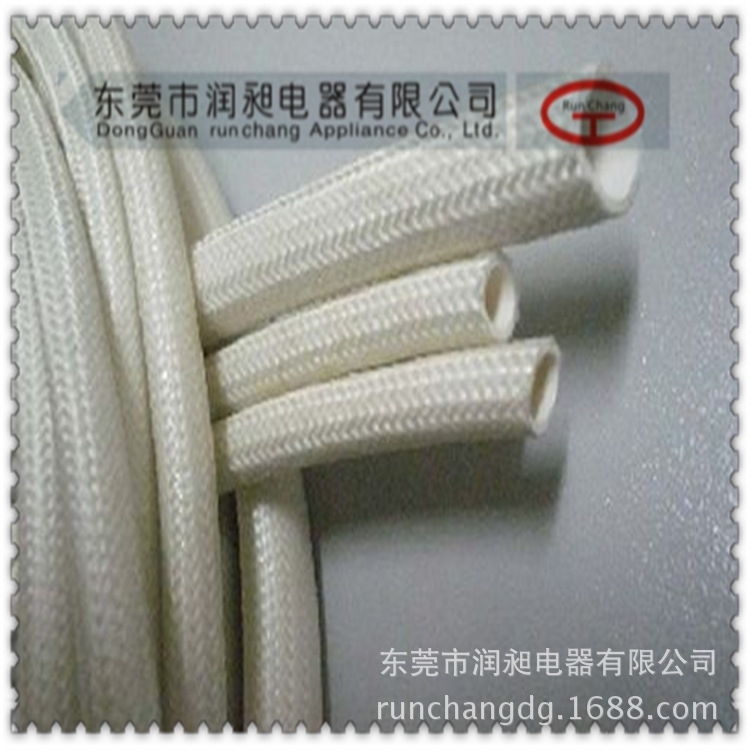

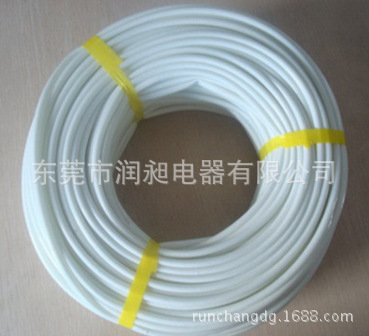

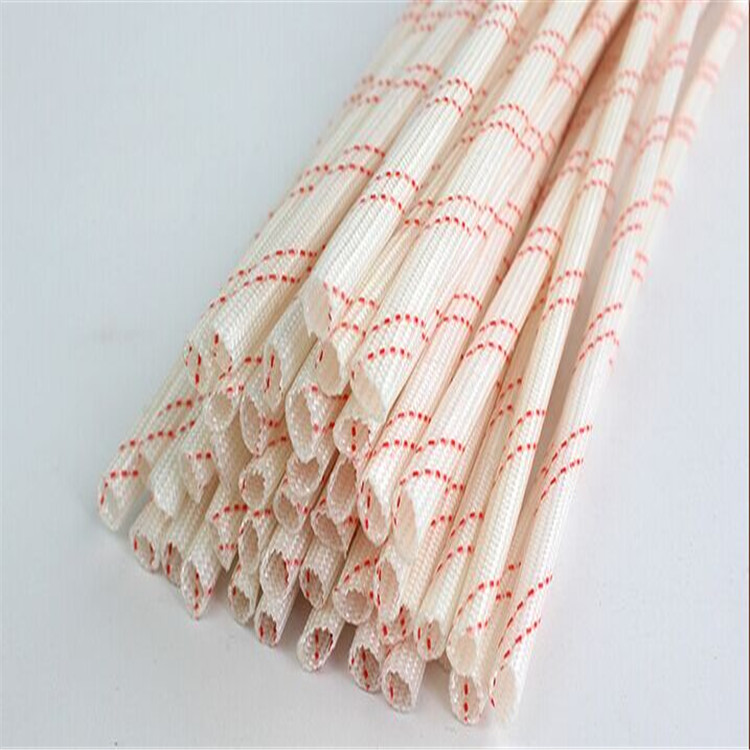

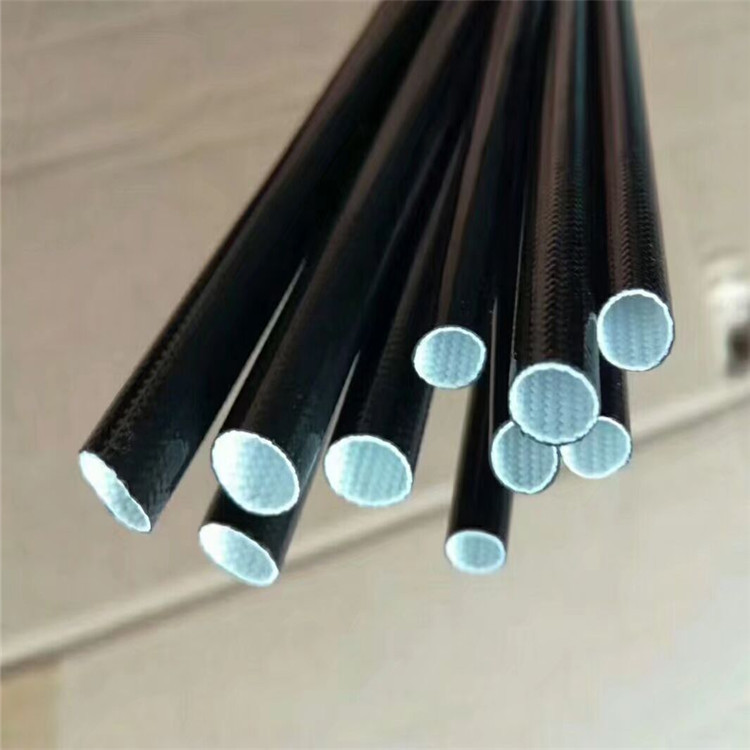

Description: Silicone fiberglass sleeves are made of environmentally friendly fiberglass  Braided into a casing, the surface is coated with silicone copolymer resin. Working temperature: -60℃～200℃,  Rated voltage: 1.2KV/1.5V/2.5KV/4KV/7KV/10Kv products are soft, flame retardant, high temperature resistant, mechanical and insulating  Stable performance and other advantages.
Usage: This product is widely used in commercial electronics, household appliance insulation, automobile wiring harnesses, energy-saving lamps, and the protection and insulation of internal connecting lines of electronic equipment and instruments. Glass fiber sleeve: Mainly used as electrical insulation material, FSG soft, self-extinguishing silicone fiberglass sleeve.The FSG series of soft self-extinguishing silicone fiberglass sleeves are woven from alkali-free glass fiber yarns, then treated at high temperatures and coated with silicone copolymer resin.    This insulating sleeve has certain dielectric properties, good self-extinguishing properties and superior softness, and is widely used for H-class motor insulation; energy-saving lamps, refrigerators, air conditioners, bathroom heaters, TVs and other household appliances and electronic instruments such as in-machine wiring bundle insulation protection.           The polyurethane glass paint tube is woven with alkali-free glass fiber, coated with a special polyurethane resin and baked. This coating combines well with the glass fiber and can maintain the dielectric strength after aging.Glass fiber insulating sleeves have reliable electrical properties, good heat resistance, excellent flexibility, and resistance to acids, alkalis, and organic solvents. They are used for wiring insulation and mechanical protection of Class F (155°C) motors, electrical appliances, and various household appliances.

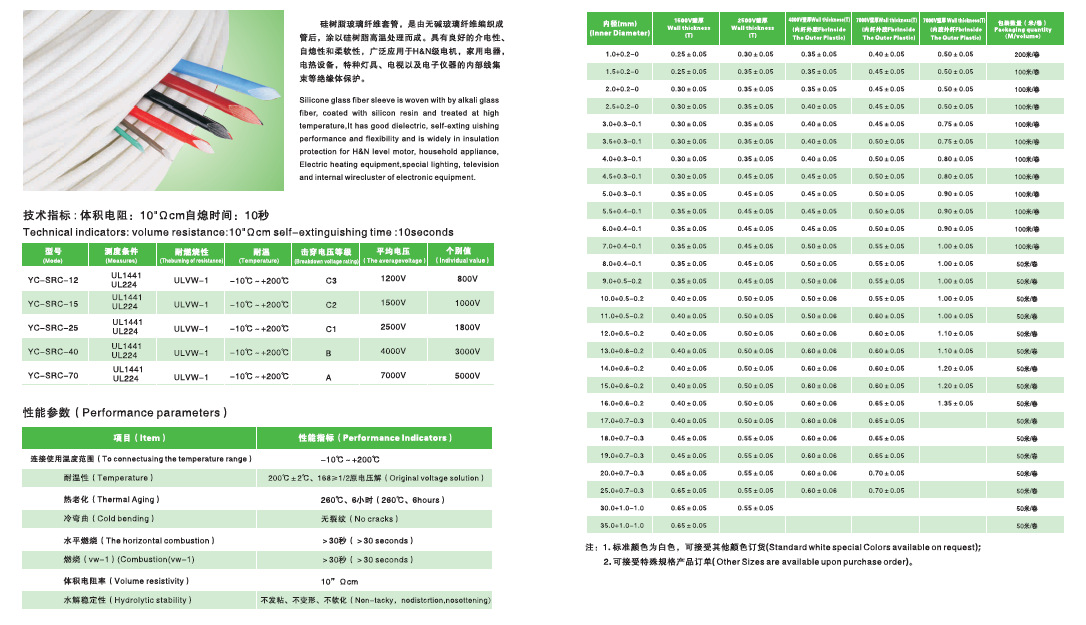

Performance parameters:Properties
Performance Properties    Specification  Requirement)
Continuous use temperature range (Continuous  Operating  Temperature)    -60 ℃ ～ 200 ℃
Cold bending  bend)    No cracks (no  cracking)
Thermal aging (Aging  Test)    260 ℃  6 hours  No cracks (no  cracking)
Horizontal combustion (Horizontal  Flame  Test)    <30s
Flame(VW-1)Flame  Retardance)    <30s
Volume resistivity (Volume  Resistance)    10  11Ω.CM
Temperature resistance (Temerature  Endurance)    260 ℃±2 ℃  168 hours≥1/2 original voltage value
Hydrolytic stability (Submerge  Water  Test)    No sticky, no deformation, no softening  (no  change
