SpecificationPaper package
UnitPCS
one.main feature:
Small size, complete function, simple operation, easy to carry.You can use the adapter to power, or you can power the lithium battery.
Together with the oscilloscope, it can be used for electronic circuit testing and debugging, the frequency characteristics of the audio amplifier and the test and measurement of pulse response.Because of the good accuracy and frequency stability of DDS, it is also very suitable for the scanning time of the oscilloscope.
The square wave output is suitable for adjustment of oscilloscope attenuation and probe pulse characteristics.
2. Main technical indicators:
1. Frequency range: sine wave 1Hz-500kHz (where the output range is flat to 200 kHz,
As the frequency increases the output amplitude further), other waveforms 1Hz-20kHz (but the upper limit of the adjustable frequency does not limit,
If the requirements for distortion and shaking are not high, the frequency of usage can be further increased).
2. Resolution: 1Hz.
3. Output waveforms: sine waves, square waves, triangular waves, positive jagged waves, reverse jagged waves.
4. Sinusoid wave distorted: below 1kHz<1%, 1kHz and above<0.5%.
5. Output amplitude: maximum±10V(P-P).
6. Output impedance: 50 ohms.
7. DC offset: maximum±10V, related to closed function.
8. There are filters that can be opened and closed, which can well adapt to sine and pulse waveform output.
9. Power: DC3.5-10V.It is recommended to select DC5V when using the adapter. Use a 3.7V lithium battery when power supply is power supply.
instruction:
This functional signal generator can test a variety of waveforms, such as sine waves, square waves, triangular waves, positive and negative sawtooth waves.It is designed for those professional workers.
feature:
Although it is small, it has many functions and is easy to operate and carry.
It can be used with the oscilloscope to test and debug the electronic circuit, the frequency response and pulse response of the audio amplifier.
Fang waves are suitable for adjustment of oscilloscope attenuation and probe pulse response.
It can also calibrate the scanning time factor of the oscilloscope.
There is a filter (which can be opened and closed) to the output suitable for sine waves and pulse waves.
Specifications:
Output signal type: sine waves, waves, triangular waves, positive and negative sawtooth waves.
Frequency range: 1Hz-500KHz sine waves, and other waveforms are 1Hz-20kHz.
Resolution: 1Hz
Sinoid wave distorted: 1kHz<Below 1 %, 1kHz<More than 0.5 %.
DC offset range:±10V (can be closed)
Output range:±10V (PP)
Output impedance: 50ohm
Power voltage: DC3.5-10V.
Display method

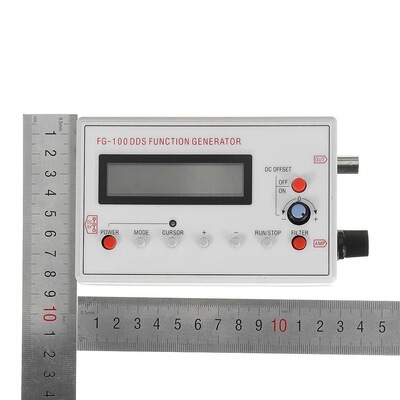

Product size: 14 x 8 x 3.5 cm/ 5.51 x 3.15 x 1.38 inches
LCD screen: 6.5 x 1.5cm / 2.56 x 0.59in
Product weight: 197.5 grams/ 6.96 ounces
Packaging size: 23 x 16 x 3.5cm / 9.06 x 6.3 x 1.38in
Packaging weight: 202.5 grams/ 7.15 ounces
The package includes:

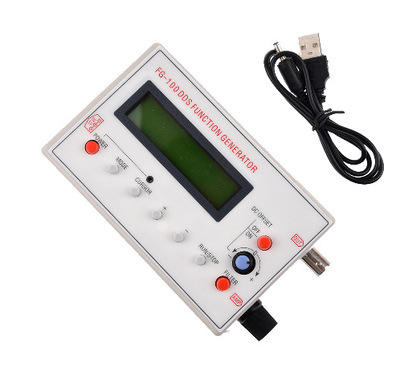

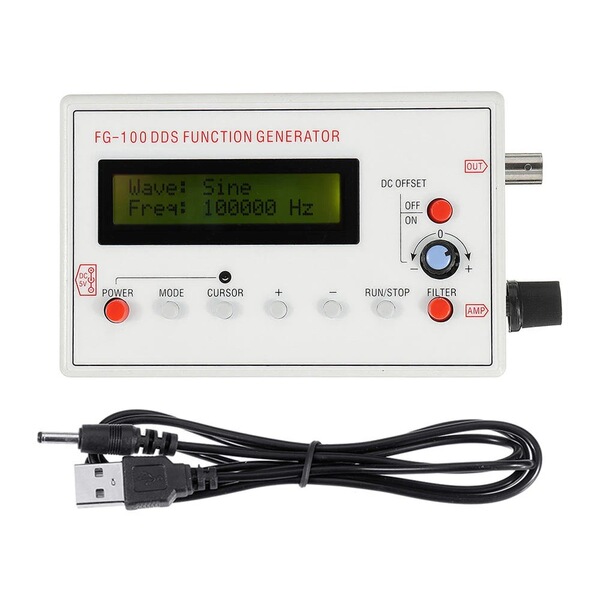

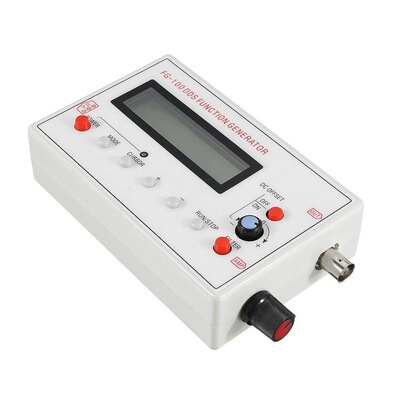

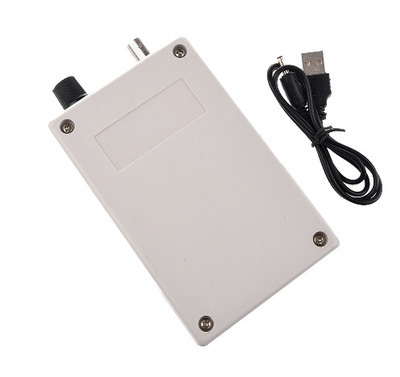

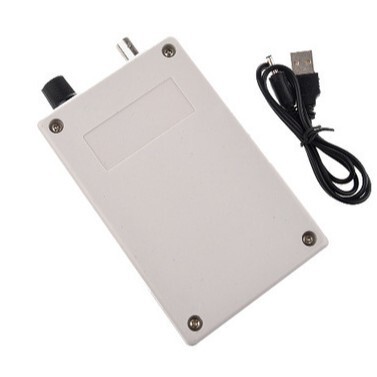

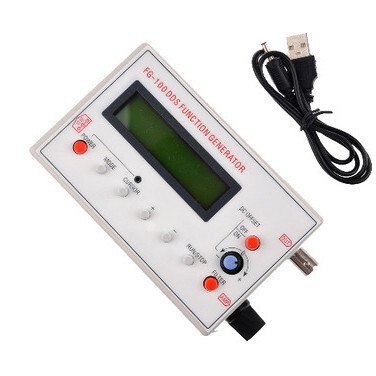

1 signal generator
