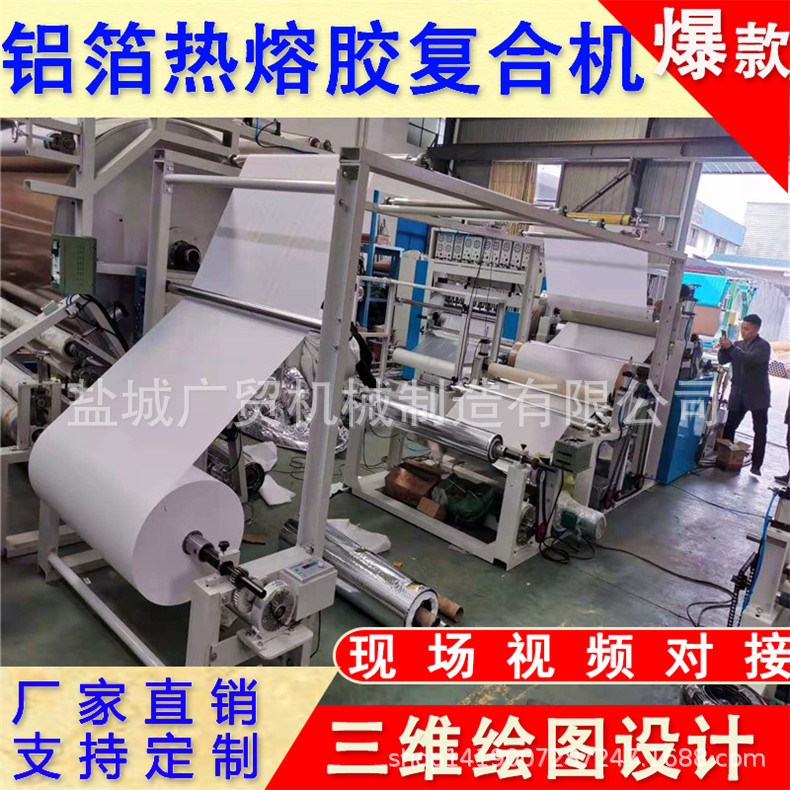

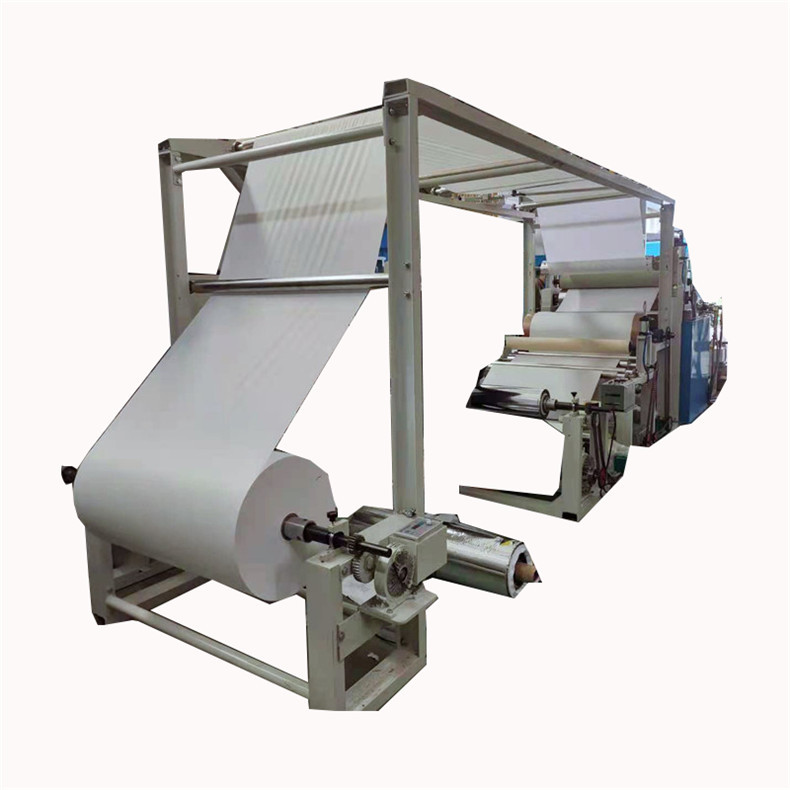

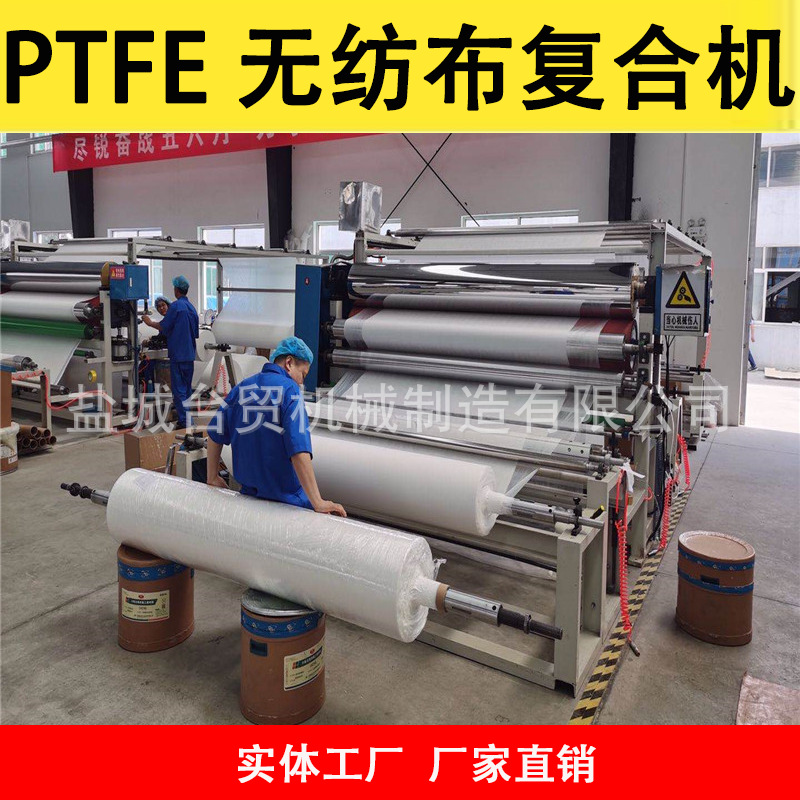

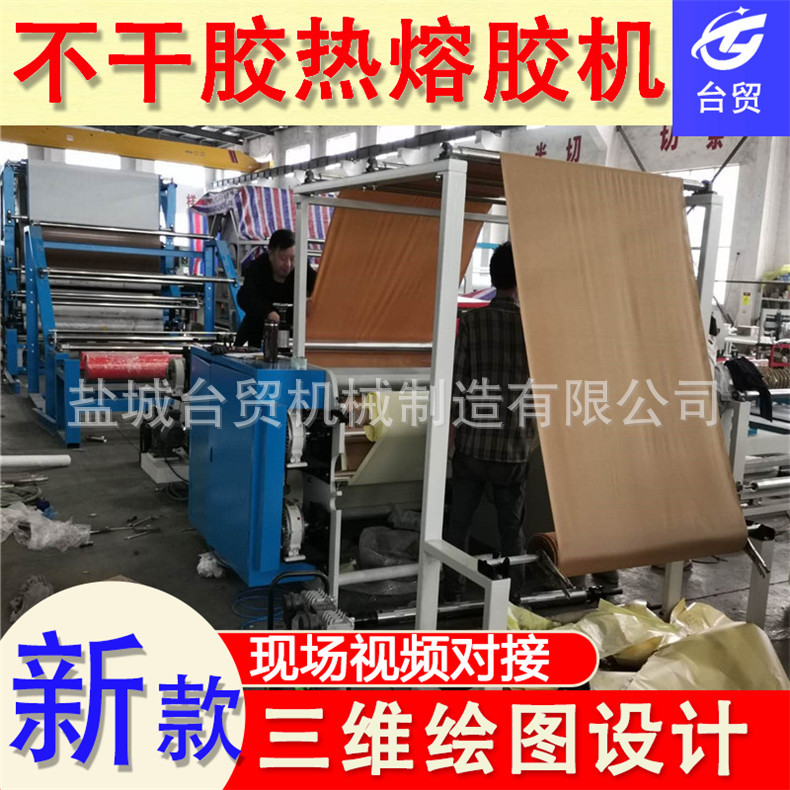

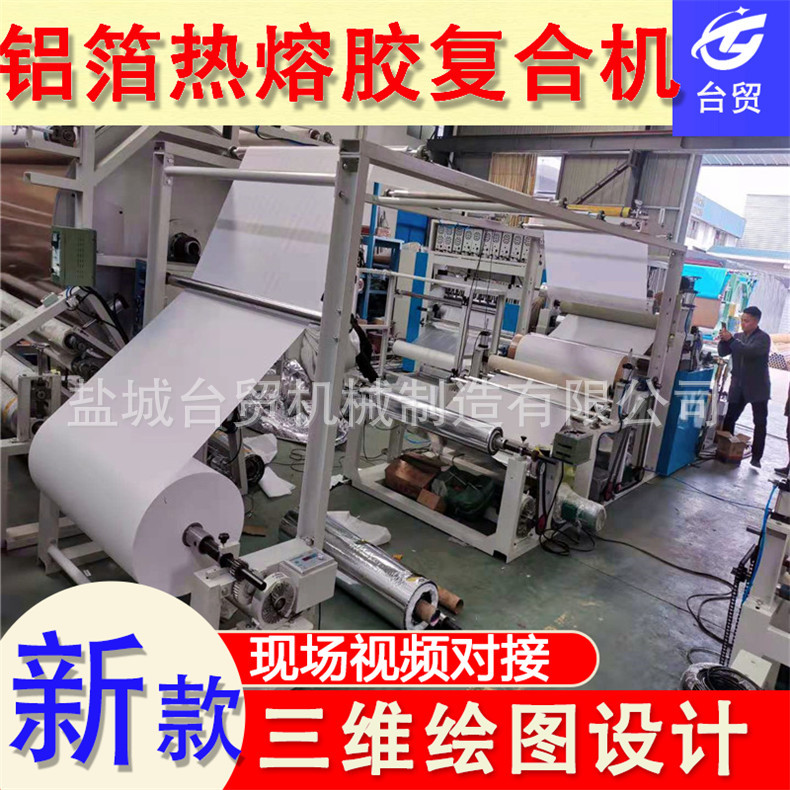

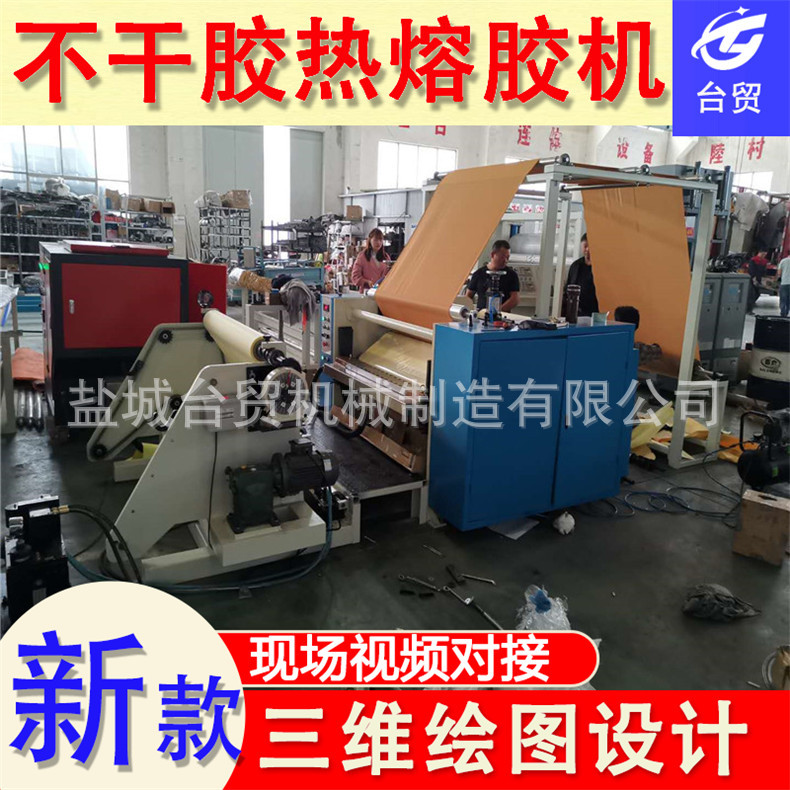

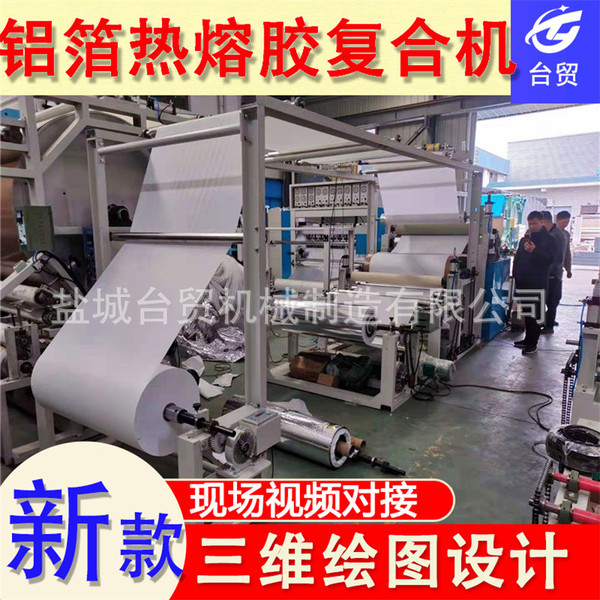

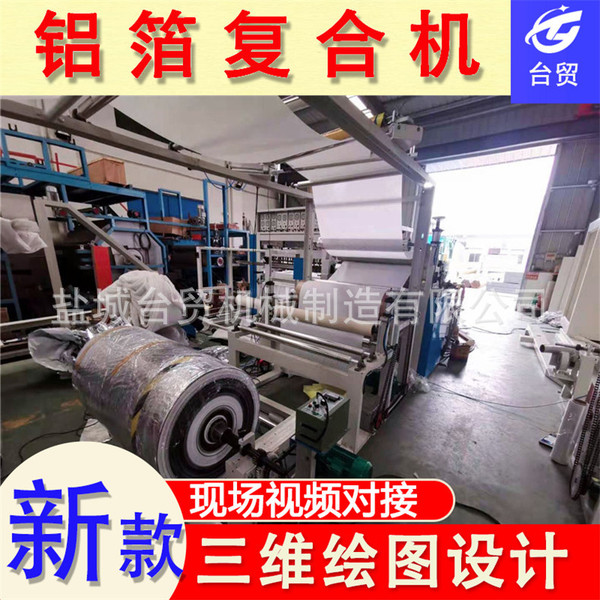

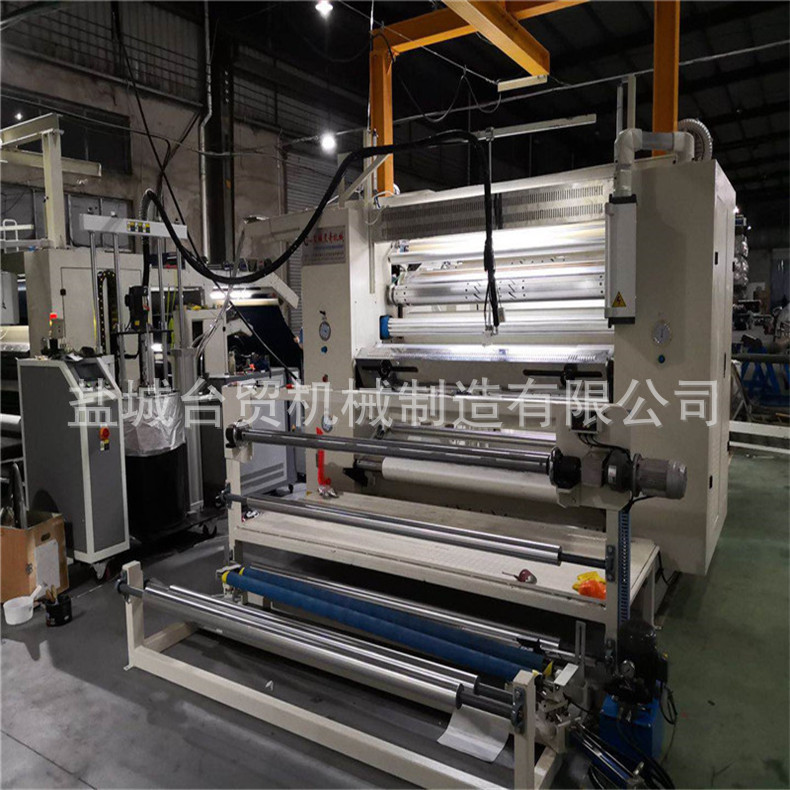

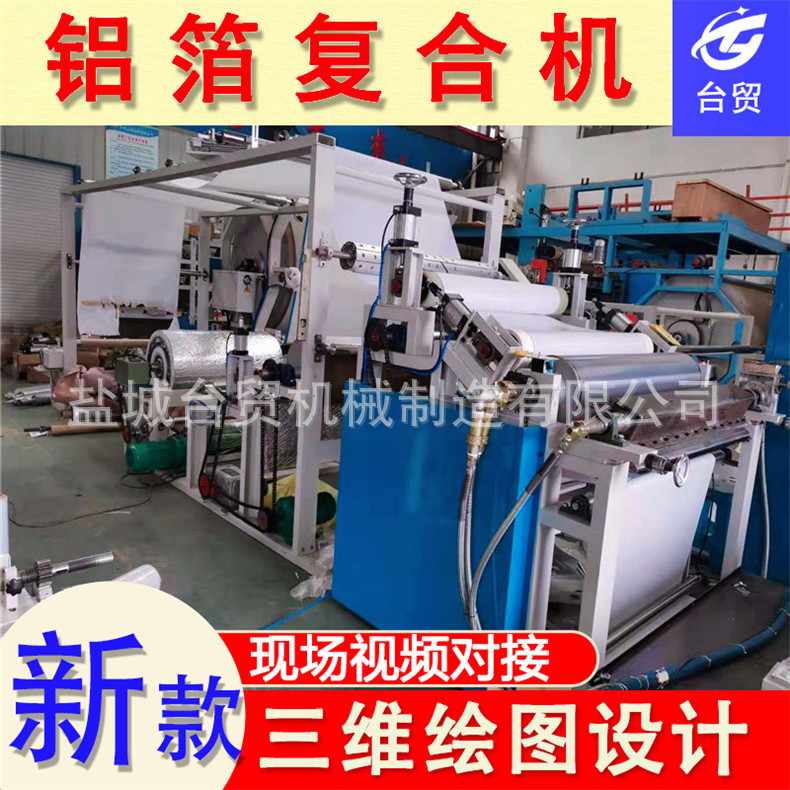

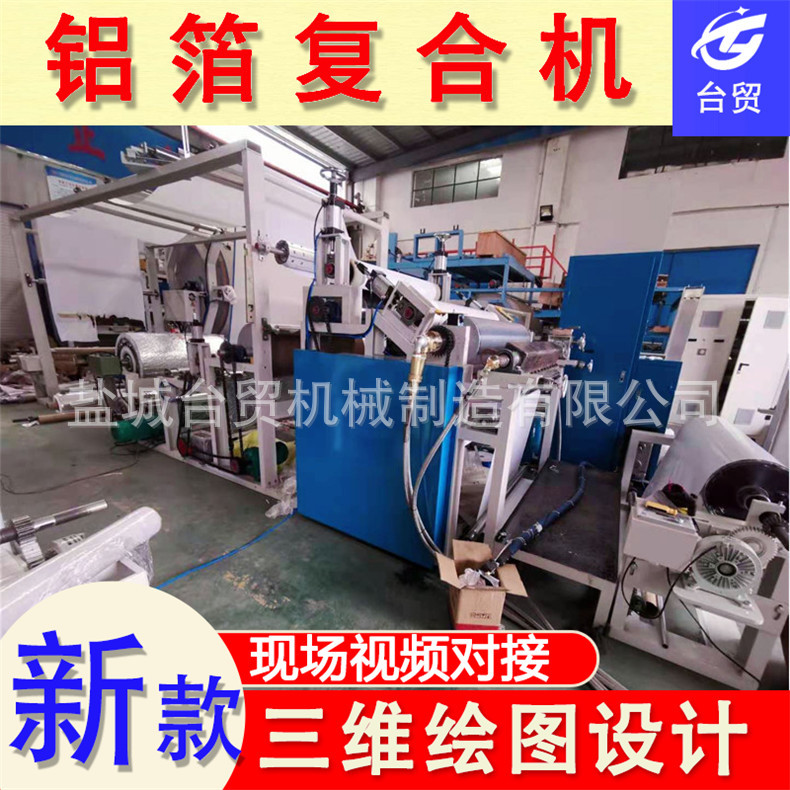

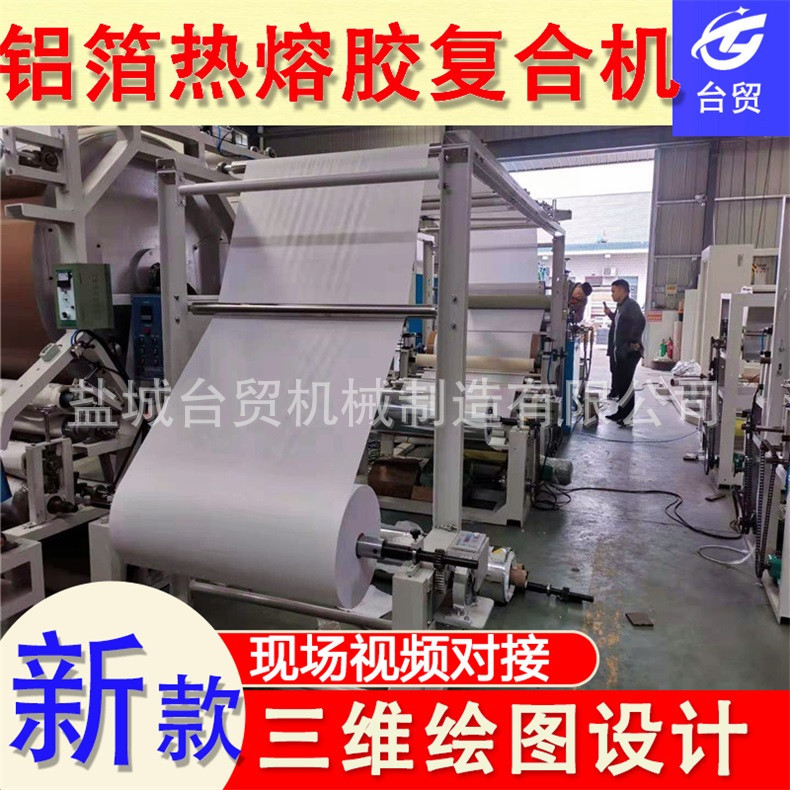

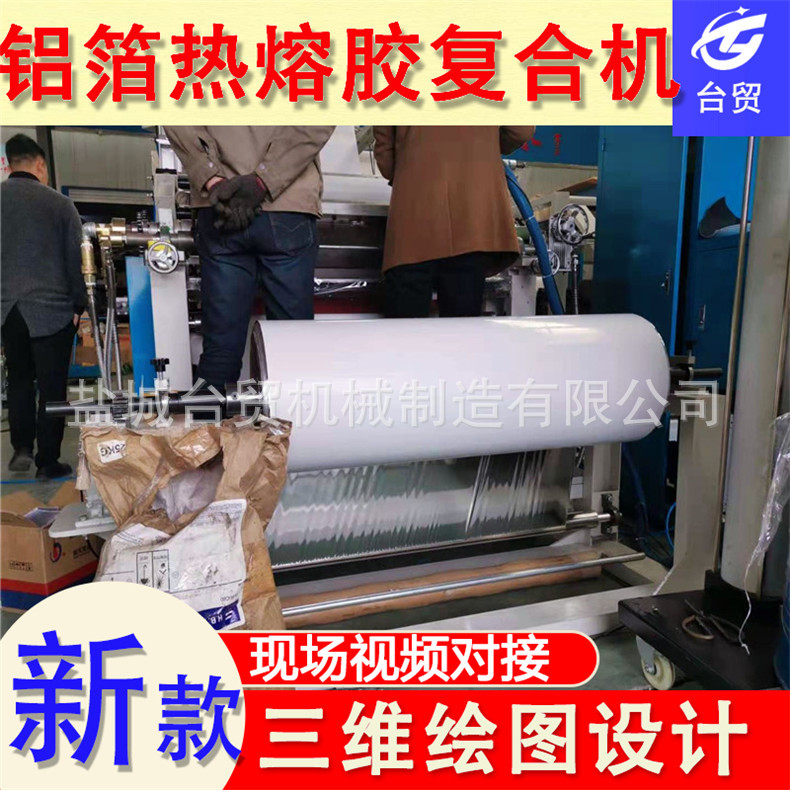

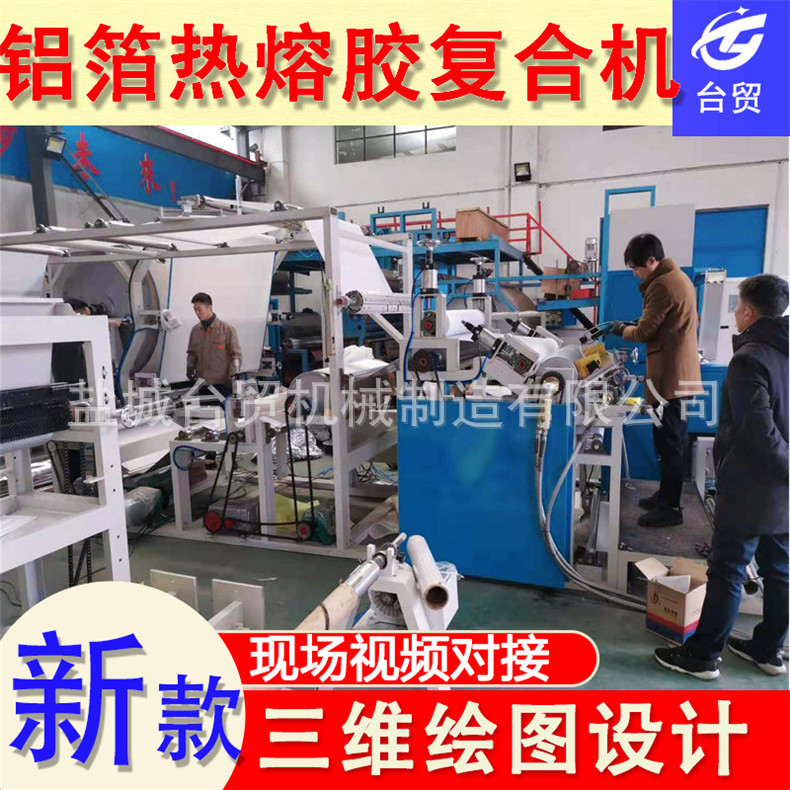

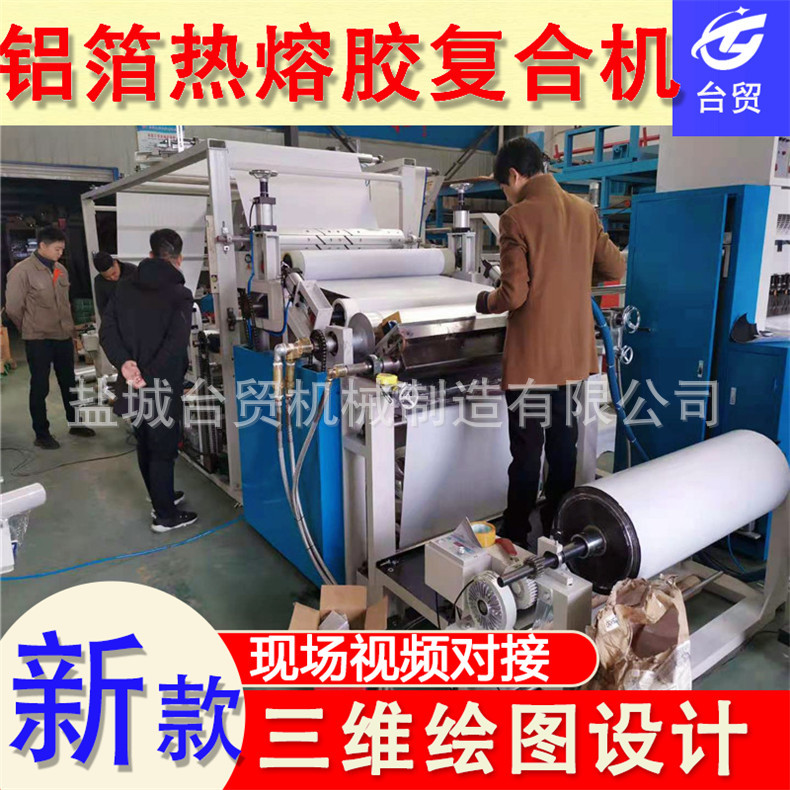

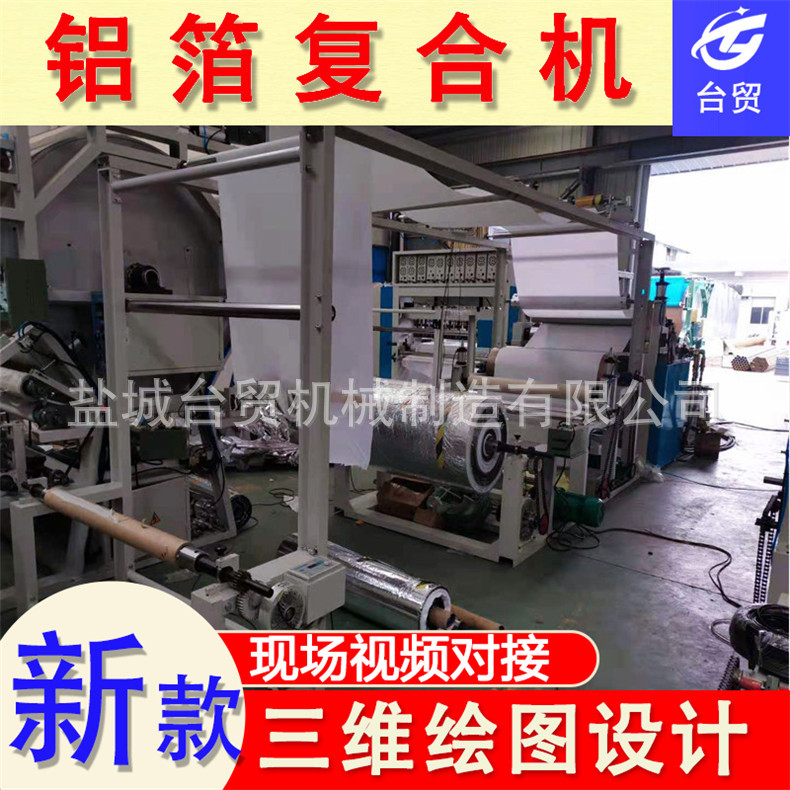

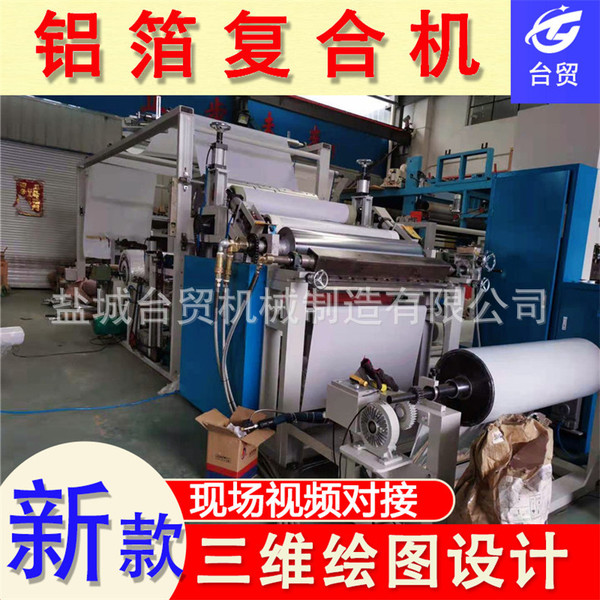

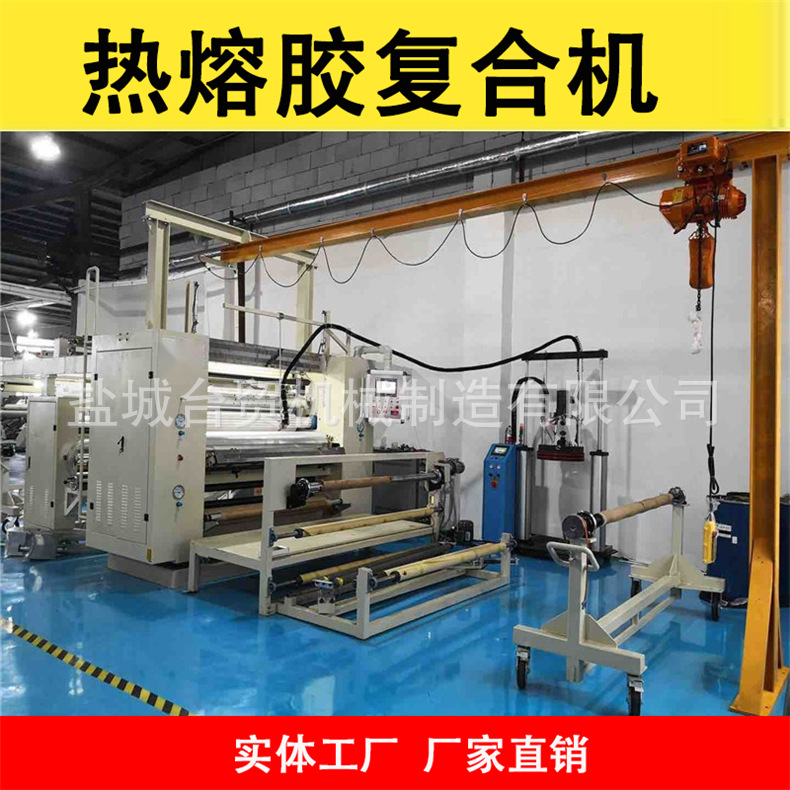

Non-woven aluminum foil laminating machine equipment Hot melt glue…

1. Pur hot melting glue composite use:
The machine uses a solvent -free PUR hot melting glue, which can fit the composite materials required by various markets such as cloth+cloth, cloth+film.Composite finished products have the characteristics of, adhesive and good softness, high and low temperature resistance, and not easy to be affected by temperature, elastic persistence, wear resistance, oil resistance, anti -aging and other characteristics after reaction.In addition, PUR has excellent fog surface efficiency, low analysis of material and neutral color characteristics, and can be applied to medical products that must be repeatedly disinfected.The finished product with PUR hot melting glue composite machine has a lower loss rate and higher water washing fastness.PUR hot -melt glue composite machine can completely replace the traditional solvent -type fitting equipment. The production of non -combustible and explosive solvent type glue is not used throughout the production process. The factory has no hidden dangers and meets the requirements of the security supervision department.The harm of the body, composite finished products without solvent residues, fully meet export standards, and have great social benefits.
Second, PUR hot melting glue composite structure:
PUR hot -melt glue composite equipment control adopts a programmable PLC design and human -machine interface control. It operates humanized, easy to maintain, has no tension feed device, and is equipped with heating circulation systemThe finished product can be selected by rolling or surface.
Third, PUR hot -melt glue composite features:
1. The PUR hot melting glue does not contain solvents, which is the ideal green glue;
2. There is no residual solvent for products, production emission, saving energy, occupying a small area;
3. The composite process is wet and solid reaction, irreversible, and the bonding is firm and water -resistant.
4. Pur hot melting glue is not water and solvents, no drying, fast compound speed;
5. Strong viscosity, save costs with glue, save costs;
6. The composite process is controlled, the substrate is not stretched, the quality is light and soft, and the feel is good;
7. The heat source is oil heat, fast heating, and uniform heat;

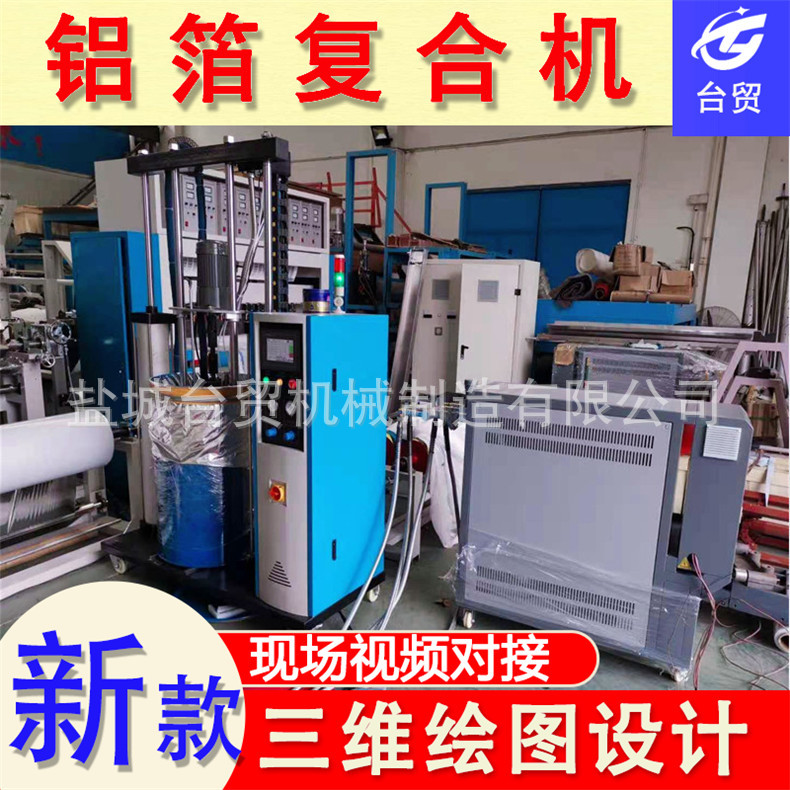

8. The melting glue system is independent, and the melting glue is full quickly;
9. Point -shaped mesh pattern on the glue, the finished product is breathable, and the three -dimensional sense is strong;
10. The humanized design of the machine, saving operators;
11. It has a small amount of production and design, saving costs, and digital control systems, making operability better.
12. The roller texture of the network (round) dot is divided into multiple options. The size and depth of the pattern can be tailored according to the customer's different requirements.

4. Technical parameters of PUR hot melting glue composite machine:

1. Work cloth width: 1650 mm (design according to the width of the material)

2. Mechanical roller width: 1800mm (designed according to the width of the material)

3. Design line speed: 0 ~ 30 m/min

4. Mechanical shape size (long*width*height): 8300×3300×2200 mm

5. Heating power of heat conduction oil: 24KW and 12kW adjustable thermal oil circulation 180 ° C (MAX)

6. Total mechanical power: about 40KW

7. Power supply: 380V 50Hz three phases

8. Total weight of the equipment: about 7500kg
