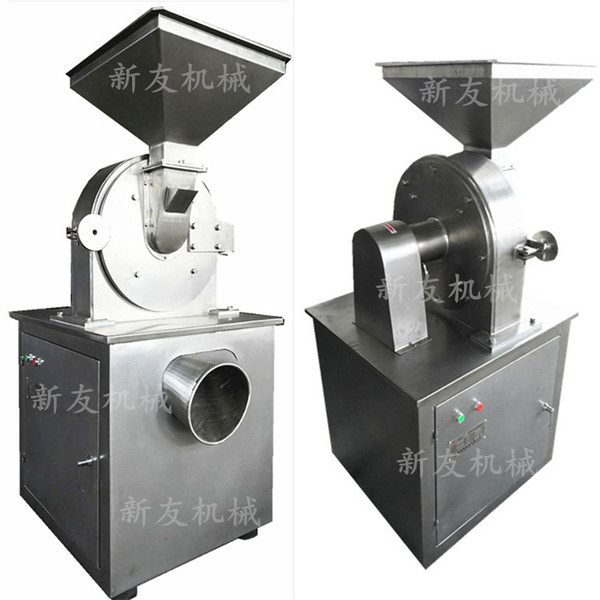

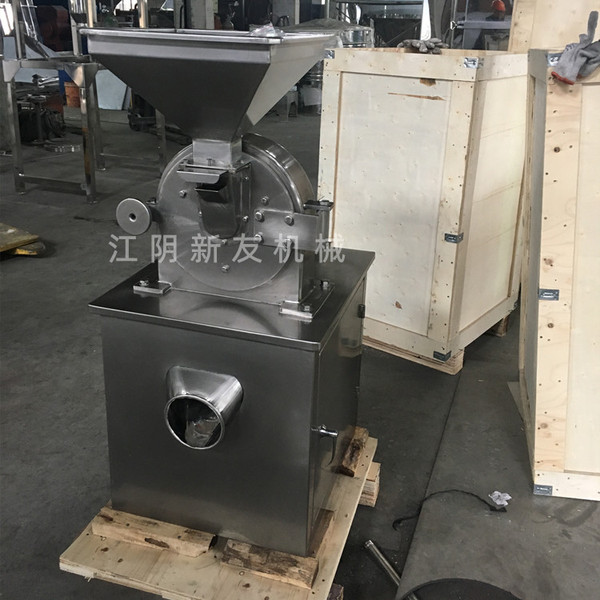

Product: Spot supply stainless steel universal crusher fragrance white sugar…
Universal crusher for food, medicinal materials, chemicals, health products and other industries Applicable to Jiangyin manufacturers specializing in production and direct sales
◆Company pictures
◆Production workshop
◆Consultation method:18915222763
◆ Technical parameters
item Head | Single Position | type Number |
WF-180 | ||
Production capacity | kg/h | 10-50 |
Feeding particle size | mm | 6 |
Crushing fineness | Head | 20-120 |
weight | kg | 95 |
Spindle speed | r/min | 6000 |
Total power | kw | 2.2 |
Overall dimensions L*B*H | mm | 500*580*1000 |
Full technical model parameters (reference)
Model Model | Production capacity (kg/h) Production Capacity | Subdivy speed (R/min) Spindle speed | Feed granularity (mm) Feeding Size | Crushing particle size (mesh) Crushing fineness | Total power (KW) Motor Power | Dimensions (MM)long*wide*high Overall dimension | Weight (kg) Weight |
180 | 10-50 | 6000 | 6 | 20-120 | 2.2 | 500*580*1000 | 95 |
20B | 60-150 | 4500 | 6 | 20-120 | 4 | 550*650*1200 | 150 |
30B | 100-300 | 3800 | 10 | 20-120 | 5.5 | 600*750*1350 | 210 |
40B | 160-800 | 3400 | 12 | 20-120 | 11 | 700*850*1550 | 350 |
50B | 300-1000 | 2900 | 15 | 20-120 | 15 | 800*870*1780 | 500 |
60B | 500-1500 | 2900 | 15 | 20-120 | 22 | 900*900*1910 | 760 |
80B | 600-2000 | 2000 | 15 | 20-120 | 30 | 1000*950*2100 | 1000 |
100B | 800-3000 | 1500 | 15 | 20-120 | 37 | 1400*1100*2800 | 2000 |
◆ Main use
This machine is suitable for pharmaceutical, chemical, food, agriculture and grain industries, especially suitable for crushing and drying
brittle materials and widely used.

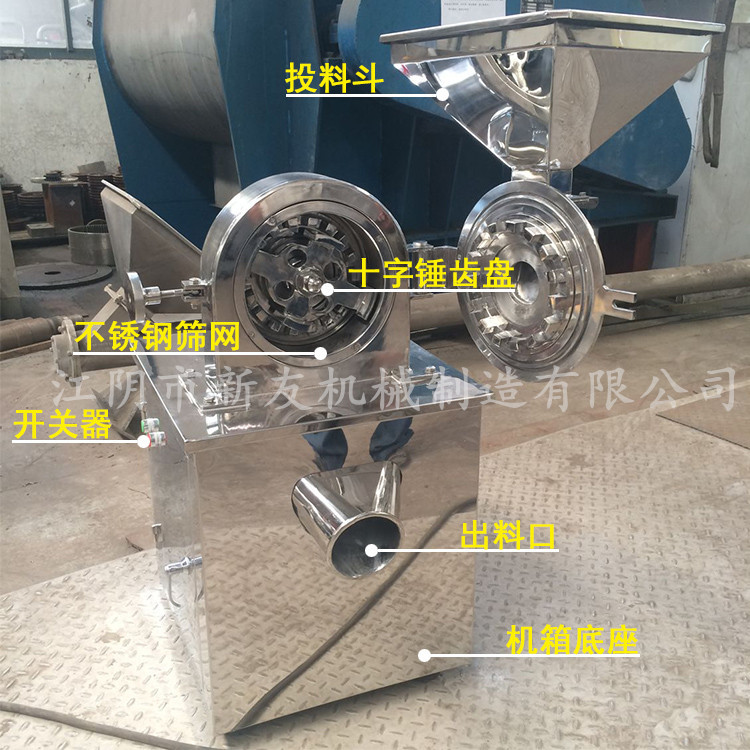

◆Description of each component

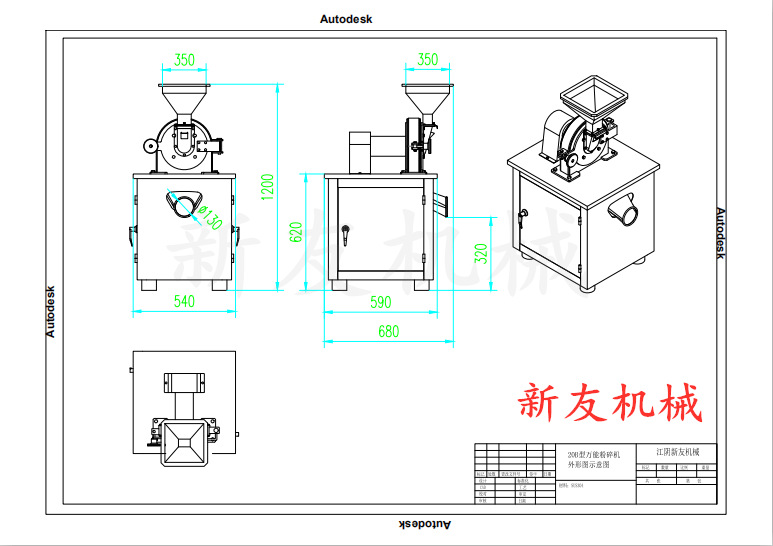

◆Drawings
◆Instructions for use
1. Check whether the door should be closed before booting. When close the door, tighten the hand wheel and positioning bolt.
2. Connect the water cooling device to ensure sufficient water source. It is strictly forbidden to cut off the water supply during operation.
3. When installing, connect the power and check whether the motor rotation direction is directed in the direction of the motor in an electric manner.
In contrast, adjust the motor wiring wiring.
4. In the case where the motor rotation is correct, turn on the air to run for 30 minutes to check the lubrication situation.
Add lubricating oil in time.Check and supplement lubricating oil regularly.
5. Run for a few minutes before the feeding, and then add the feeding slowly and evenly.
Pay attention to whether the current is overloaded to prevent damage to the device.
6. If there is a huge vibration and noise during operation, shut down and check in time.
7. Frequently keep the machine parts lubricating and clean, and find faults and defects in time to repair or replace them in time.
◆ Working principle

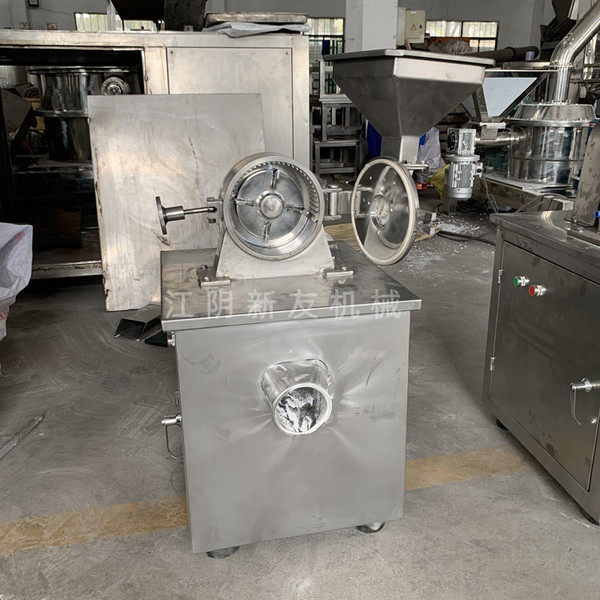

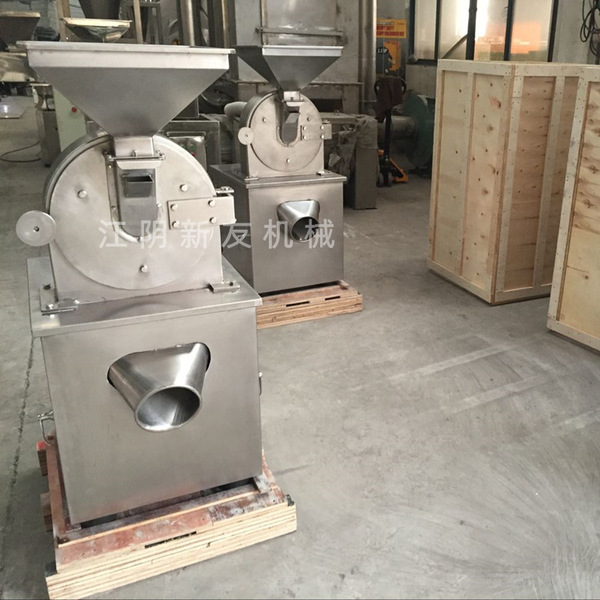

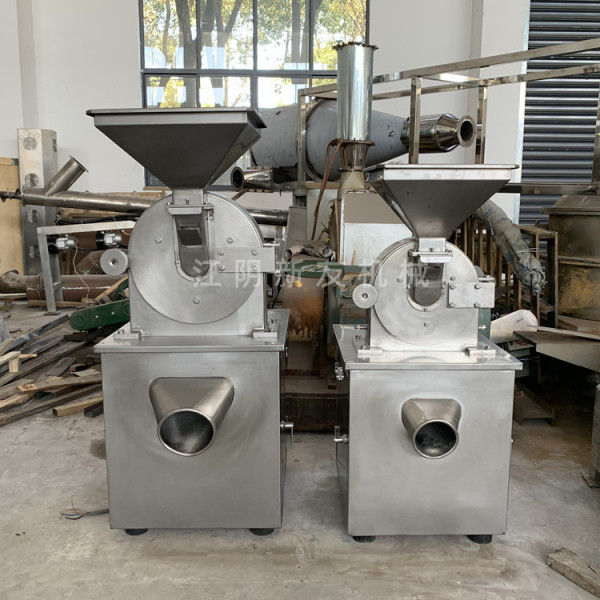

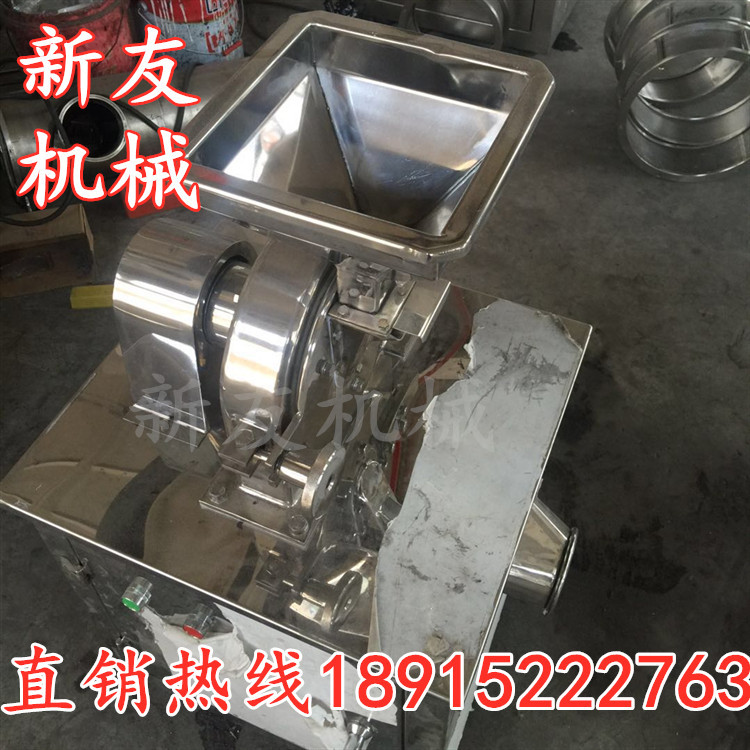

◆ Product Picture
Click on the picture below to inquire directly online

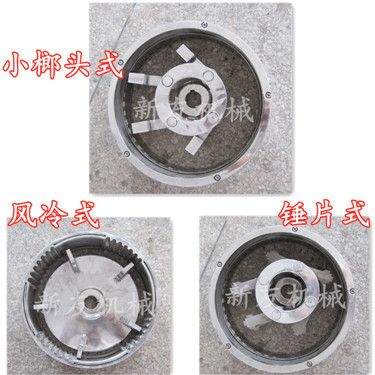

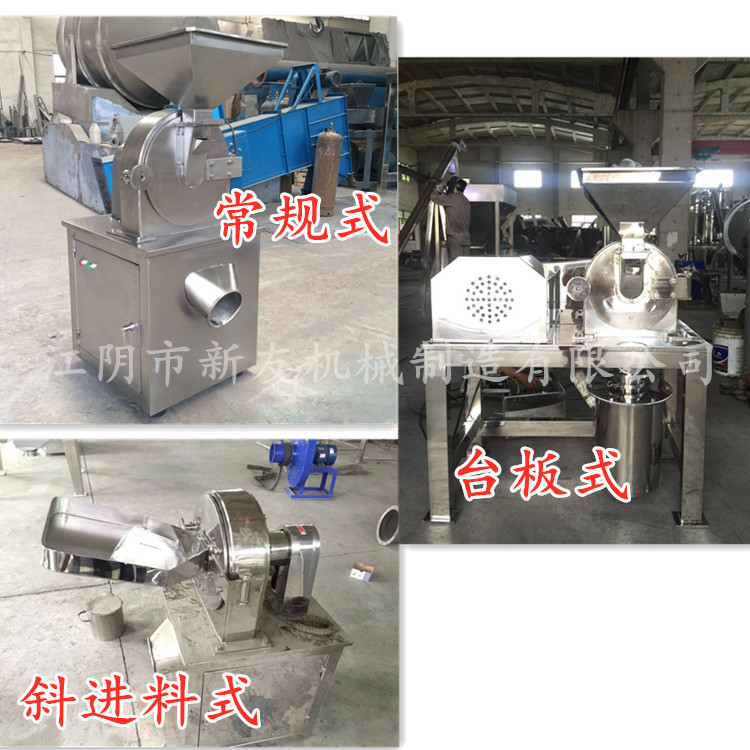

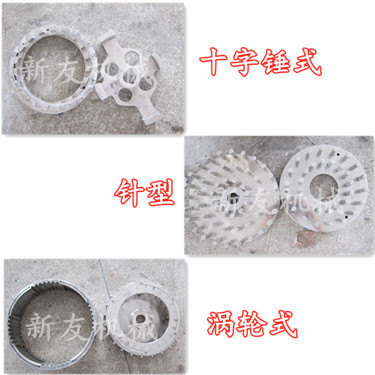

◆Pictures of various styles and types of internal chainrings
Crusher styles and various tooth discs can be customized according to material characteristics. For details, please visit the store for consultation or call 18915222763
◆Crushing renderings
◆Packaging pictures and shipping details
◆Customer photo
◆After-sale service and remarks
Professional equipment manufacturer for crushing, mixing, granulating and drying.
Anyone who buys a non -human quality problem in the purchase of our company's equipment, our company maintains it for free during the warranty period.
And provide lifelong technology maintenance.
Note:The warranty period of the equipment sold by this enterprise is 12 months.During the warranty period, any damage not caused by human beings will be covered by the
The company is responsible for free warranty (excluding wearing parts and accessories that need to be replaced from time to time during the production process).
If you need to replace spare parts after the warranty period is exceeded, you need to pay the cost of the spare parts. There is no charge for replacement if there are no spare parts.
There are many types of crushers with various output sizes. Please consult online customer service for details.
