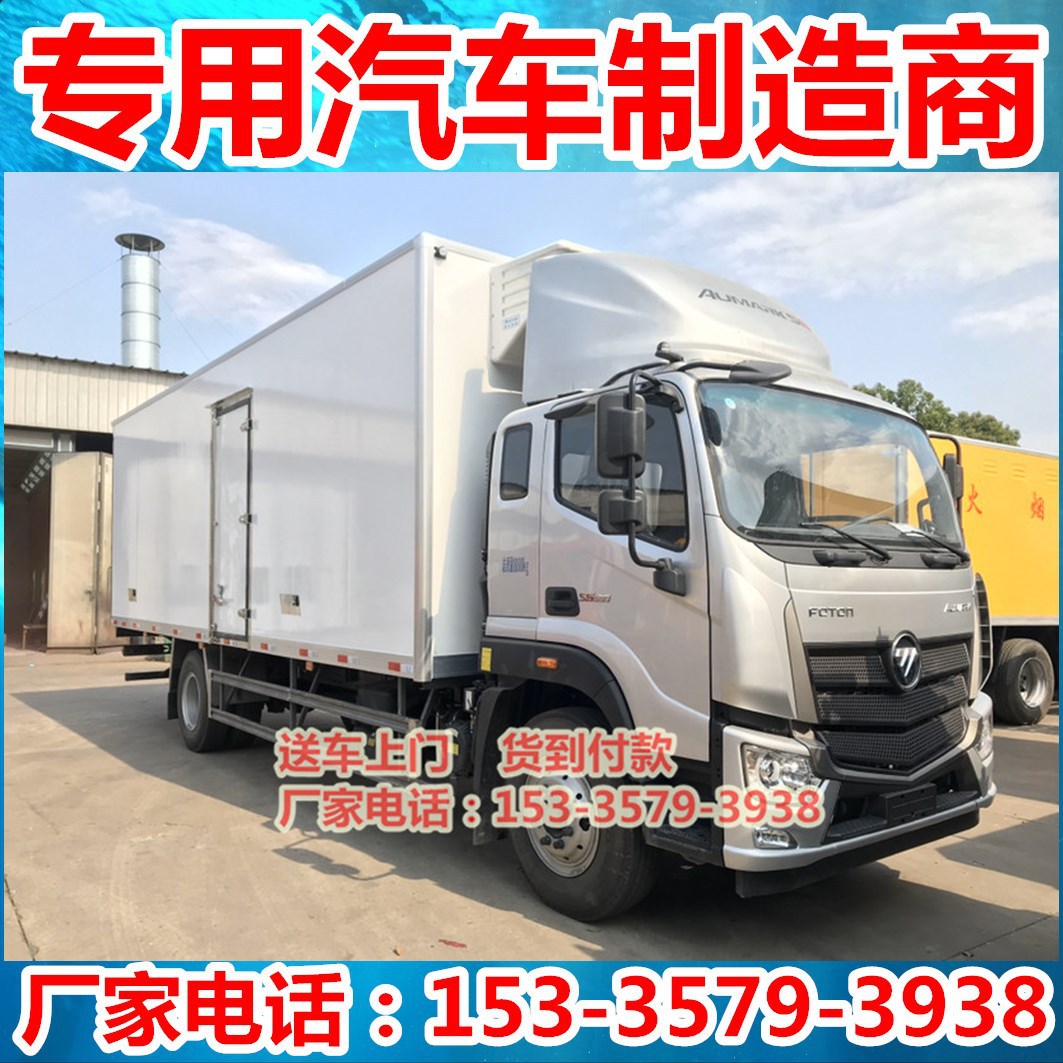

Guoliu Foton Omak S5 Refrigerated Truck 7.8m Pharmaceutical…

★★★★★3.6/50 SOLD
4,426,800.001 or more
3,984,120.00500 or more
3,629,976.001000 or more

Product: Guoliu Foton Omak S5 Refrigerated Truck 7.8m Pharmaceutical…

98%
Seller: Verified 1688 SupplierVisit Seller Store
Product 3.6/5
Level 0/5
Service 3.3/5
Delivery 3/5
Custom ProcessingYes
BrandFutian
Engine ModelF4.5NS6B220
DisplacementMultiple supplementary options
TypeMechanical thermos
Chassis ModelBJ5186XXY-1A
Rated Power162
Rated Contained Mass7995
Tire Specifications10.00R20 18PR
Number Of Tires6
Emission StandardsNational
Drive Method4*2
Fuel TypeDiesel fuel
Dimensions (long*width*height)10035×2600×3950
ModelBJ5186XLC-1A refrigerated truck
Curb Weight9875
Wheelbase5750
Axis2
Total Quality18000
Item Code2212
( Cross Border Trading)No

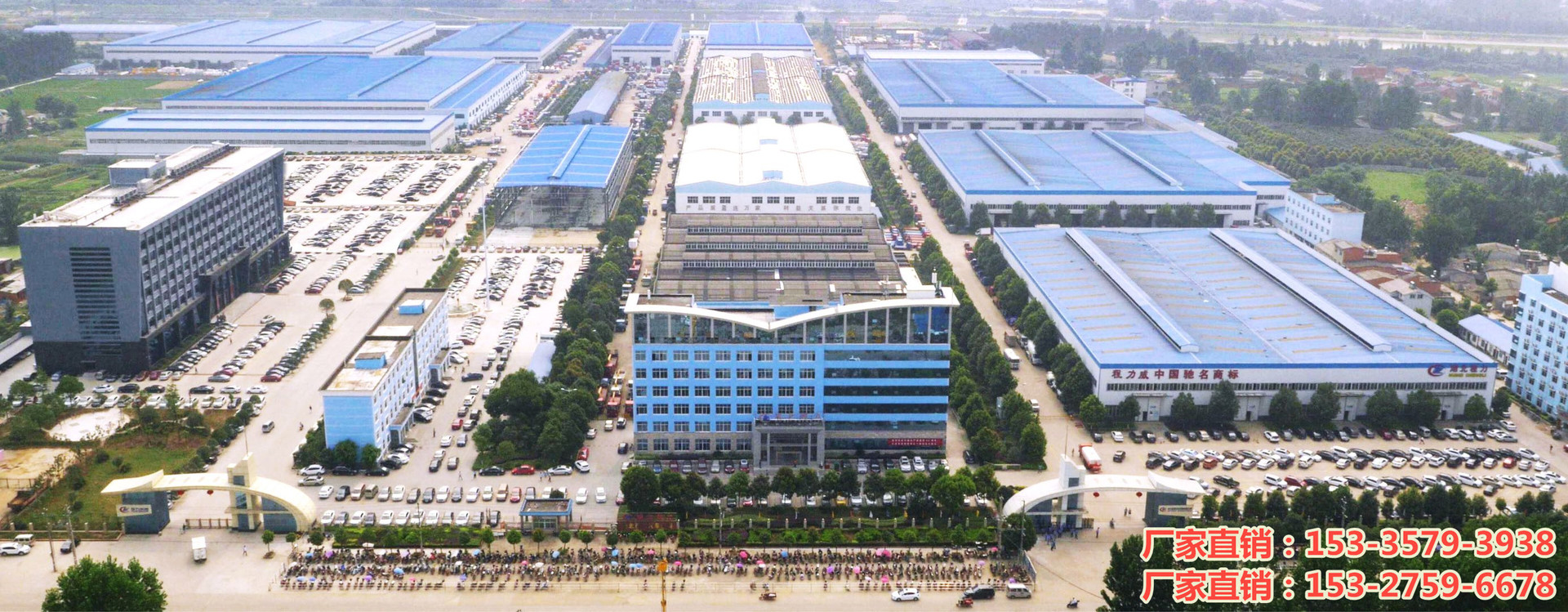

WeChat picture_20180717150158_Copy 1

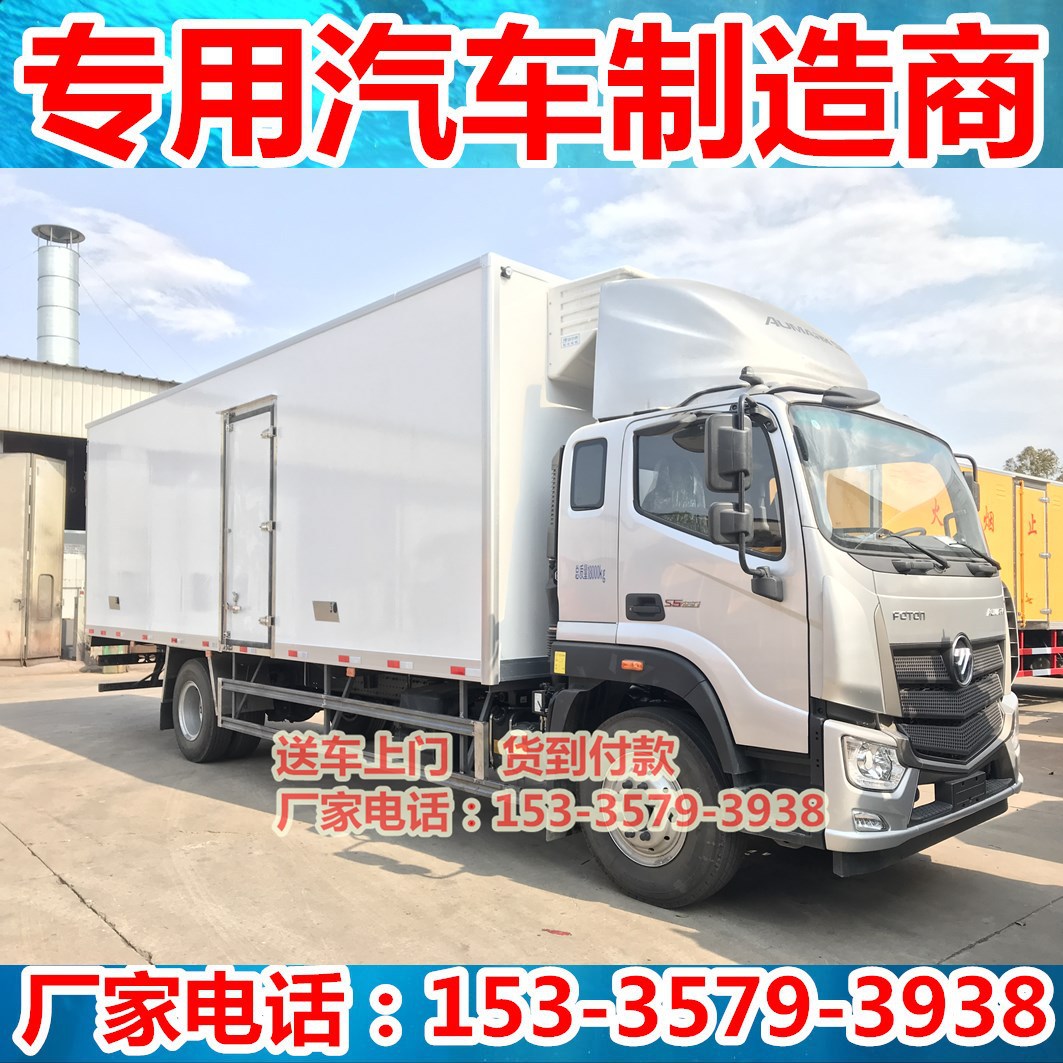

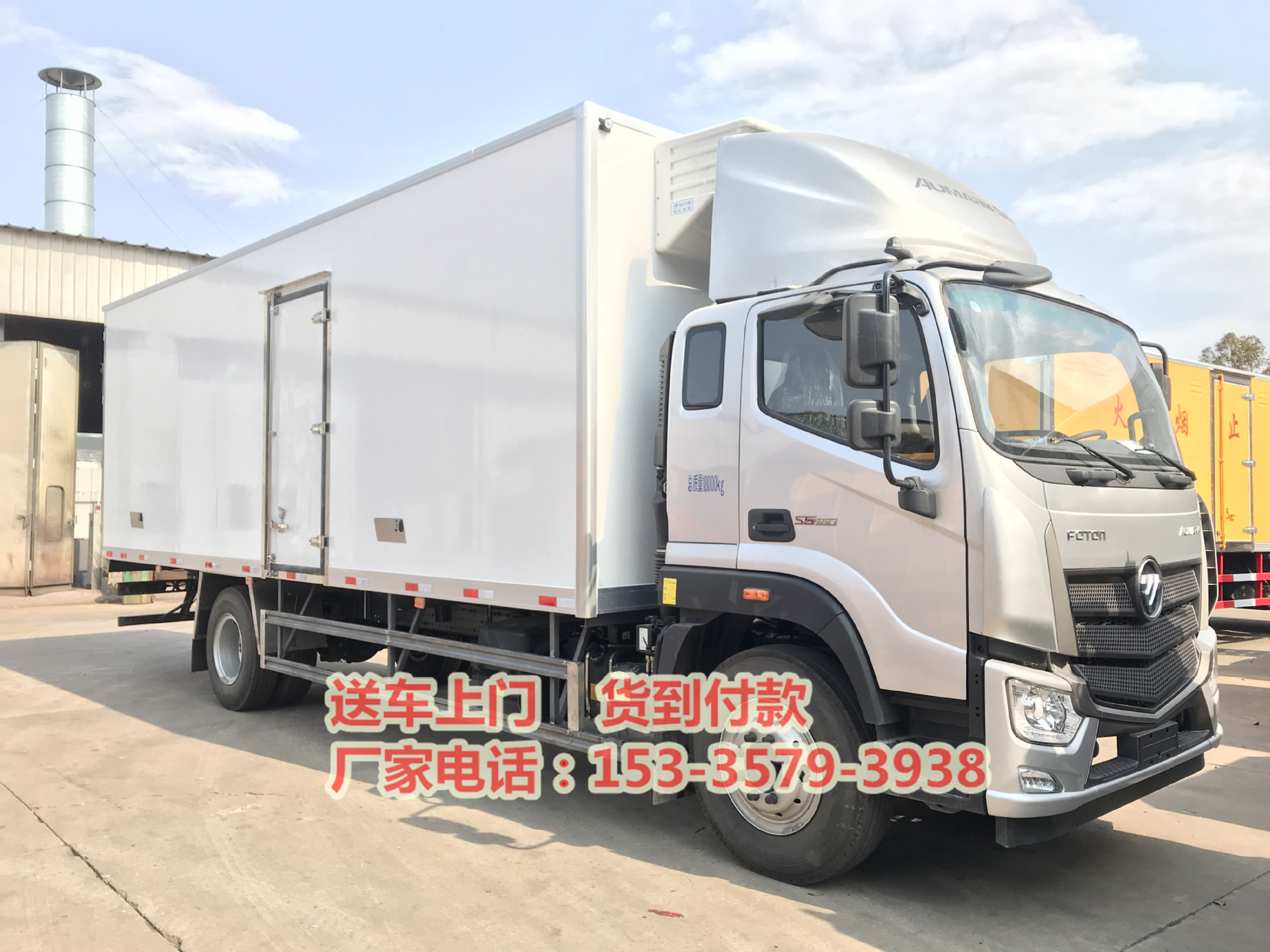

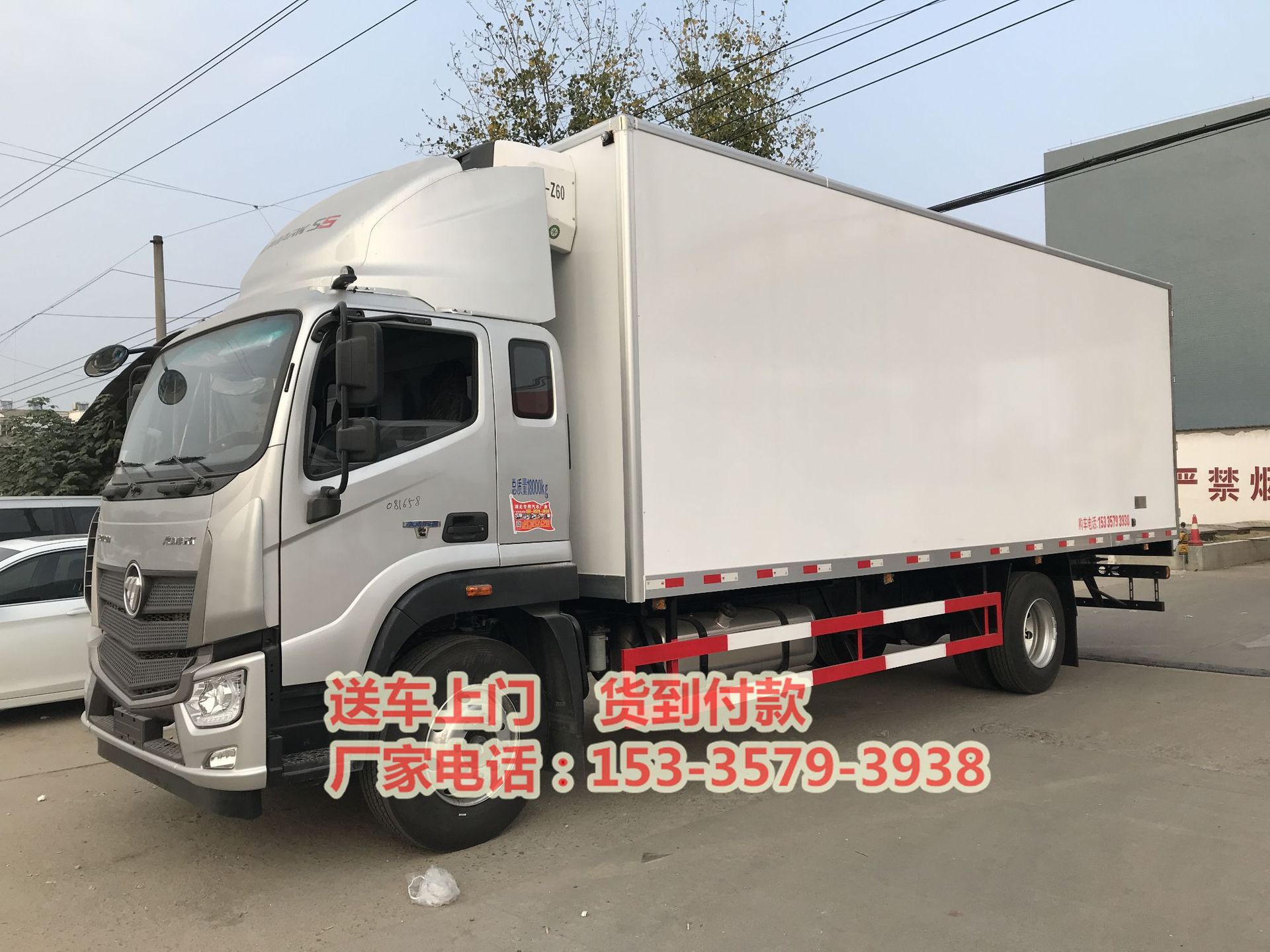

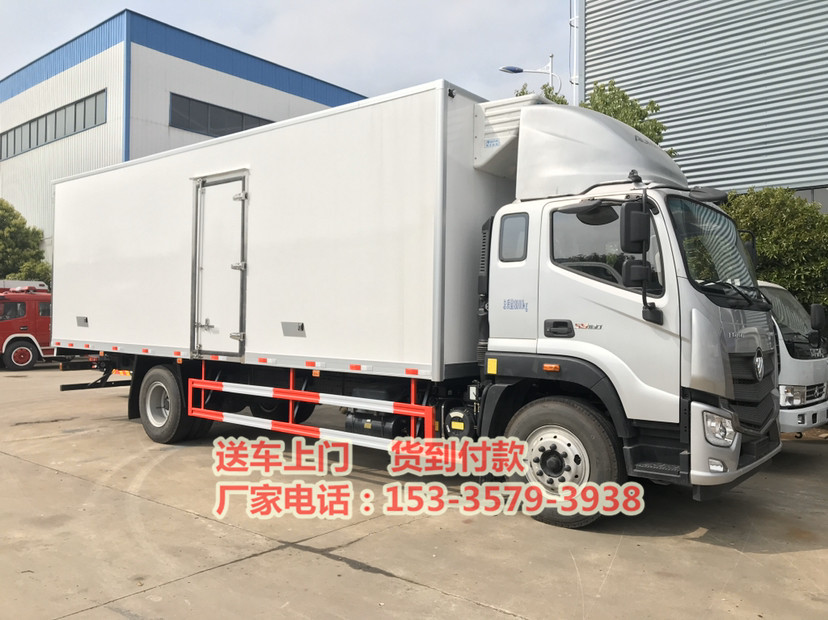

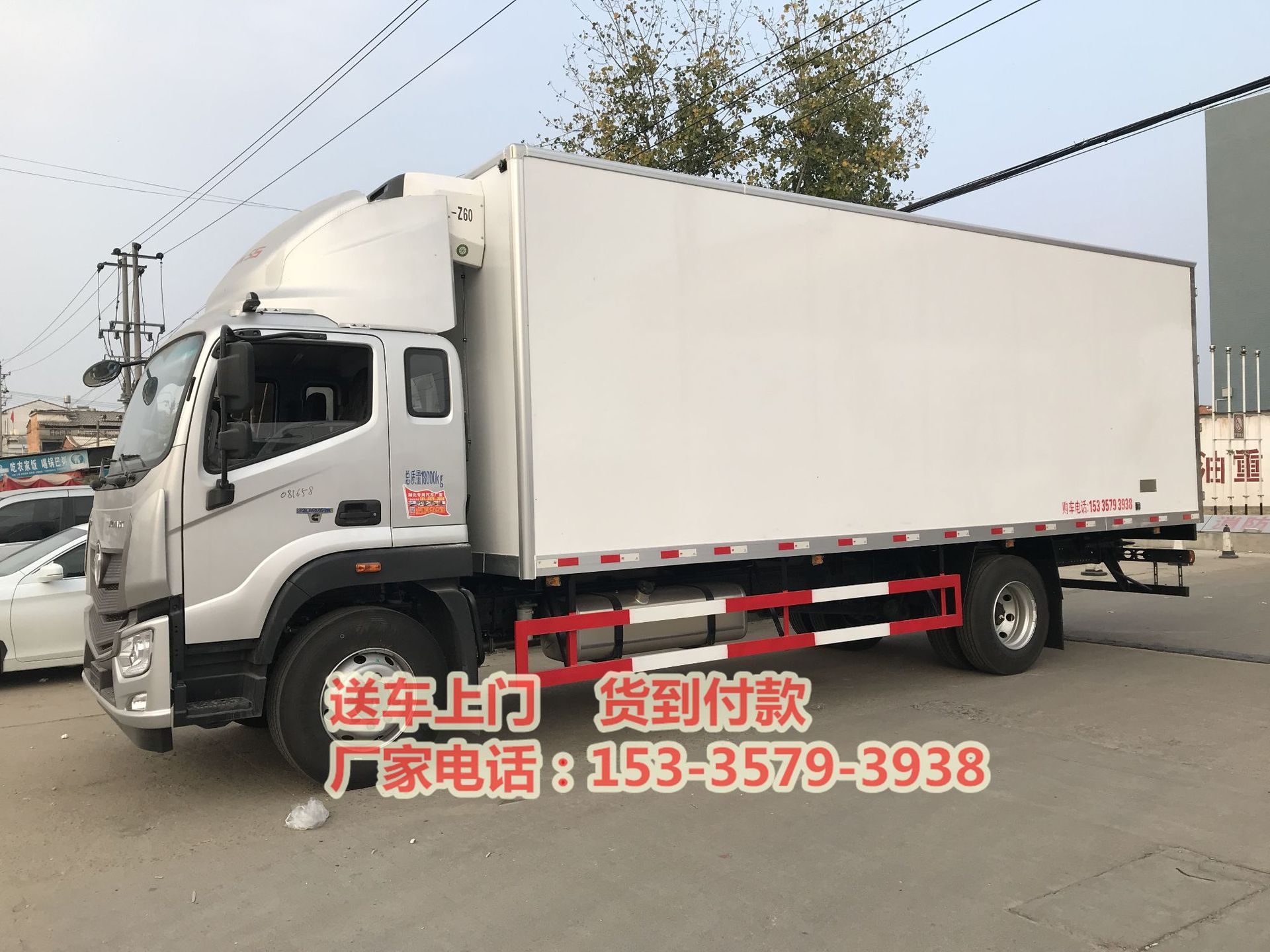

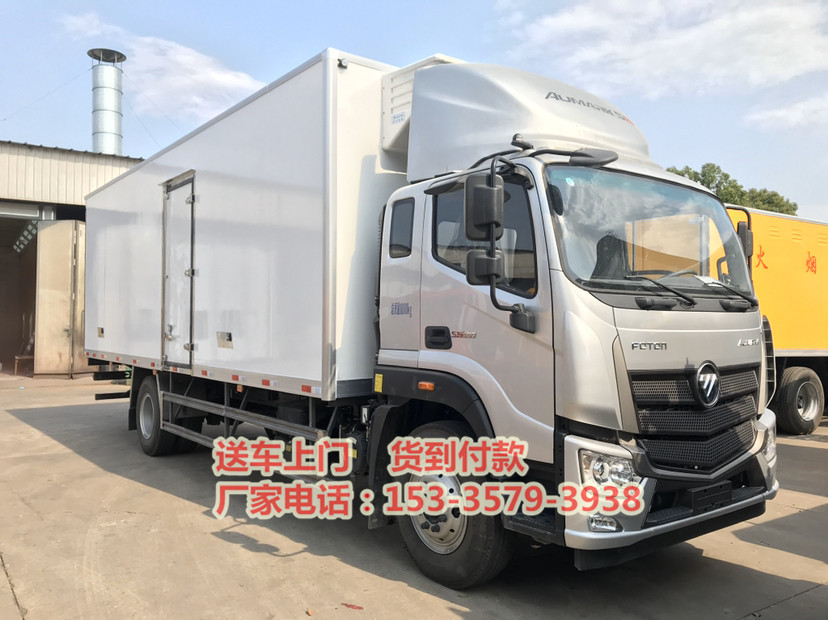

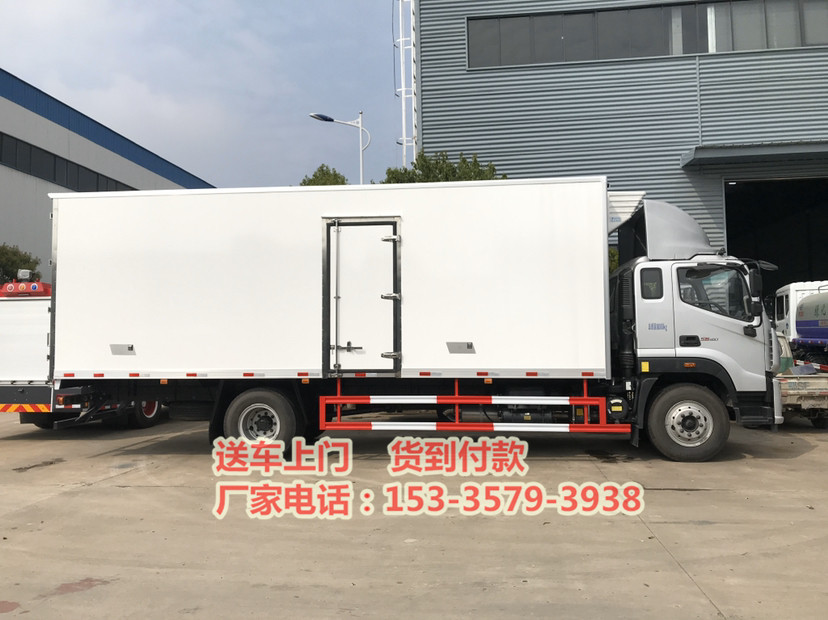

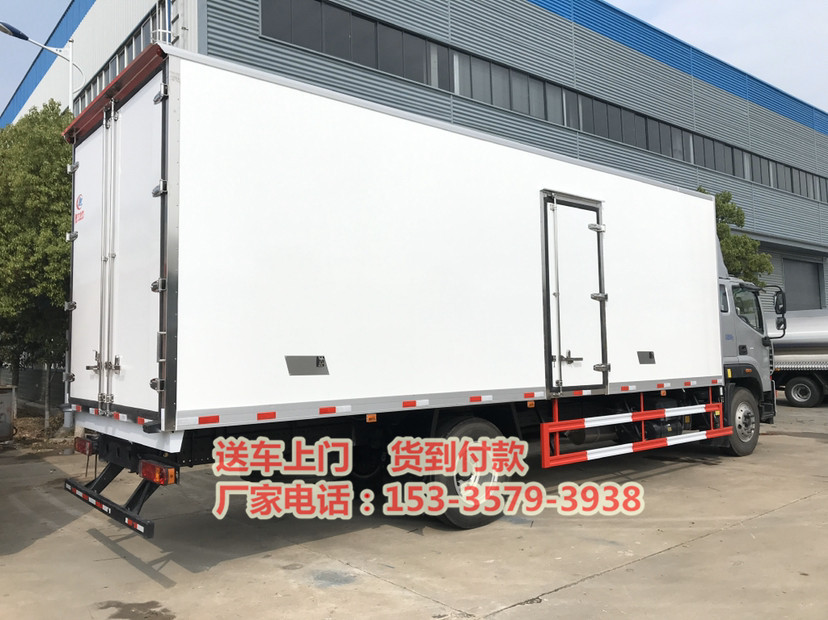

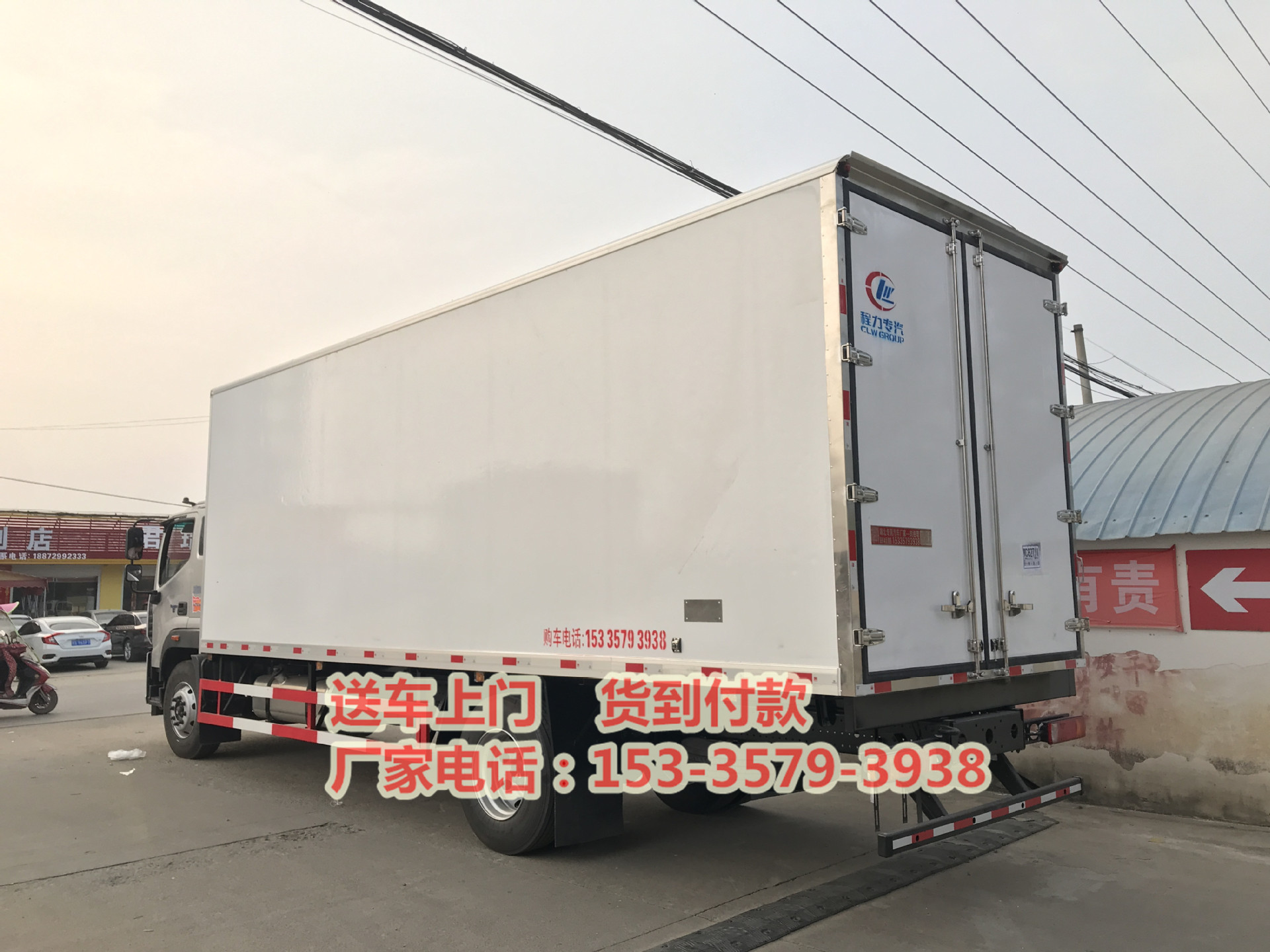

Real shot of the model






Refrigerated trucks are also called insulated trucks, refrigerated trucks, and cold chain trucks.It is often used to transport frozen food (refrigerated trucks), dairy products (dairy transport trucks), vegetables and fruits (fresh goods transport trucks), vaccines and medicines (vaccine transport trucks), etc.

undefined

undefined

undefined

undefined

Our factory (insulated trucks, refrigerated transport trucks, refrigerated trucks) uses imported grade insulation layer materials for the car body.Water absorption ≤1, thermal conductivity ≤0.028W/mk, pressure resistance ≥150Kpa, density 30-45kg/m3, using the internationally advanced fifth-generation fully enclosed polyurethane plate bonding structure.The surface materials of the box panels include fiberglass, stainless steel, aluminum alloy, color steel plates and other materials to choose from. After the box is formed, it has the advantages of light weight, good thermal insulation effect, strong impact resistance, no leakage, etc. It has good corrosion resistance and anti-aging properties against the atmosphere, water, acid, alkali, salt and other media.Through optimized design, the center of gravity of the vehicle is lowered and the effective volume is increased.After professional testing, the comprehensive energy saving rate and service life of the entire vehicle are 1-2 times higher than that of ordinary refrigerated and insulated carriages.
undefined

undefined

undefined

undefined

  • Company commitment:For all products produced and sold by our company, the chassis part can be jointly guaranteed by service stations across the country. The special parts are guaranteed for one year. The after-sales service is in place for 48 hours. We are responsible for lifelong maintenance and provide lifelong free technical services.
  • The company is willing to serve you wholeheartedly,And we look forward to your coming to our factory to inspect the production strength and product technology on the spot. The company will provide you with high-quality services.
undefined

undefined

undefined

undefined



How to choose refrigerated trucks, refrigerated trucks, and medical refrigerated trucks:

1.About the insulated compartment: At present, our insulation box body is mainly made of the following three materials:1. Interior and exterior color steel plates 2. Exterior aluminum alloy interior color steel plates 3. Interior color steel plates and exterior fiberglass.Among them, the one that is mostly used at the beginning is also the cheapest one.In addition, the thickness of the insulation layer is also divided into two types: 5cm and 8cm.


undefined

undefined

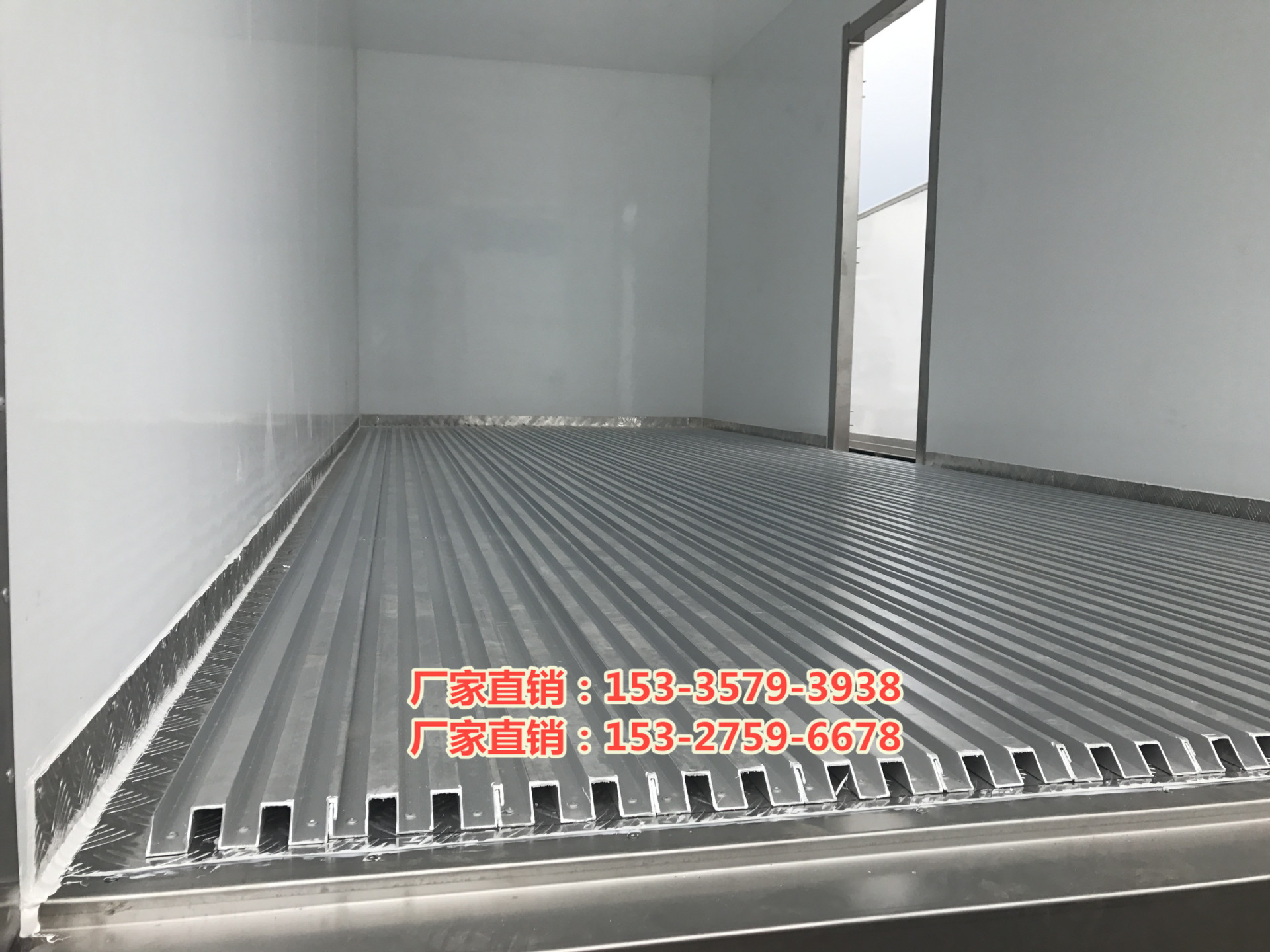

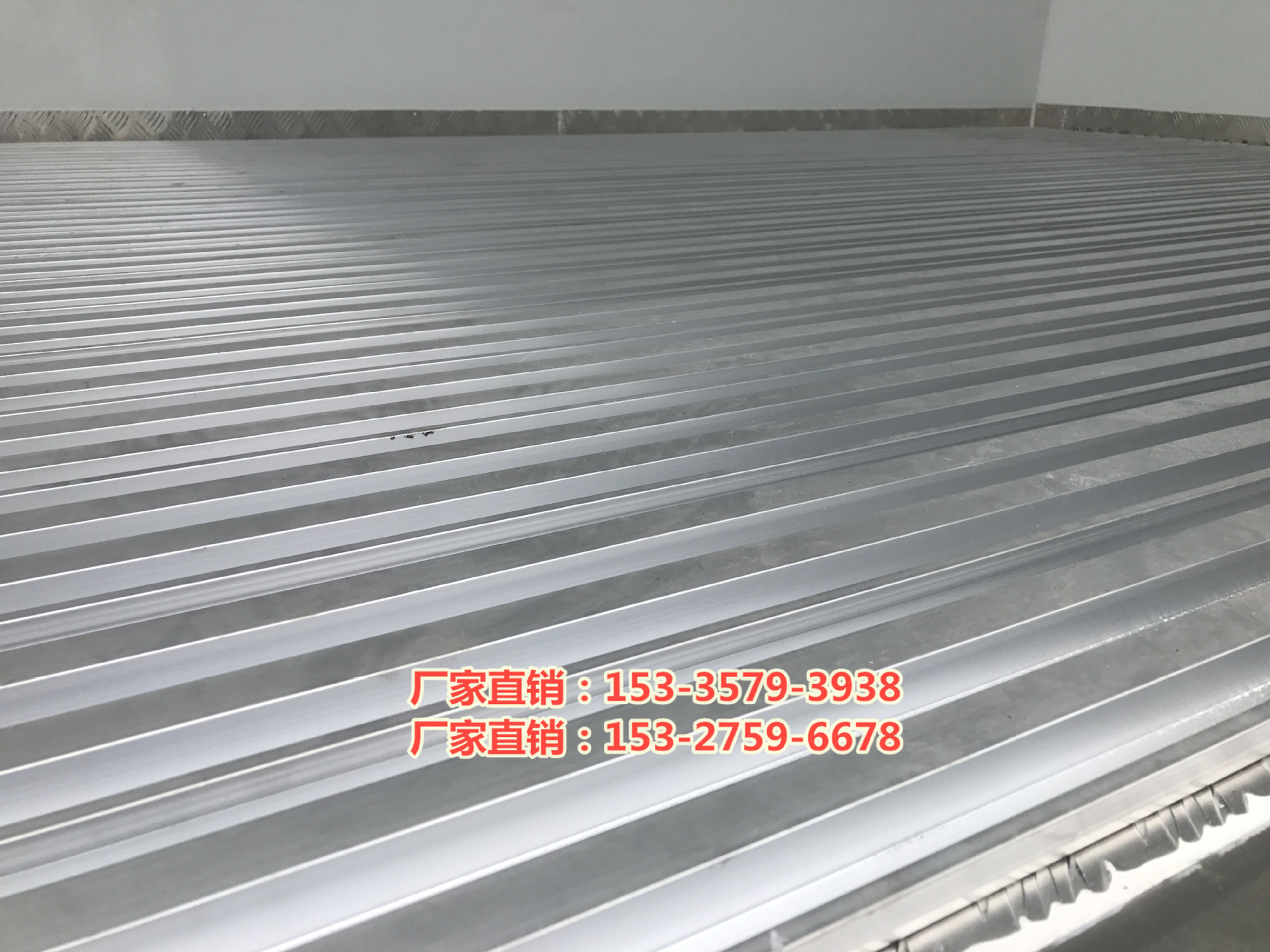

The insulated compartment is a fully sealed rectangular compartment, which has good heat insulation and thermal insulation properties and meets the insulation requirements for low-temperature transportation of items.The structure of the insulated compartment board is a "sandwich" large board bonding, which adopts the internationally accepted mainstream technology, that is, it is made of polyurethane rigid foam material and the inner and outer skins, and is formed by heating and pressure.The inner and outer surfaces of the car are highly flat and are made of arc-shaped aluminum alloy profiles, which are strong and beautiful.The floor of the refrigerated truck is an aluminum alloy pattern plate.The rear door is sealed with a multi-layer labyrinth rubber strip, which has good sealing performance, and is equipped with a door fixing hook.The door frame is made of stainless steel, and the rear of the car body is equipped with a rubber anti-collision block.The comprehensive performance index of the car body reaches the Class A requirements of QC/T450-2000 standard.There is a bumper at the rear of the car, which has good overall strength, safety and appearance.
undefined
2.About the refrigeration unit:The choice of refrigeration unit needs to be based on your specific needs.at presentRefrigeration units are available from -5 degrees to 18 degrees.If you are just transporting vegetables to keep them fresh, a unit with a temperature of around -5 degrees is generally sufficient.If you are transporting frozen food, you can choose a unit with a temperature of about -12 to -18 degrees.In addition, the larger the cabin length, the larger the cooling capacity of the unit needs to be selected.The unit with higher cooling capacity will cool down faster.In addition, there are also differences between domestically produced and imported units. The price difference between the two is quite large. This can be determined according to your specific needs.
  • undefined
undefined
undefined

  • undefined


    undefined

    undefined

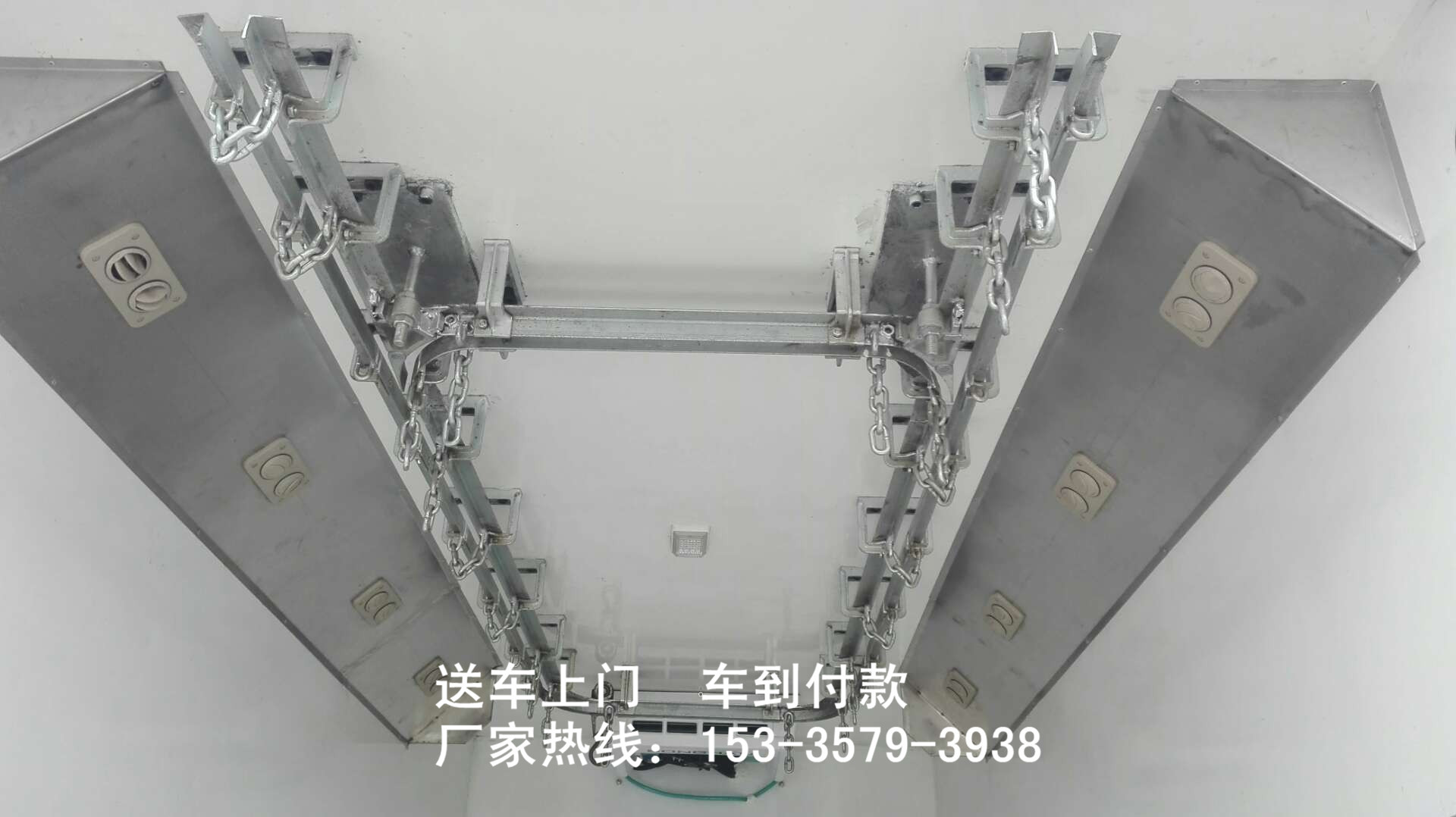

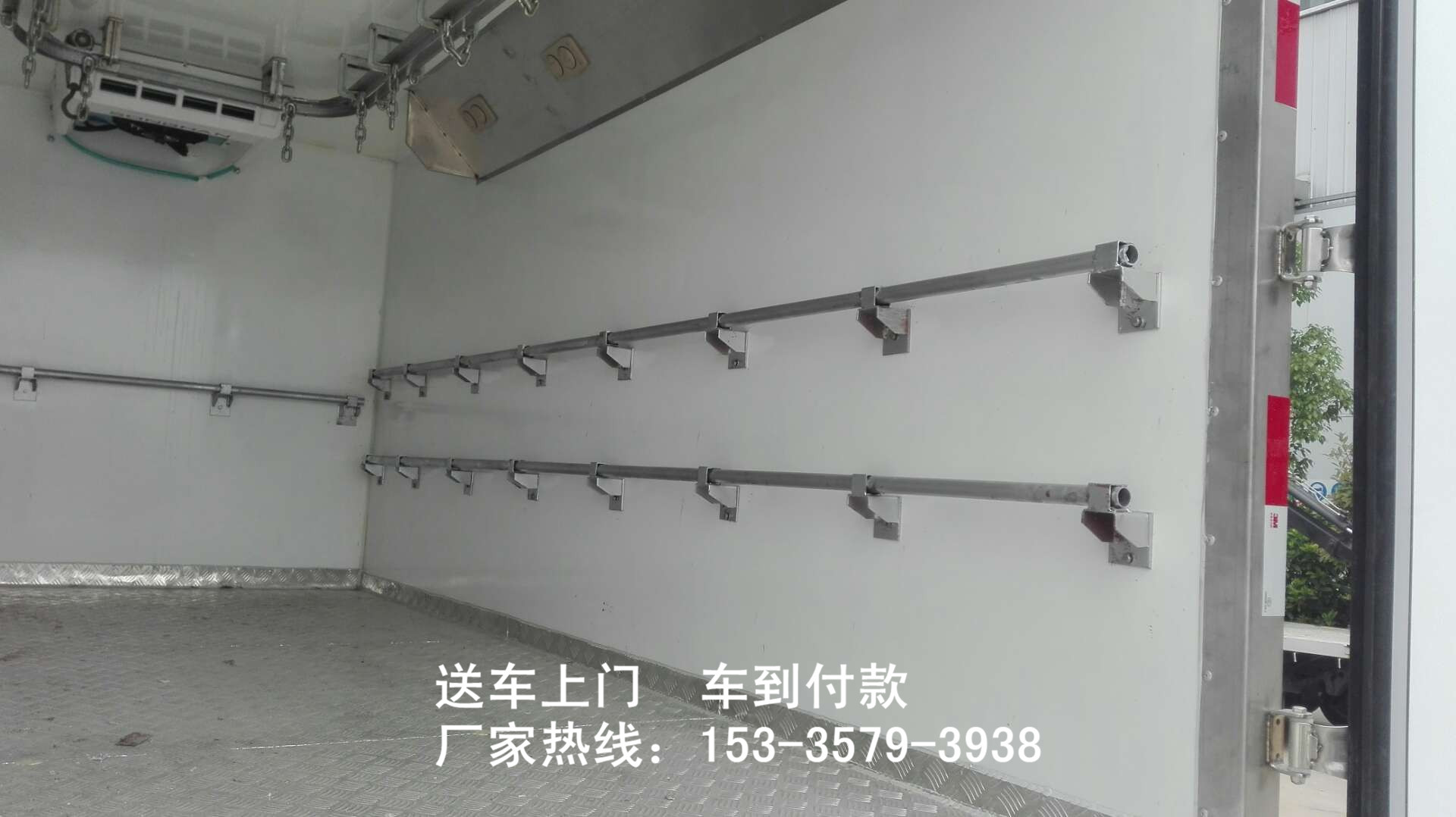

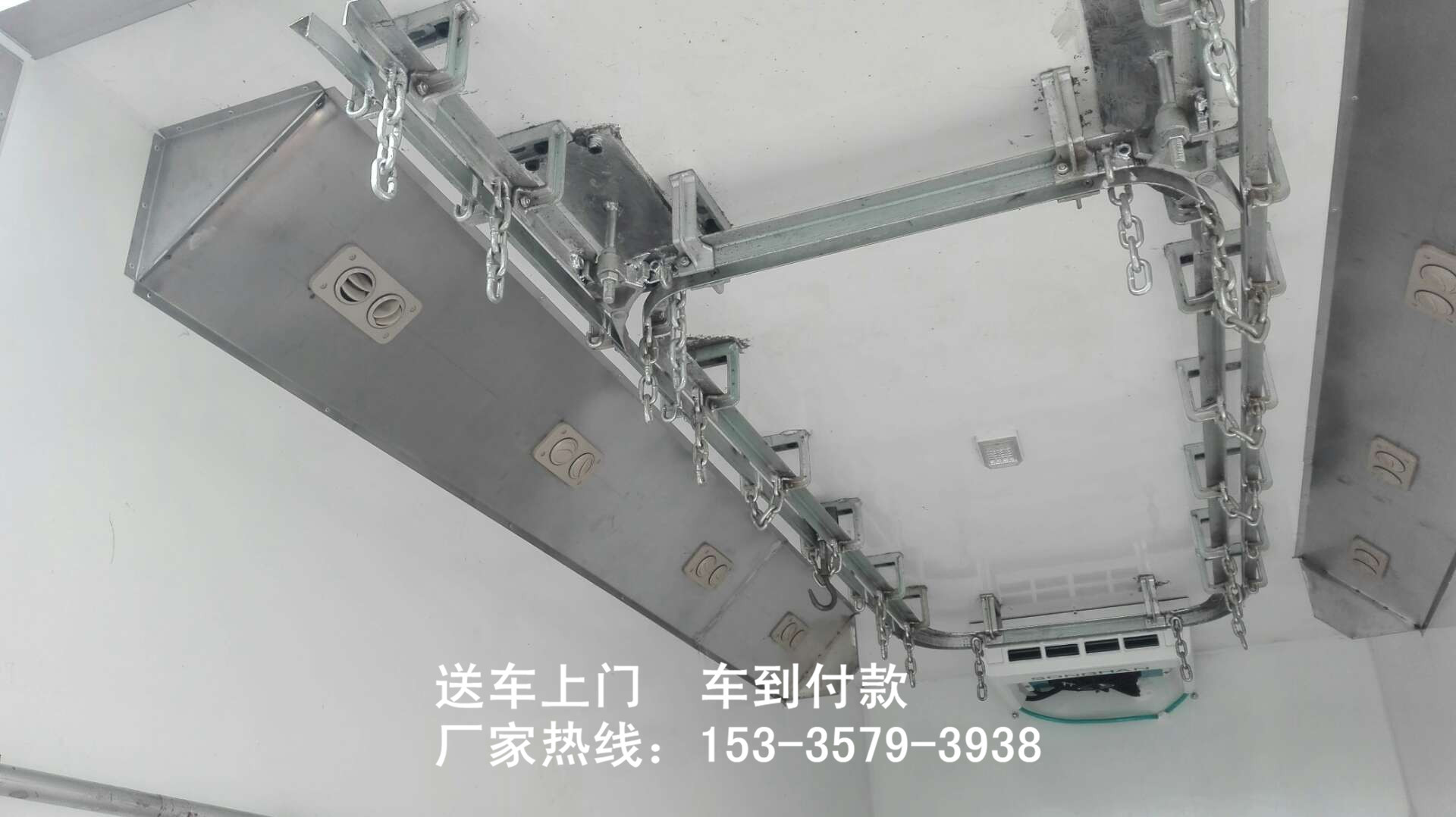

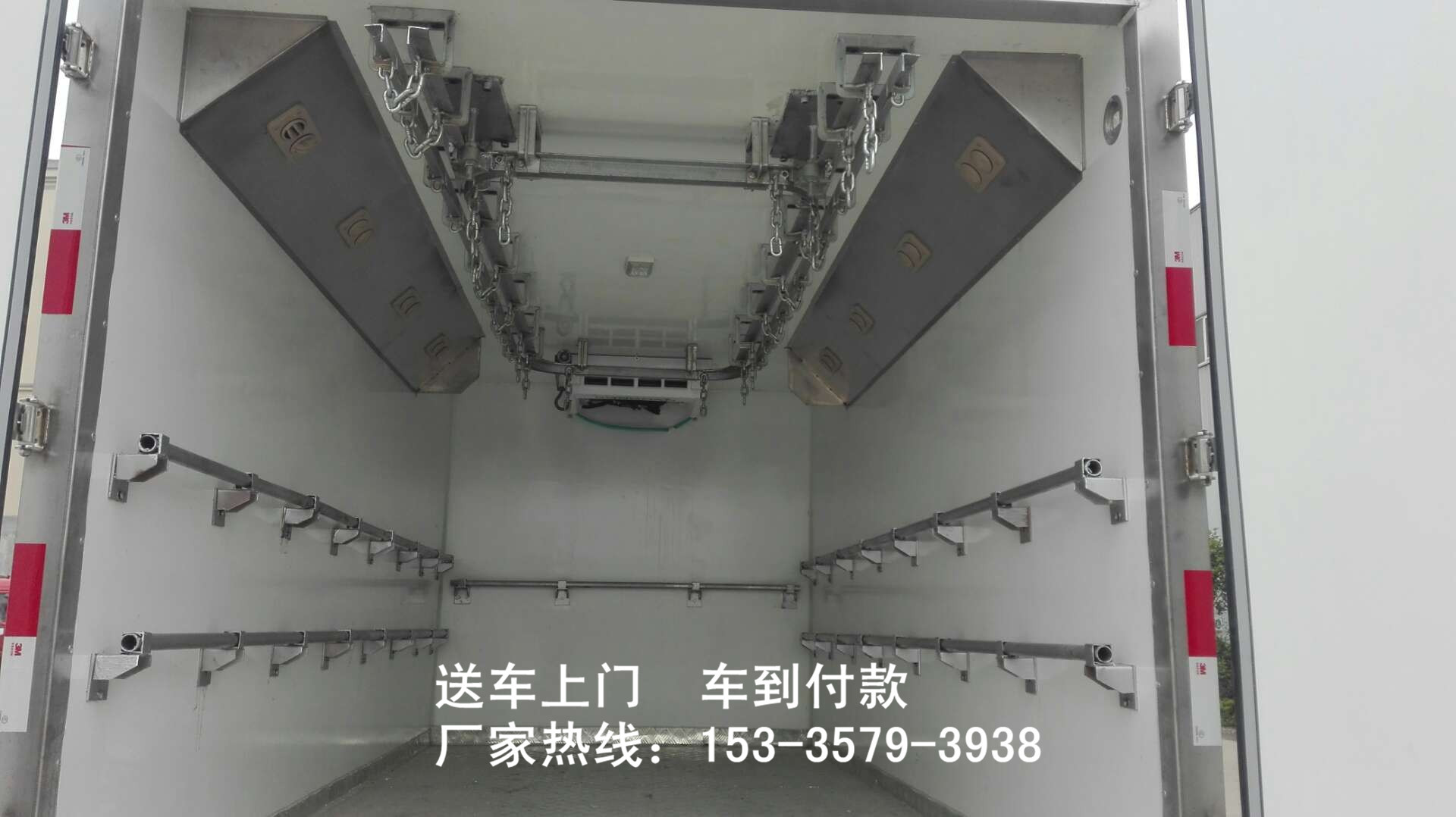

3.About the meat hook truck:Now many customers use refrigerated trucksPulled cold meat, it is necessary to install meat hooks in the carriage.At present, our refrigerated trucks can be equipped with meat hooks. Meat hooks can be installed according to your needs. Generally, they can be equipped with 3 rows, 4 rows or 5 rows.Our guide rails are made of aluminum alloy and our meat hooks are made of stainless steel.
undefined

undefined

undefined

undefined

4.About cold chain transportation:Currently, those who use refrigerated trucks for cold chain transportation need to be able to remotely monitor the temperature inside the refrigerated compartment through the system at any time.

If you want to know more about refrigerated trucks, you can contact our sales manager directly, or call the car purchase phone number directly for consultation.

  • undefined

    The first step begins Aliwangwang/Tel:153 3579 3938Discussion:

    Turn off or discuss models and product prices through telephone or on -site inspections.

    The second step is to sign the contract:
    Sign the purchase and sales contract; prepaid contract deposit

    Scenario A: Pay 30% advance payment online through Alibaba;
    Situation B: Sign a vehicle purchase and sales contract locally and pay the advance payment through bank wire transfer, cash transfer, etc.;
    Situation C: Sign the vehicle purchase and sale contract by fax, and pay the advance payment through bank wire transfer, cash transfer, etc.;

    Step 3 Arrange production:

    According to the contract, the vehicle model is extracted to extract chassis and arrange production;

    Step 4 Delivery acceptance:

    Vehicle delivery acceptance, payment of the remaining vehicles
    Situation A: The need for the required party to check the vehicle according to the scheduled delivery time, and inspect the qualified payment of the vehicle;
    Situation B: During the scheduled delivery time, the driver will be provided by the supplier, the required party pays the freight, and the car is sent to the designated area of ​​the demand party to accept the vehicle to check the qualified payment of the vehicle;

    Step 5 Signature confirmation:

    The demand is stamped and signed on the delivery order, and confirmed that the vehicle was intact and the procedures were complete (limited to the vehicle to send the vehicle).

    After -sales explanation

    • 1. General Principles
      In order to protect the interests of users, we promised that from the date of the factory, within six months or within 25,000 kilometers, the quality problem of manufacturing, our company will implement the "three packages".
      2. The scope of "three packages"
      1. Due to parts and components, the design or manufacturing quality of the assembly parts can not be used normally.
      2. Failure caused by welding defects.
      3. Due to poor manufacturing and assembly quality, manipulation failure or leakage.
      Third, it is not a "three packs" scope
      1. The user leads to the imperfect vehicle or the attachment is not complete.
      2. User use, maintenance, and improper adjustment.
      3. Disassemble the user by themselves and repair the failure.
      4. Use the user to increase the damage caused by the attachment or modify it by itself.
      5. Users find problems, but they are not excluded in time and continue to use, causing further damage.
      Fourth, after -sales service method
      1. After receiving the user's product quality problem information feedback, according to the region, region, and distance, the after -sales service personnel rush to the live service from 24 hours to 48 hours.
      2. Directly dispatched or entrusted to designate a special person to carry out on -site after -sales service.
      5. Procedures for procedures
      1. In the process of using our company's products, if the company needs to provide services, please write the factory number, product qualification certificate, the factory date and the detailed situation of the faulty product, so that our company can conduct technical analysis of technical analysis.After answering or processing.
      2. The repair fee that meets the scope of the "three packages" shall be borne by our company.
      3. Whenever it belongs to the scope of "three packages", our company provides technical services, but all costs are borne by users.

    • 4. Dedicated invoice description

      Turn off "Unified Invoices of Motor Vehicles" or issue "VAT Invoice"

    • 5. Common customers
      Are we guaranteeing the deposit to you? Will it be fooled?
      Answer: Dear customers, our company can find it in the industrial and commercial department.The customer's account is not a private account for the company's account. Please rest assured that the company reminds you that you must hit the company's account to avoid being deceived.What we also want to see is that after you buy our company's car, you can introduce more customers to buy cars in our company, so that the company's development can rise step by step, so you can rest assured to buy it.
    undefined

Factory consultation phone number:153-3579-3938

24Serve you for you!
