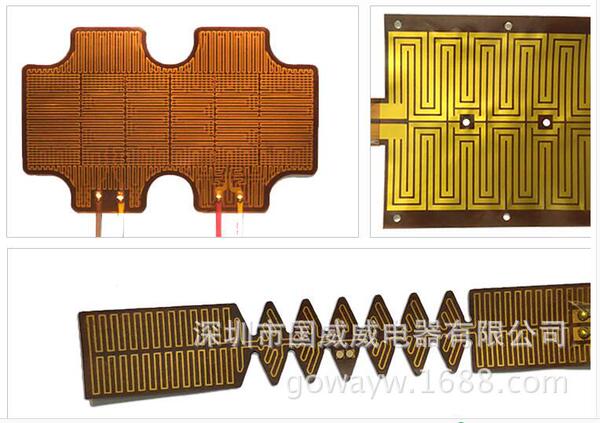

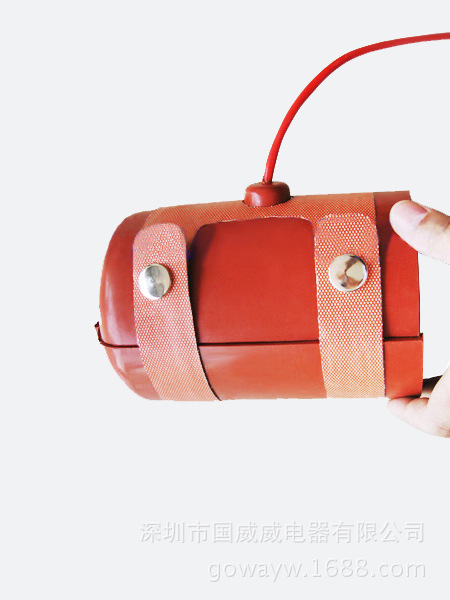

Product: FR4 epoxy resin heating plate
FR4 epoxy resin heating plate, new energy power battery heating plate, epoxy plate heating plate

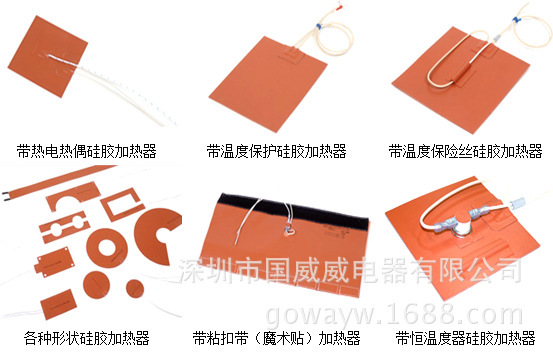

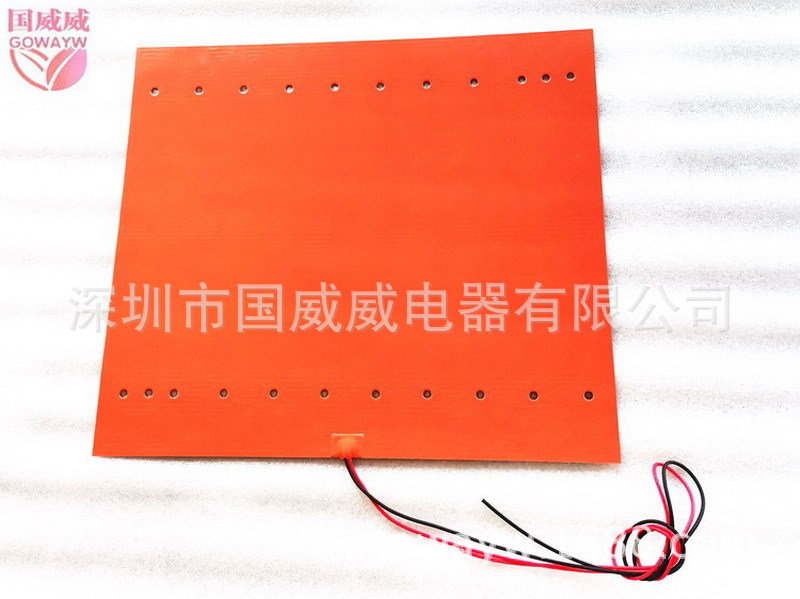

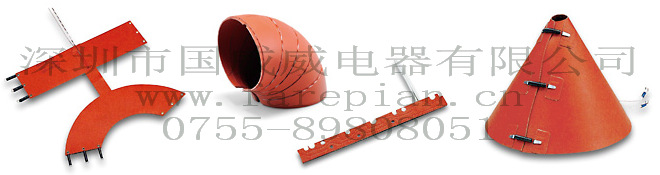

silicone rubberelectricityHot filmsIt is a soft and flexible sheet-like electric heating device.It is made by spreading the metal heat generating body in a fiberglass cloth coated with high temperature resistant silicone rubber and molding it through high temperature.Its body is thin,Usually thick0.8~1.5MM, lightweight, average,Per square1.3~1.9kilogram.Powered on and heat up quickly and the temperature rises quickly,It has the characteristics of large heating surface, uniform heating, weather resistance, corrosion resistance, environmental protection, flame retardant, easy installation, long life and high insulation strength.One of the many electric heating devices.due toGowaywSilicone rubber heaters are basically not limited by size,It can reach several square meters,Small enough to a few square centimeters,And it can be designed as a heating element of various shapes of voltage using conditions as needed,Make it increasingly applicable to various fields.
2. Product use
Guowei flexible silicone heating plate has been widely used to provide thermal environment for outdoor communication equipment,Outdoor insulation and anti-freeze, chemical equipment heating, pipeline anti-freeze, outdoor equipment backup battery insulation, medical and other industries.
Three.Technical Parameters
Product thickness-----0.8-2.0 mm | Applicable power supply-----3-380VDCAs well asVAC |
proportion-----1.6 g/cm3 | Power density-----<<2W/cm2 |
color-----Orange, green grass, black | Insulation strength＞500Zhaou |
Heat capacity------ 1.0J/g.k | Continuous use temperature <240 ℃ |
hardness----- 60±5 shore | Adhesive installation temperature <150 ℃ |
Tensile strength ＞180kg/cm2 | Voltage resistance＞2100VDC/min |
Flame retardant-----conform toUL94 V0 | Paste strength＞50N/100mm |
Fourth, use instructions
1, When using this type of electric heating device, it must be noted that its continuous operating temperature should be less than240 ℃, Instantly do not exceed300 ℃.
2, Guowei silicone electric heating device can work and be pressed, that is, use an auxiliary pressure plate to make it close to the heated surface.At this time, the heat conduction is good, and the temperature in the working area does not exceed240 ℃When the power density is reached3W/cm2.
3, Under adhesive installation conditions, the allowable operating temperature is less than150 ℃.
4, If it is dry burning in the air, due to the temperature resistance limit of the material, the power density should be less than1 W/cm2; Non-sustainable working conditions, the power density can reach1.4 W/cm2.
5, The working voltage is selected with high power-High voltage, small power-Low voltage is the principle, and special needs can be listed.
Silicone electric heating can also be selected in size, softness, hardness and thickness. Guowei Electric Heating Team has a complete range of equipment and technical services for customers who need electric heating sheet products. We also provide free technical information and engineers to discuss with customers.
With every new product development, Guowei Electric Heating Team has improved its technical level, constantly synchronized with customers, and has a complete range of electric heater production equipment in China.
This electric heating model has other names.,example:Silicone electric heating sheet, silicone rubber electric heating sheet,siliconHeating flakes, silicone heaters, waterproof electric heaters,Goway silicon rubber heaters ,silicon rubber heating element ....wait.
