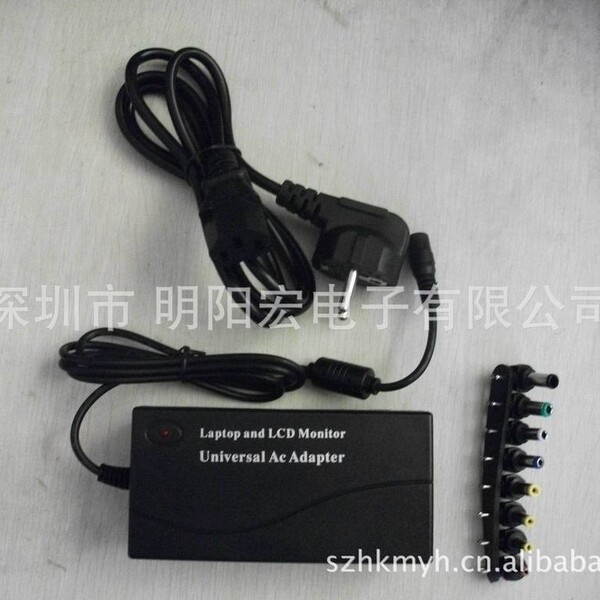

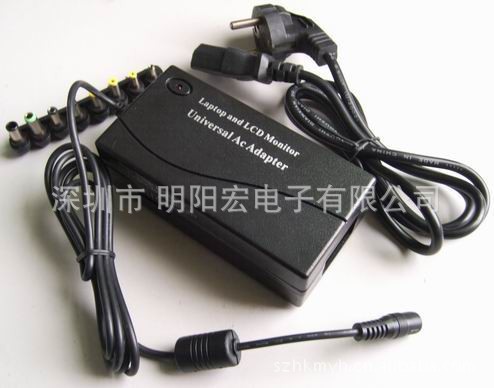

 Universal laptop power supply suitable for many brands with 8 interchangeable adapters that can be converted at will

 Shenzhen Mingyang Hong Electronics Co., Ltd. was established in2002In the year, it is a high -tech enterprise that integrates R & D, production and sales.Universal notebook power supply, digital power supply, vehicle power supply, mobile power supplyWaiting for electronic products, Having professional technical power and perfect production technology.

  “quality“It is the quality management that we always pay attention to. We have formulated strict quality standards. From the design of the product, the purchase, production, and testing service tracking of accessories, all strict implementationISO9000, Make the product's direct pass rate on95%above.Under the increasingly competitive market and the opportunities and challenges brought by the global economic integration, we always maintain“Quality -oriented,Pragmatic innovation”As the motivation for corporate development.

  After years of hard work,We already have a professional and high -quality team. With high -quality products and full -minded services, the company has won widespread recognition from the industry and customers at home and abroad.

May Mingyanghong connect to your career and welcome new and old customers to inquire!

You need to know before buying:

   1. This product is an adjustable universal laptop power adapter. It has different adjustable voltages: 12/15/16/18/19/20/24V. When using it, just adjust the voltage to suit your level.

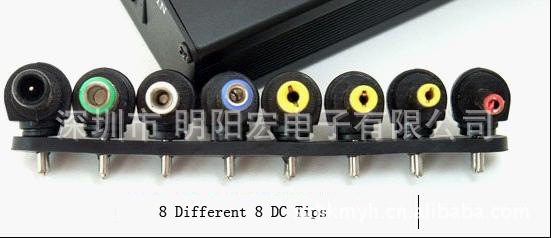

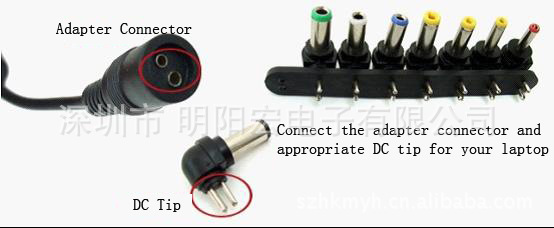

   2. Adapter: After adjusting the voltage, you need to choose the adapter that suits your notebook. The standard specifications of the 8 adapters are: 6.3*3mm.  6.0*1.0mm 5.5*2.5mm 5.5*2.1mm  5.5*1.7mm 4.8*1.7mm  4.0*1.7mm 3.5*1.35mm. Please refer to the table below for the adapter interface corresponding to the applicable computer.

Specification of the transfer interface corresponding to the laptop brand table:

Note: Some buyers reported that the product was bought back and did not find it in Samsung's rotary. This is right, because there is no 5.0*3.0 specification in the standard 8 rotary connectors. If you need to use this specification, you can contact customer service in advance.There is no need to increase the cost.

   Before buying the product, please see if there is an interface that meets his own specifications. If the 8 rotary interfaces are standard, you can contact the customer service directly.

     There are also interface specifications for the standard outer standard:

   7.4*5.0 big head  HP/DELL

   7.9*5.0 big head  IBM

   Dell 3 holes     Old Dell

   Toshiba       Toshiba

Functional characteristics:

AC-70W

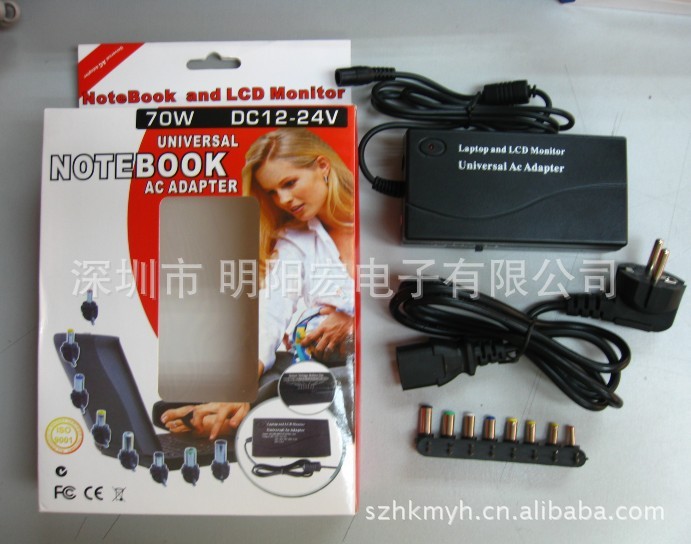

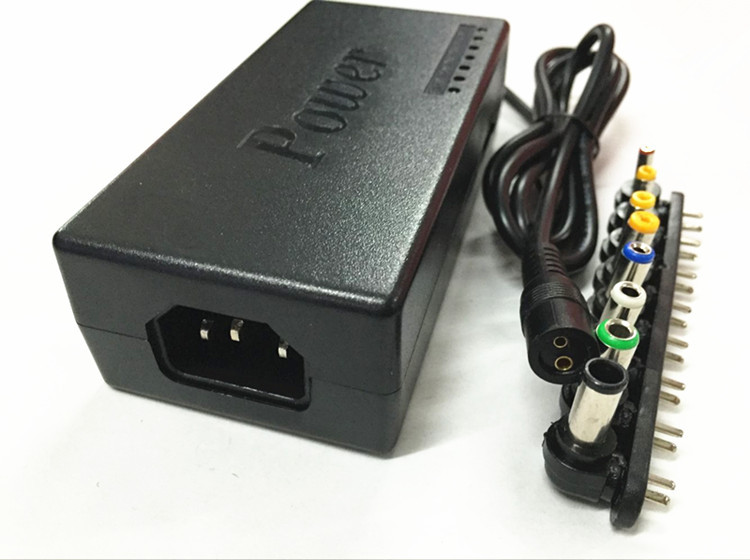

This universal power adapter has an output power of 70W. It can be applied to a variety of laptop computers of different manufacturers and models, including Samsung, Sony, Toshiba, Acer, BenQ, Lenovo, Compaq, Dell, HP, IBM and many other brands.This charger has a 7-level voltage adjustment switch and 8 easily replaceable DC plugs. If it needs to be used on notebooks of different brands and models, you only need to adjust the voltage according to the notebook input requirements and replace the matching DC plugs.8 DC plug specifications: 6.5*4.3mm 6.3*3.0mm 5.5*2.5mm 5.5*2.1mm 5.5*1.7mm 4.8*1.7mm 4.0*1.7mm 3.5*1.35mm.

Product model:    MYH-AC70W
The output voltage:    DC12/15/16/18/19/20/24v
Output current:    DC12/15/16/18/19V 3.5A  20/24V 2.9A
Input voltage:    AC110-240V  50/60Hz
Voltage adaptation range: AC100-260V  47/63Hz
Maximum input current: 1.0A
Minimum input current: 0.1A
Output power:    70W
Power factor:    >88% (TYP)
Overload protection:   Yes
Over -pressure protection:   Yes
Short circuit protection:   Yes
Carrier interference:    500mV
Circuit loss:    1%
Load loss:    1%
Volume:        117.7 * 58.7 * 40.0mm
Weight:        440g
Package:       Color box Suck
Certification Information:    CE  FCC  ROHS
Warranty time limit:   1 year
Minimum settlement quantity:  100PCS
