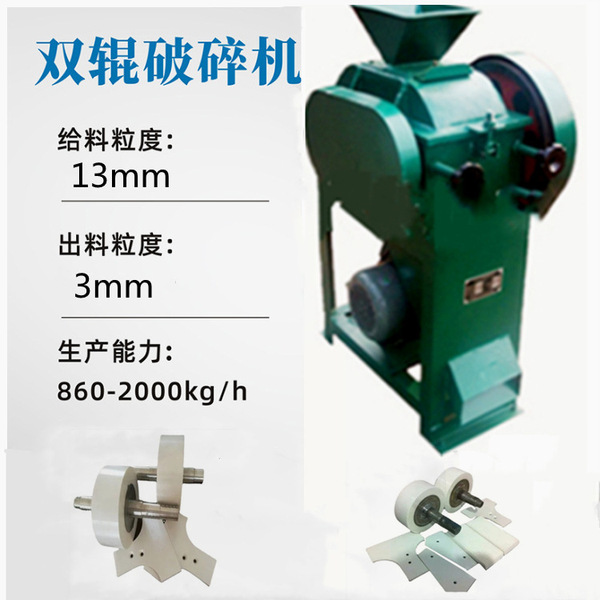

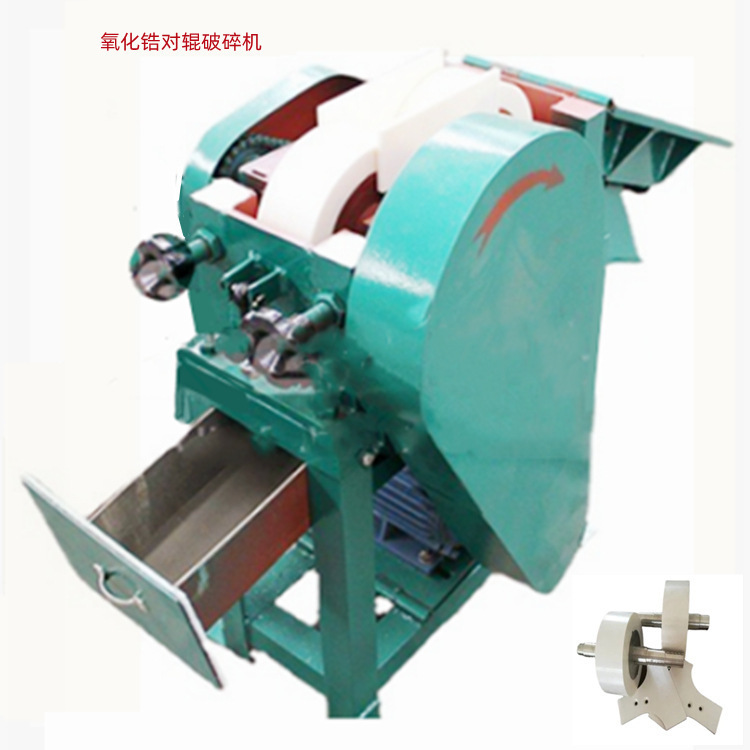

Zirconia double roller crusher crushes lithium battery materials

Zirconia roller crusher crushes lithium battery materials, positive and negative electrode materials without corrosion
Zirconia double roller crusher is used for medium and fine crushing of lithium battery materials, positive electrode materials (such as ternary materials), and negative electrode materials (such as graphite, silicon-based materials) to avoid metal contamination and maintain stable electrochemical performance. The crushing cavity must be made of zirconia ceramics.Wear-resistant, corrosion-resistant,

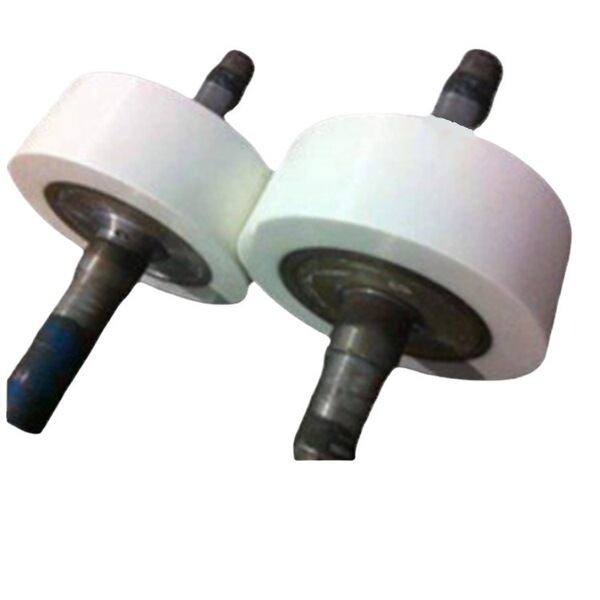

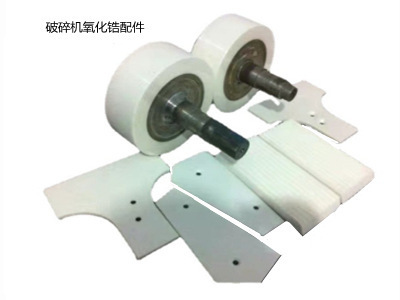

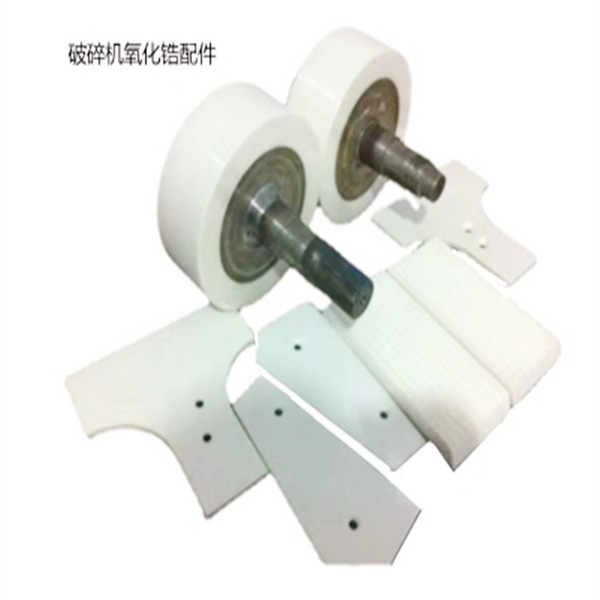

Impact, high temperature resistance and other characteristics.The rollers are made of zirconia, and the parts in contact with the material are made of SUS304 wear-resistant stainless steel, which can effectively prevent the material from being contaminated by metal.In addition, the equipment also has a sealed design and can be equipped with a dust removal interface, which meets environmental protection requirements, has stable operation and low noise.

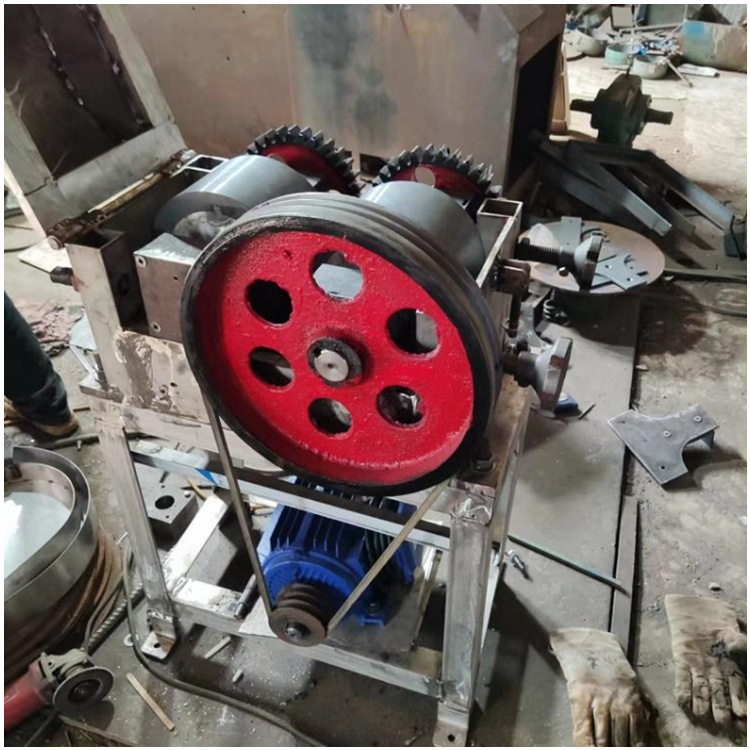

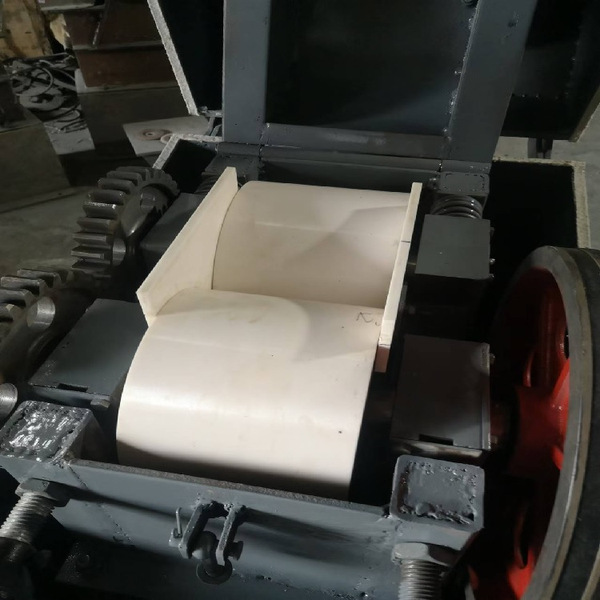

This equipment squeezes and crushes materials through two counter-rotating zirconia rollers.When encountering extremely hard or unbreakable objects, the rollers can automatically retreat through the action of springs or hydraulic cylinders, thereby protecting the machine from damage.By adjusting the gap between the rollers, the particle size of the discharge can be controlled
.It is widely used for clean crushing in laboratories in electronics, ceramics, polysilicon, lithium batteries, three-base phosphor batteries, optical glass, rare earth, metallurgy, chemical industry, geology, aerospace, scientific research and other industries. It can also be used for crushing material sample preparation in other industries.

Model Unit ф200×75ф200×125ф200×150ф250×150
Feed opening mm 75×13 125×13 150×13 150×13
Feed particle size mm≤13≤13≤13≤13
Discharge particle size mm 0.1～4 0.1～4 0.1～4 0.1～4
Spindle speed r/min 380 400 400 400
Production capacity kg/h 300 450 600 600
Motor power kw 1.5 3 3 3
Overall dimensions mm 1000×500×900 1100×540×900 1100×560×900 1100×560×900
Weight kg 180 220 240 260
