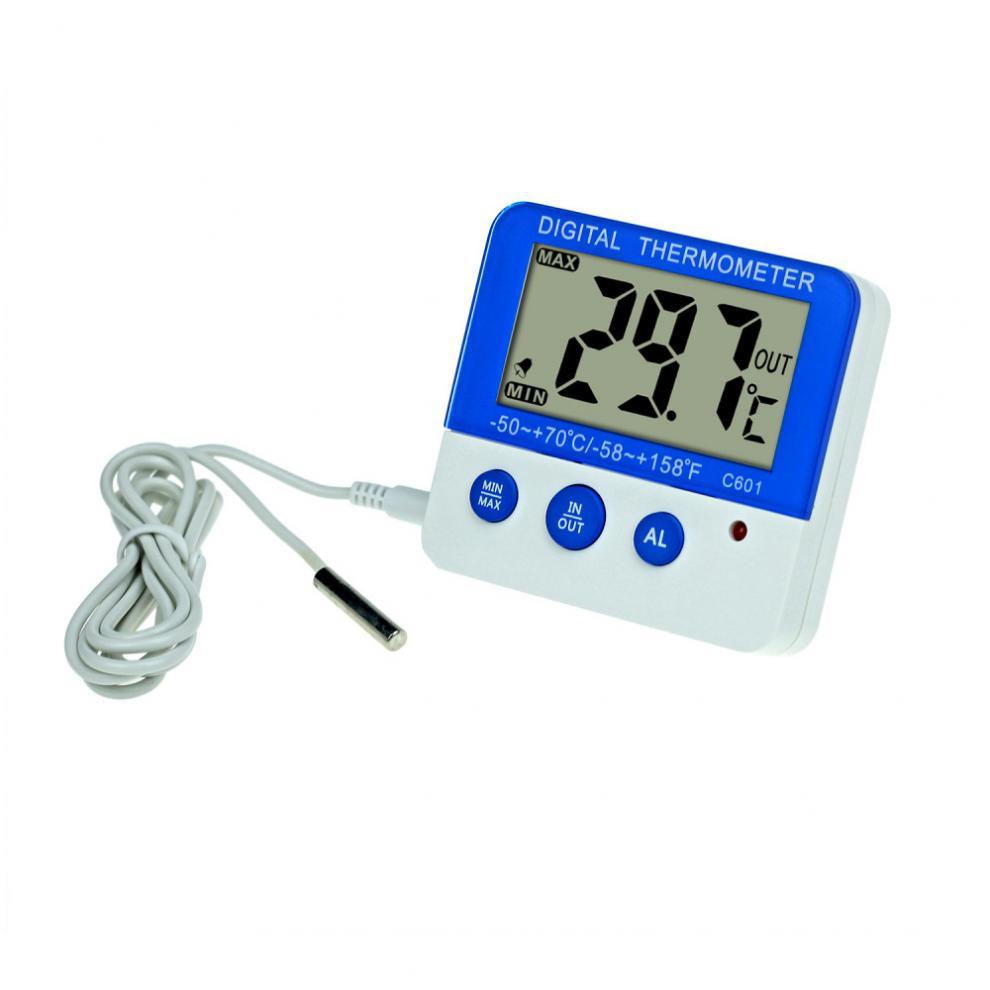

Thermometer for home use

1. Product specifications

Temperature measurement range:

Indoor: -10 ℃ ～+50 ℃ (+14 ℉ ～ 122 ℉)

Outdoor: -50℃～+70℃ (-58℉～ +158℉)

Battery used: 1.5V(AG13)*1

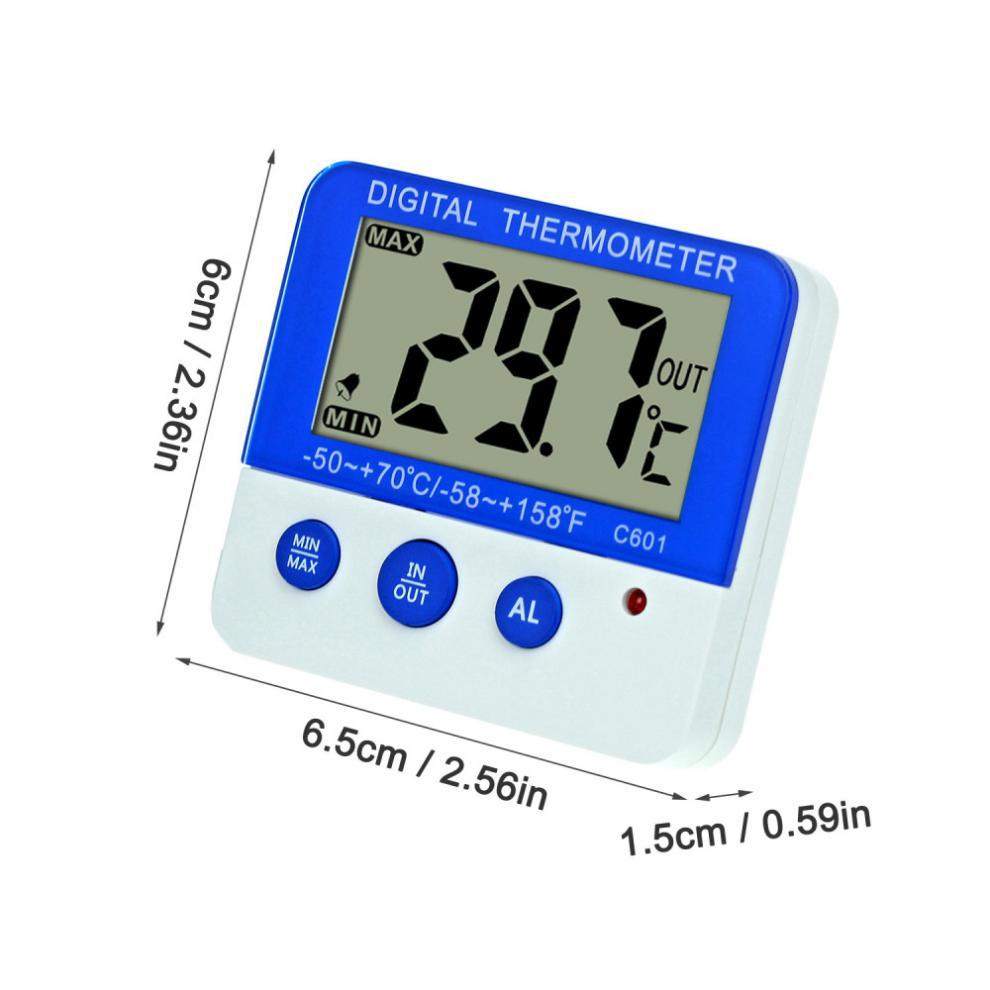

Body size: 65*60*15mm

2. Basic functions

indoor/outdoor temperature,

Outdoor high and low temperature alarm

℃/ temperature switch display

/Temperature memory function

Frost point alarm: -1℃~+4℃ (+30.2℉~+39.2℉)

LED alarm indicator light

3. How to do it

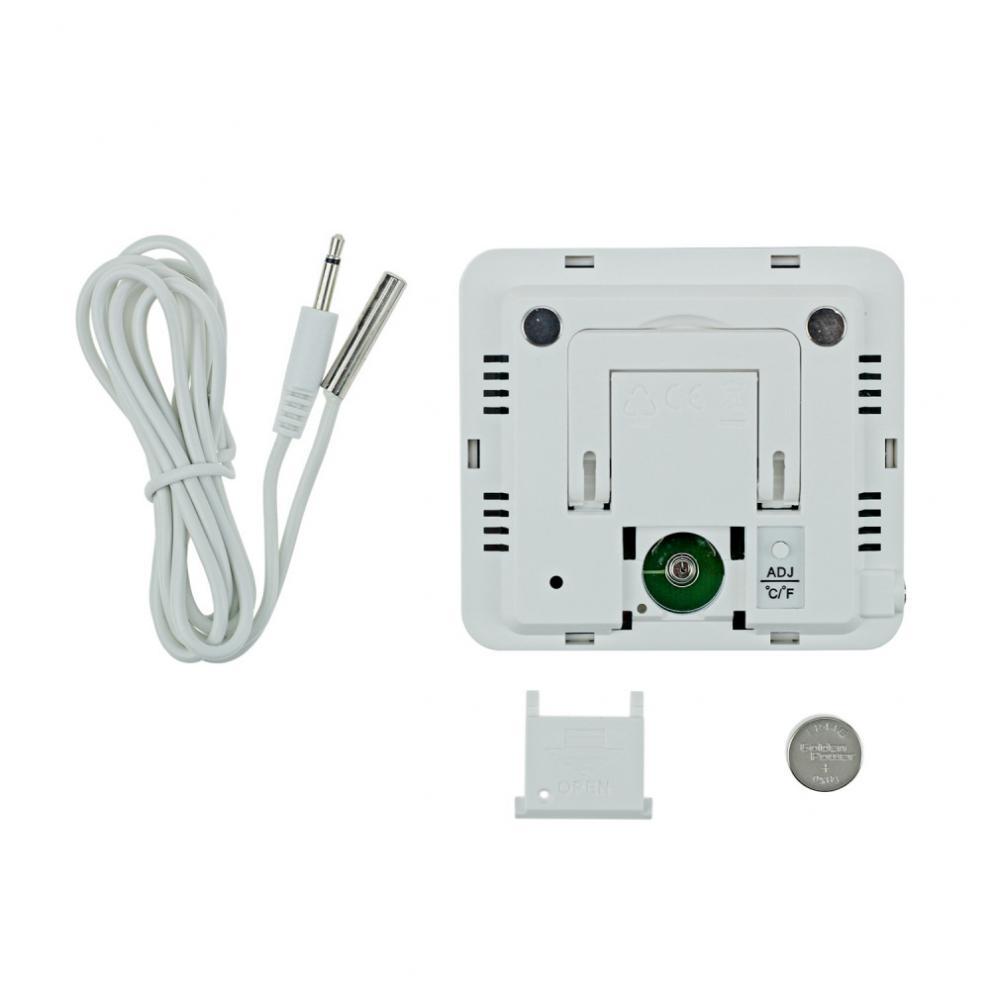

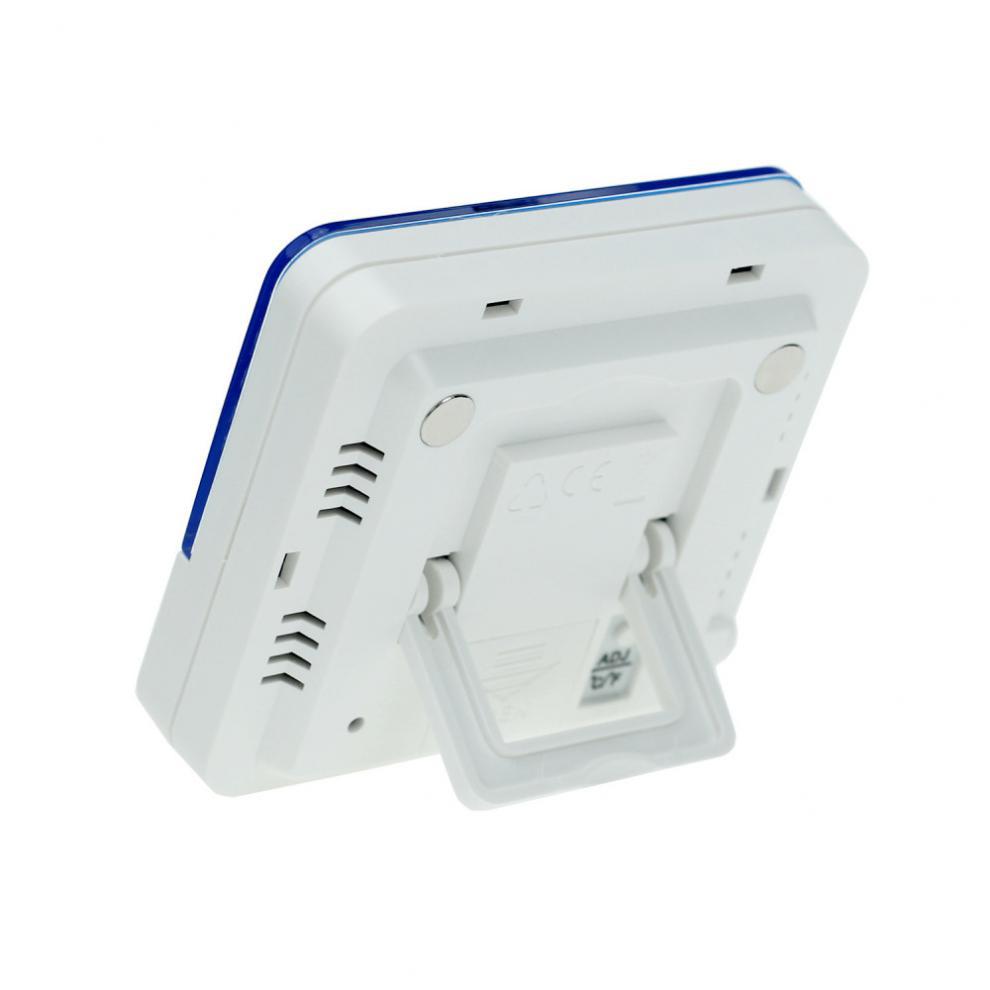

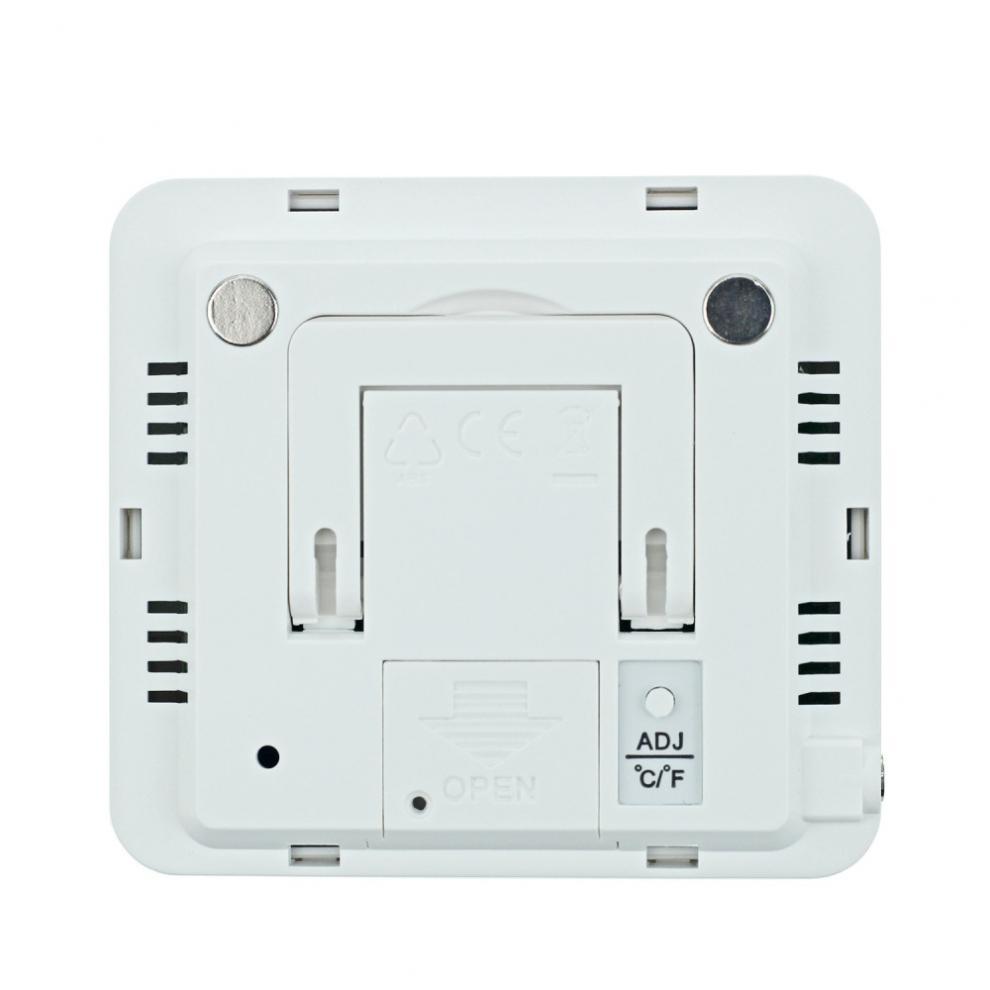

1. Push open the battery cover in the direction indicated on the back of the machine, install the battery, and then replace the battery cover. The machine is ready for use.

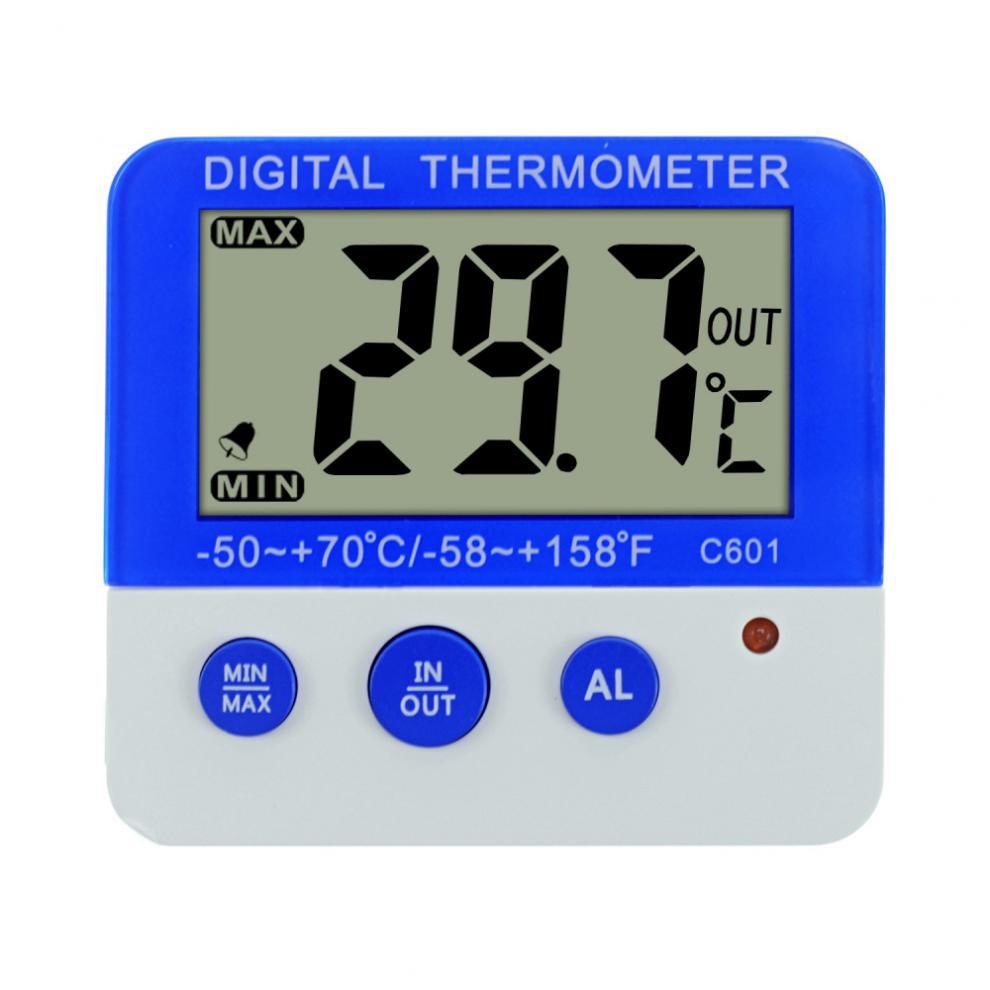

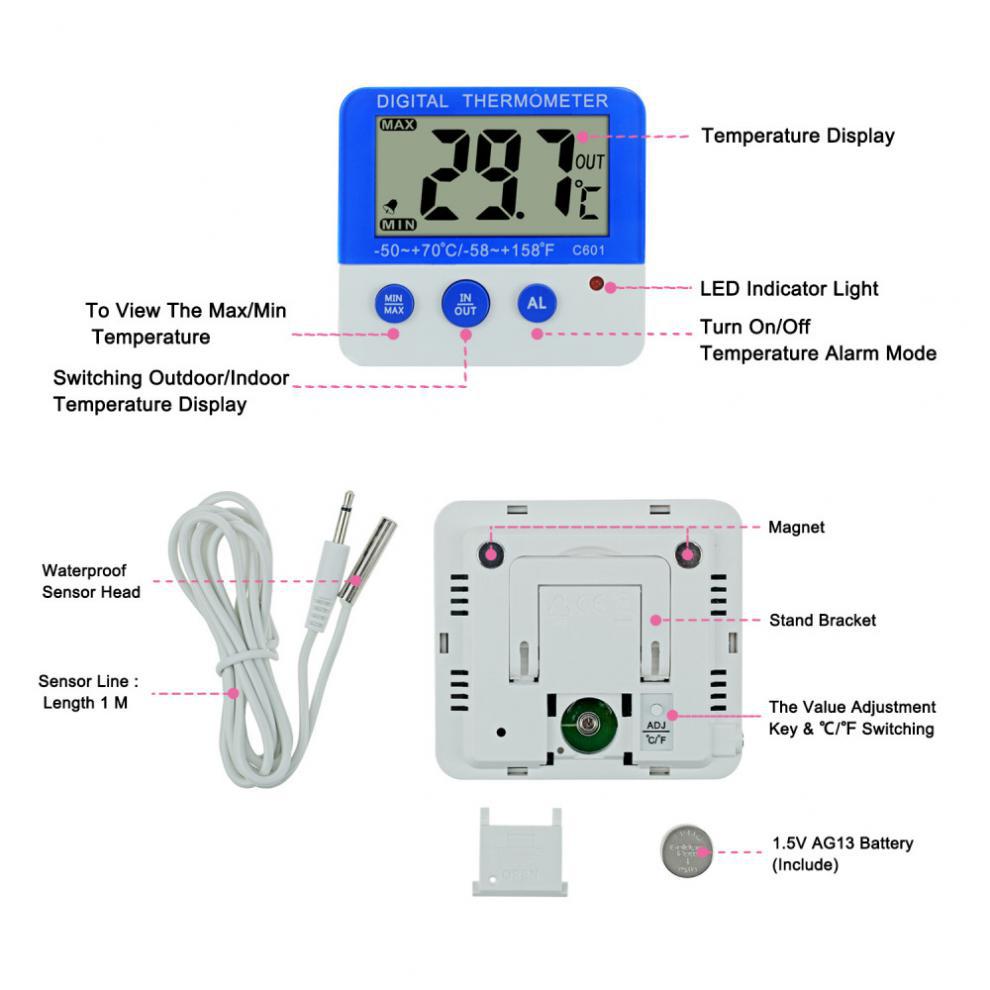

2. Key function:

[MAX / MIN]: Displays the memory and temperature value; long press to clear the memory value.

[In / OUT]: Change the indoor and outdoor temperature display.

[AL]: Set outdoor temperature alarm range, turn on (closure) temperature alarm mode

[℃/℉]: Switching temperature Units are displayed at ° C (degrees Celsius) or ℉ (Hua Shi)

[Adj]: Adjust the value of the project;

3. Press the [IN / OUT] button, when the“IN”, the indoor temperature is currently displayed, press [MAX / MIN] to display the value of the indoor temperature; , when [MAX] appears on the screen, press and hold MAX/MIN for more than 2 seconds to clear the memorized temperature value; Press the [MAX/MIN] button again, [MIN] is displayed on the screen, at this time press and hold [MAX/MIN] for more than 2 seconds to clear the memorized temperature.

4. Press the [In / OUT] button, when the screen appears“OUT“When the outdoor temperature is currently displayed, press [MAX / MIN] to display the memory and value of the outdoor temperature; When [MAX] appears on the screen, press and hold MAX/MIN for more than 2 seconds to clear the memorized temperature value; Press the [MAX/MIN] button again, and [MIN] will be displayed on the screen. At this time, press and hold [MAX/MIN] for more than 2 seconds to clear the memorized temperature.

5. Press [AL] to turn on/close the temperature alarm mode. When it appears, the temperature alarm mode is turned on. If none, the temperature alarm mode is closed.

6. High and low temperature alarm settings: In the temperature alarm mode, long press the [AL] key to enter the high -low temperature alarm setting status for 2 seconds. When the value is flickering, press [ADJ] for numerical adjustment.] The key is determined by the settings (set the high temperature first and then set the low temperature)

7. When the temperature alarm mode is turned on and there is no high or low temperature setting, the default frost point alarm is -1℃~+4℃ (+30.2℉~+39.2℉).

Fourth, precautions

1. If there is any problem with the machine, please take out the battery for about 2 seconds and then reinstall it.

2. Please return the battery to the designated location after use.

3. There are technical changes without prior notice.
