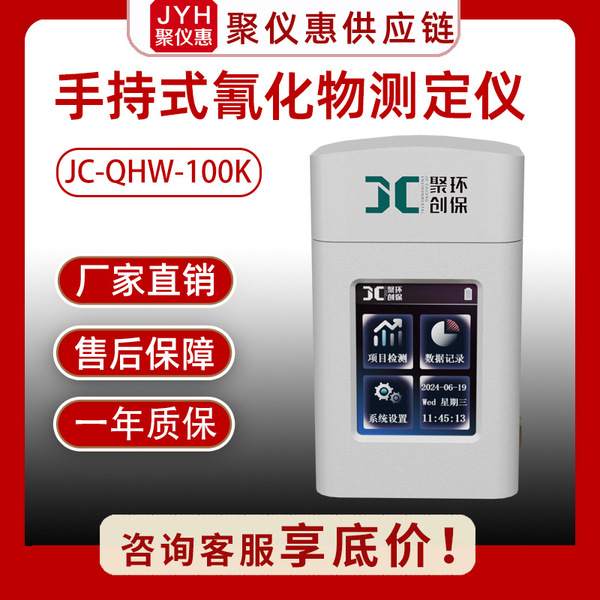

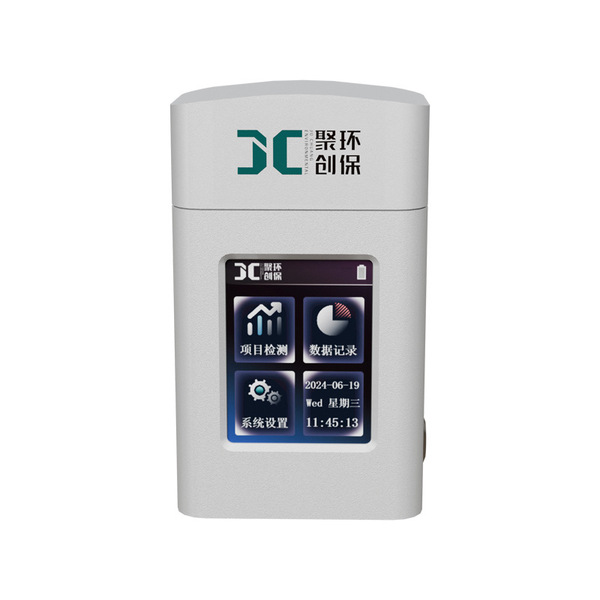

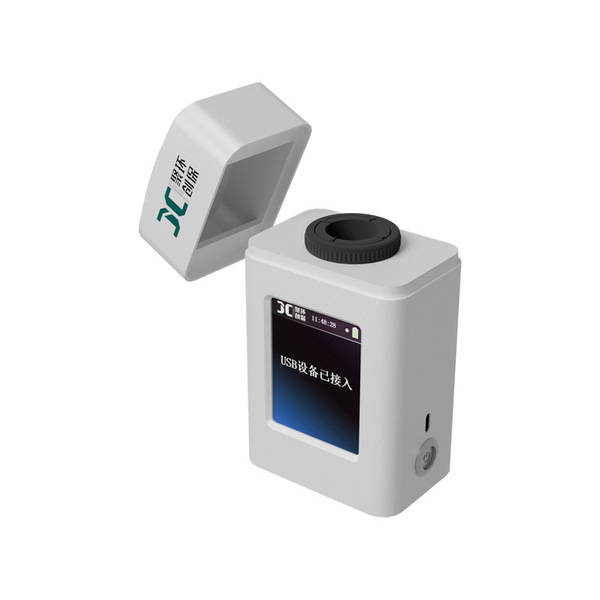

Product: Handheld water cyanide meter portable water quality detector fast…
1. Product overview

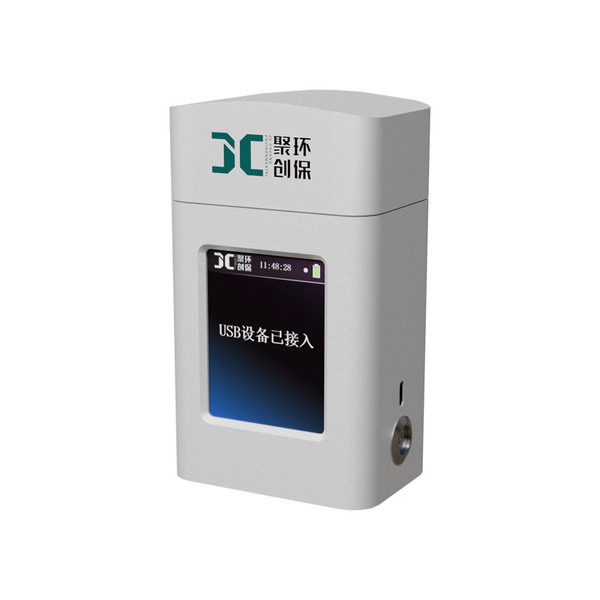

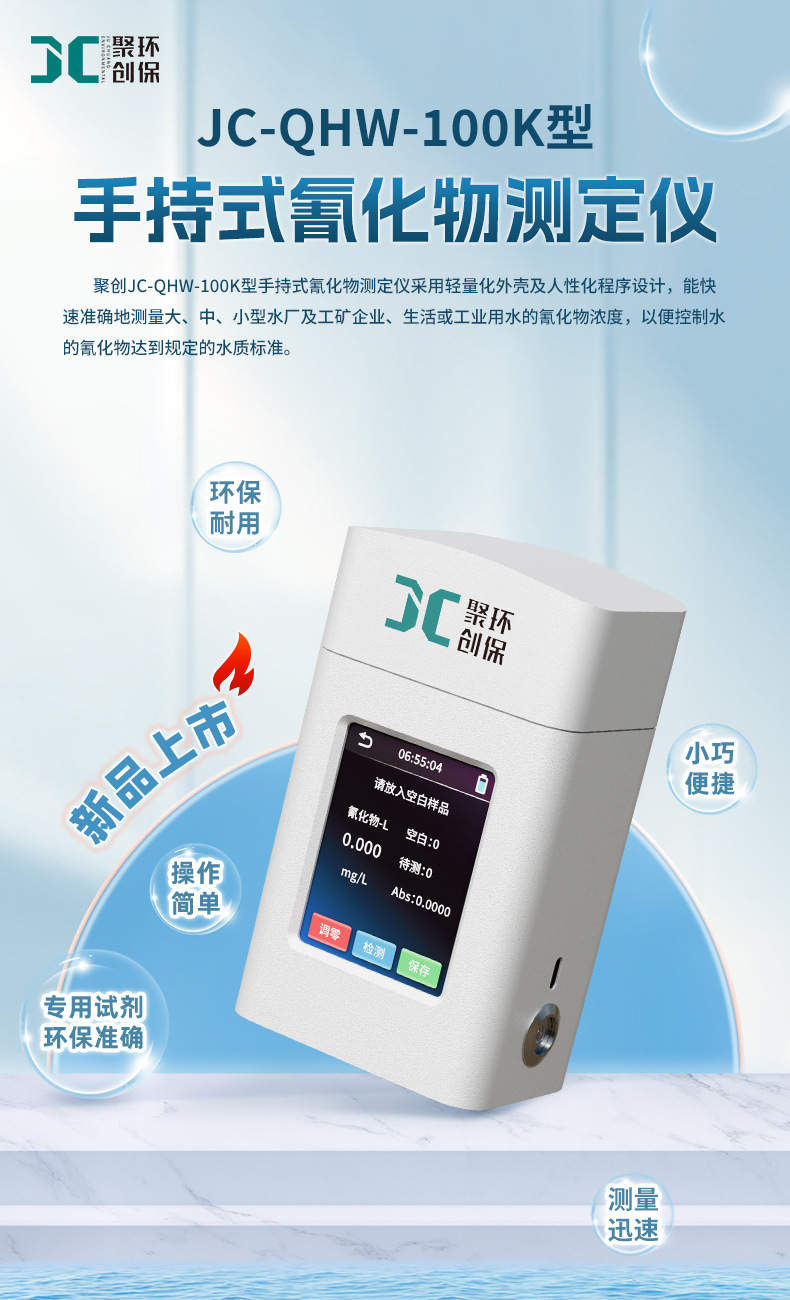

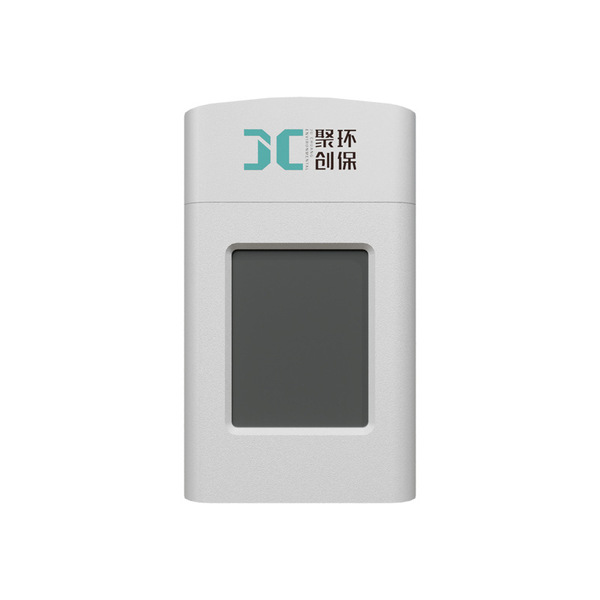

Juchuang JC-QHW-100K handheld cyanide analyzer adopts a lightweight shell and humanized program design. It can quickly and accurately measure the cyanide concentration of large, medium and small water plants and industrial and mining enterprises, domestic or industrial water, so as to control the cyanide in the water to meet the prescribed water quality standards.
2. Applicable standards
"HJ 484 Water quality - Determination of cyanide - Volumetric and spectrophotometric methods"
3. Scope of application
It can be widely used in environmental monitoring stations, sewage treatment plants, colleges and universities, scientific research institutes, petrochemical, papermaking, printing and dyeing, electronics, electric power, steel, agriculture, municipal engineering and other industries.
4. Basic parametersnumber
1. Overall dimensions (length×wide×Height): 80mm×55mm×135mm, manual measurement, subject to actual situation;
2. Host weight: 390g±10g, whichever is actual;
3. Input voltage/current: 5.0V/2.0A;
4.Battery capacity: 2200MA;
5. Continuous working time: no less than 6 hours;
6.Ambient temperature: 5-40℃;
7. Environmental humidity: relative humidity <85% (no condensation);
8. Data storage: more than 10,000 items can be stored;
9. Standard curve: Each detection parameter is equipped with a factory calibration curve as standard;

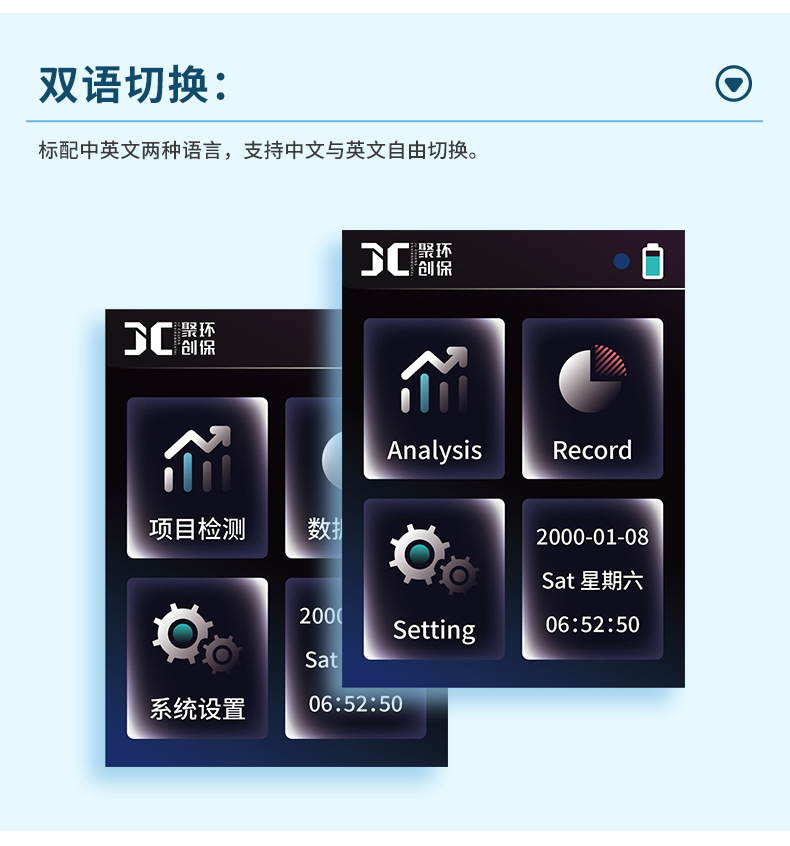

10. Supported languages: Simplified Chinese or English.
5. Performance parametersnumber

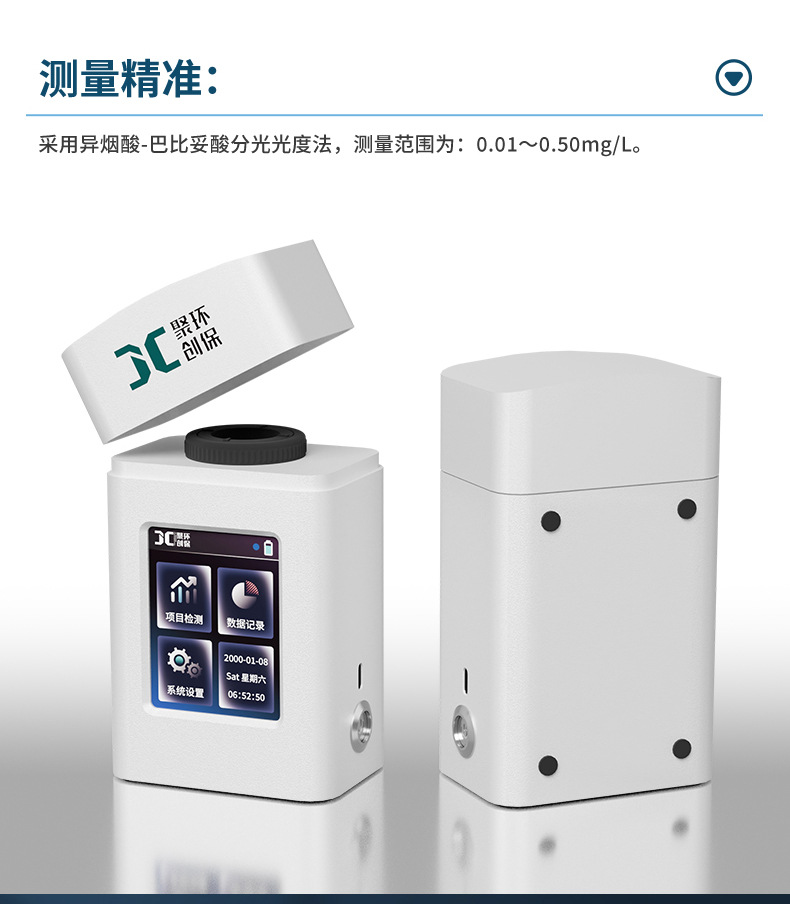

1. Measuring range: 0.01～0.50mg/L;
2. Indication error:≤±5%;
3. Repeatability: no more than 3%.

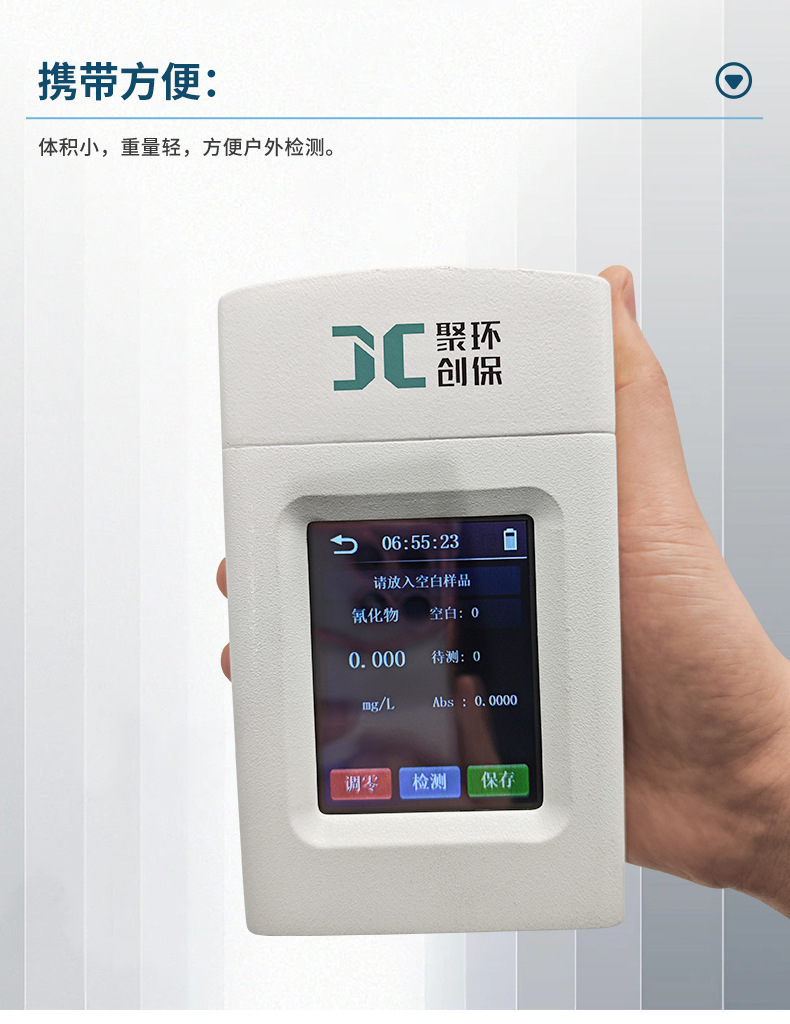

2. Handheld and lightweight design, charging time is less than 6 hours of battery life.
3. Special reagents in quantitative packaging, less dosage, more environmentally friendly, and more accurate readings.
4. Optional pre-prepared reagents can eliminate the reagent preparation process and can be tested directly by adding samples.

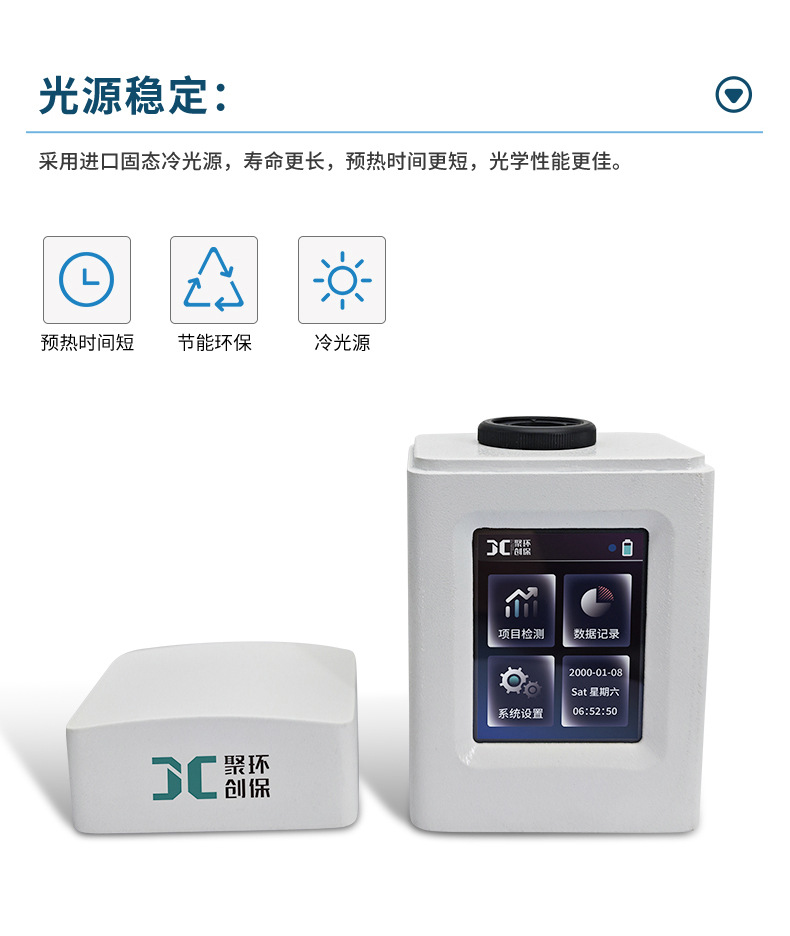

5. Using a special cold light source, it is energy-saving, environmentally friendly and has excellent optical performance. It has short preheating time and a theoretical life of up to 100,000 hours.

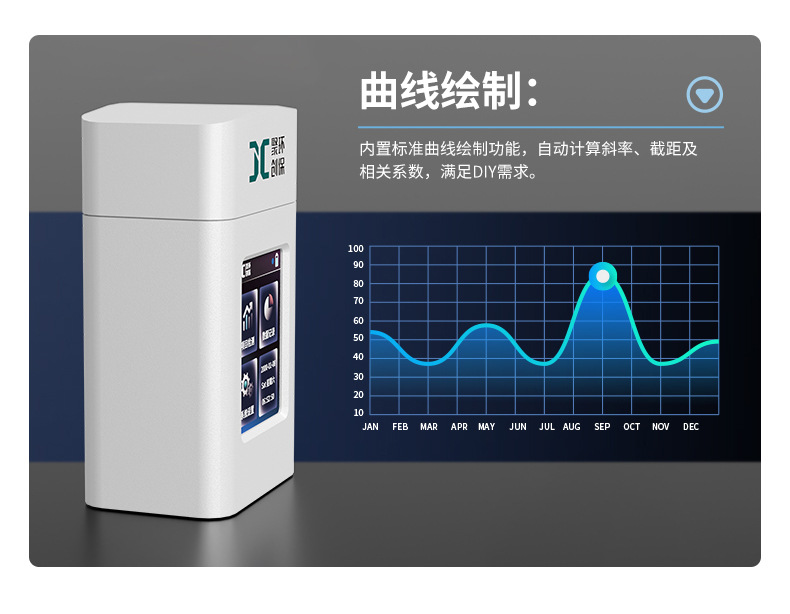

6. Built-in standard curve drawing function, automatically calculates slope, intercept and correlation coefficient to meet DIY needs.

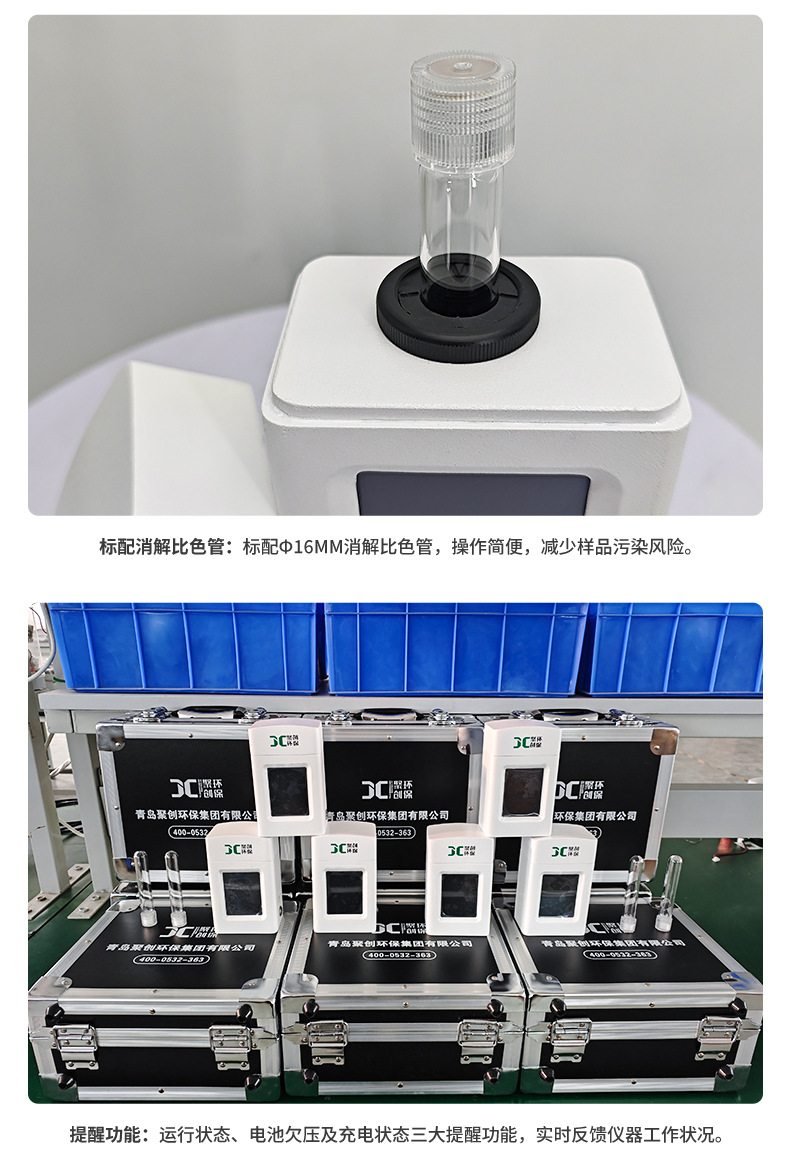

7. Standard configurationΦThe 16mm digestion cuvette is easier to operate than the square cuvette, reducing the risk of sample contamination.
8. Built-in real-time clock, each measurement record has a measurement time stamp, which facilitates statistics and query.

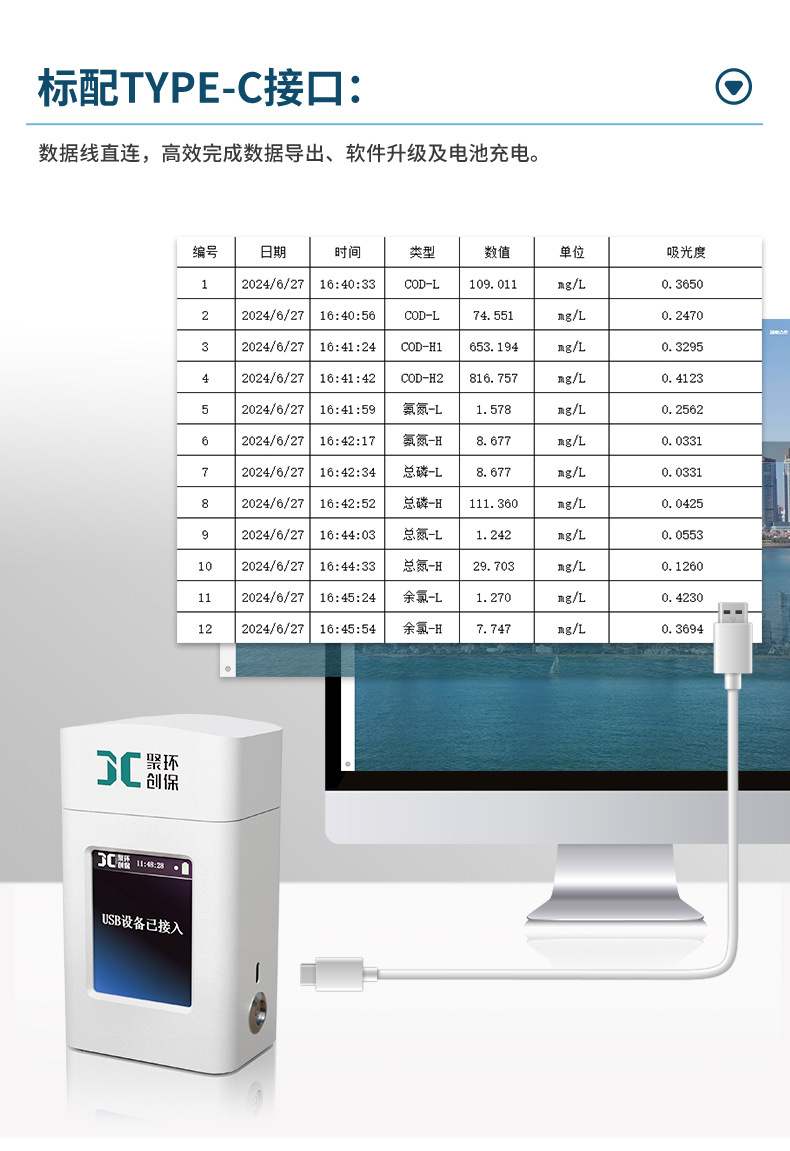

9. Standard Type-C interface, with data export and software upgrade functions.
