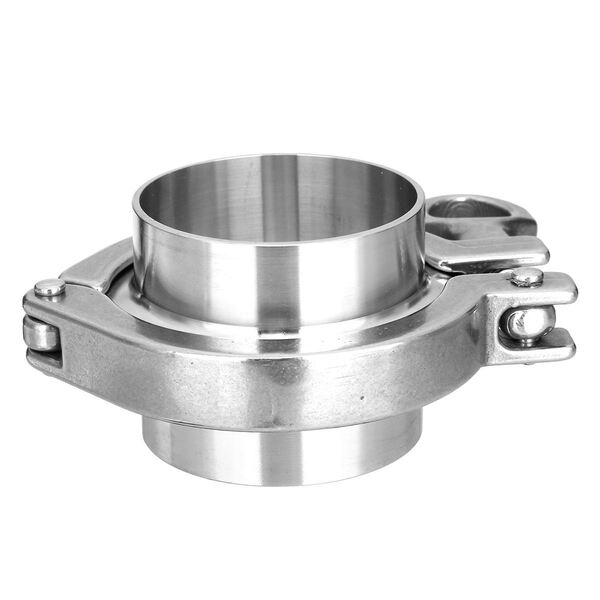

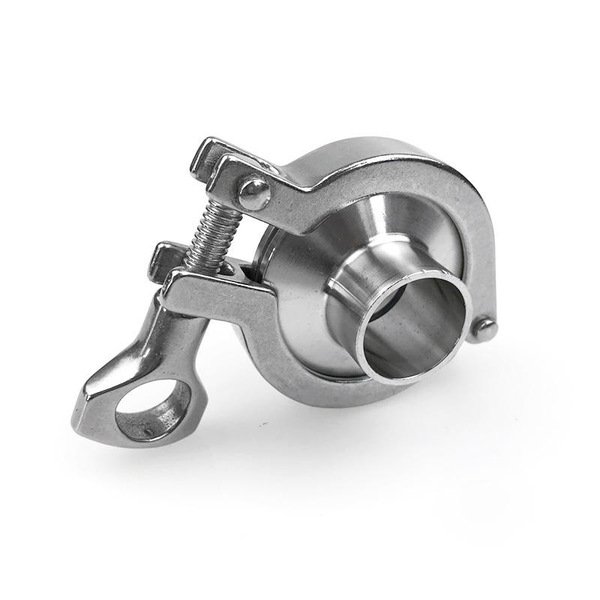

Product: ISO 2852-1993E 304 stainless steel stuck
ISO 2852-1993E 304 stainless steel clamps, quick connectors, seals, complete sets of accessories
Detailed configuration of matching clamp joints:
●Precision casting 304 clamp, mold casting
●CNC lathe processing
●Material silicone sealing gasket
●Piping specifications 12.7-505 are in stock

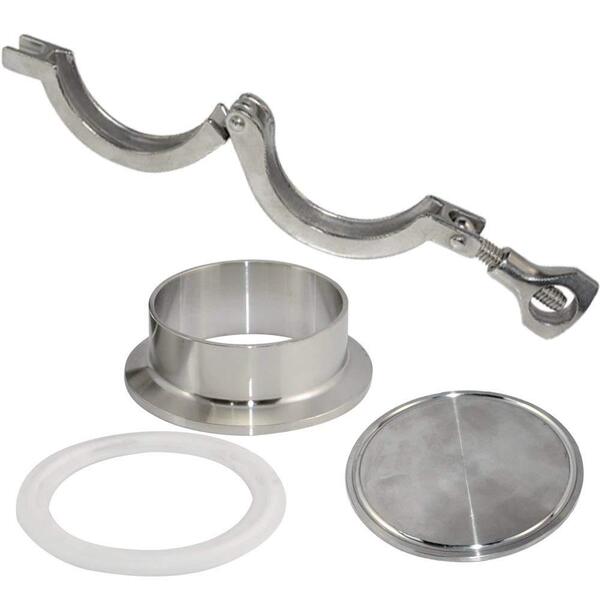

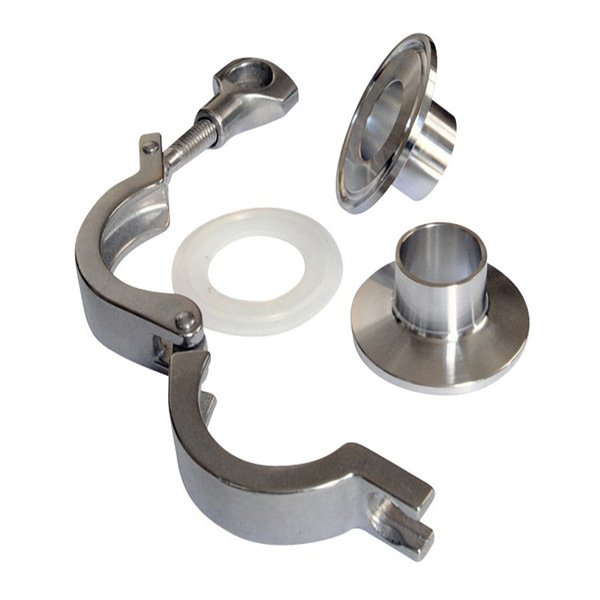

[Product name]; Quick connector complete set of accessories
[Material]: 304
[Specification]: 1/2”-12”
【caliber】:Φ12-305
【Chuck】：25-319
[Executive Standard]: ISO2852-1993E
[Sealing]: Silicone pad
[Attribute]: Sanitary clamp joint accessories
【Shipping Place】: Wenzhou
【Packaging cartons
【Place of Origin】: Wenzhou
【Shipping Place】: Wenzhou
Quick connector clamp supporting data and piping size list:
inch | Pipeline | Mount |
1/2″ | Bleak10 | 25.4 |
3/4″ | Bleak19 | 34 |
1.5″ | Bleak38 | 50.5 |
2″ | Bleak51 | 64 |
2.5″ | Bleak63 | 77.5 |
3″ | Bleak76 | 91 |
3.5″ | Bleak89 | 106 |
4″ | Bleak102 | 119 |
4″ | Bleak108 | 119 |
4.5″ | Bleak114 | 130 |
5″ | Bleak125 | 145 |
5.5″ | Bleak133 | 155 |
6″ | Bleak154 | 166.7 |
6.5″ | Bleak159 | 183 |
7″ | Bleak168 | 191 |
8″ | Bleak202 | 217.7 |
8.5″ | Bleak219 | 235 |
10″ | Bleak254 | 268.5 |
11″ | Bleak279 | 305 |
12″ | Bleak305 | 319 |

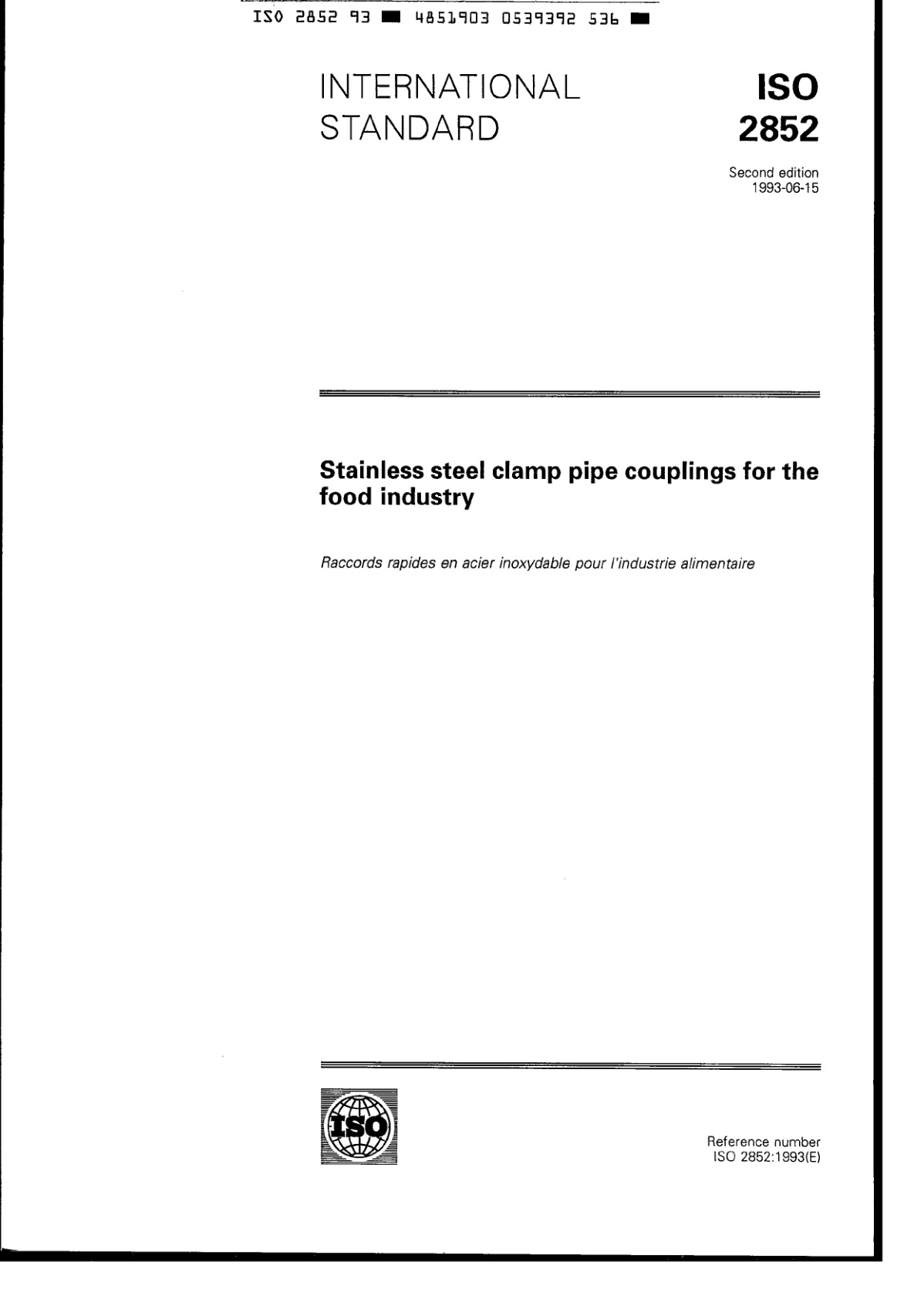

ISO2852-1993E quick connector dimensional parameters

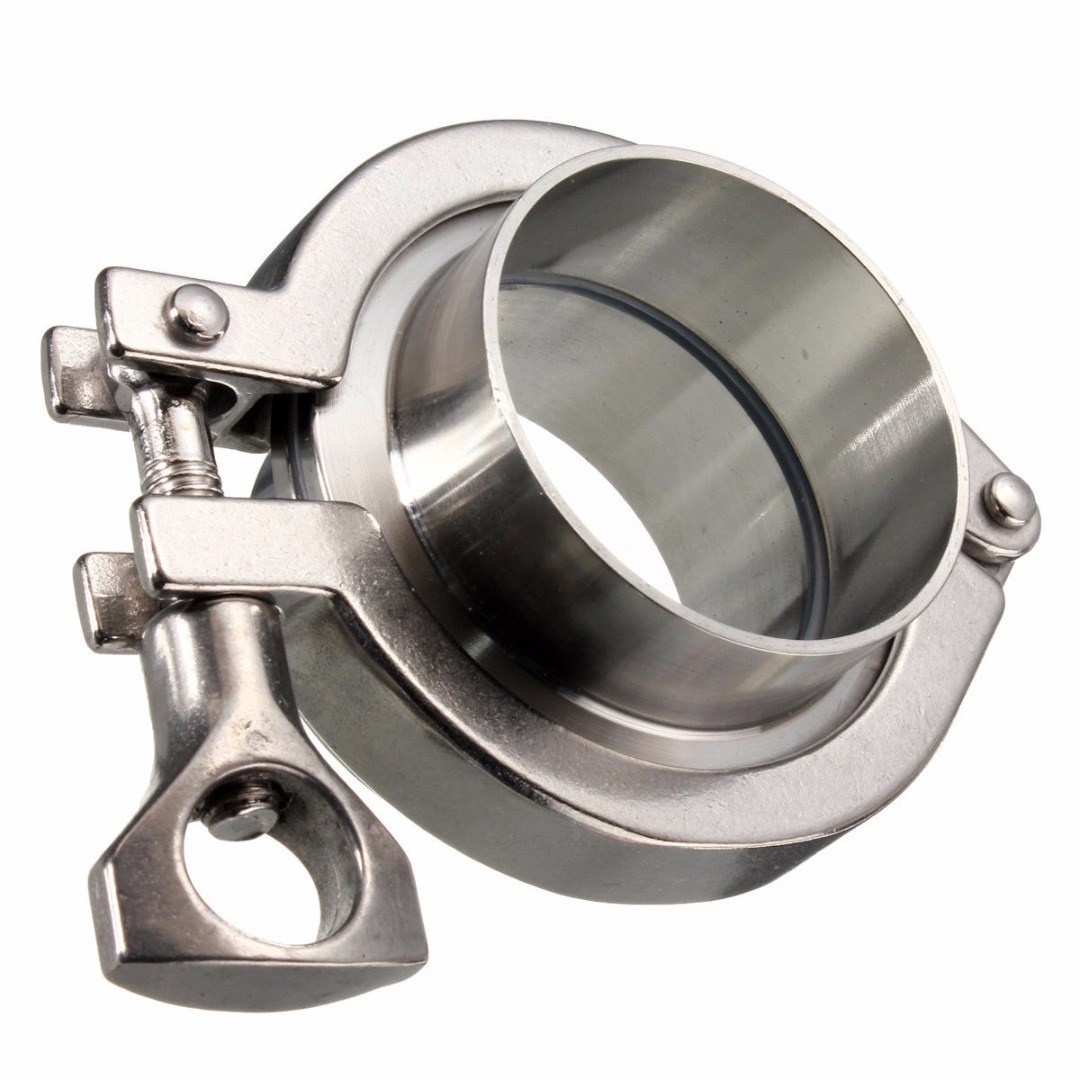

Stainless steel quick connector
Widely used in food, pharmaceutical, bioengineering, and process pipelines with high hygiene requirements

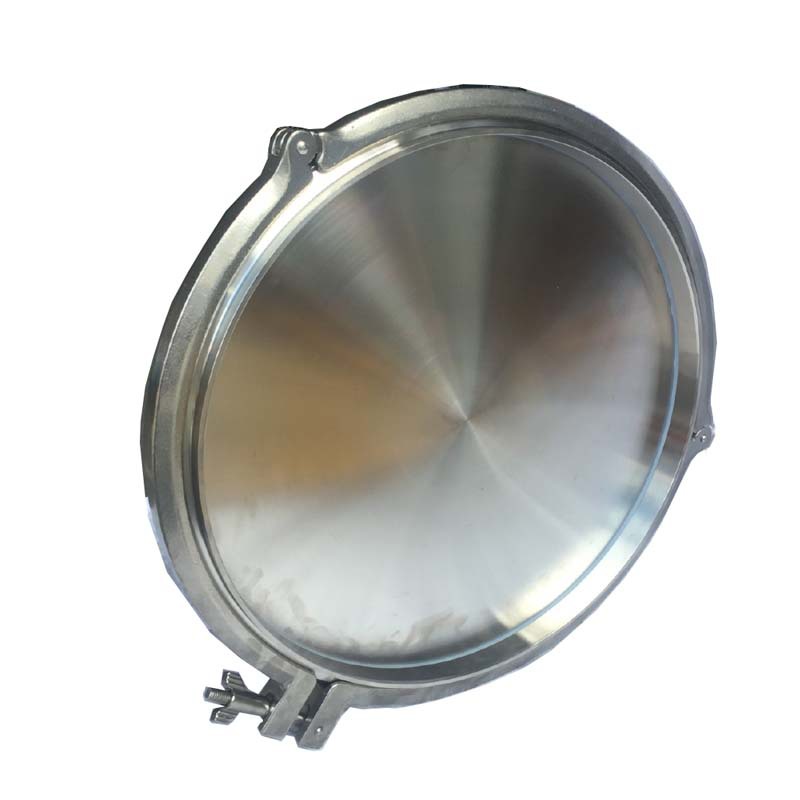

Stainless steel quick connector from pipe diameterΦ12.7 to pipe diameterΦ505 are all in stock, wholesale directly at ex-factory price
Application fields of quick clamp joint products:
●Food, pharmaceutical, bioengineering, water treatment, chemical industry, etc.
