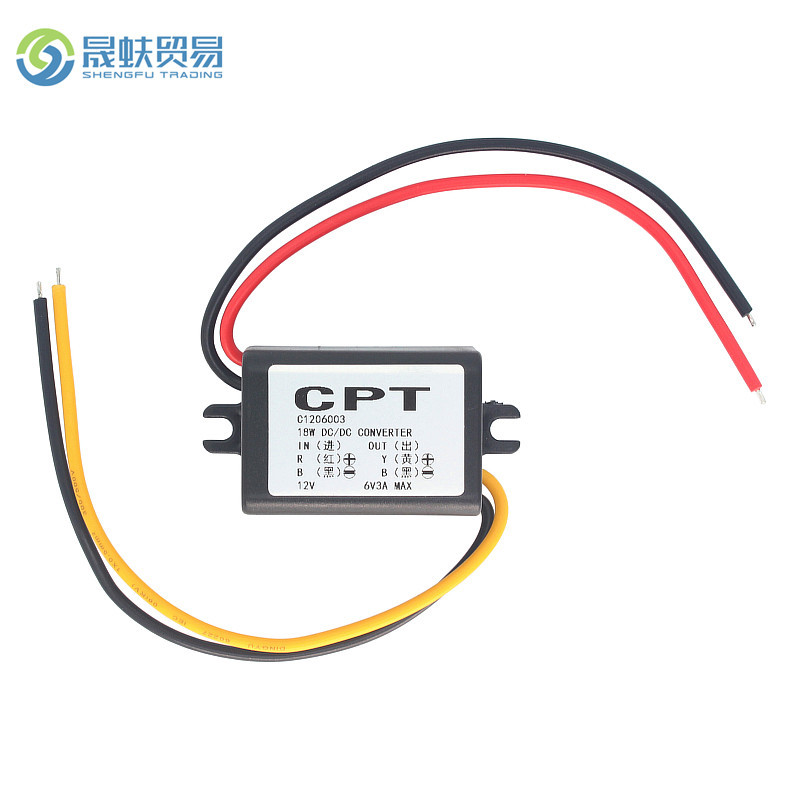

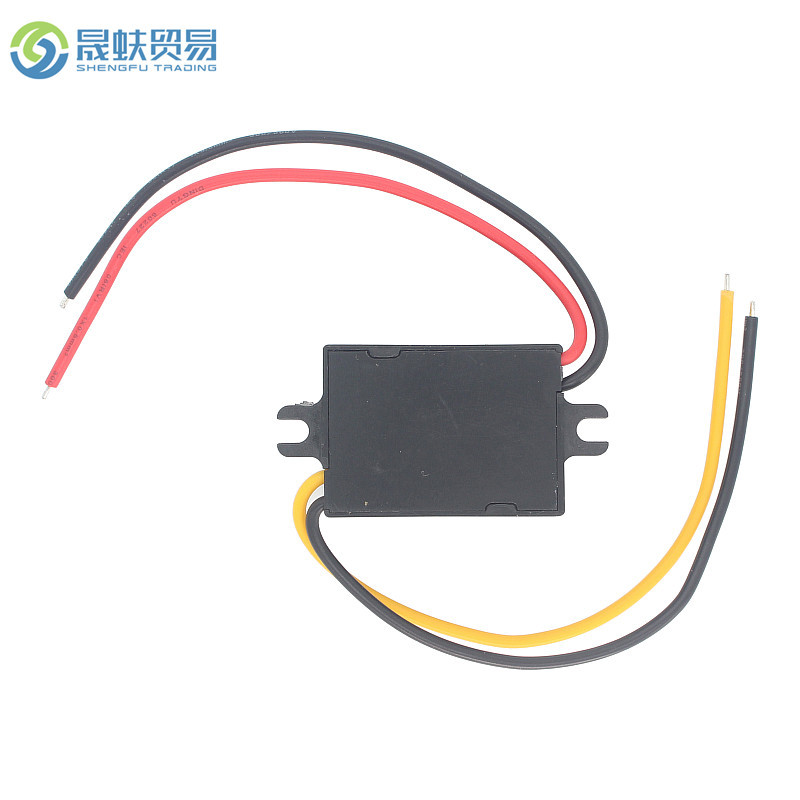

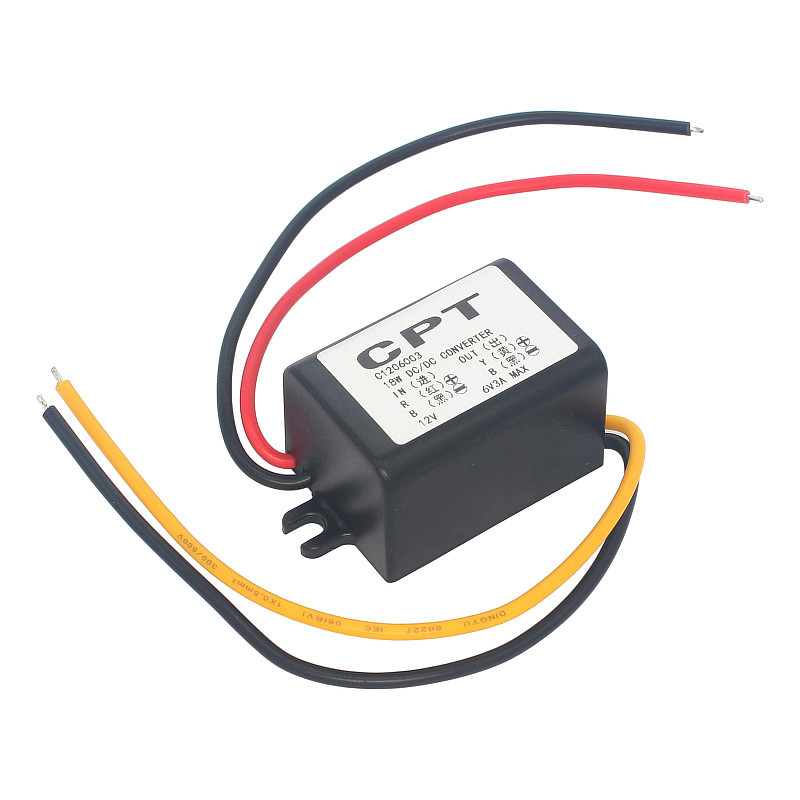

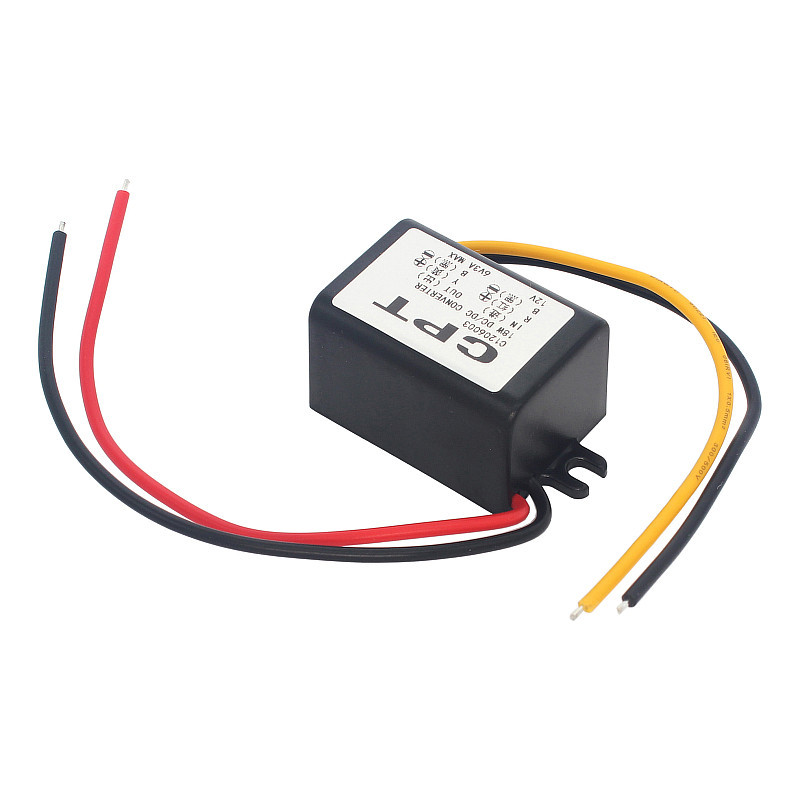

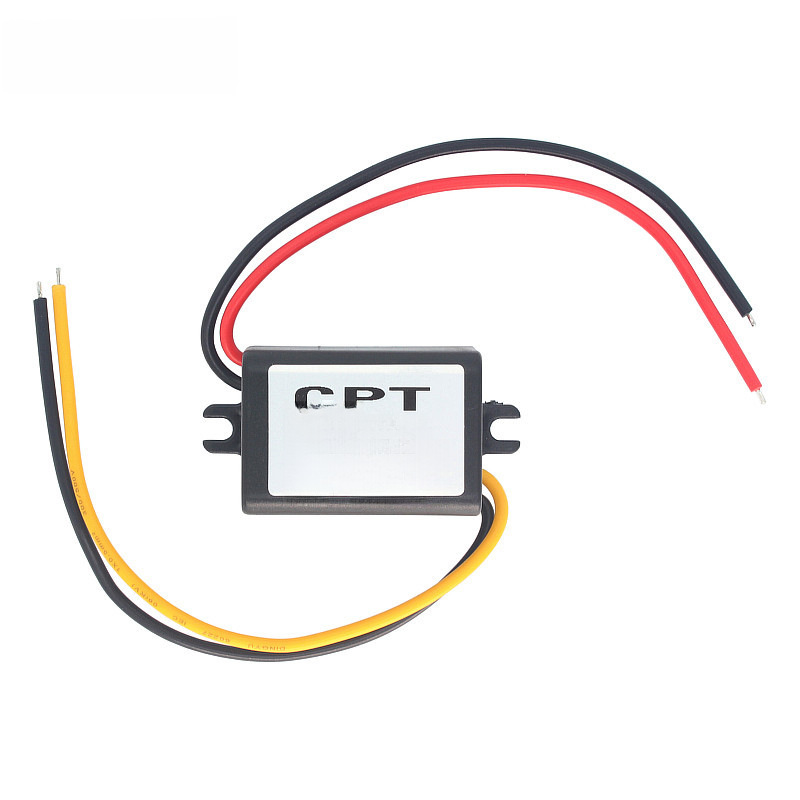

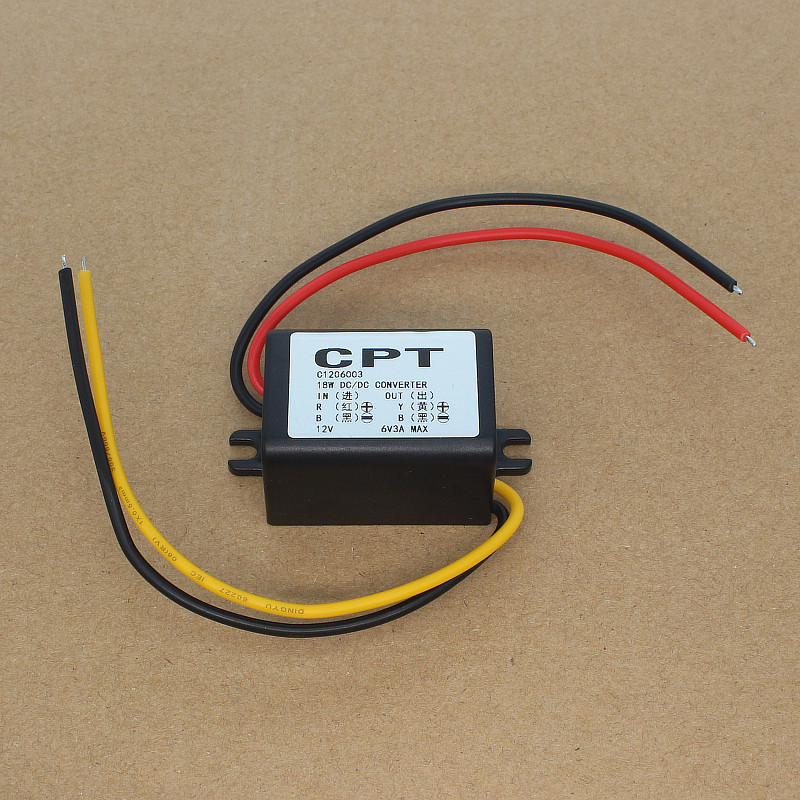

CPT Waterproof DC Anti-voltage Power Supply 8-23V12V to 6V 3A…

Product features:

• Highly integrated chips, all components from famous manufacturers, stable and reliable quality.
• Synchronous rectification technology, conversion efficiency up to 90%, low heat generation.
• It has over-current, over-temperature, and short-circuit protection functions, and can work normally after conditions are restored.
• It is made of epoxy resin, which is earthquake-resistant, waterproof, moisture-proof and dust-proof, and is stable and reliable.
• Small size, easy to install.

Basic parameters of the product:
Properties: Non-isolated DC step-down power supply
Input voltage range: DC 8-23V (typical input voltage 12V)
Output voltage: 6V fixed
Output current: maximum 3A
Output power: maximum 18W
Load regulation: ±3%
Conversion efficiency: typical value 90%
Static power consumption: <10ma
Work temperature: -25 ~ 65 ℃
Storage temperature: -40 ~ 80 ℃
Working humidity: 10%~90%RH
Anti -connection protection: Yes
Overcurrent protection: Yes
Temperature protection: Yes
Short -circuit protection: Yes
Waterproof level: IP67
Wire length: about 12cm

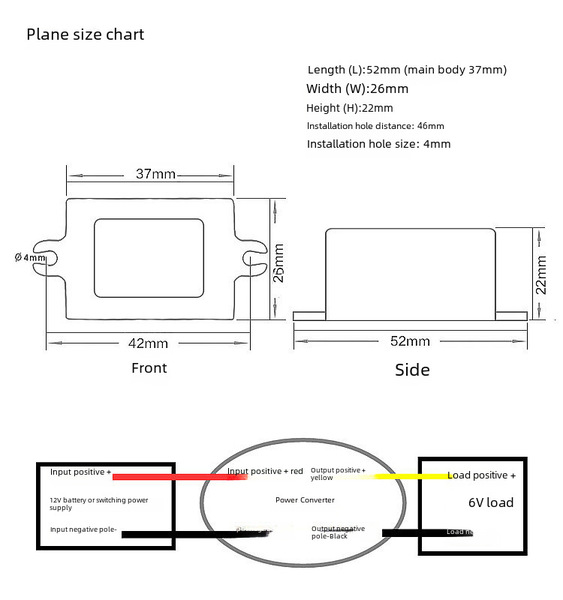

Input wire: red positive pole, black negative pole.0.5 square 20AWG power cord.
Output wire: yellow positive pole, black negative pole.0.5 square 20AWG power cord.
Weight: about 33 grams

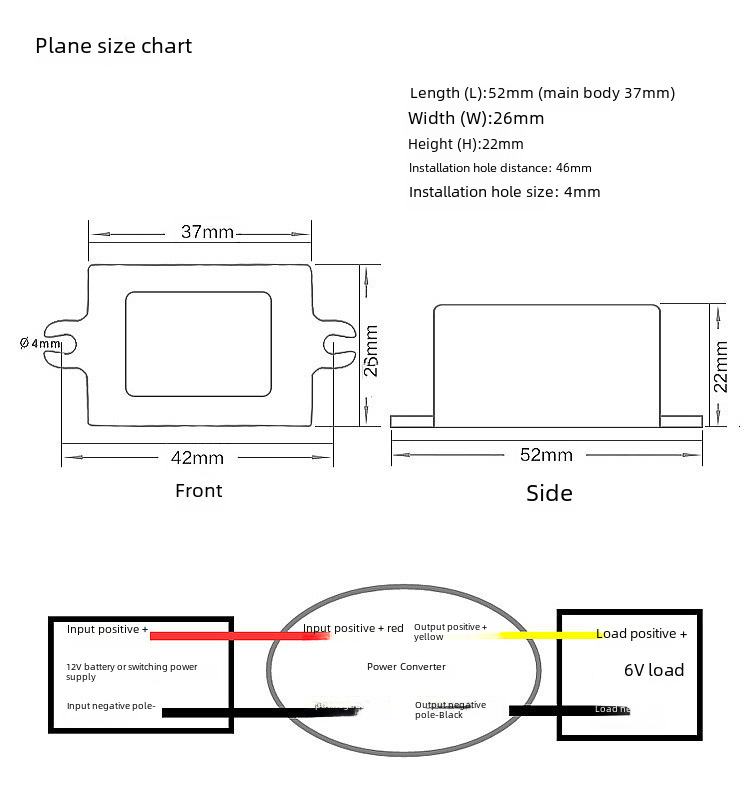

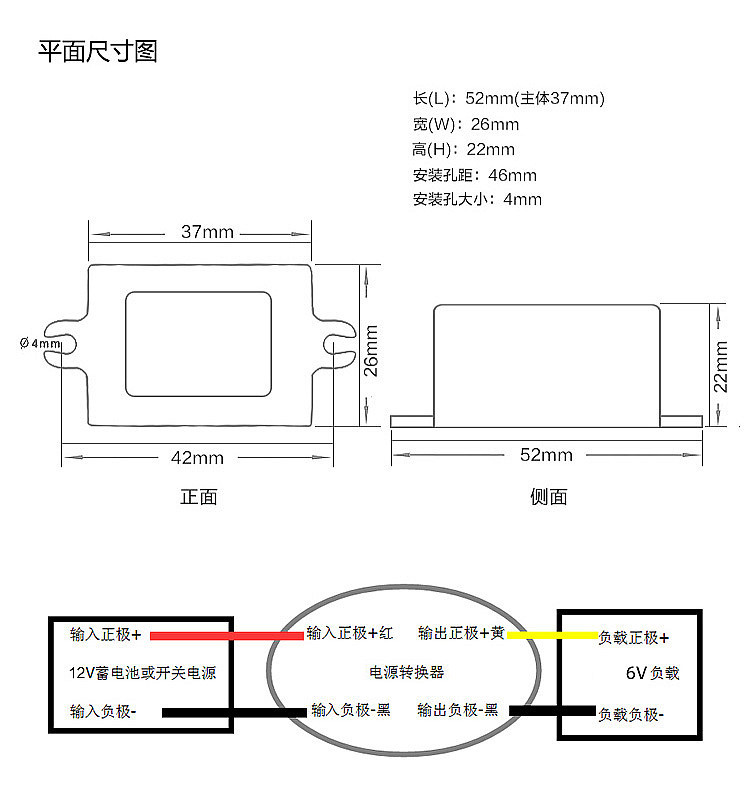

Volume: 37*26*22mm
